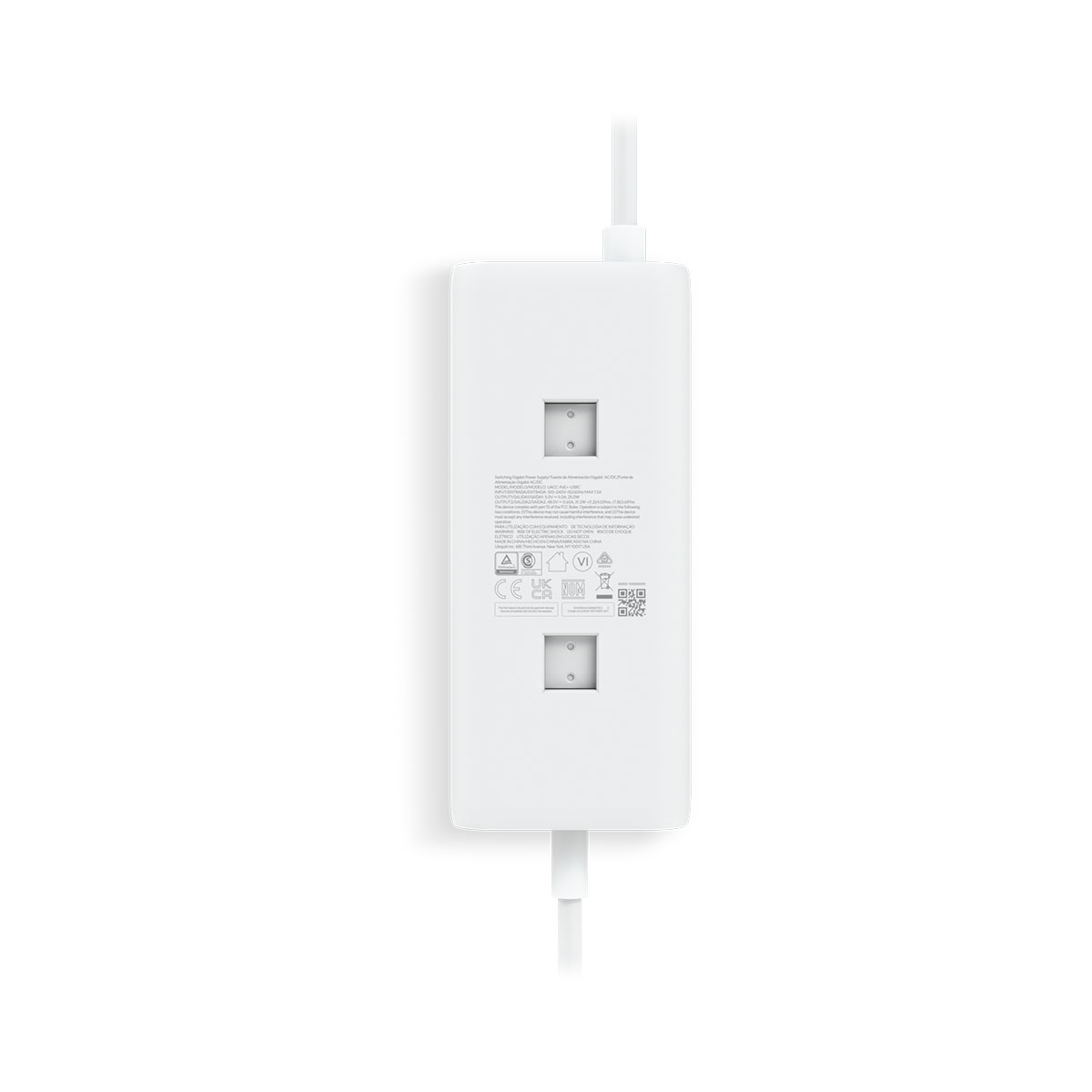

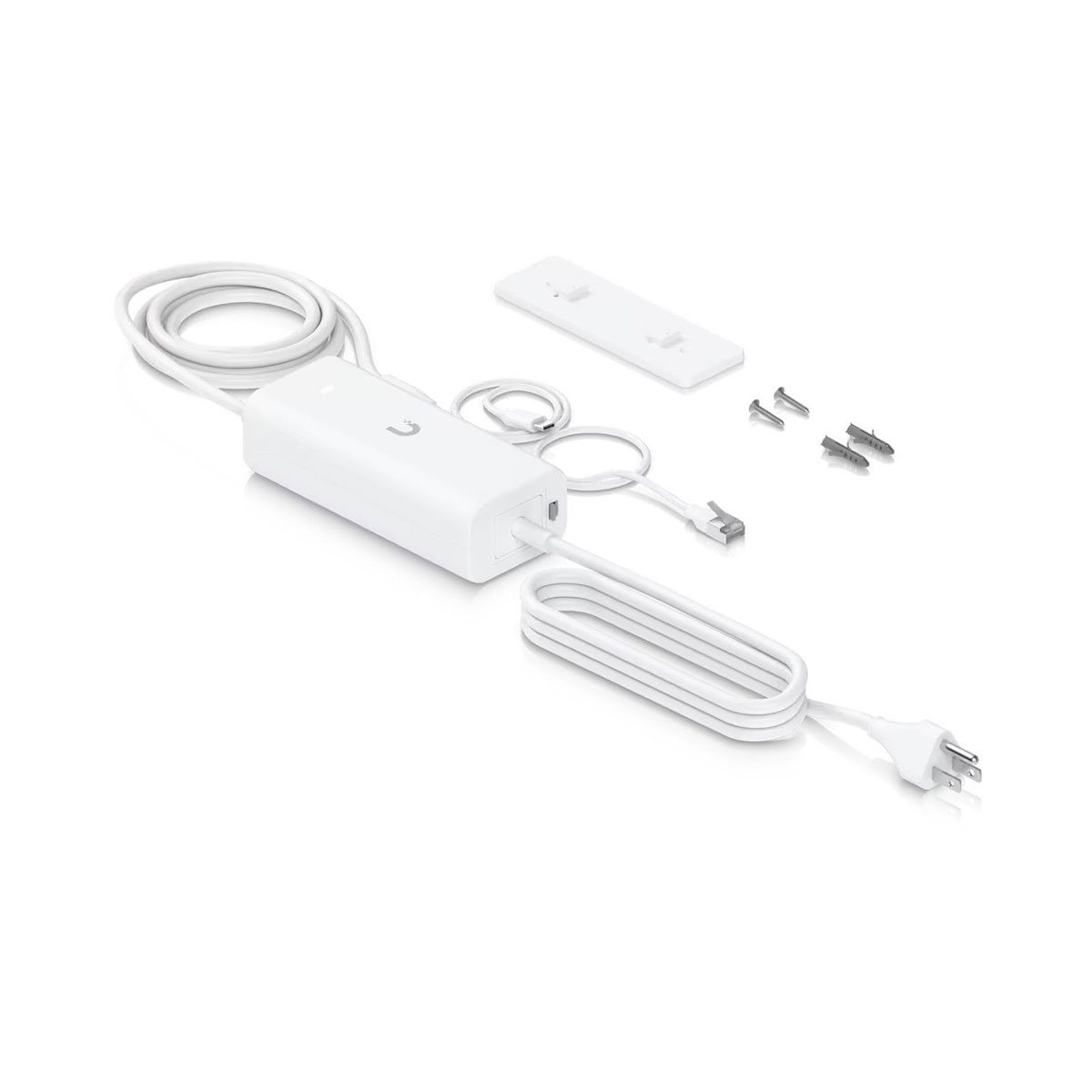

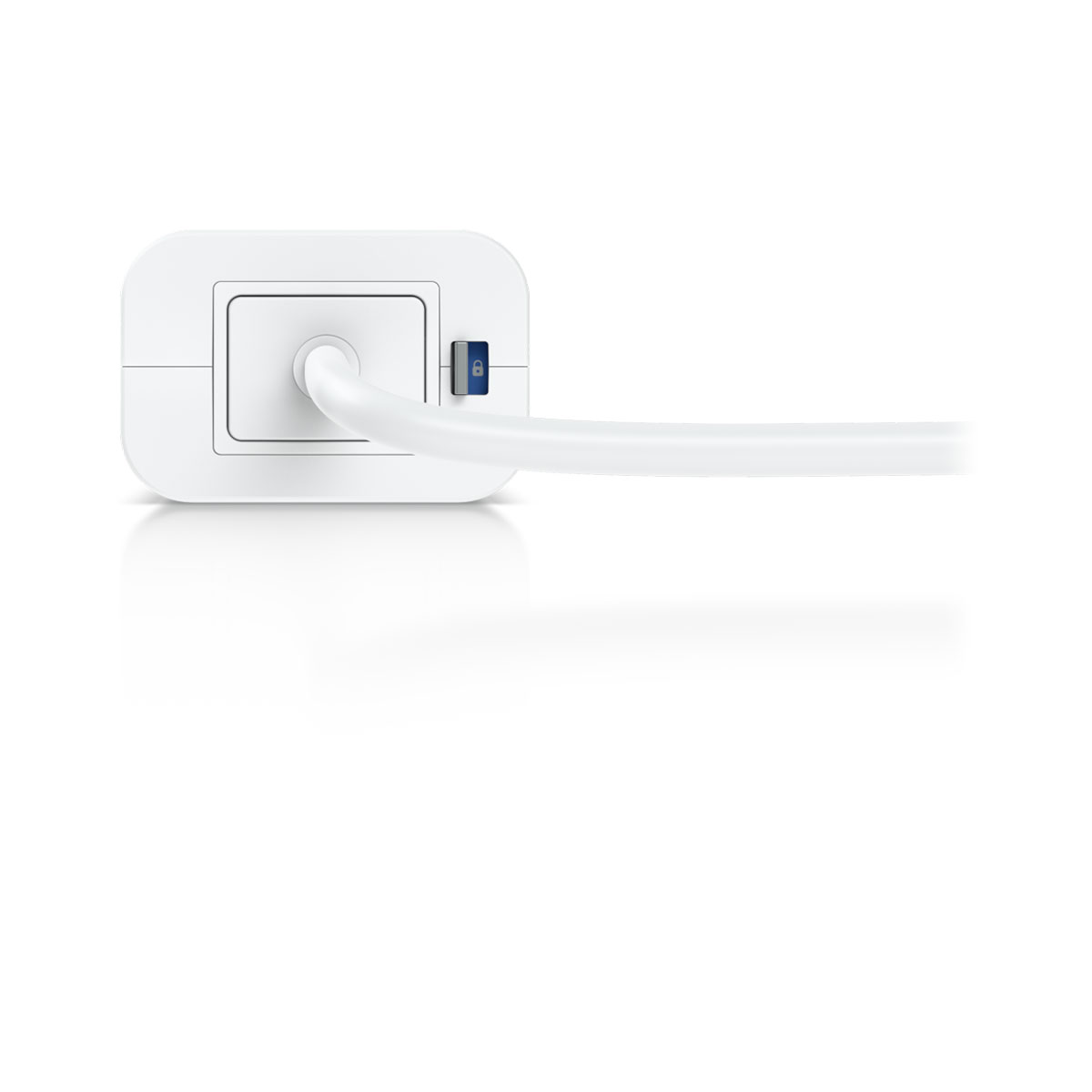

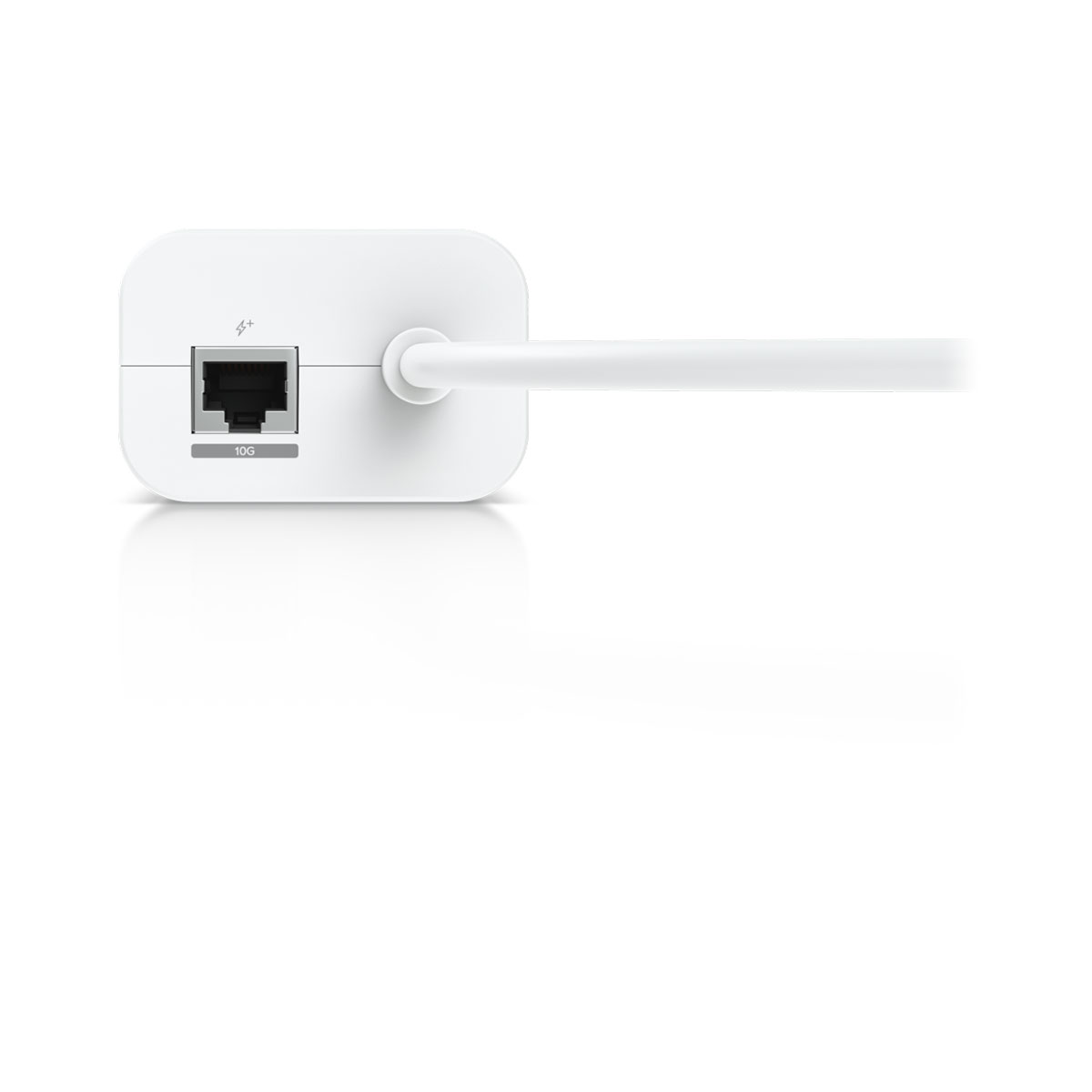

Ubiquiti UACC-POE+-USBC, PoE Integrated AC Adapter
Ubiquiti UACC-POE+-USBC, PoE Integrated AC Adapter
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port. Adapter is equiped with USB-C 5V/5A output and integrated PoE 48V/0.65A. PoE power is supplied on all pins: 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-). The adapter supports LAN speeds of up to 10Gb. The USB-C/Ethernet cable is 150 cm long, while the power cable is 180 cm long. With this adapter, you can connect your home router with USB-C power and an antenna or LTE for internet access using a single power outlet.
Compatible with:
- UCG-Ultra
- UCG-Max
- UXG-Lite
- UXG-Max
- UX
Overview | |
Dimensions | 46 x 62 x 42 mm |
Weight | 358 g |
Length | Cable: 150 cm total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm |
Output Voltage | Type-C: 5V@ 5A PoE+: 48V@ 0.65A |
Rated Voltage | 100—240V AC @ 50/60Hz |
Gigabit LAN Port | Yes |
4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
Clamping Protection | 11V data, 60V power |
Data In / PoE | RJ45 shielded socket |
Input Current | 1.5A max. |
Inrush Current | 120A |
Efficiency | 82% |
Switching Frequency | 65 kHz |
Output Ripple | 1% max. |
Line Regulation | ≤ 5% |
Load Regulation | ≤ 5% |
Max. Surge Discharge | 1500A (8/20 μs) power |
Peak Pulse Current | 36A (10/1000 μs) data |
Response Time | <1 ns |
Shunt Capacitance | <5 pF data |
Surge Protection | Difference and common mode |
Ambient Storage Temperature | -30 to 70°C |
Ambient Operating Temperature | 0 to 40° C |
Ambient Operating Humidity | 10 to 95% noncondensing |
NDAA Compliant | Yes |
Certifications | CE, FCC, IC, UL, UKCA, CCC, KC, RoHS |
