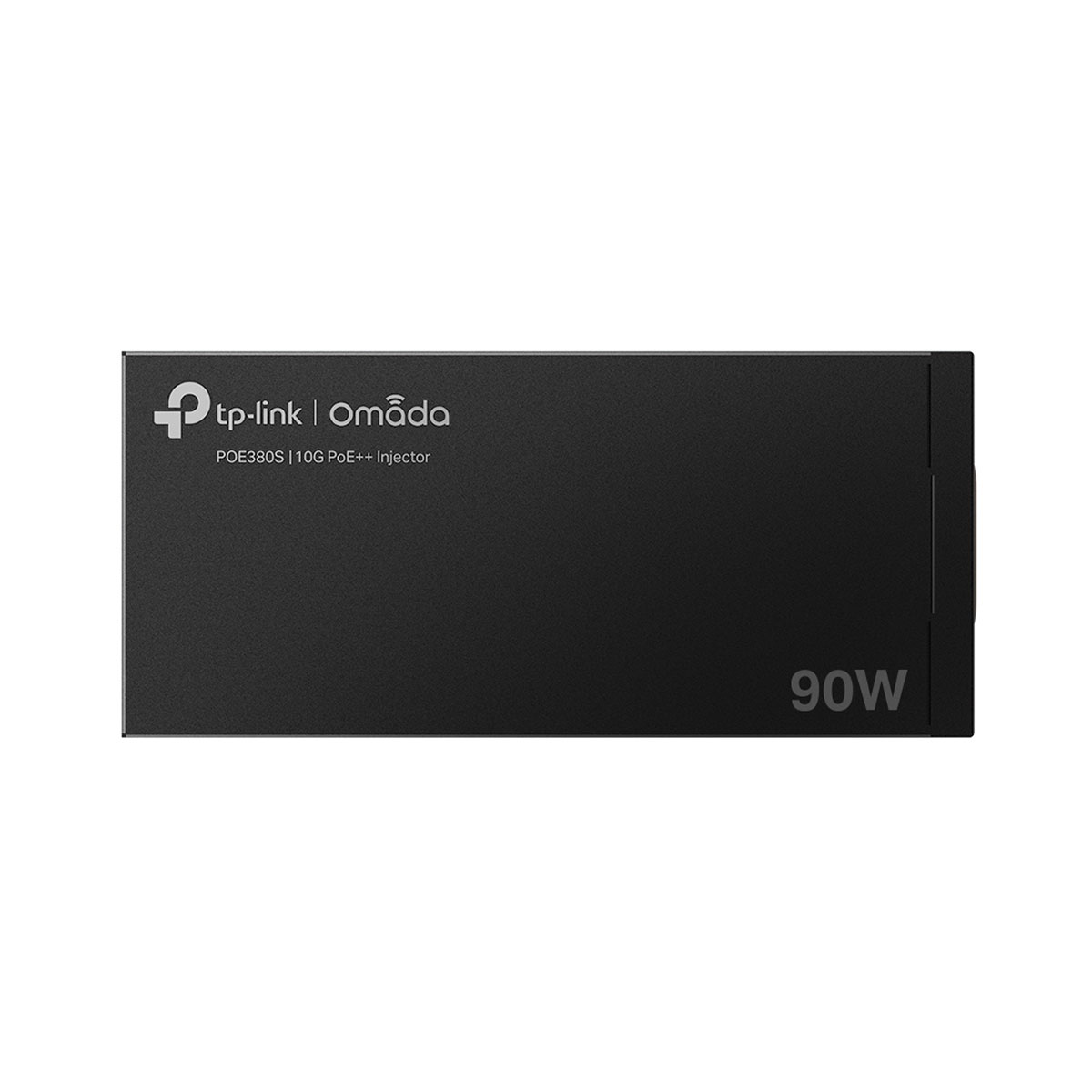

TP LINK POE380S, V2 Omada PoE++ Injector
Product Code:
POE380S
79,00 €
(Includes VAT 24%)
Sales price without VAT:
63,71 €
Available
TP LINK POE380S V2, Omada PoE++ Injector
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
| • 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission • Complies with IEEE802.3af/at/bt standards, supplies up to 90 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device's need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation, no configuration required • Integrated power supply • Durable metal casing |
What This Product Does
The Omada PoE++ Injector POE380S fully complies with IEEE 802.3af/at/bt standards with up to 90W
(802.3bt type 4) power supply.* It can easily expand your network to where there are no power lines or
outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
Characteristics
| HARDWARE FEATURES | |
| Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |

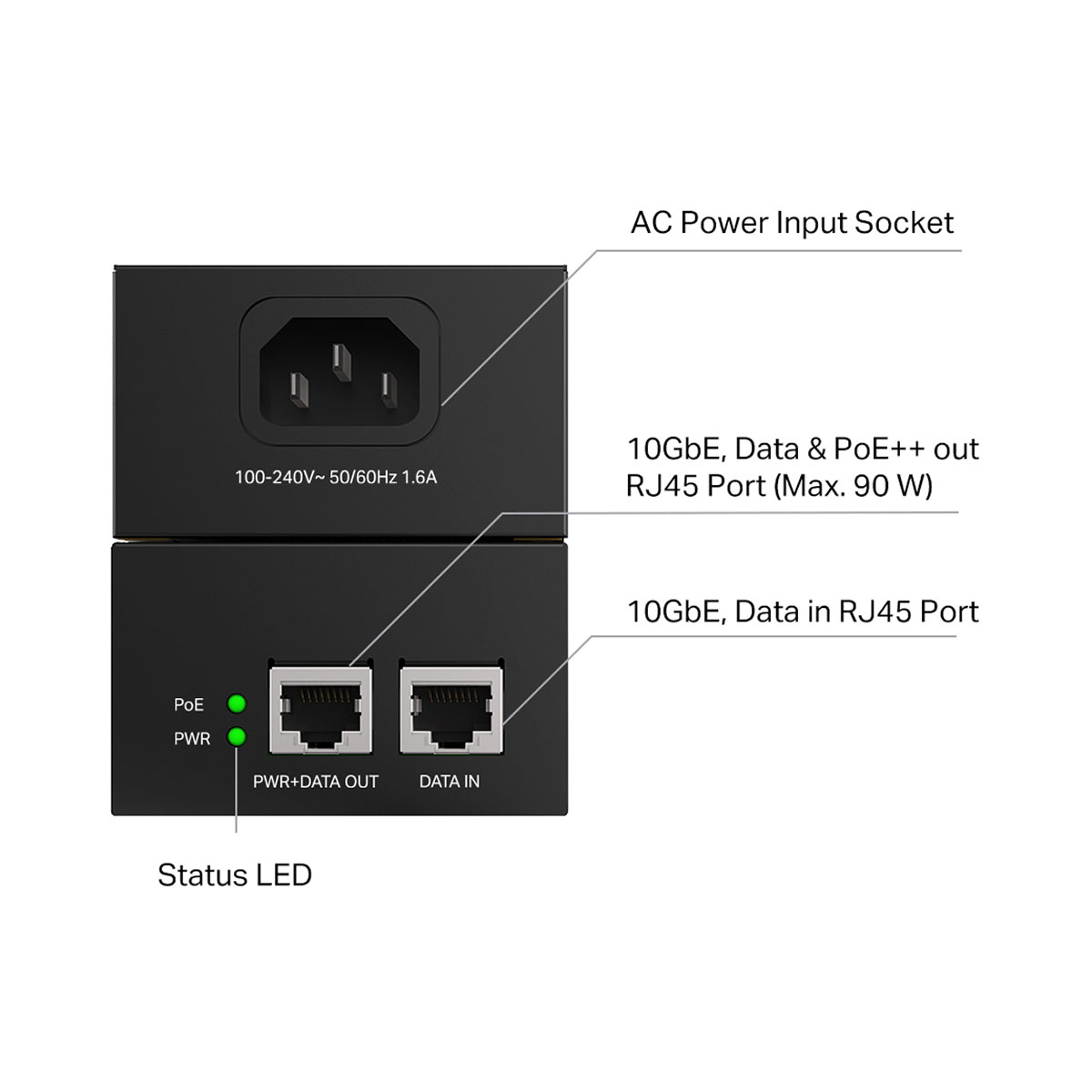

| Interface | 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) 1× AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Max. Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation Plug-and-Play |
| LED | Power / PoE |
| Dimensions(WxDxH) | 155*70*42 mm |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | POE380S Power Cord Installation Guide |
| Environment | Operating Temperature: 0°C to 45°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
