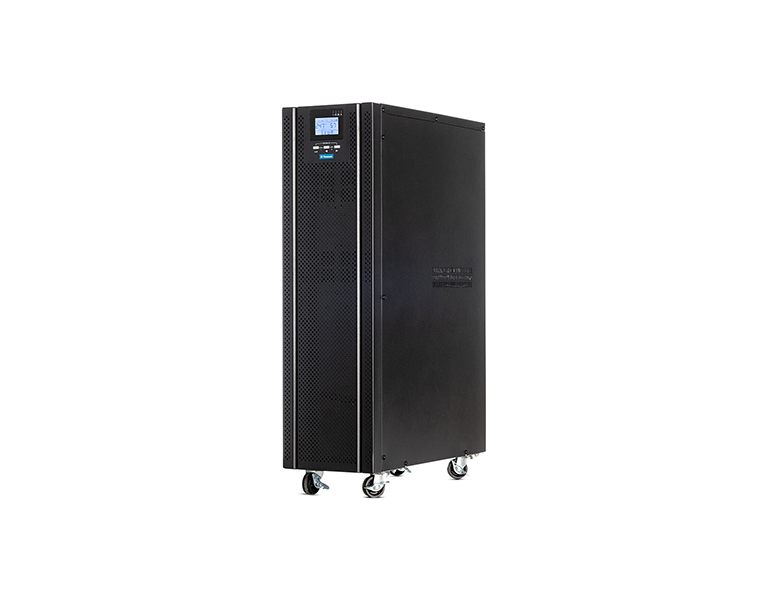

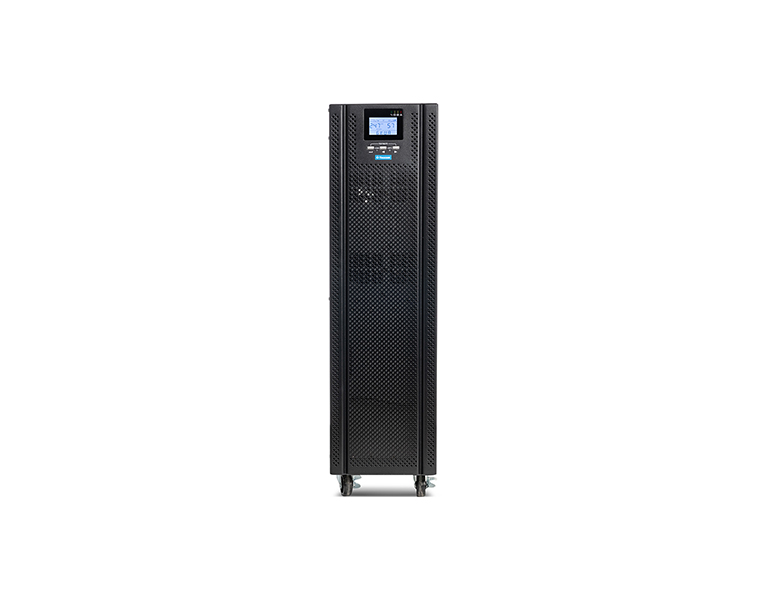

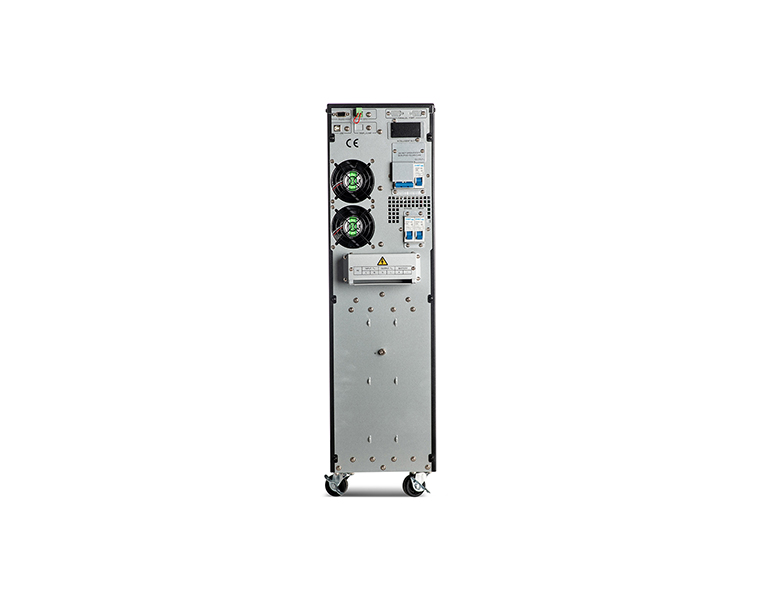

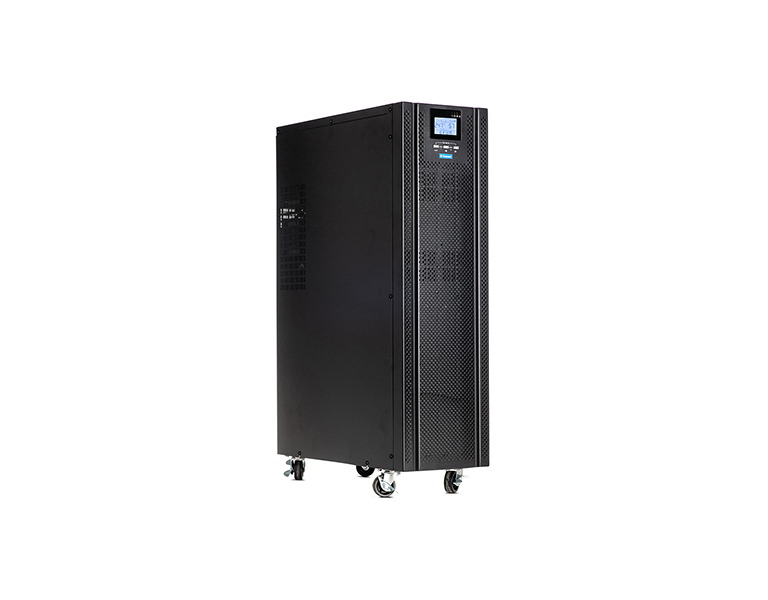

Smart single-phase ON-LINE UPS with advanced DSP and 3-level technology, full digital control, zero transfer time, pure sine wave output and high efficiency with Power Factor = 1. The Prime Pro series provide excellent protection in installations with critical loads, by eliminating all electrical disturbances and power cuts. It is the ideal solution for the protection of servers, computer applications, security equipment, medical and laboratory equipmentand lightweight industrial applications.
Features:
• Online – Double conversion UPS
• Advanced DSP and 3-level technology
• Output power factor 1.0
• Active power factor correction (APFC), input power factor up to 0.99
• High efficiency 95% (up to 98% in ECO mode)
• Advanced digital parallel technology up to 4 Units
• Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz), 50 / 60 Hz frequency auto sensing
• Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
• Dual-input design, supporting independent bypass
• Flexible battery configuration (16 - 20 pcs
• Digitally controlled charger
• Configurable charging voltage and current
• Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
• Intelligent battery management, automatic floating/ equalizing charging control, charger dormancy control, increasing battery life by 50%
• Cold startup when the utility power is out
• Configurable delayed start time when mains power is restored, reducing the impact on power grid or generator
• Intelligent fan speed configuration in order to reduce noise and extend its service life
• Compact design with small footprint
• EPO (Emergency Power Off)
• Includes software for UPS monitoring for Windows
| Specifications: | |
| Capacity | 10 kVA / 10000 W |
| Input | |
| Input wiring | Single-phase three-wire (1Φ + N + PE) |
| Rated voltage | 208 / 220 / 230 / 240 Vac |
| Voltage range | 110 ~ 176 Vac (linear derating between 50% and 100% load) 176 ~ 288 Vac (no derating) |
| Rated frequency | 50 / 60 Hz (auto-sensing) |
| Frequency | 40 ~ 70 Hz (auto-sense) |
| Power factor | ≥ 0.99 |
| Bypass voltage range | -40% ~ +15% (settable) |
| Total harmonic distortion (THDi) | ≤ 5% |
| Output | |
| Output wiring | Single-phase three-wire (1Φ + N + PE) |
| Rated voltage | 208 (PF=0.9) / 220 / 230 / 240 Vac |
| Voltage regulation | ± 1% |
| Frequency | Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode |
| Waveform | Sinusoidal |
| Power factor | 1 |
| Crest factor | 3:1 |
| Total harmonic distortion (THDv | ≤ 1% (linear load); ≤ 4% (non-linear load) |
| Overload | 105% ~ 110% for 10 min, 110% ~ 125% for 1 min, 126% ~ 150% for 30 s |
| Batteries | |
| DC voltage | 192 Vdc (192 ~ 240 Vdc settable) |
| Inbuilt battery | 12 V / 9Ah x 20 |
| Charging current | 1 A |
| Recharge time | Standard model: 90% capacity restored in 8 hours |
| System | |
| SYSTEM Efficiency | ≥ 94% at 100% load, max. 95% at 60% load, ≥ 98% in ECO mode |
| Transfer time | 0 ms |
| Protections | Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure |
| Max. number of parallel connections | 4 |
| Communications | RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional) |
| Display | LCD + LED |
| Other Specs | |
| Operating temperature | 0 ~ 40°C |
| Storage temperature | -25, 55)°C (without batteries) |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Altitude | ≤ 1000 m, derating 1% for each additional 100 m |
| IP rating | IP 20 |
| Noise level at 1m | ≤ 58 dB |
| Dimensions (W×D×H) (mm) | 191 × 495 × 711 |
| Packaged dimensions (W×D×H) (mm) | 310 × 685 × 941 |
| Net weight (kg) | 72 |
| Gross weight (kg) | 81 |
