Ubiquiti U-Cable-C6-CMR UniFi Cable, CAT6, CMR, 23 AWG, 305m
Overview

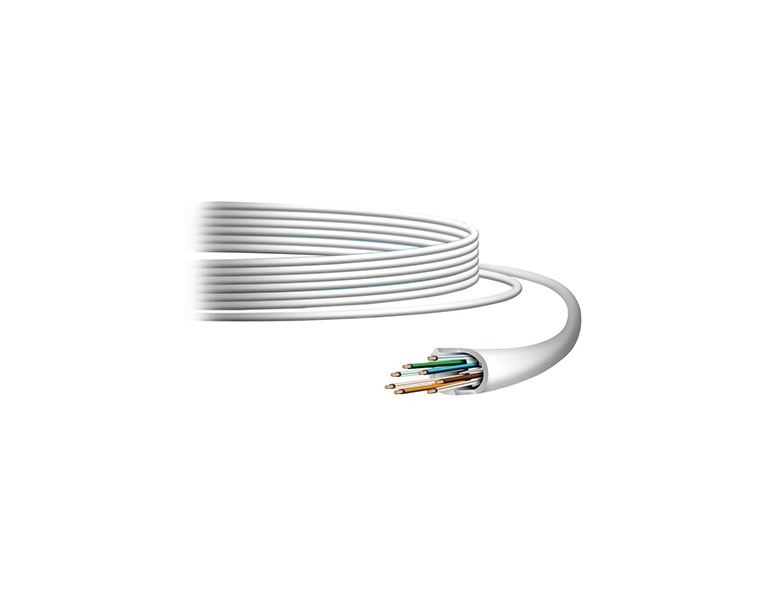

Ubiquiti Networks introduces UniFi® Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.
Performance

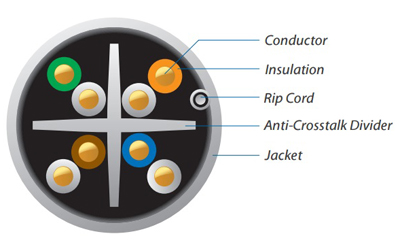

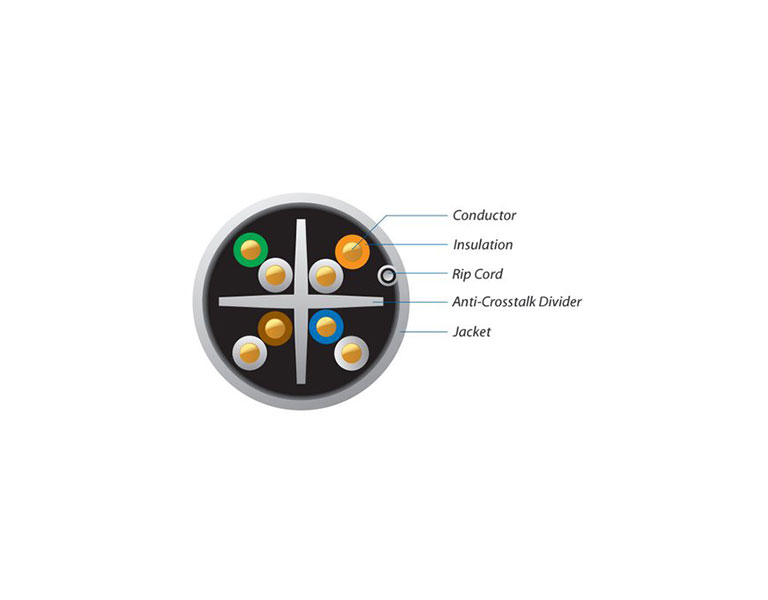

Available in lengths of 1000 ft (304 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G* Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.
Environment
CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non‑plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications.
*We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors
| Specifications | |
| Cable | Category 6 |
| Ethernet Support | Up to 10 Gbps |
| Conductor Type | Bare Solid Copper |
| Conductor Wire Gauge | 23 AWG |
| Conductor Diameter | 0.575 mm, Nominal |
| Insulation Type | FR-PE |
| Insulation Thickness | 0.2 mm, Nominal |
| Insulation Diameter | 1.0 ± 0.1 mm |
| Anti-Crosstalk Divider Type | FR-PE |
| Anti-Crosstalk Divider | 5.0 x 0.5 mm, Nominal |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Jacket Thickness | 0.5 mm, Nominal |
| Jacket Outer Diameter | 6.0 ± 0.3 mm |
| Jacket Color | White |
| Reference Standard | ISO/IEC 11801, TIA/EIA568B.2 |
