Ubiquiti UCK-G2-SSD UniFi Cloud Key Plus, Pre-Installed 1TB SSD
CAUTION PACKAGE DOES NOT INCLUDE POWER SUPPLY
UniFi Cloud Key+ SSD combines the best of local and cloud-based device management. It comes pre-installed with UniFi applications (UniFi Network, UniFi Protect, UniFi Access, UniFi Connect, and UniFi Talk) for managing and configuring UniFi products. The front display shows basic information about your network, such as the number of connected APs and clients, or the time of the last motion detection. It supports Bluetooth for quick configuration via mobile apps.
Video recordings from cameras are stored directly on the built-in 1 TB SSD, which can be replaced with a higher capacity drive. The Cloud Key+ supports only drives that operate with 5V power. Drives requiring additional or higher power are not supported. Additionally, it has an integrated battery that ensures a safe shutdown of all running processes and powers down the device in case of a power loss.
Features:
• Front display
• Built-in battery for safe shutdown
• Powered via PoE 802.3af (48V injector) or USB-C (9V / 2A DC adapter) - not included
• Simple setup via phone
Number of supported cameras: (24) HD, (14) 2K, (8) 4K
| Specifications | |
| Mechanical | |

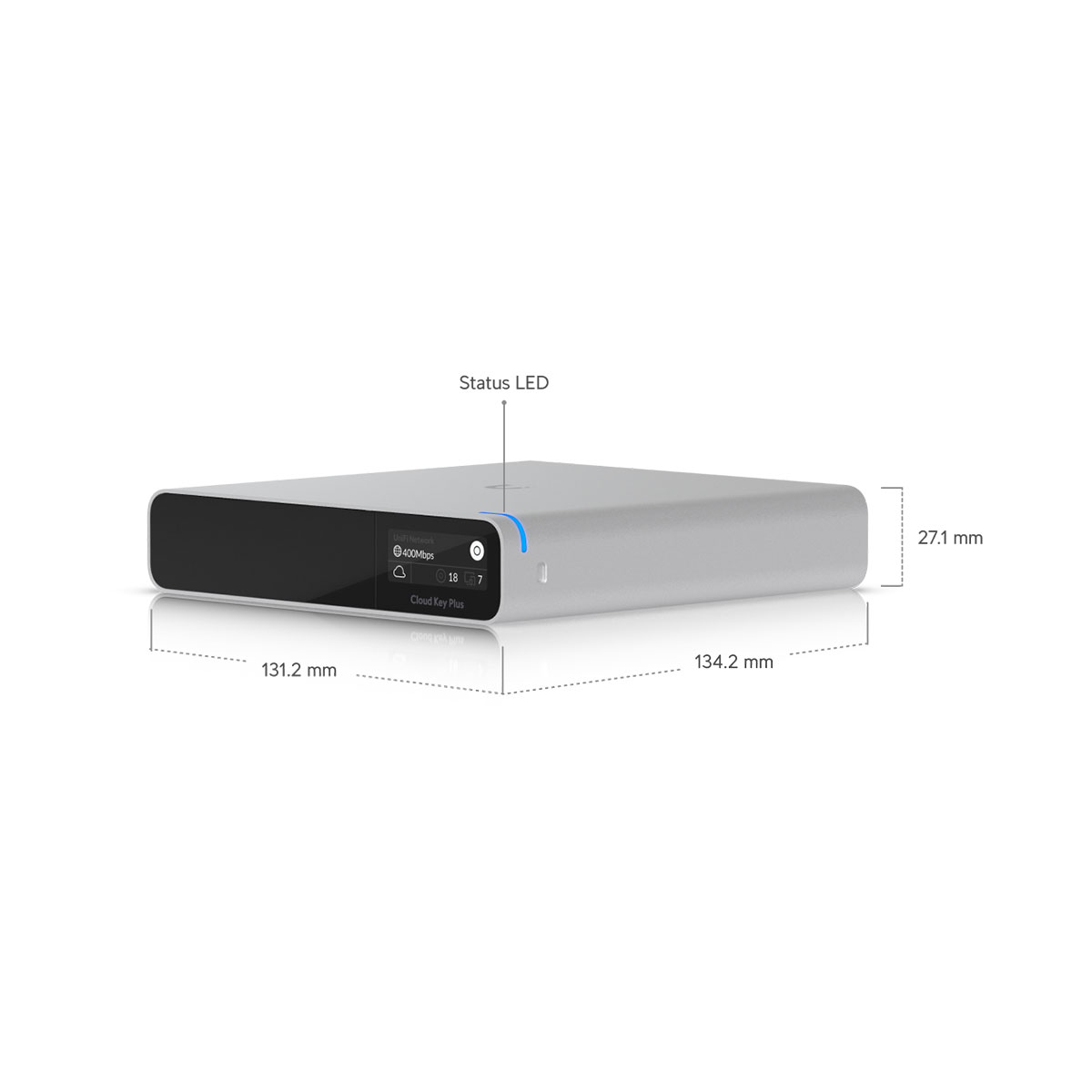

| Dimensions | 131.2 x 27.1 x 134.2 mm |
| Weight | 560 g |
| Enclosure | Anodized Aluminum |
| Hardware | |
| Management Interface | Ethernet Bluetooth |
| Processor | Octa-core Arm® Cortex®-A53 based chip |
| SSD Capacity |
1TB 2.5" SATA SSD (user-upgradeable*) *CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported. |
| Networking Interface | (1) GbE RJ45 Port |
| Memory | 32 GB eMMC 3 GB RAM |
| Buttons | (1) Power (1) Reset |
| LEDs | (1) Power, White/Blue |
| Power Method | PoE Quick charge 2.0/3.0 power adapter, 9V DC, 2A |
| Max. Power Consumption | 9.6W |
| Display | 1.42" gray-scale OLED |
| Ambient operating Temperature | 0 to 35° C |
| Ambient operating humidity | 20 to 80% Noncondensing |
| Certifications | CE, FCC, IC |
| Capacity | |
| HD cameras | 24 |
| 2K cameras | 14 |
| 4K cameras | 8 Assumes the UCK-G2-SSD is dedicated on UniFi Protect only. It's also running UniFi Network, your maximum camera limit will be lower. |
