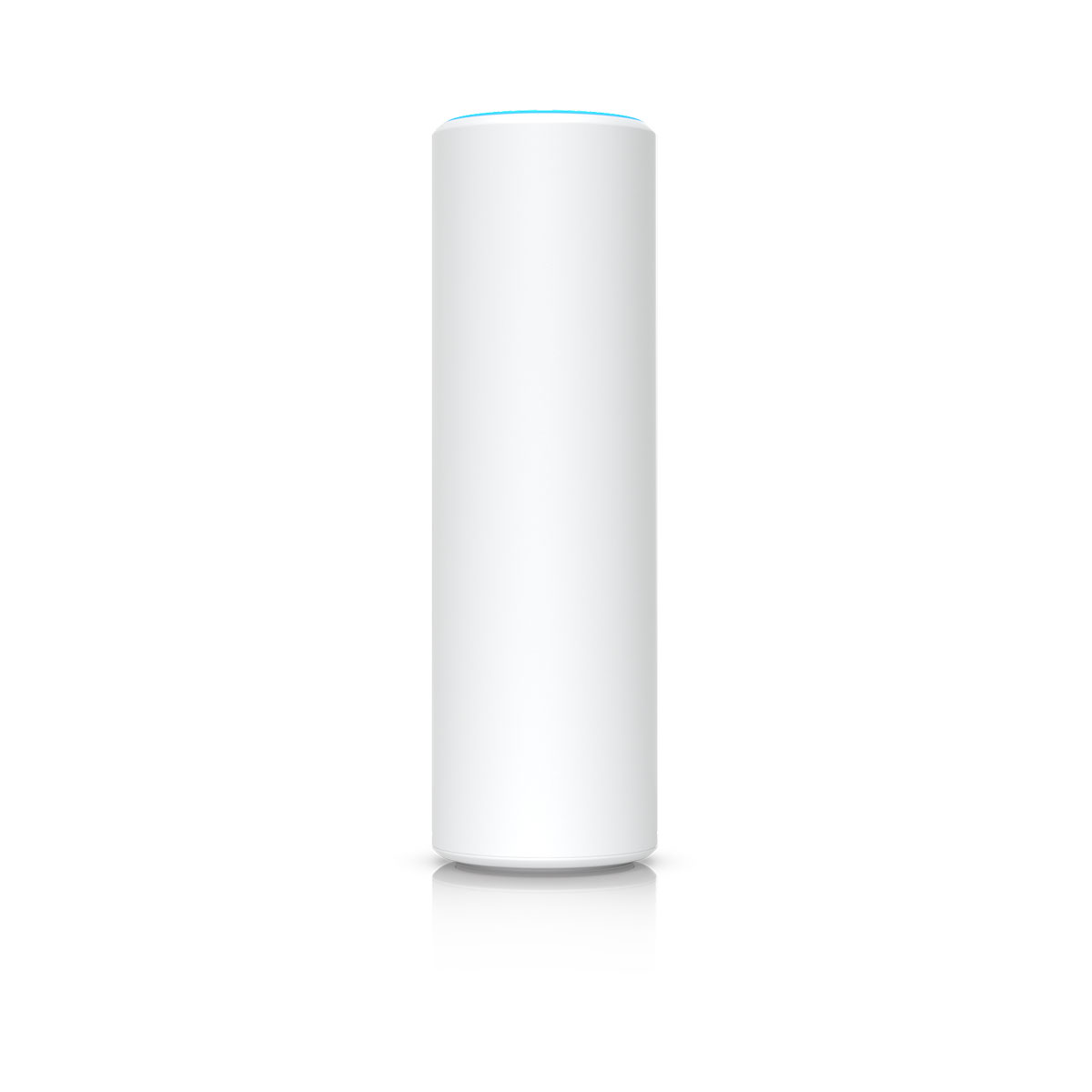

Ubiquiti U6-MESH, UniFi 6 Mesh Wi-Fi 6 Access Point with 4x4 MU-MIMO
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
• High-efficiency 4x4 WiFi 6 (802.11ax)
• 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
• 2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
• Operates at full 4x4 MIMO with 160 MHz bandwidth

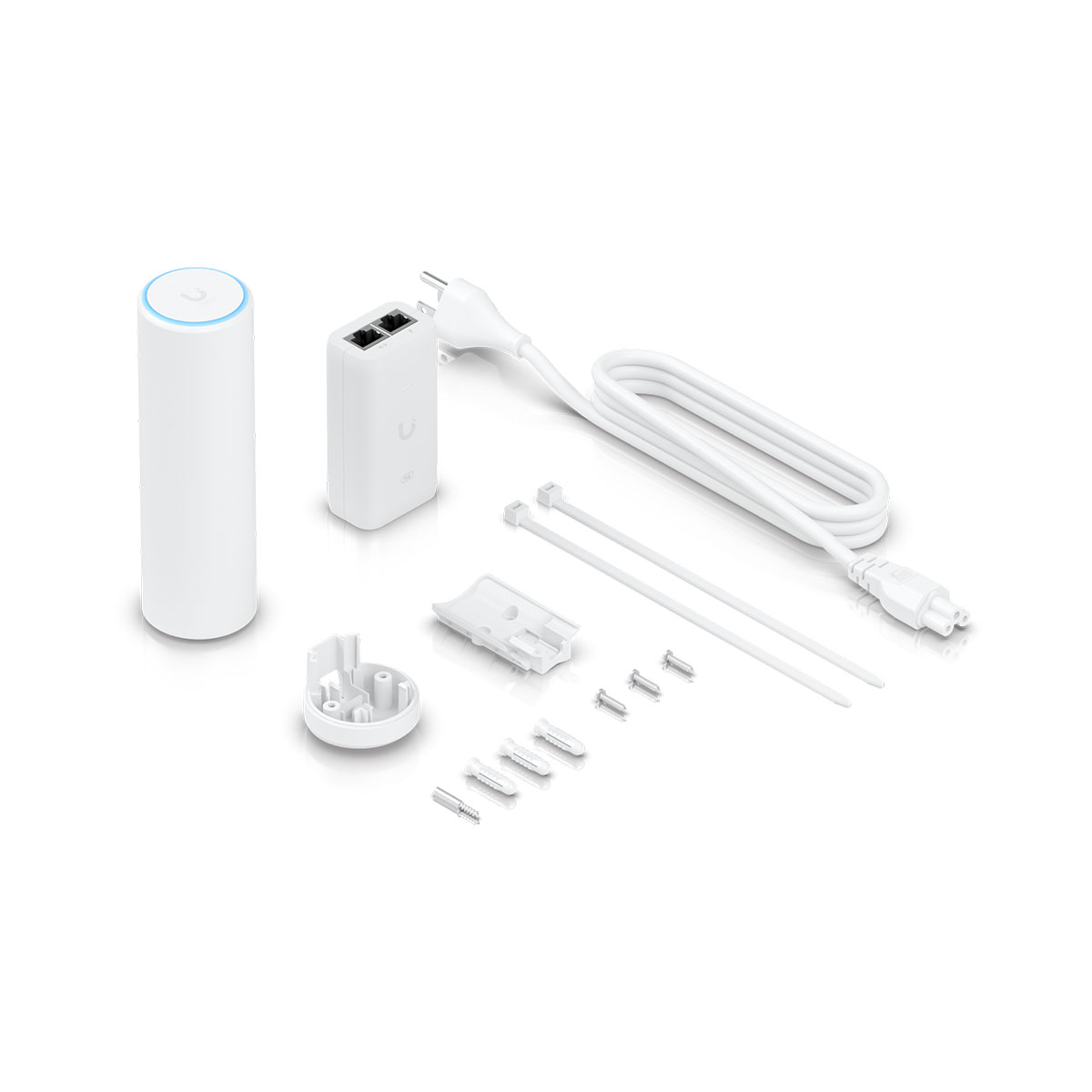

• Powered with 802.3af PoE (PoE adapter included)
Adopt the U6-Mesh in Minutes with Your UniFi Network Application and:
• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app
| Specifications | |
| Mechanical | |

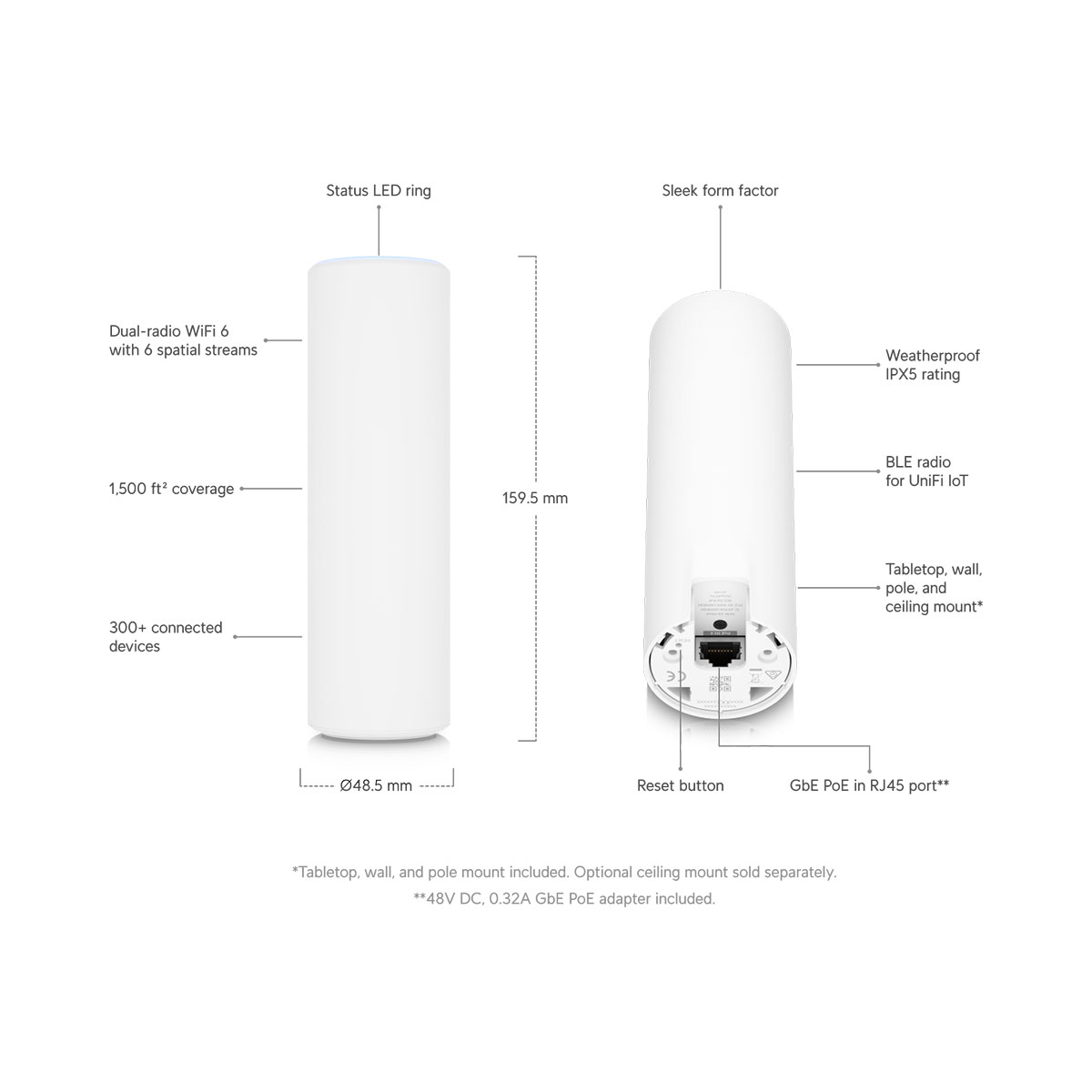

| Dimensions | Ø48.5 x 159.5 mm |
| Weight | 400 g |
| Enclosure Material | Plastic, aluminium |
| Mount material | Plastic |
| Weatherproofing | IPX5 |
| Hardware | |
| Management Interfaces | Ethernet Bluetooth |

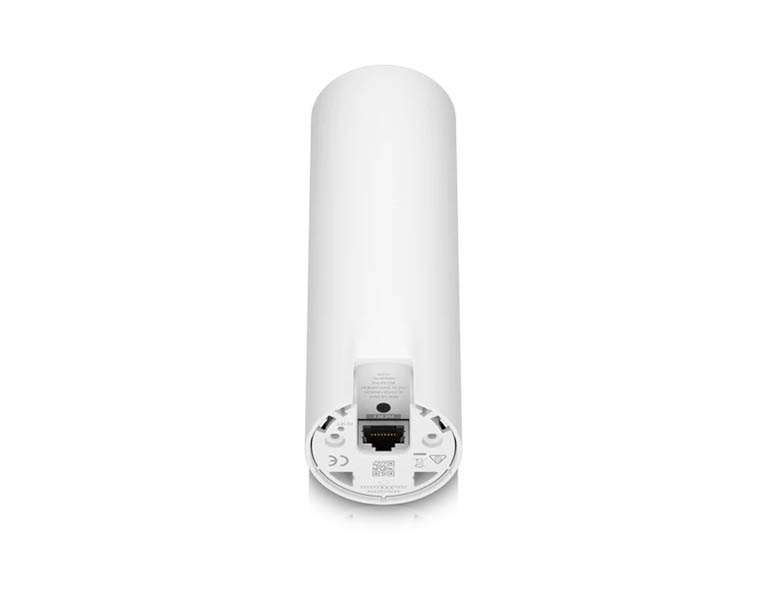

| Networking Interface | (1) GbE RJ45 port |

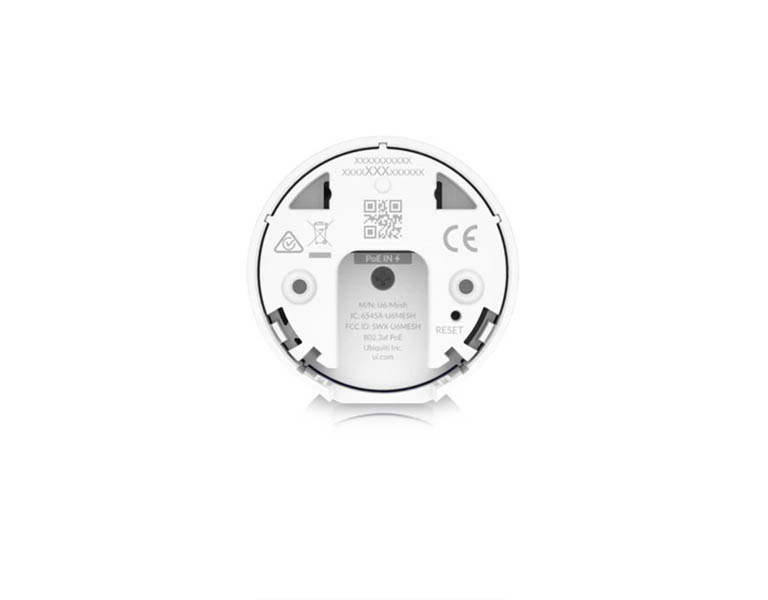

| Buttons | Factory Reset |
| LED* | White/Blue *Due to chip supply shortages,the U6 AP's LED has been limited to only white and blue color modes. |
| Power Method | 802.3af PoE |

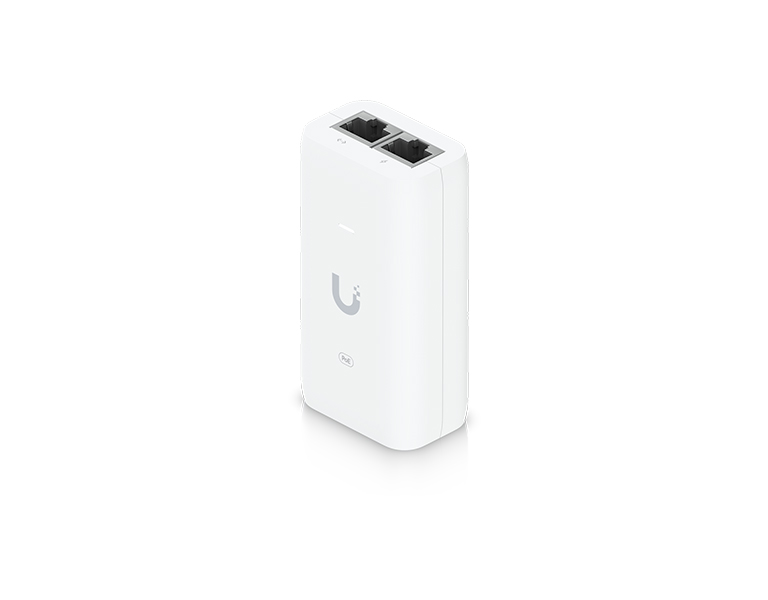

| Power Supply | UniFi PoE switch 48V, 0.32A PoE adapter (included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 11.4W |
| Max. TX Power 2.4GHz 5GHz |
22 dBm 26 dBm |
| MIMO 2.4GHz 5GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput Speeds 2.4GHz 5GHz |
573.5 Mbps 4.8 Gbps |
| Antenna Gain 2.4GHz 5GHz |
3 dBi 5 dBi |

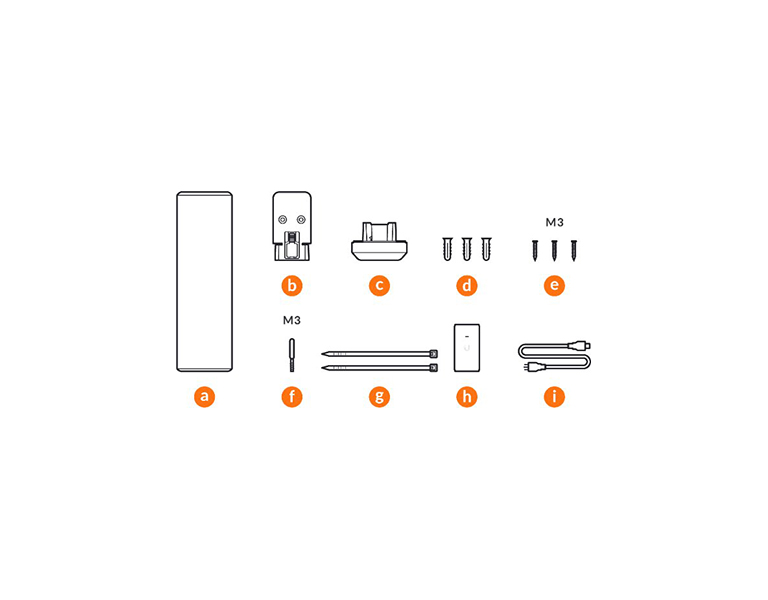

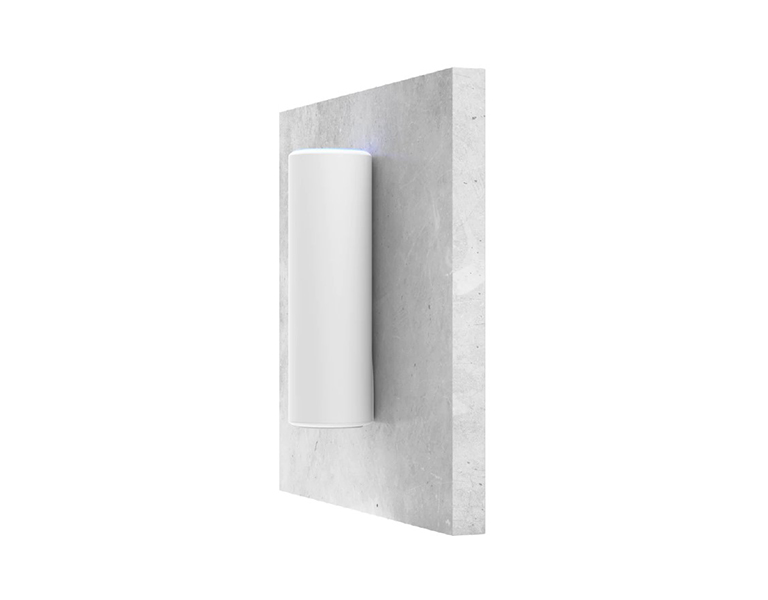

| Mounting | Wall, desktop, pole mount (included) Ceiling mount (optional) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
