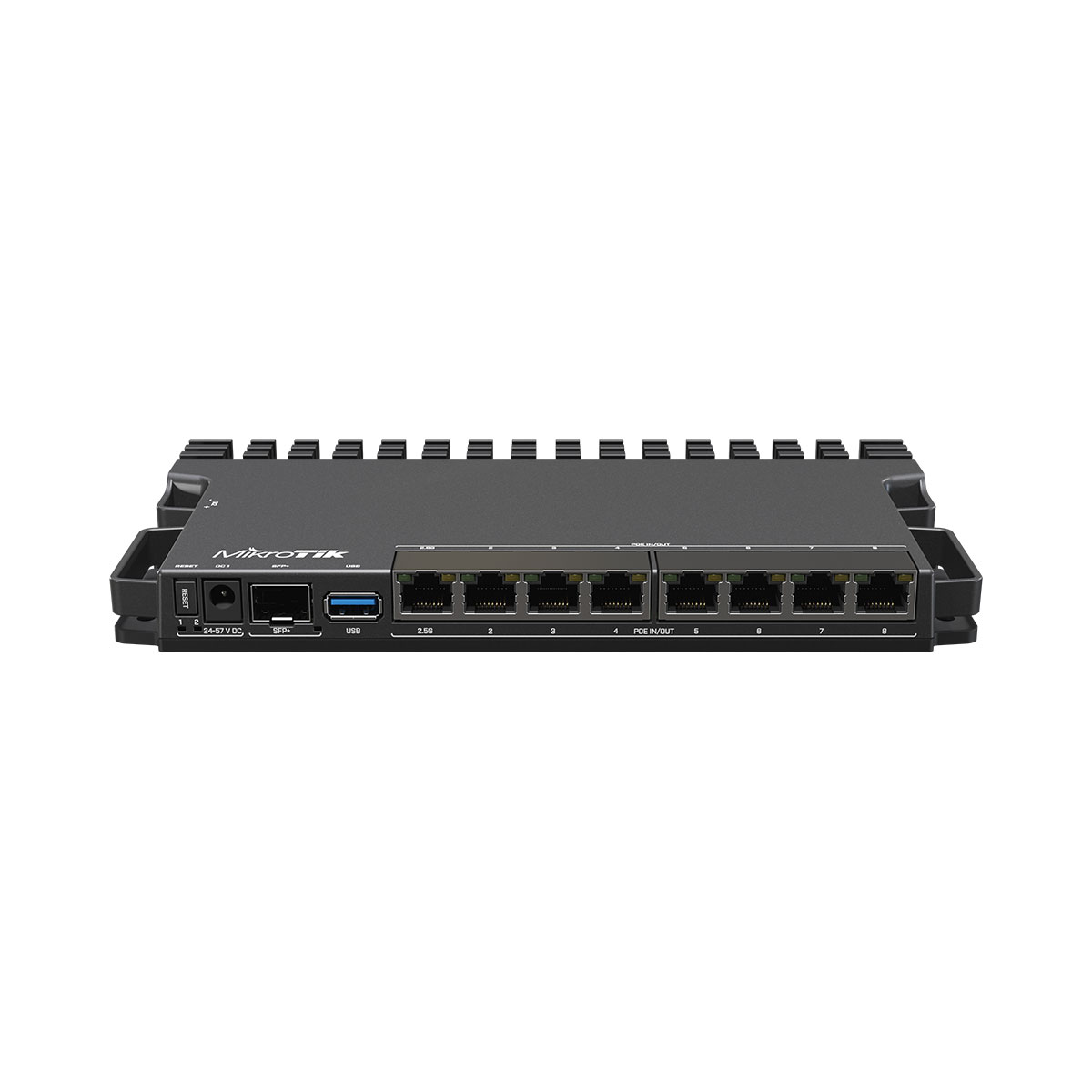

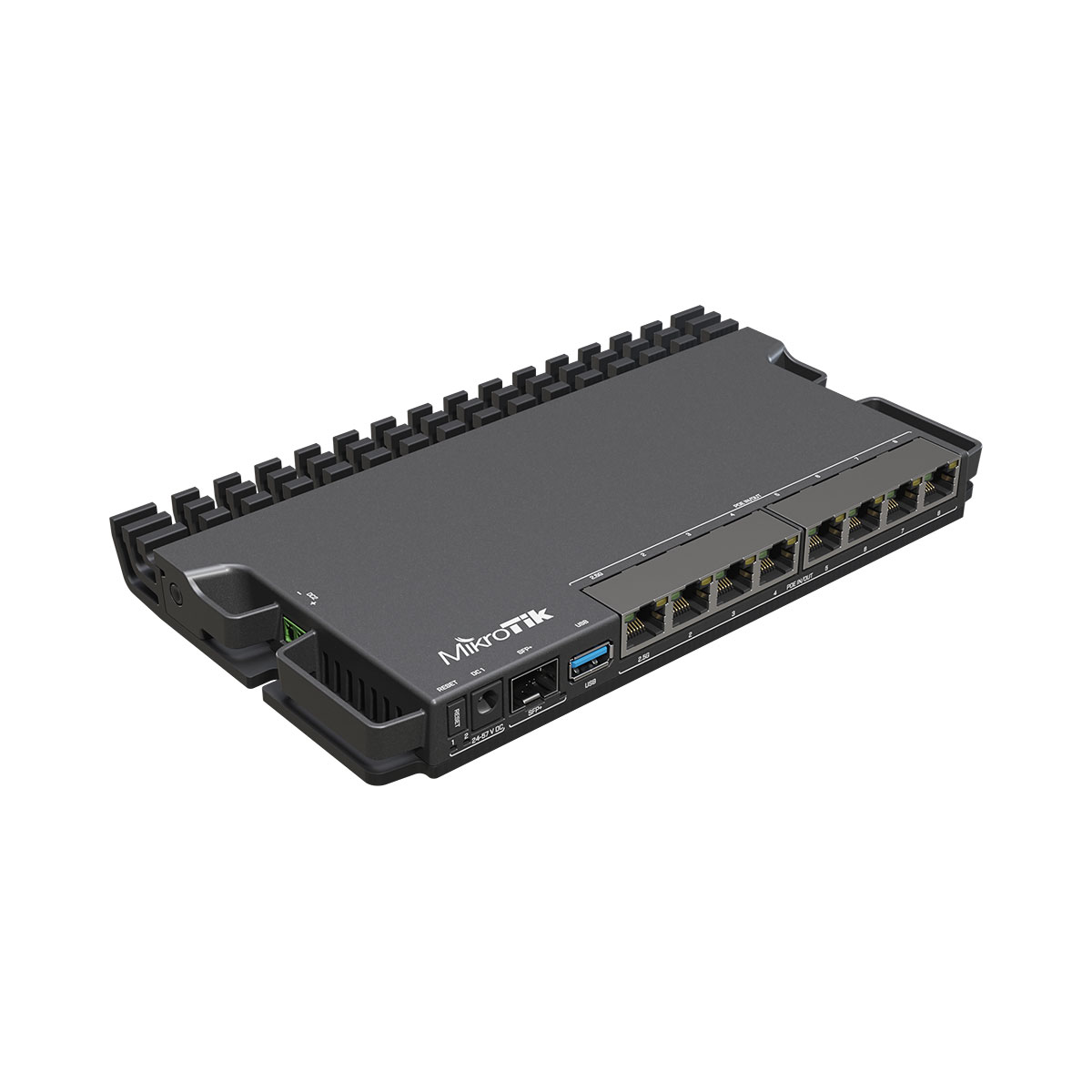

MikroTik RB5009UPr+S+IN RouterBOARD, 7xGig, 1x2.5Gig, 1xSFP+, RouterOS L5

Product Code:
RB5009UPr+S+IN
315,00 €
(Includes VAT 24%)
Sales price without VAT:
254,03 €
Available
MikroTik RB5009UPr+S+IN RouterBOARD, 7xGig, 1x2.5Gig, 1xSFP+, RouterOS L5
Shipping cost calculation:
Quantity
Add to Cart
Category:
Manufacturer:
Warranty:
12 Months
Description
Characteristics
Downloads
Description




This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, MikroTik has added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with MikroTik's legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!

Characteristics
Specifications
Product code RB5009UPr+S+IN
CPU 88F7040 1.4 GHz
CPU core count 4
CPU architecture ARM 64bit
Size of RAM 1 GB
RAM type DDR4
Storage 1 GB, NAND
Number of 1G Ethernet ports 7
Number of 2.5G Ethernet ports 1
Number of 10G SFP+ ports 1
USB port 1 (3.0 type A)
Operating system Only v7 RouterOS
Switch chip model 88E6393
Dimensions 220 x 125 x 22 mm
Operating temperature -40°C to +60°C
Powering
Smart PoE Controller
Max total out 2.59 A
Total output power 130 W
Total output current 2.28 A
Number of DC inputs 3
Supported input voltage 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage 48 V
Power adapter nominal current 2 A
Max power consumption
(without attachments)
15 W
Max power consumption 150 W
PoE in 802.3af/at
PoE Out 802.3af/at
PoE-Out ports Ether1 - Ether8, max out per port output (input < 30 V): 640 mA,
max out per port output
(input > 30 V): 420 mA
