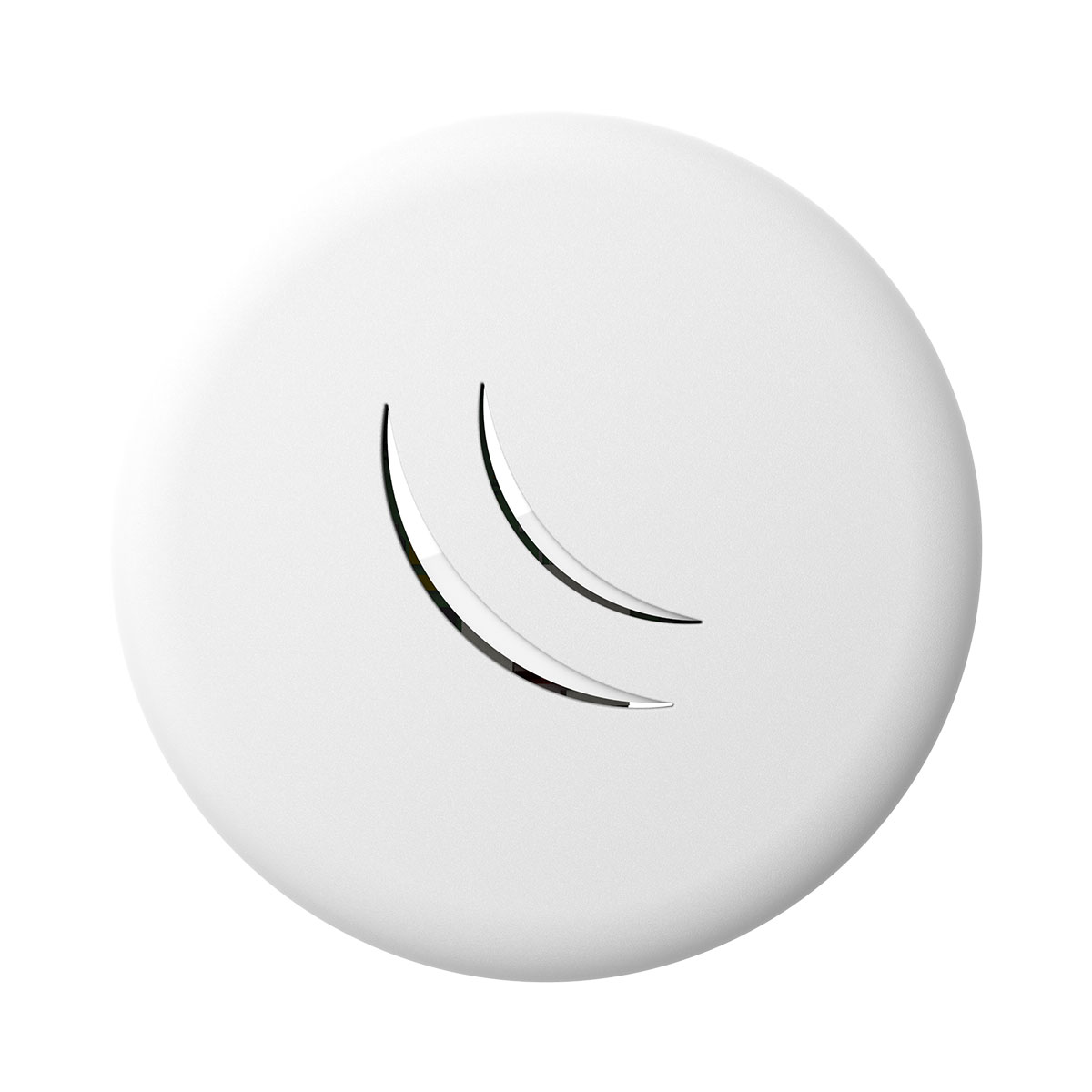

MikroTik RBcAPL-2nD cAP lite Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4

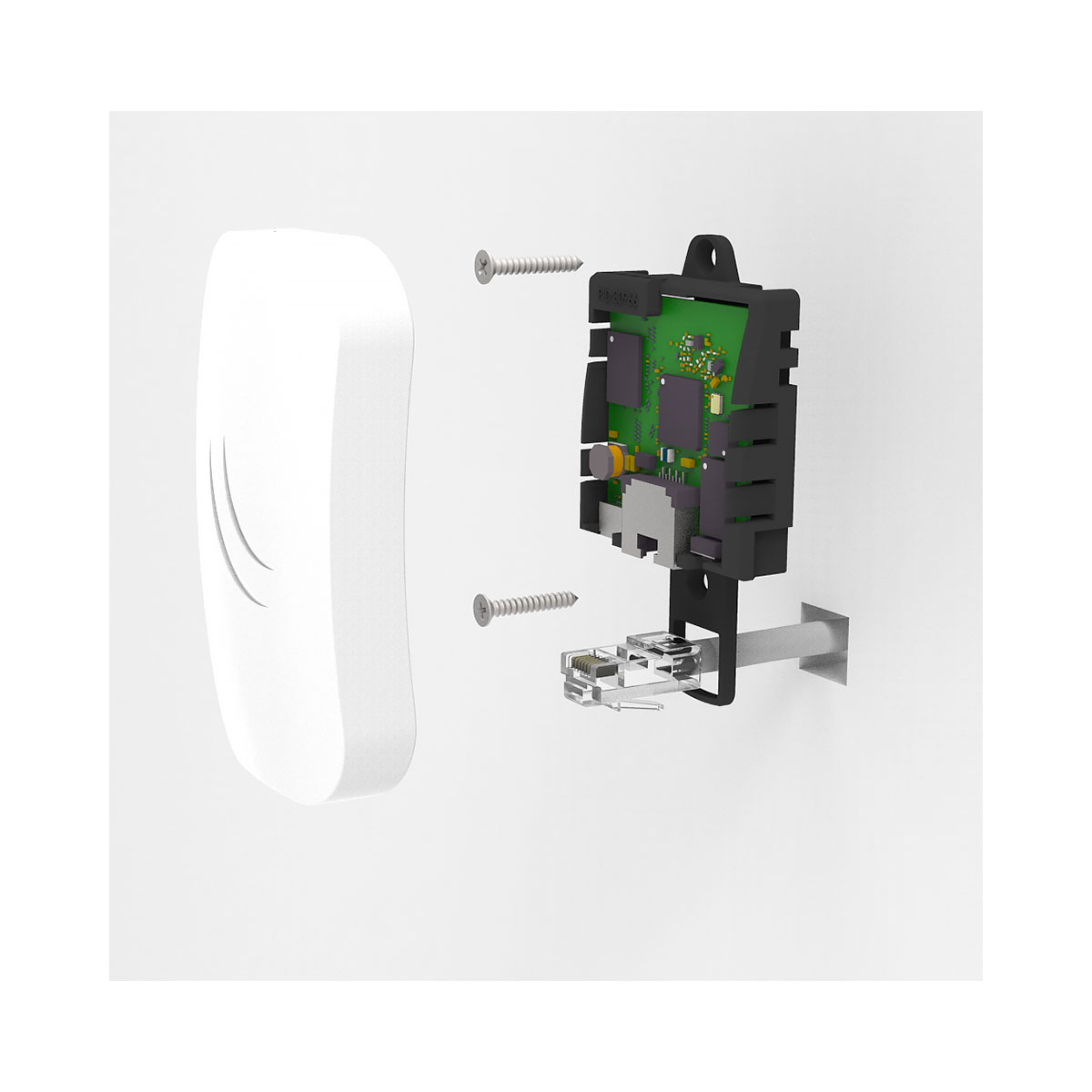

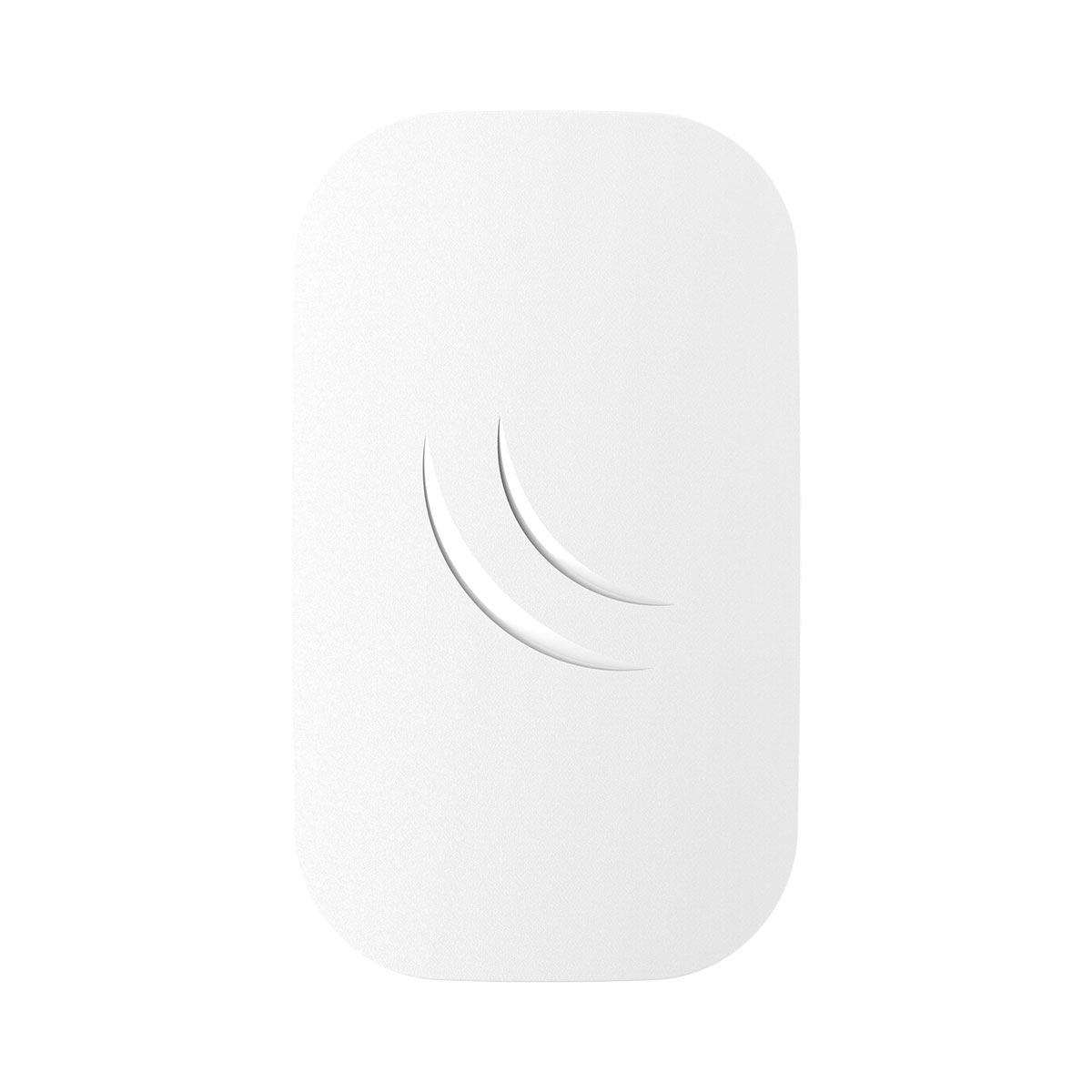

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, it is providing 3D printer friendly design files.
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.
| Specifications | |
| Product code | RBcAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| MicroUSB input Voltage | 5-5 V |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 10-60 V |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Max power consumption | 4 W |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Certification | CE, FCC, IC, EAC, ROHS |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
