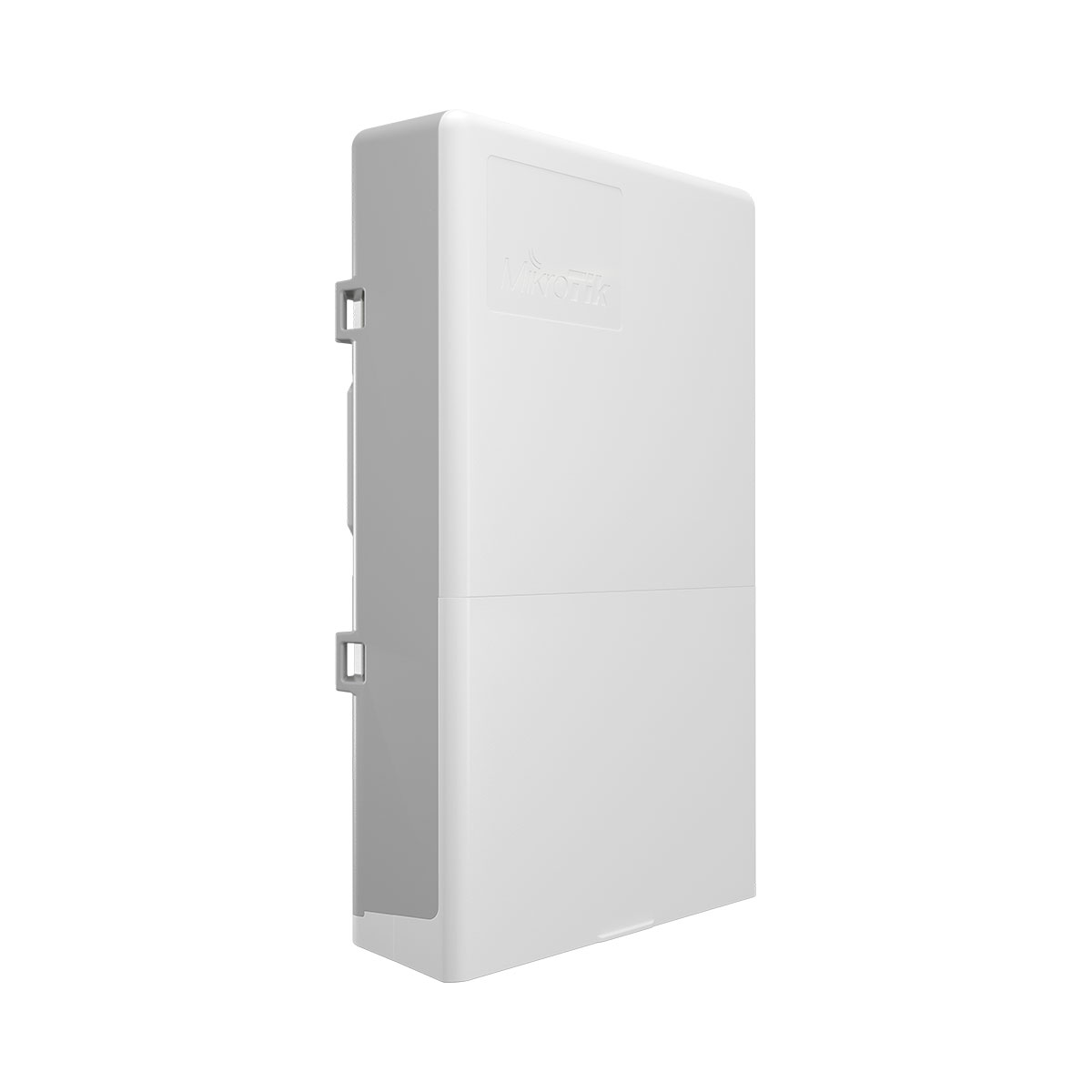

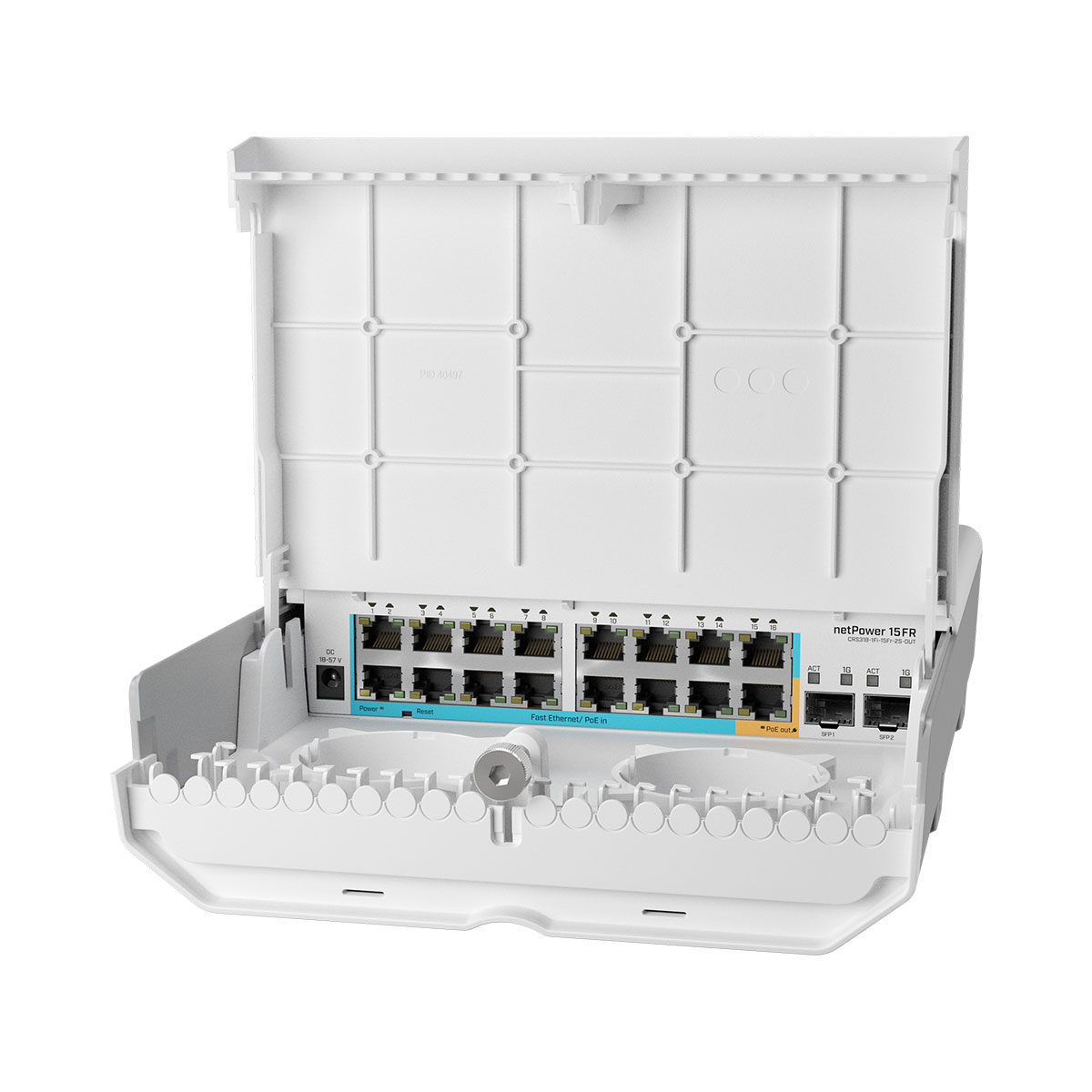

MikroTik CRS318-1Fi-15Fr-2S-OUT netPower 15FR Outdoor 18-port Switch PoE, SFP
CAUTION!!! Package does not include power supply!!!
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

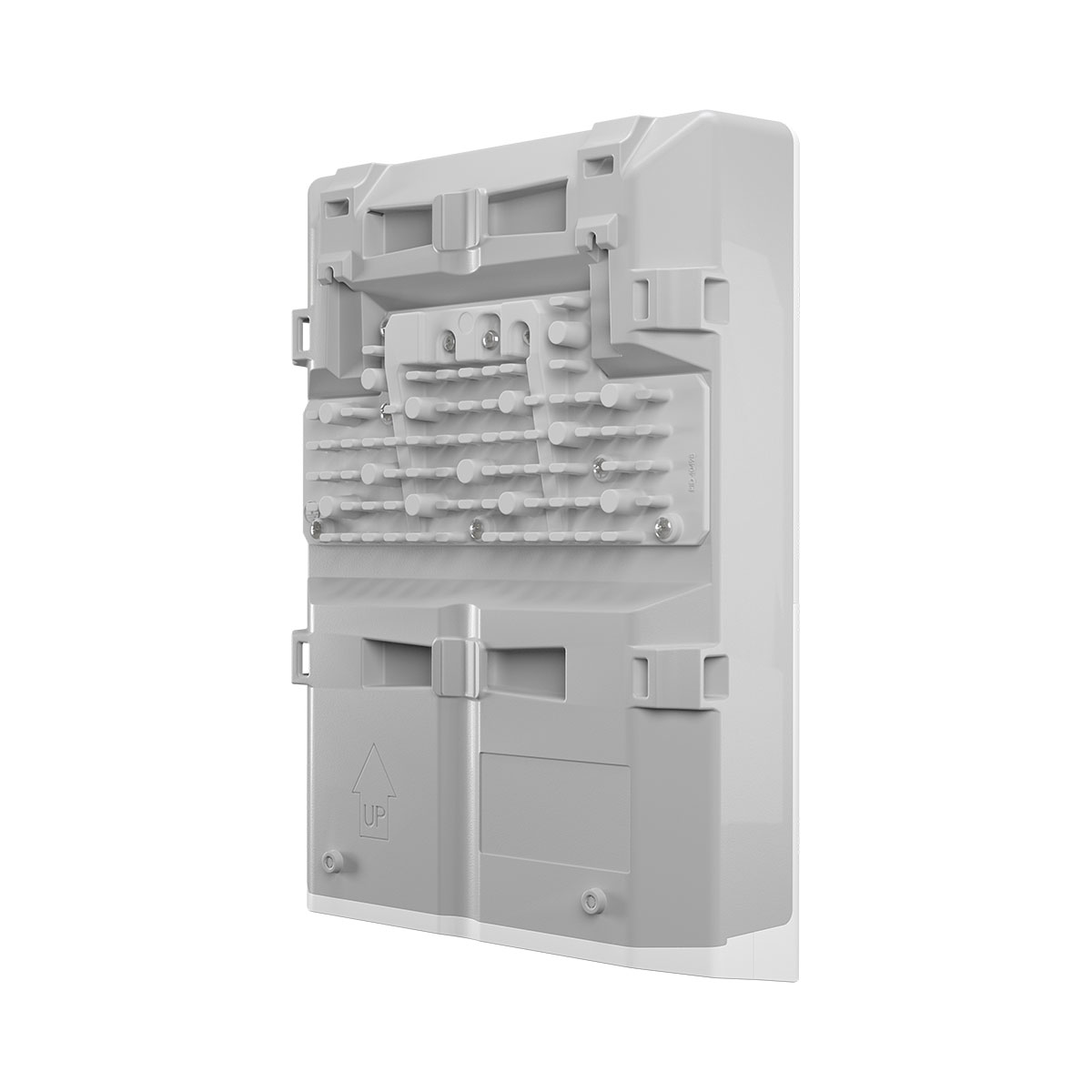

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
| Specifications | |
| Product code | CRS318-1Fi-15Fr-2S-OUT |
| Architecture | ARM 32bit |
| CPU | 98DX224S |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 304 x 212 x 71 mm |
| License level | 5 |
| Operating System | SwOS / RouterOS (Dual boot) |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Ports 1 - 14 and 16 |
| PoE in input Voltage | 18-57 V (recommended 36-57V) |
| Number of DC inputs | 16 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 10 W |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 0.75 A |
| Max out per port output (input > 30 V) | 0.5 A |
| Max total out (A) | 0.75 A |
| Ethernet | |
| 10/100 Ethernet ports | 16 |
| Fiber | |
| SFP ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
