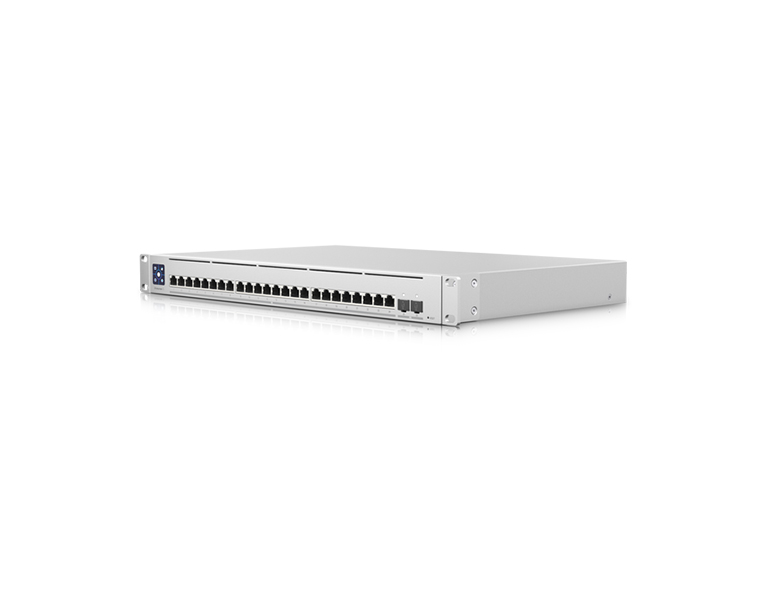

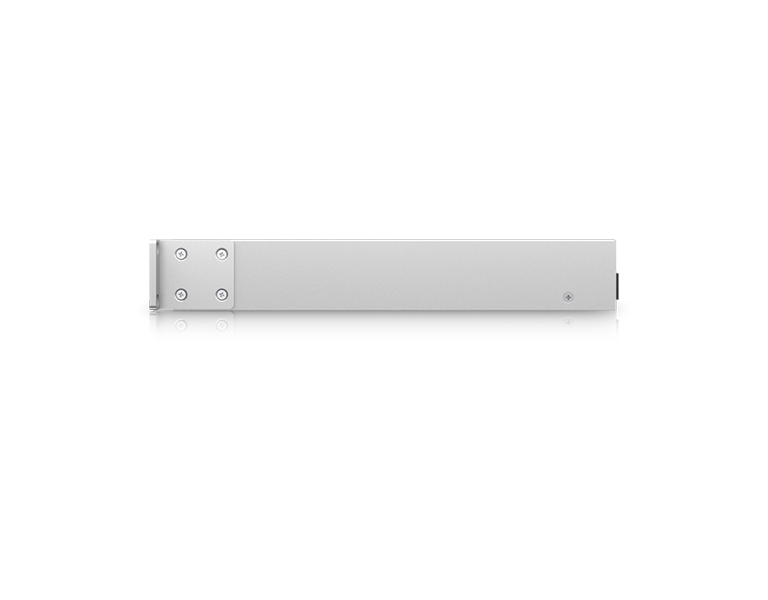

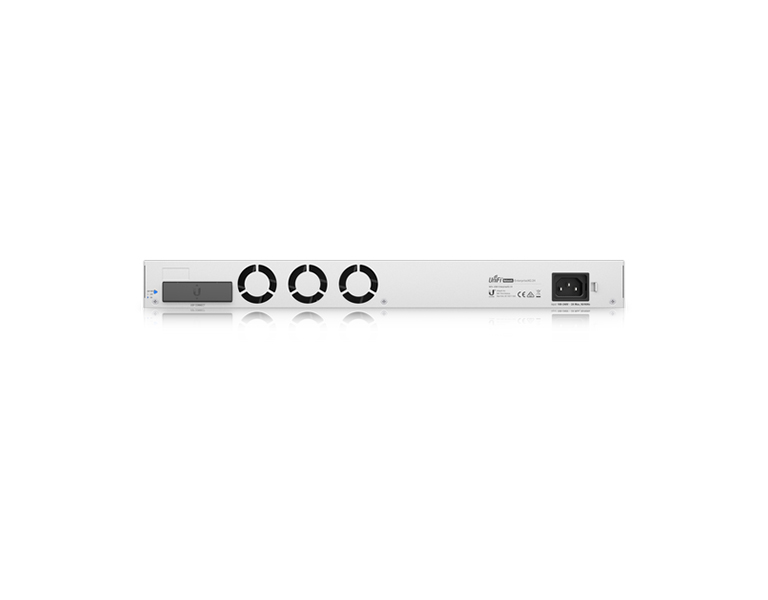

Ubiquiti USW-EnterpriseXG-24 UniFi Switch Enterprise XG 24
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
• (1) 1.3" LCM color touchscreen with AR switch management
• (24) 10GbE RJ45 ports
• (2) 25G SFP28 ports
• (1) USP RPS DC input
• Layer 3 switching features
• Single-row RJ45 port layout for easy patch panel cable management
Managed with UniFi Network Application Version: 6.1.67 and later.
Works with UniFi Network Application
• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app
| Specifications | |
| Dimensions | 442 x 44 x 285 mm |
| Weight | Without Mount: 4.47 kg With Mount: 4.57 kg |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Total Non-Blocking Throughput | 290 Gbps |
| Switching Capacity | 580 Gbps |
| Forwarding Rate | 431.52 Mpps |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input: 100-240VAC, 2A max., 50/60 Hz (1) USP-RPS DC input: 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 100W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (24) 10GbE RJ45 ports |
| SFP28 Interfaces | (2) 25G SFP28* ports *The two SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10 Gbps. |
| Services | SMB Layer 3 Gigabit Ethernet switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Display | (1) 1.3" LCM color touchscreen Bootup animation: bootup in progress Firmware update icon: firmware updating Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Button | Factory reset |
| LEDs | White: link or activity |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
