Ubiquiti USW-Pro-Max-16, a 16-port, L3 Etherlighting Switch with 2.5 GbE
Product Code:
USW-PRO-MAX-16
Description
Characteristics
Downloads
Description
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

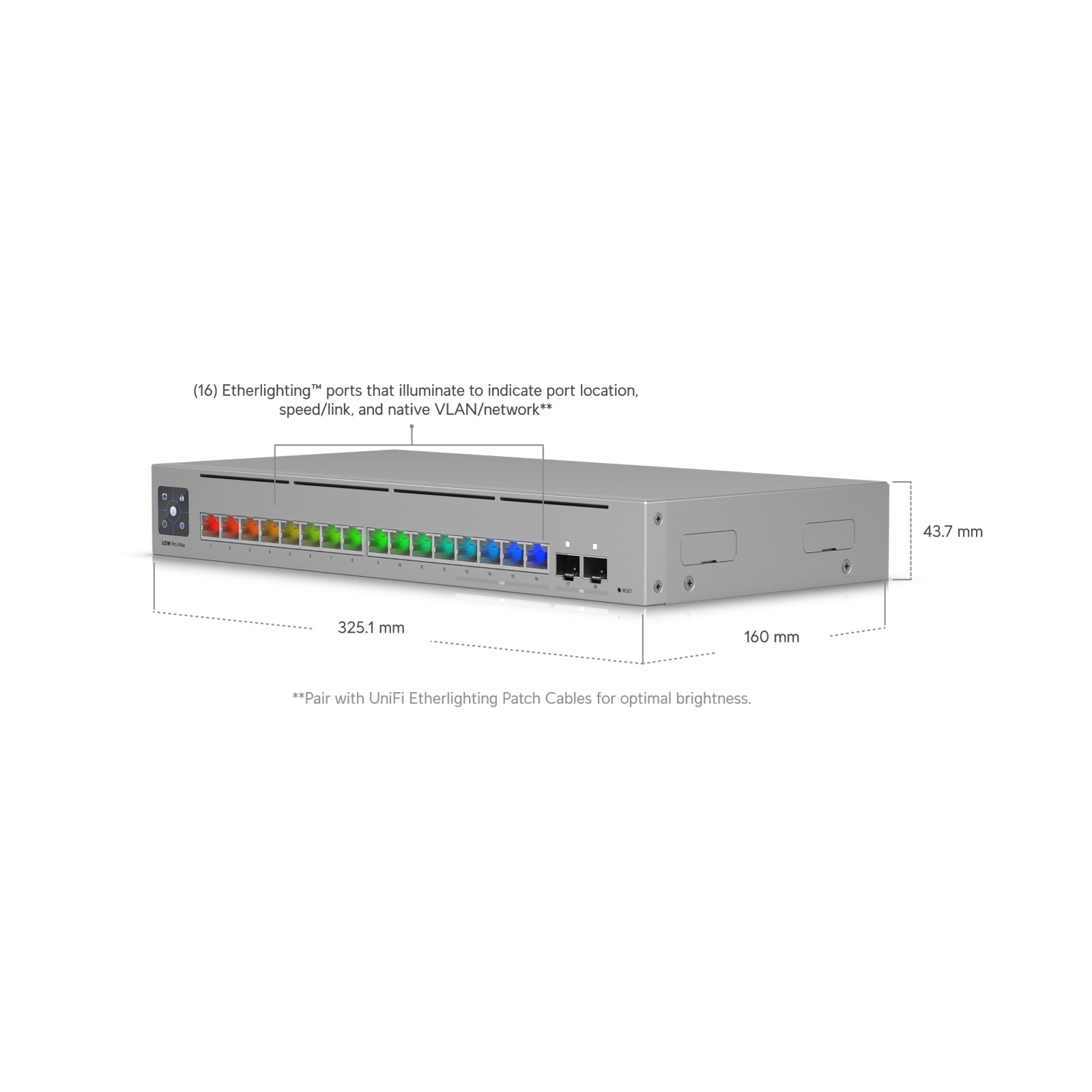

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (4) 2.5 GbE RJ45 ports
• (12) GbE RJ45 ports
• (2) 10G SFP+ ports
• Versatile desktop, wall, and rack** mounting
• Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Characteristics
| Specifications | |
| Mechanical | |
| Dimensions | 325.1 x 160 x 43.7 mm |
| Weight | 1.95 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| Total non-blocking throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding rate | 62.496 Mpps |
| Power Method | Type-C adapter |
| Supported voltage range | 5V, 25W |
| Max Power Consumption | 25W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
