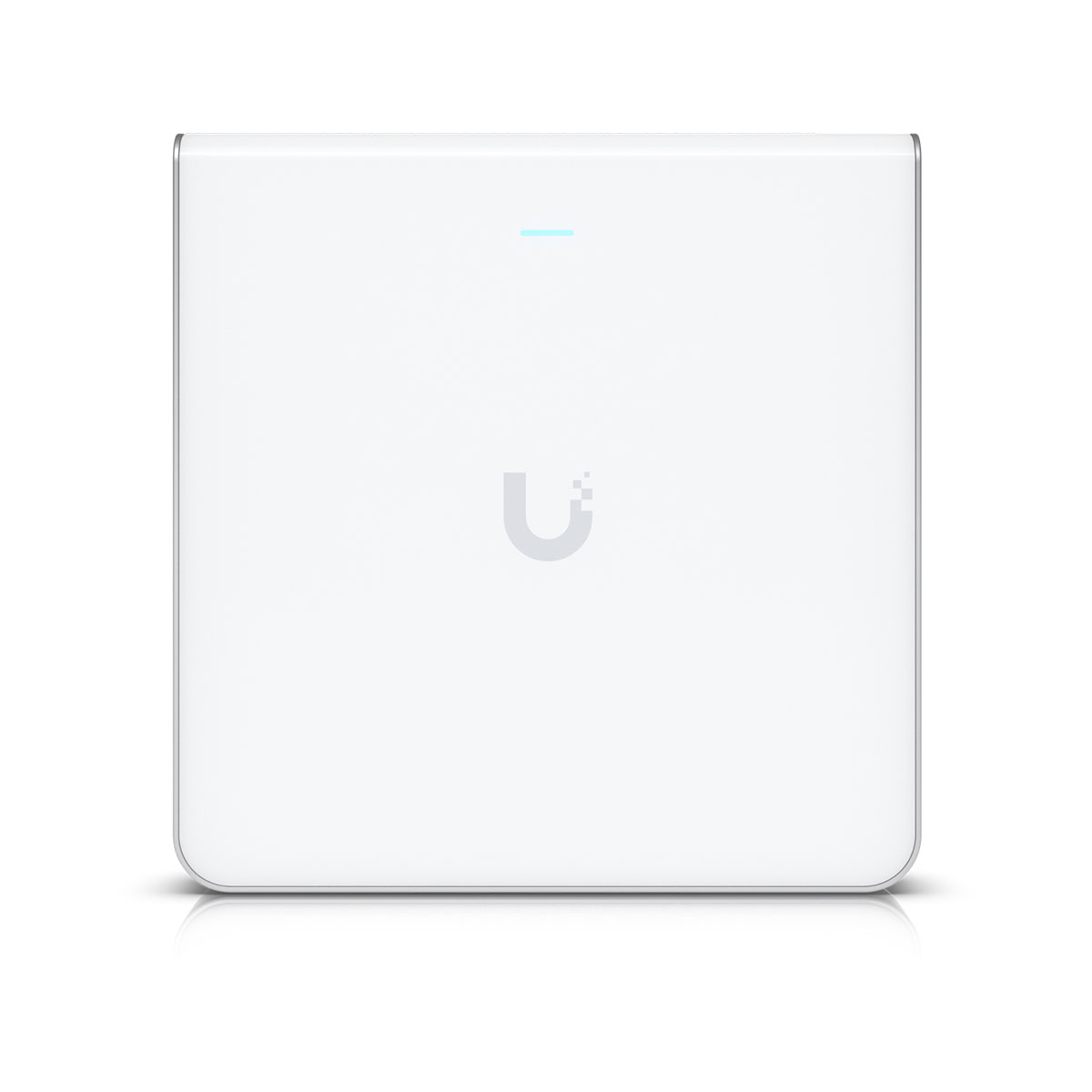

Ubiquiti U6-ENTERPRISE-IW - UniFi AP U6 Enterprise In-Wall
.:CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER:.

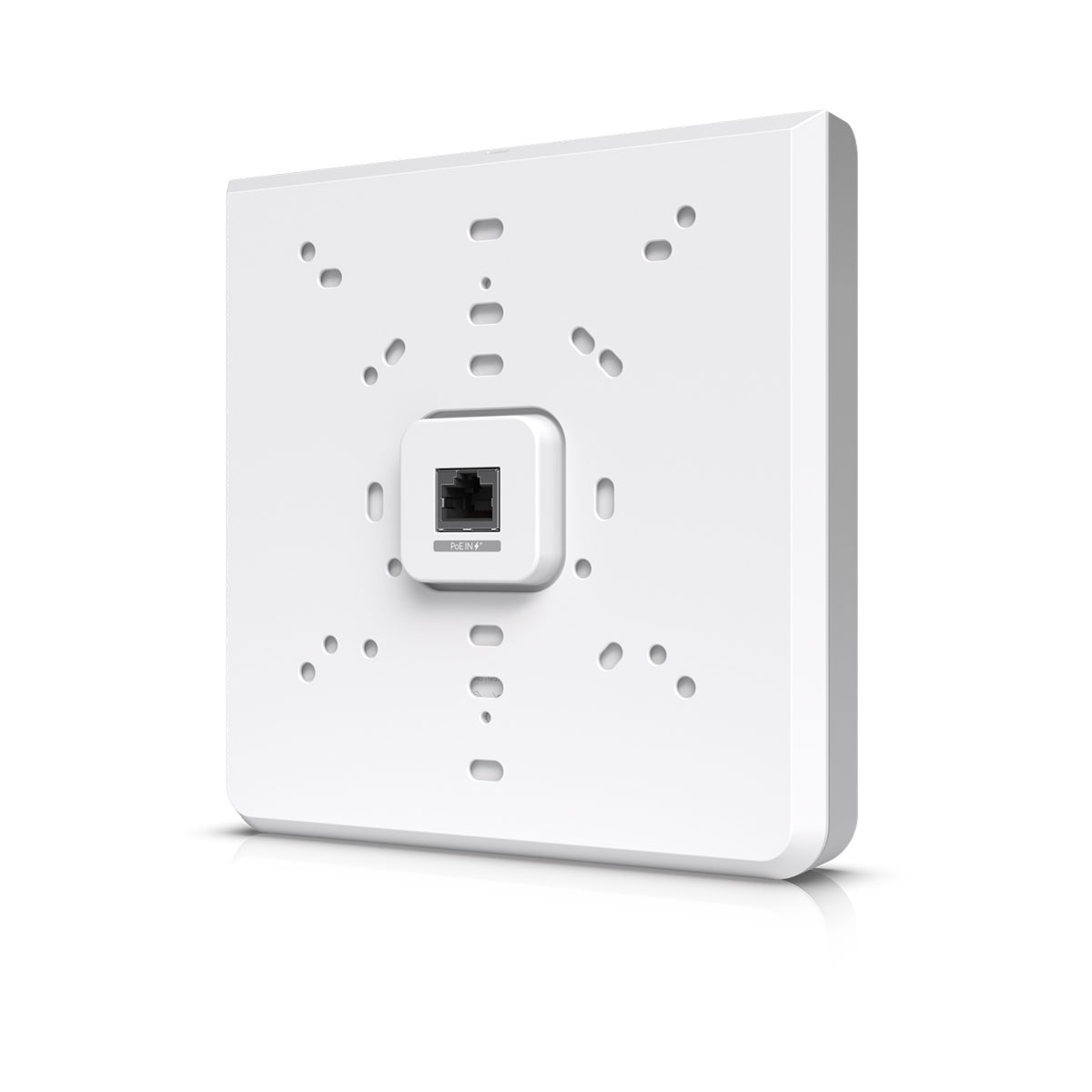

U6 Enterprise In-Wall is an access point designed for use in office spaces with high coverage density. The universal wall mounting bracket is ready for use with most commonly used wiring boxes worldwide.
The 1G/2.5 Gbps input port on the back supports 802.3at/bt power supply with a voltage range of 44-57V. On the bottom, it is possible to use a total of 4 ports with a speed of 10/100/1000Mbps, one of the ports offers PoE-out option.
Wireless transmission is handled by a modern radio part with WiFi 4/5/6/6E standards support and WPA / WPA2 / WPA3 encryption . The maximum transmission speed is 300Mbps for 2.4GHz, 4.8Gbps for 5GHz and 4.8Gbps for 6GHz.

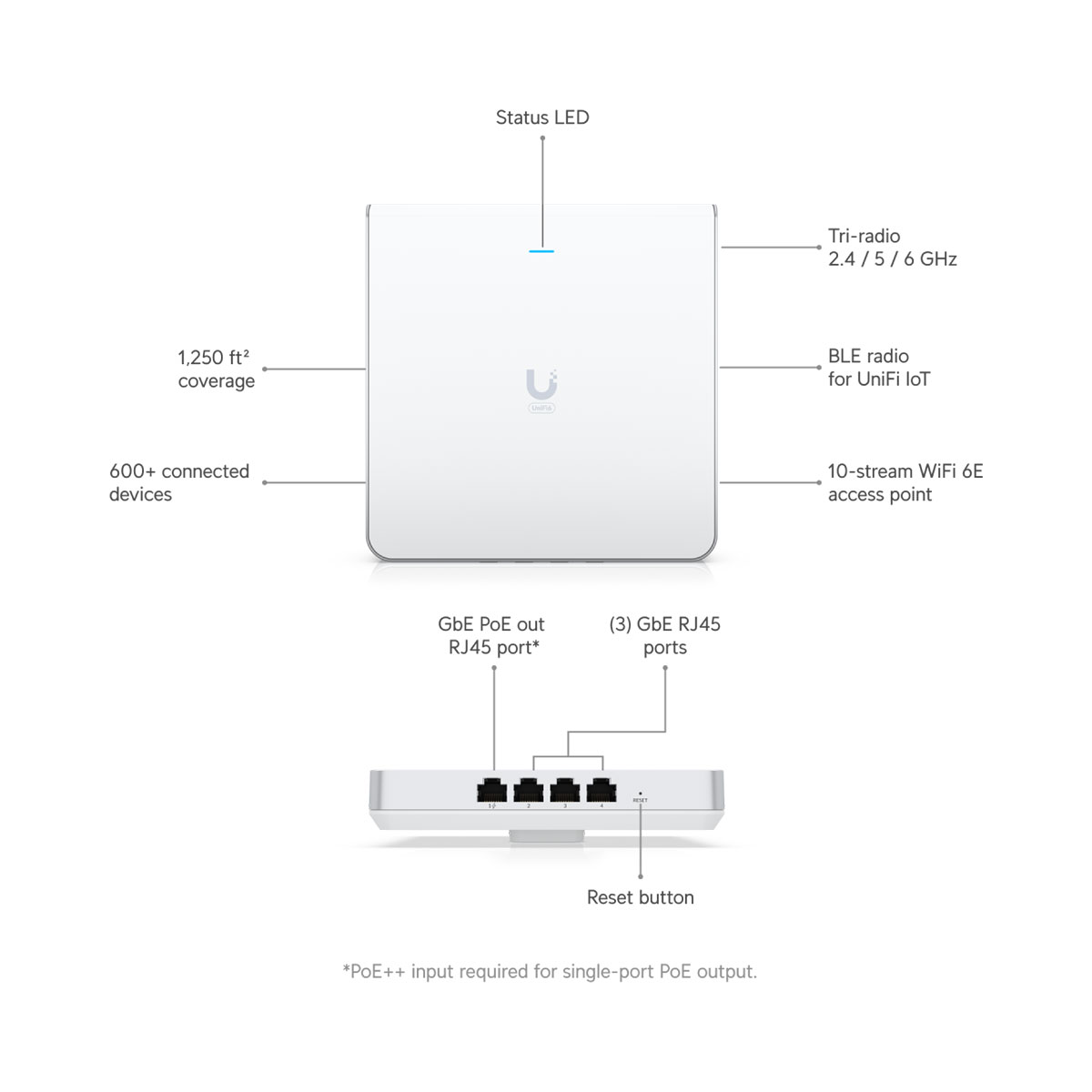

Features:
• 1,250 ft² coverage
• 600+ connected devices
• WiFi6E (4x4 MIMO)
• Powered using PoE+/PoE++*
• (4) GbE ports with (1) PoE output
• 2.5GbE uplink
*PoE++ required for the use of PoE output.

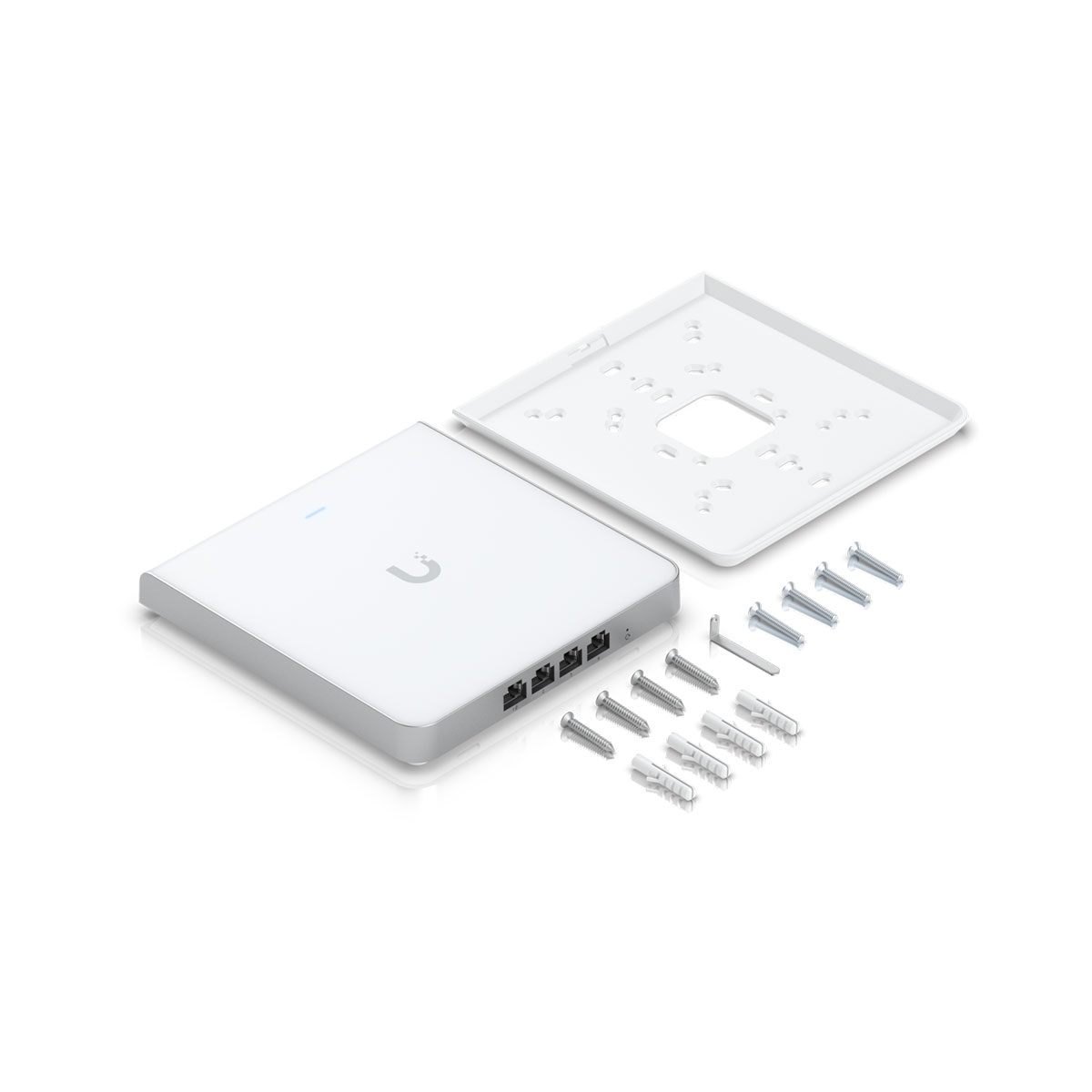

Package contents:
• Device
• Wall mount
• Screws
| Mechanical | |

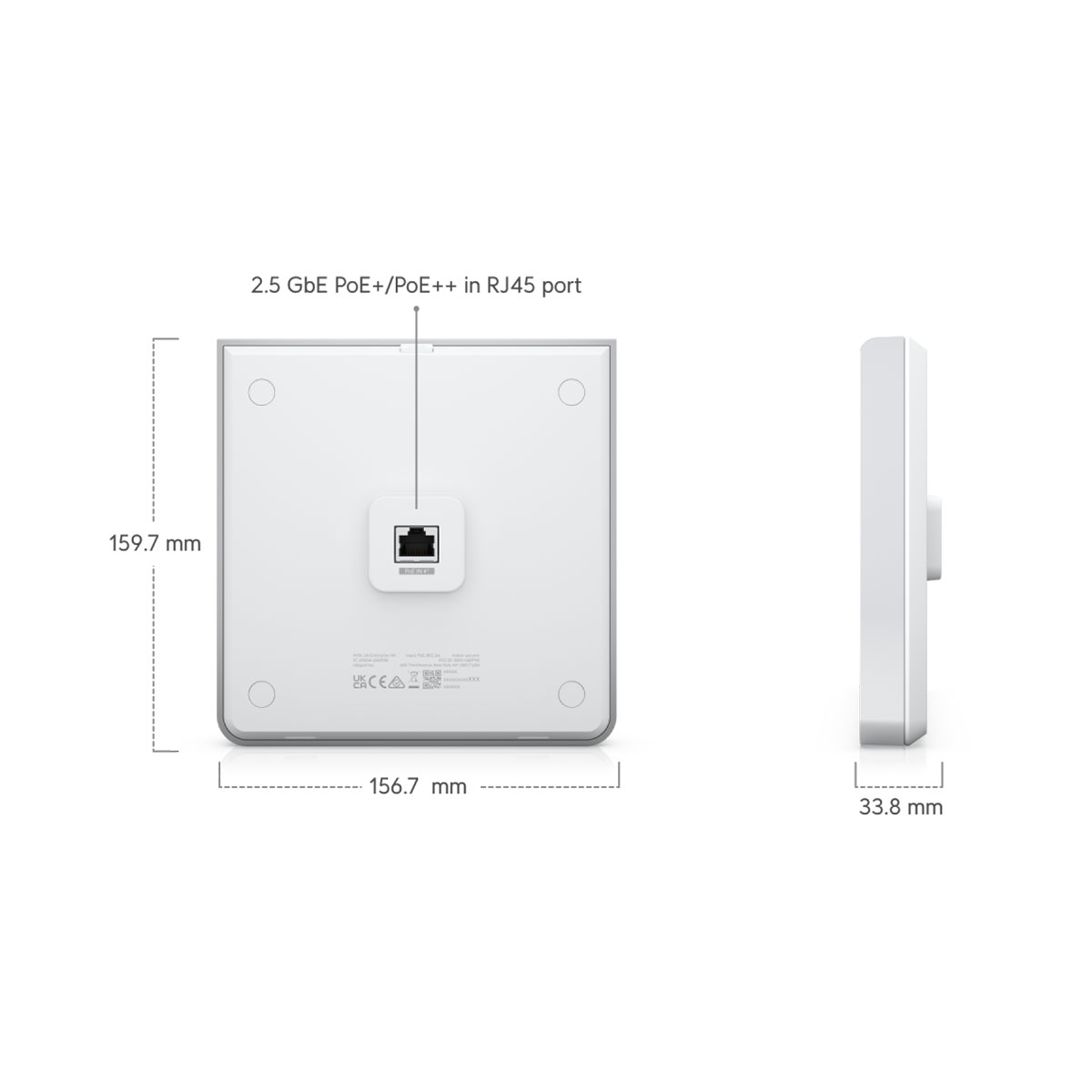

| Dimensions | 159.7 x 156.7 x 33.8 mm |
| Weight | 884 g |
| Enclosure materials | Polycarbonate, aluminium |
| Mount material | Aluminum |
| Hardware | |
| Networking interface | (1) 2.5GbE RJ45 port(Data in) (4) GbE RJ45 ports (Data out) |
| Management interface | Ethernet Bluetooth |
| PoE interface | (1) PoE+ in (1) PoE out |
| Power method | PoE+ PoE++ (Required for PoE output) |
| Power supply | UniFi PoE switch |
| Max. power consumption | 21W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | 15.4W *Requires aPoE++switch. |
| Supported voltage range | 44—57V DC |
| Max. TX power | 2.4 GHz: 22 dBm 5-7 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps 6 GHz: 4.8 Gbps |
| Antenna gain | 2.4 GHz: 4 dBi 5 GHz: 5.8 dBi 6 GHz: 5.8 dBi |
| LEDs | White/blue |
| Buttons | Factory reset |
| Operating temperature | -30 to 60° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E |
| Wireless security protocols | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guesttrafc isolation | Supported |
| Concurrent client support | 600+ |
| Zero-wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
