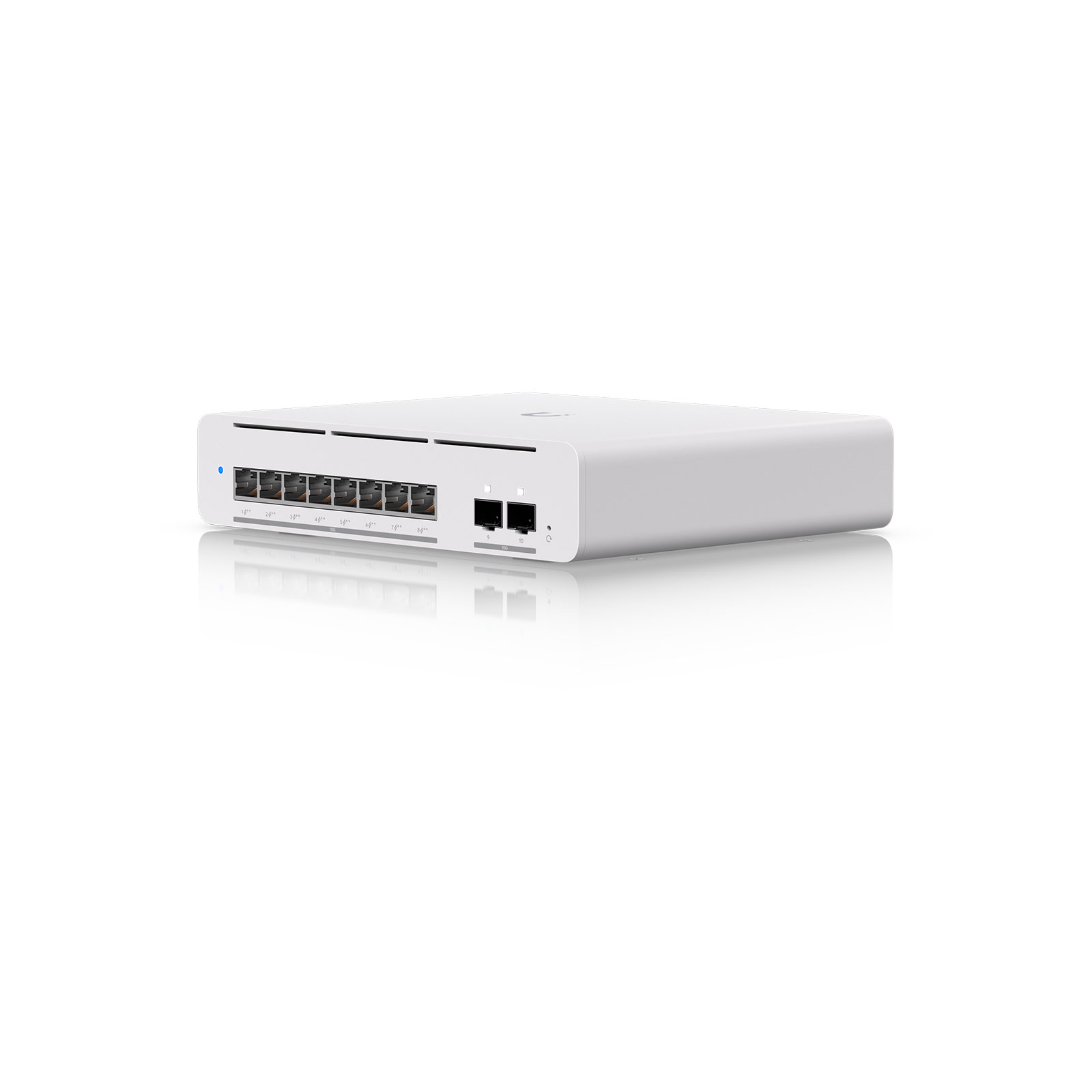

Ubiquiti USW-Pro-XG-8-PoE, Etherlighting PoE++ Switch, Layer 3, 8x10 GbE, 2x10G SFP+ Ports (155W)
The UniFi Switch USW-Pro-XG-8-PoE is a compact, fully managed L3 PoE switch with a switching capacity of 200 Gbps, (8) 10-Gigabit LAN ports, and two SFP+ (10Gbps) ports. All Ethernet ports support PoE++ 802.3af/at/bt PoE-Out with an output power of up to 60W/port and a total PoE budget of 155 W. The ports feature the Etherlighting function, allowing you to illuminate ports in color to display port location, speed/link, and VLAN. The switch is powered by a power adapter and has a maximum power consumption of 220W, including PoE.
Key Features

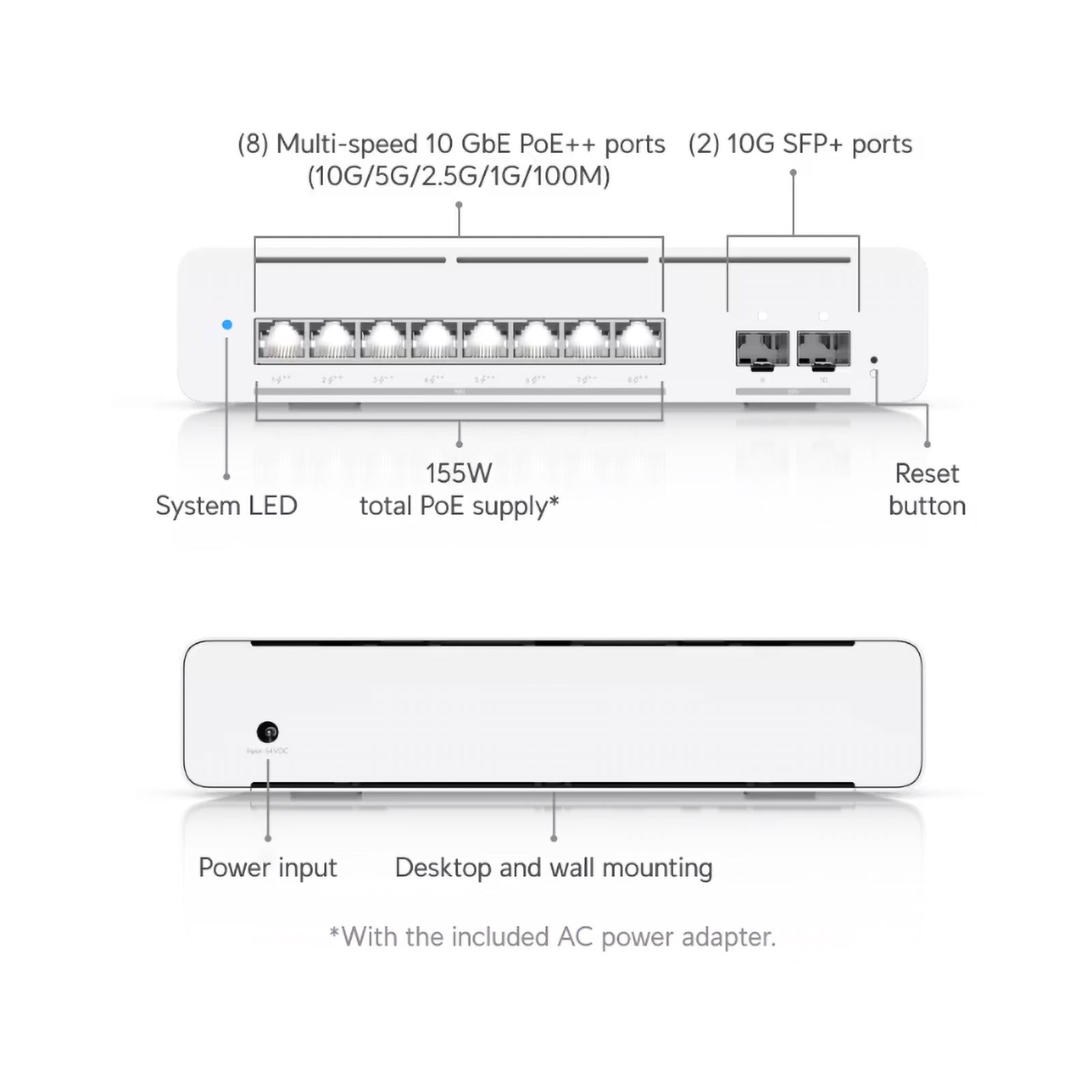

- (8) 10G ports – supports 802.3af/at/bt PoE++ (60W/port)
- (2) 1/10G SFP+ ports
- 155 W PoE budget

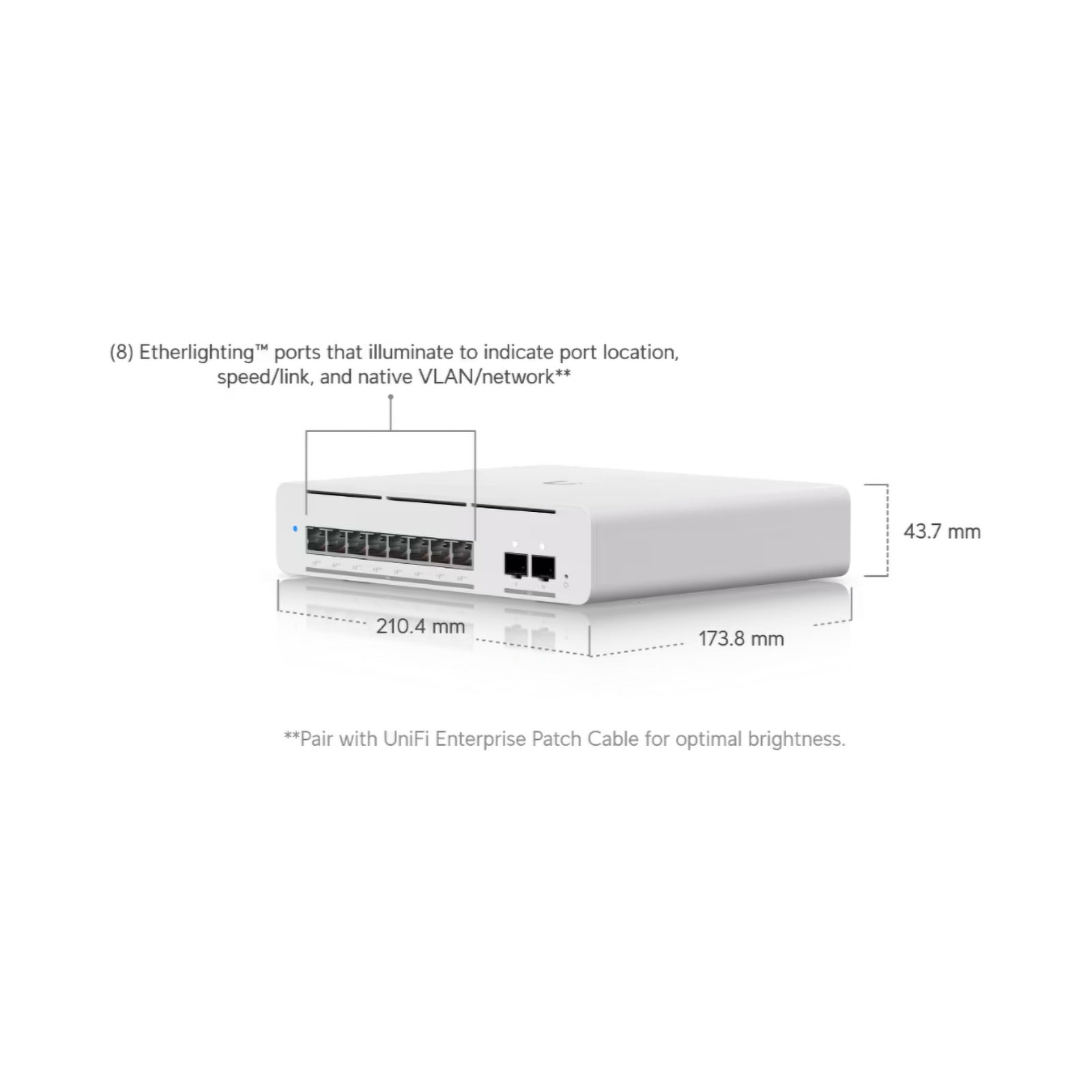

- Etherlighting – visual port status indication

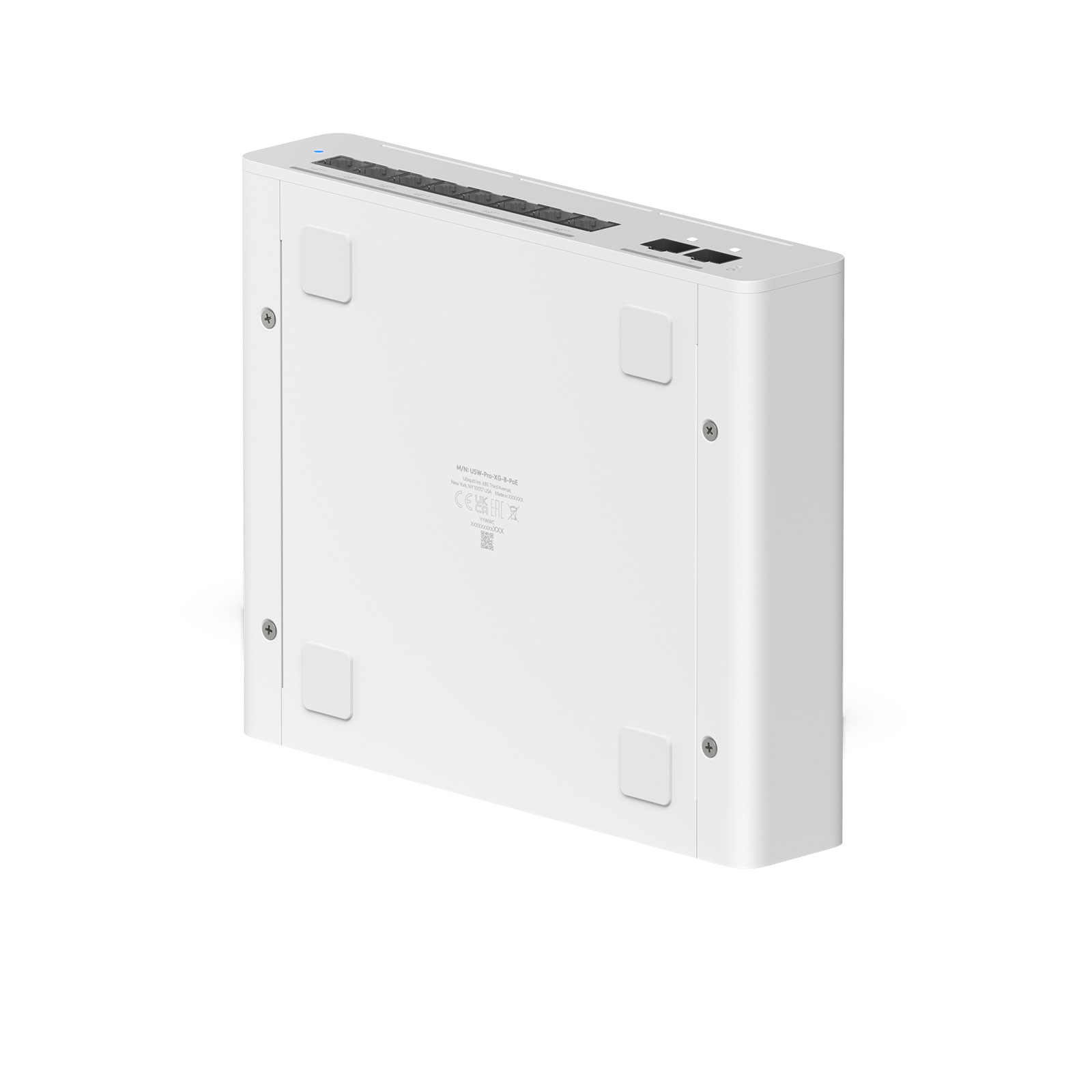

- Desktop or wall-mount installation
- Managed via UniFi Network server
Managed via UniFi Network Server
The USW-Pro-XG-8-PoE has no web management interface but is centrally managed via the UniFi Network server with support for the UniFi mobile app. It offers an extensive suite of advanced Layer 2 switching protocols and features, including per-port operational modes (switching, mirroring, or aggregation). The UniFi Network server and mobile app allow administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.

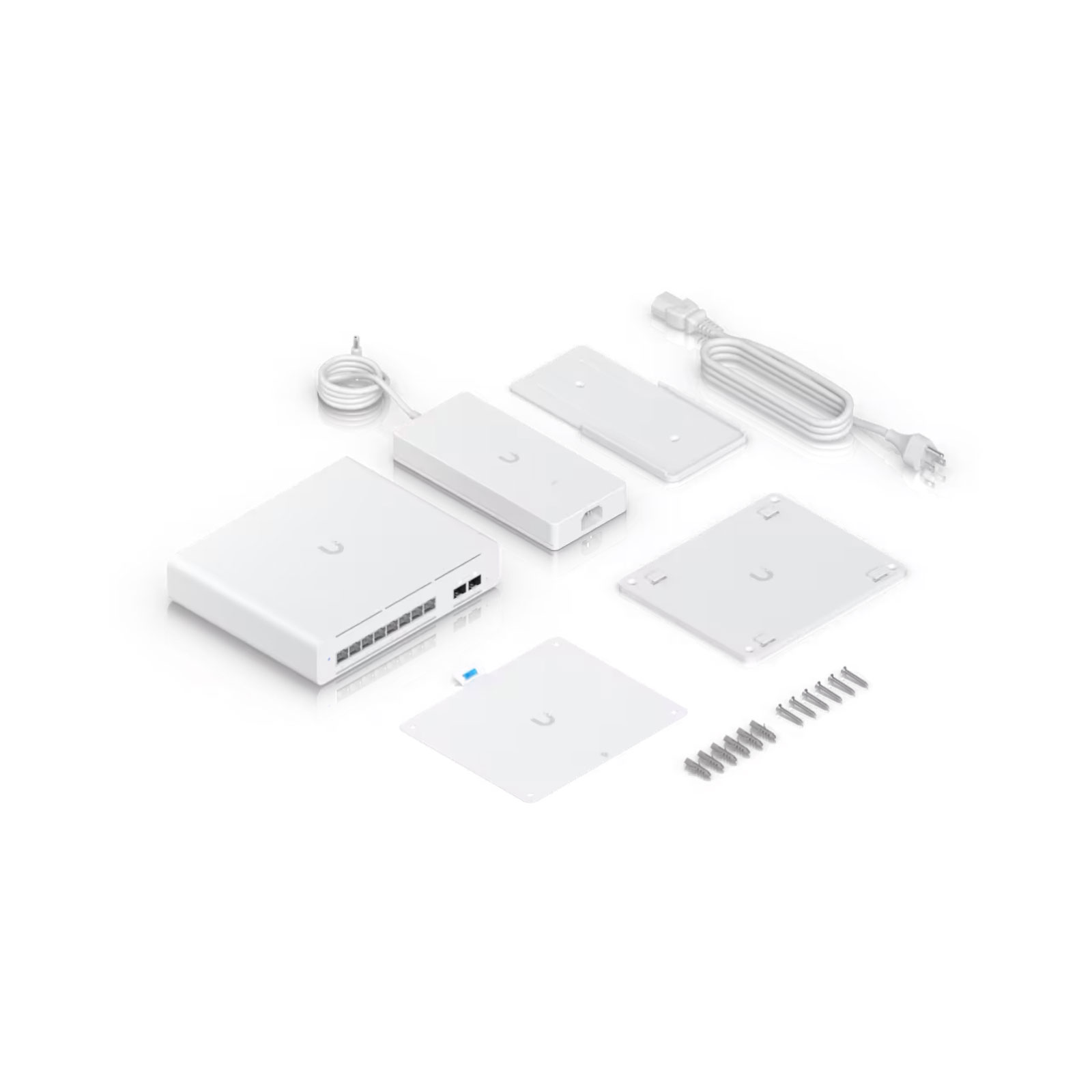

Package Contents
- Device
- Power adapter
- Wall-mount kit
| Overview | |
| Dimensions | 210.4 x 173.8 x 43.7 mm |
| Port Layout | |
| 10 GbE RJ45 |
8 (All PoE++)
(10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
2
(10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Layer 3 | ✓ |
| Form Factor | Compact desktop, wall |
| Etherlighting™ | ✓ |
| Performance | |
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries 12,000 IPv4 Routes 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4 128 MAC 128 |
| Layer 3 Features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
| Layer 2 Features | LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection |
| Hardware | |
| PoE Ports |
PoE++ 8
|
| Max. PoE Wattage per Port by PSE |
PoE 15.4W
|
| Max. Power Consumption | 61W (Excluding PoE output) 220W (Including PoE output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50—57V DC |
| Management | Ethernet AR |
| Weight | 1.6 kg |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 45° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ |
Ethernet
SFP+
|
| LEDs |
System
|
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software | |
|
Application Requirements
|
UniFi Network
Version 9.0.114 and later |
