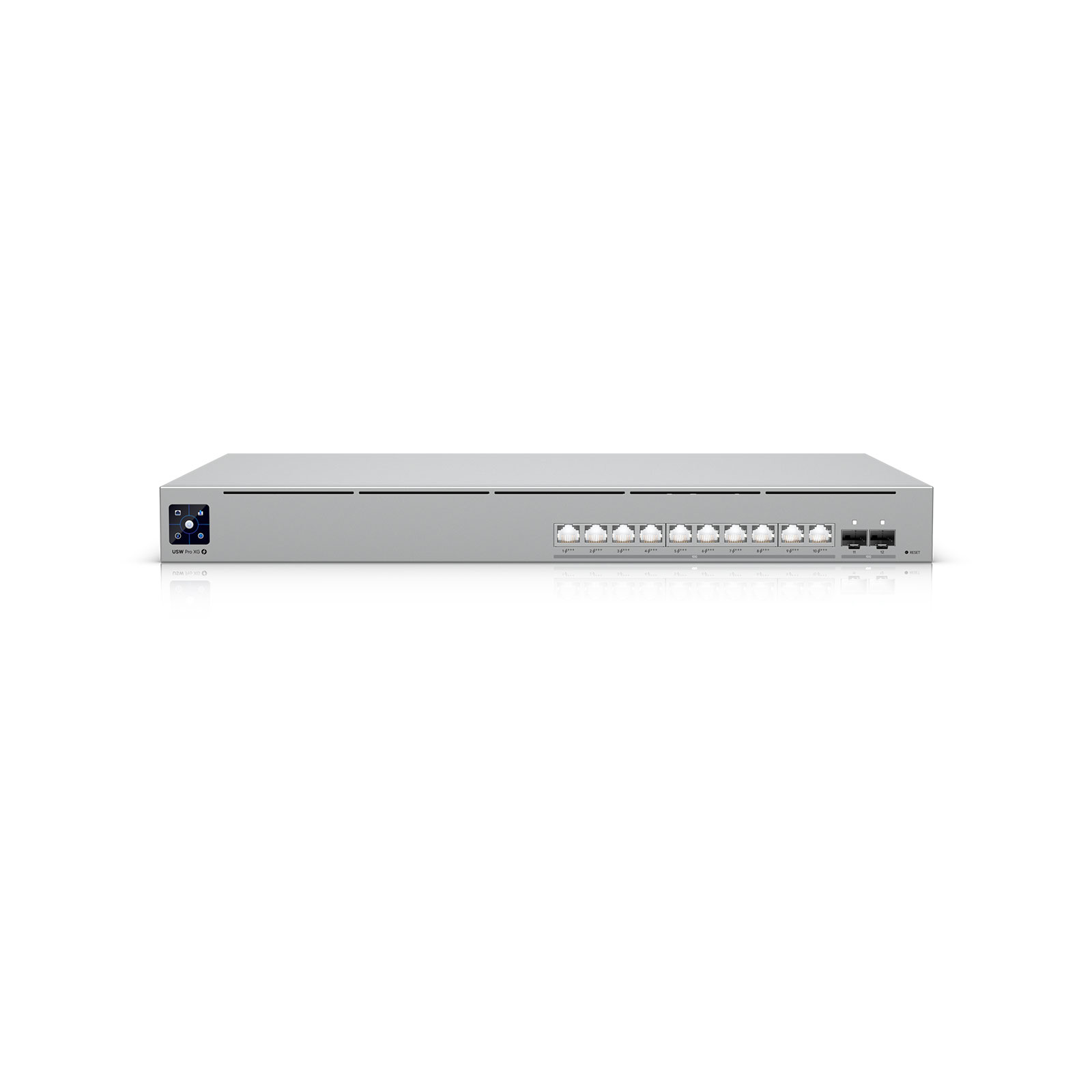

Ubiquiti USW-Pro-XG-10-PoE, Etherlighting PoE+++ Switch, Layer 3, 10x10 GbE, 2x10G SFP+ Ports (400W)
The UniFi Switch USW-Pro-XG-10-PoE is a managed L3 PoE switch with a switching capacity of 240 Gbps, (10) 10-Gigabit LAN ports and two SFP+ (1/10Gbps) ports. All Ethernet ports support PoE+++ 802.3af/at/bt PoE-Out with an output power of up to 90W/port and a total PoE budget of 400 W. The ports feature Etherlighting, which allows you to illuminate ports in different colors to indicate port location, speed/connection, and VLAN. The switch is powered via 230V AC, and the USP RPS DC port serves as a backup in case of primary power failure. Maximum power consumption including PoE is 520W.
Key Features
- (10) 10G ports – supports 802.3af/at/bt PoE+++ (90W/port)
- (2) 1/10G SFP+ ports
- 400 W PoE budget
- Etherlighting – visual indication of port information
- Rack-mountable
- Management via UniFi Network Server
Management via UniFi Network Server
The USW-Pro-XG-10-PoE does not have a web interface but is centrally managed through the UniFi Network Server with support for the UniFi mobile app. It offers an extensive set of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.

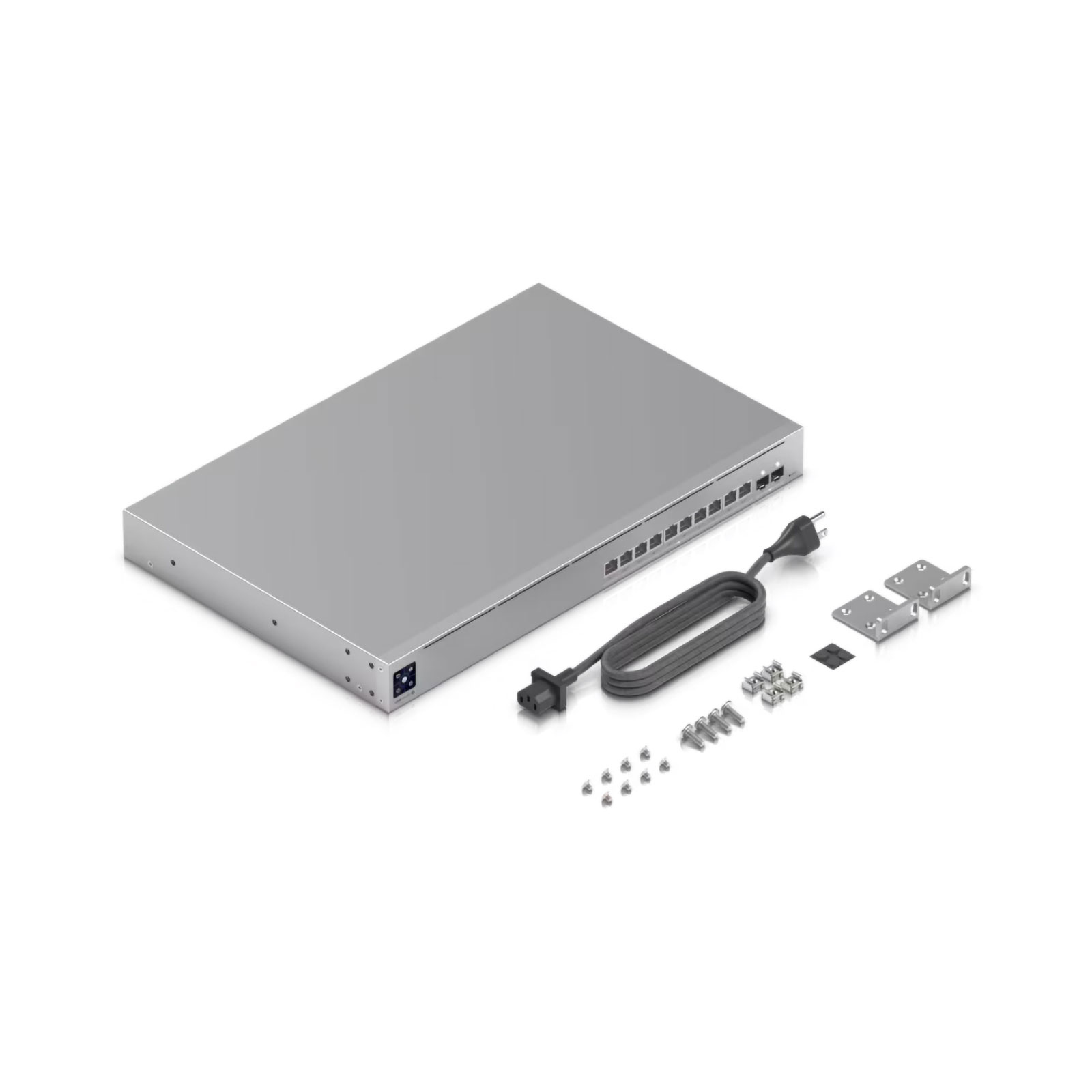

Package Contents
- Device
- Power cable
- Rack-mount brackets

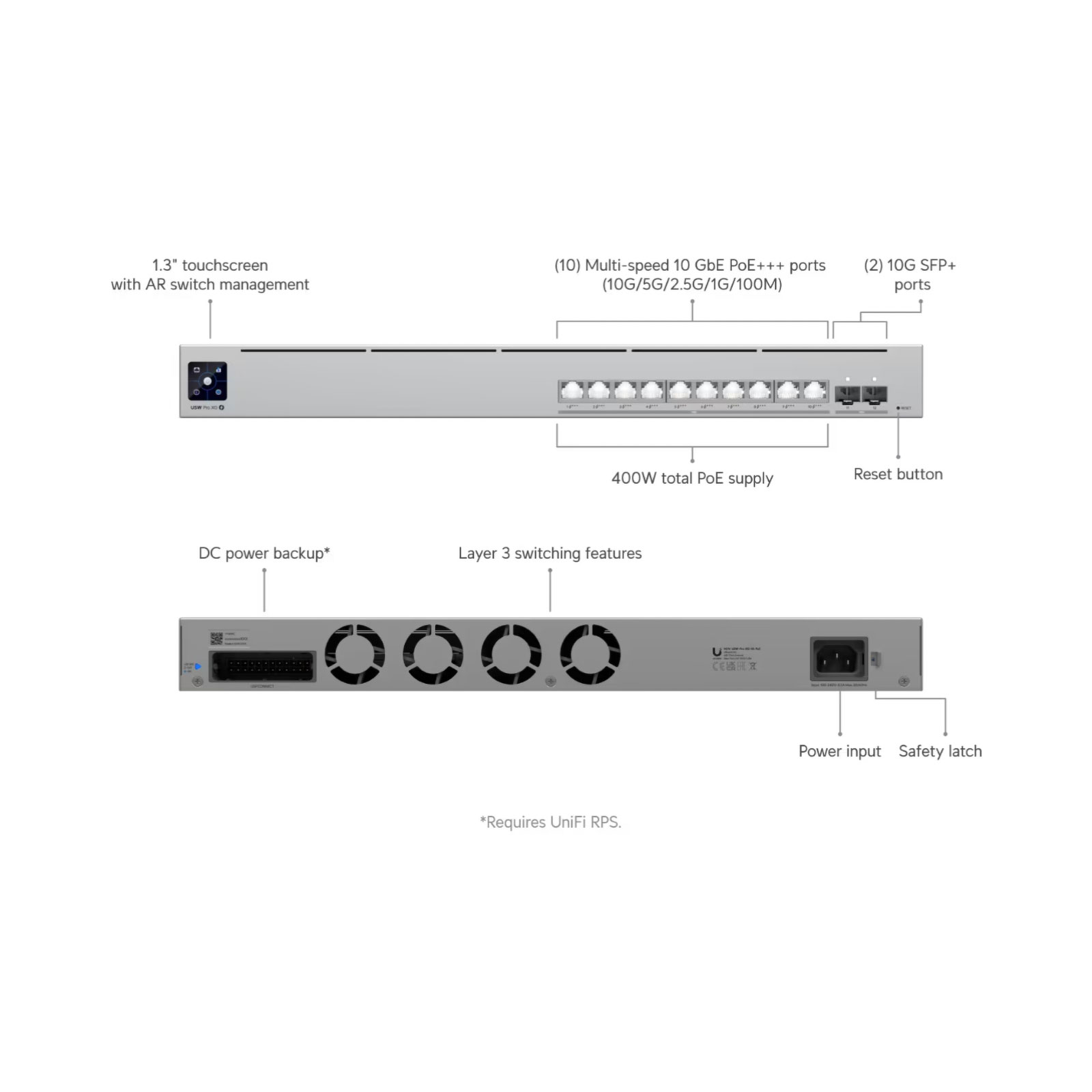

| Overview | |

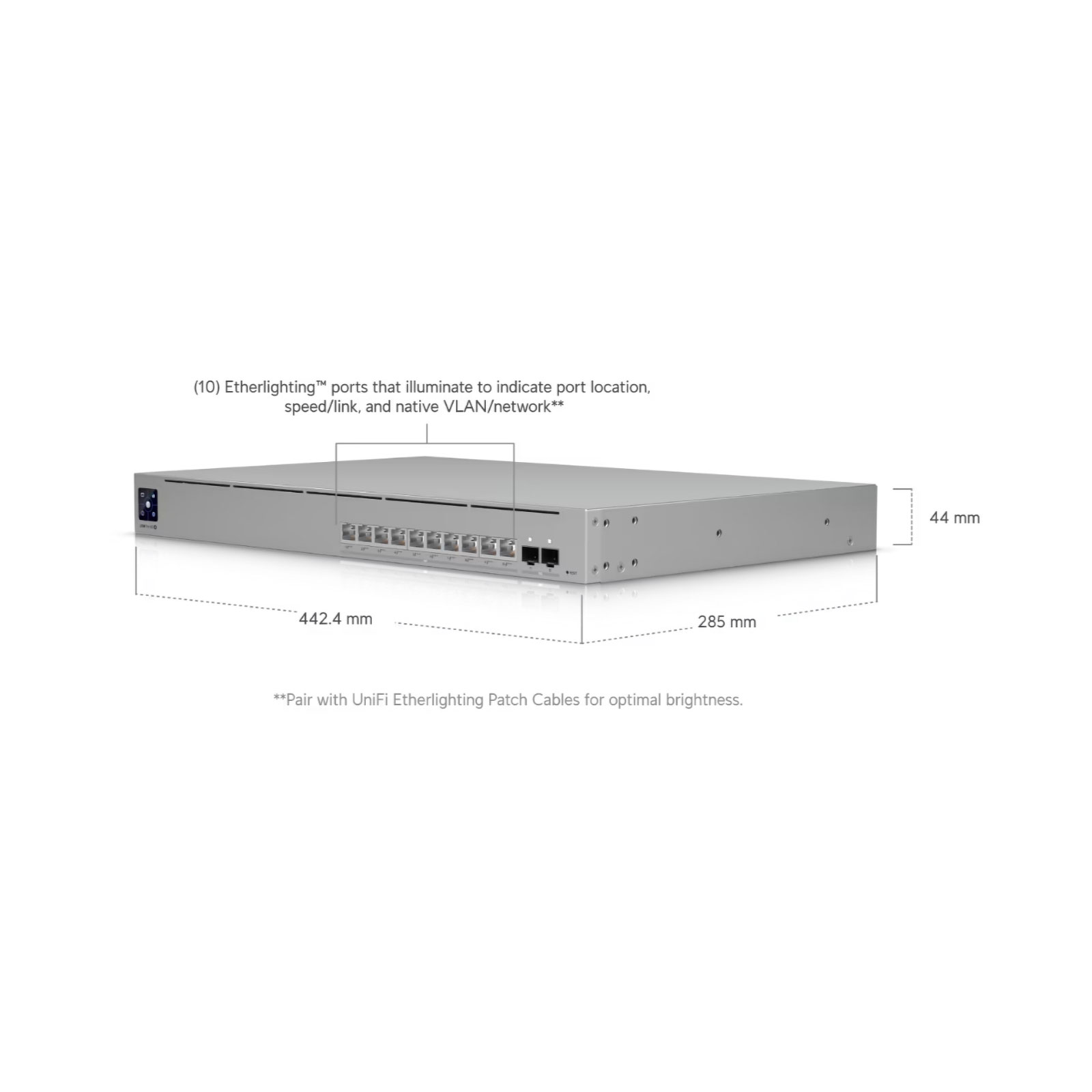

| Dimensions | 442.4 x 285 x 44 mm |
| Port Layout | |
| 10 GbE RJ45 |
10 (All PoE+++)
(10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
2
(10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size |
ARP Entries 12,000
IPv4 Routes 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4 128 MAC 128 |
| Layer 3 Features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
| Layer 2 Features |
LACP Port Aggregation
STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection |
| Hardware | |
| PoE Ports | PoE+++ 10 |
| Max. PoE Wattage per Port by PSE | PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W |
| Max. Power Consumption | 65W (Excluding PoE output) 520W (Including PoE output) |

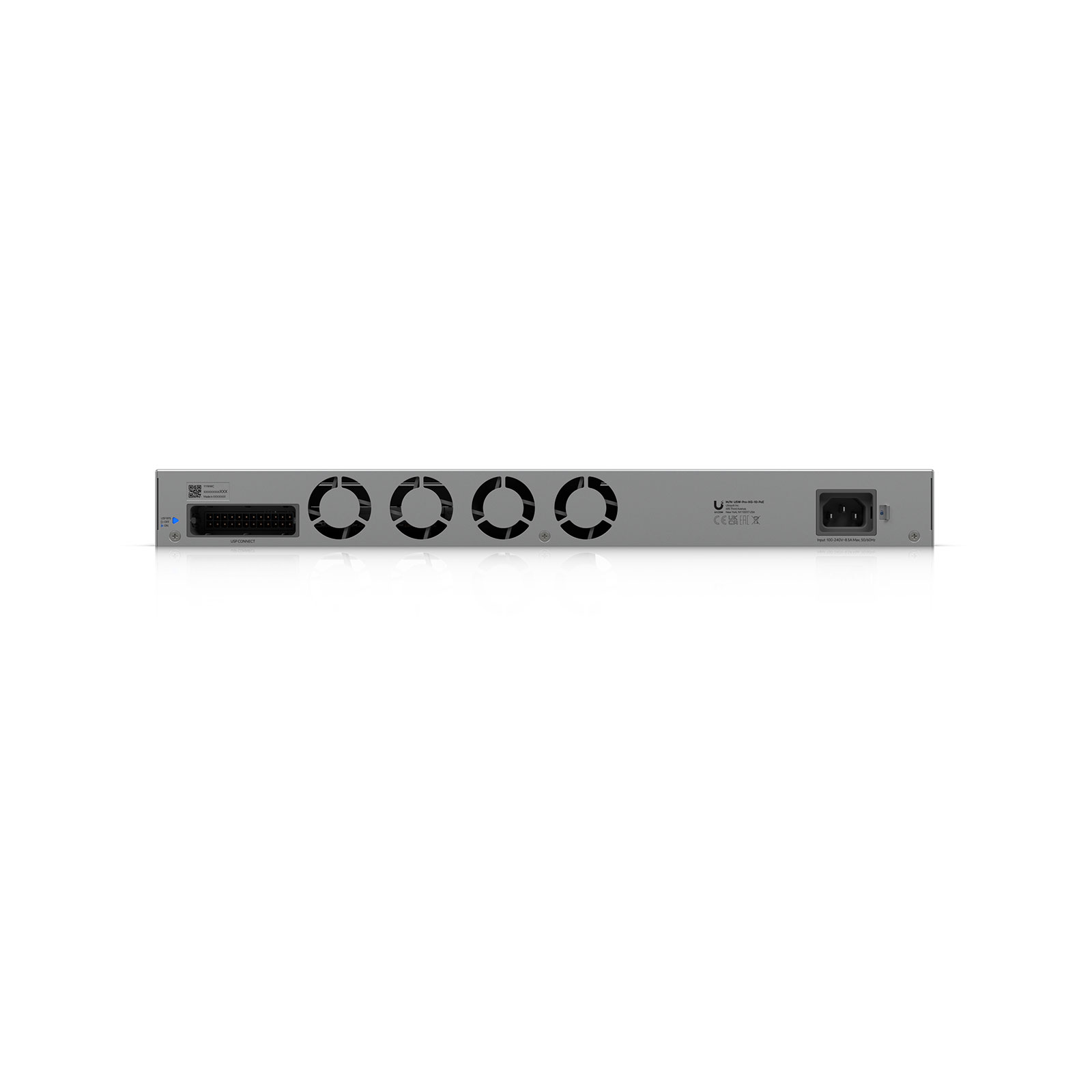

| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 4.6 kg With mounting brackets: 4.7 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet SFP+ |
| LEDs | RPS System |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software | |
|
Application Requirements
|
UniFi Network
Version 9.1.120 and later
|
