Ubiquiti U7-PRO-XG-B, UniFi 7 Pro XG Access Point, WiFi 7, Black
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
- Roaming – seamless transition between APs without interruptions
- Wireless uplink – ideal for locations where a data cable cannot be installed
- Up to 8 SSIDs
- Detailed traffic statistics
- Guest network
- Load balancing – maintaining even load distribution / band steering
- Speed limiting for each SSID
| Specifications | |
| Overview | |

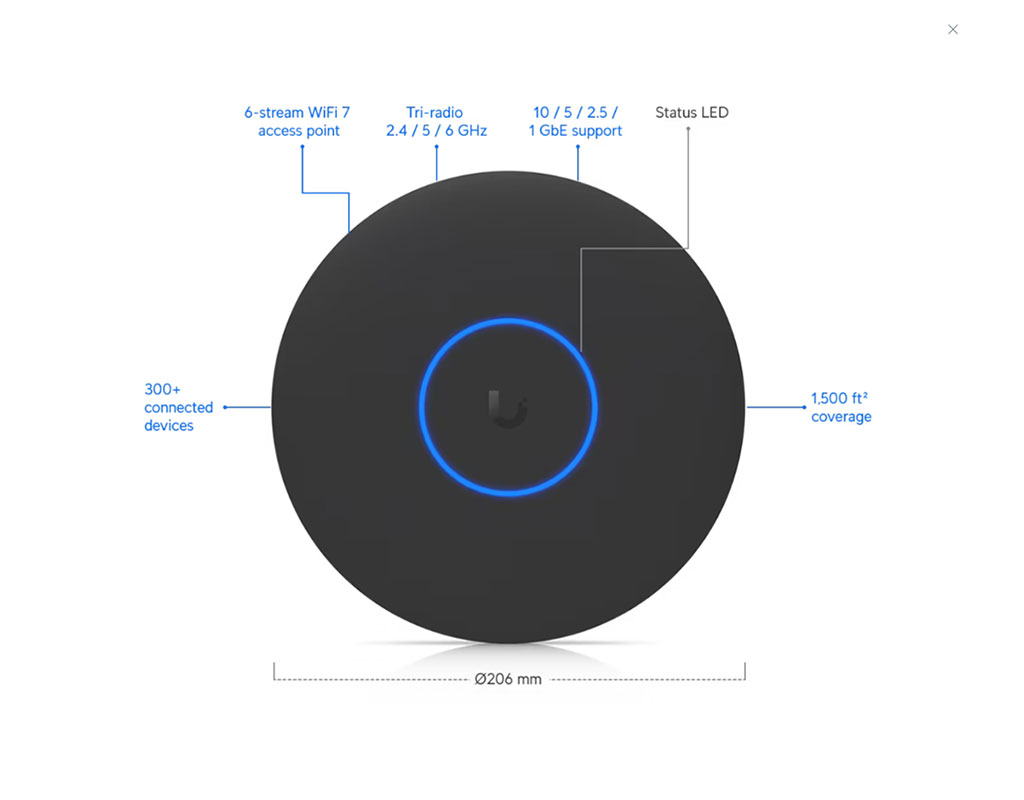

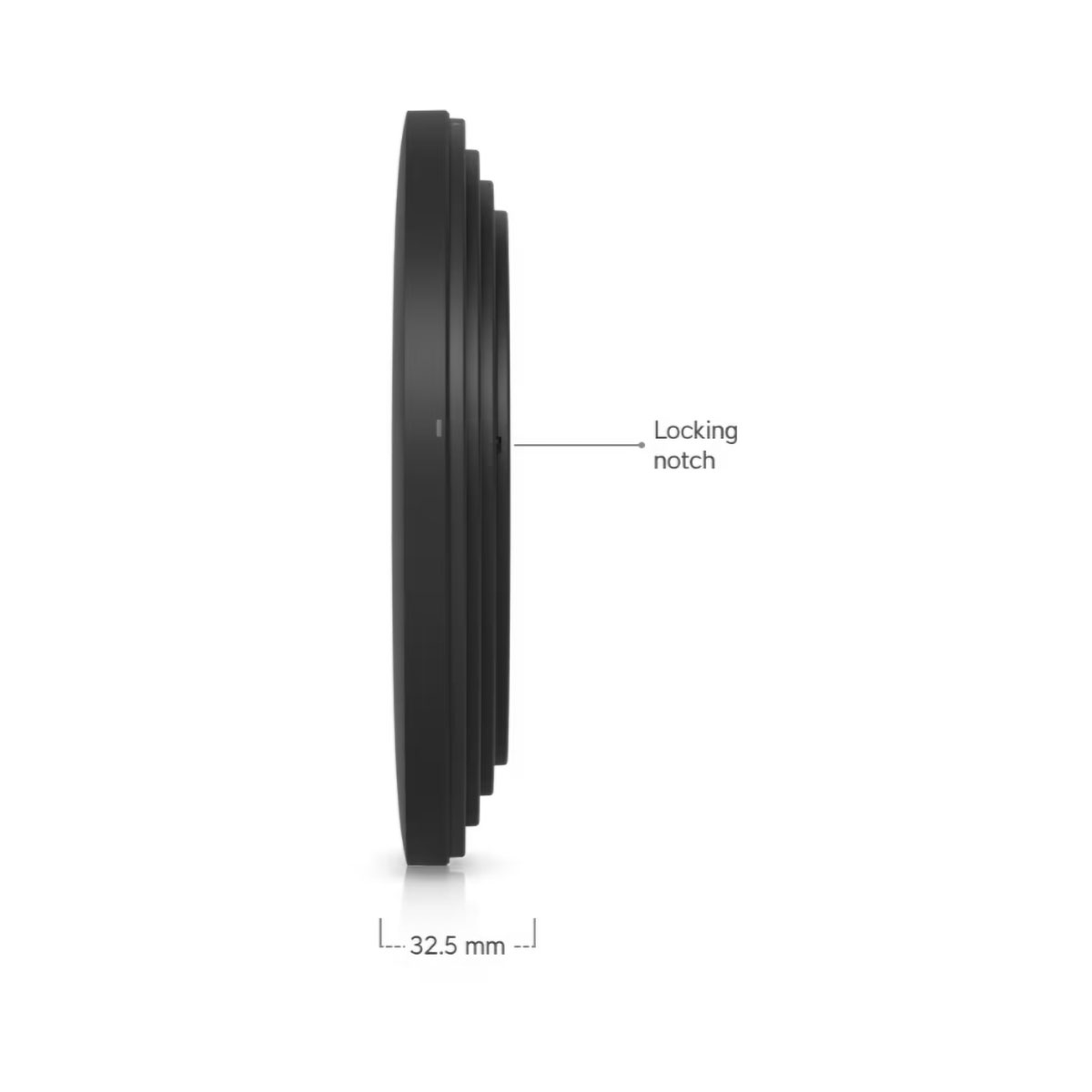

| Dimensions | Ø206 x 32.5 mm |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |

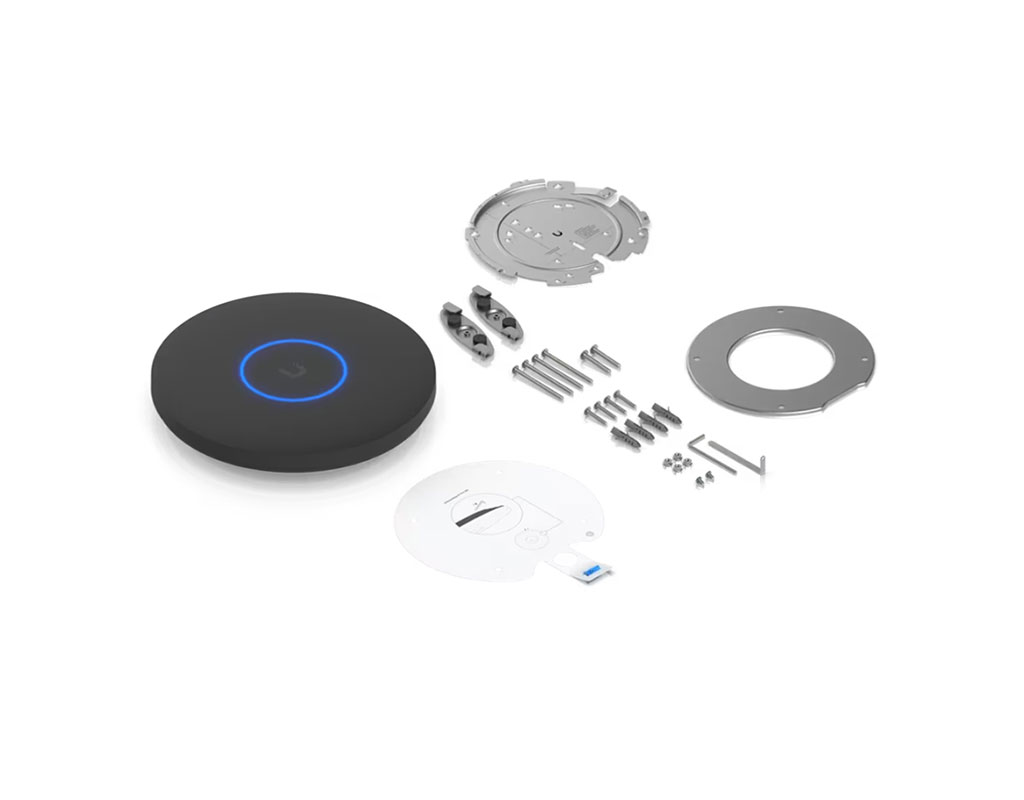

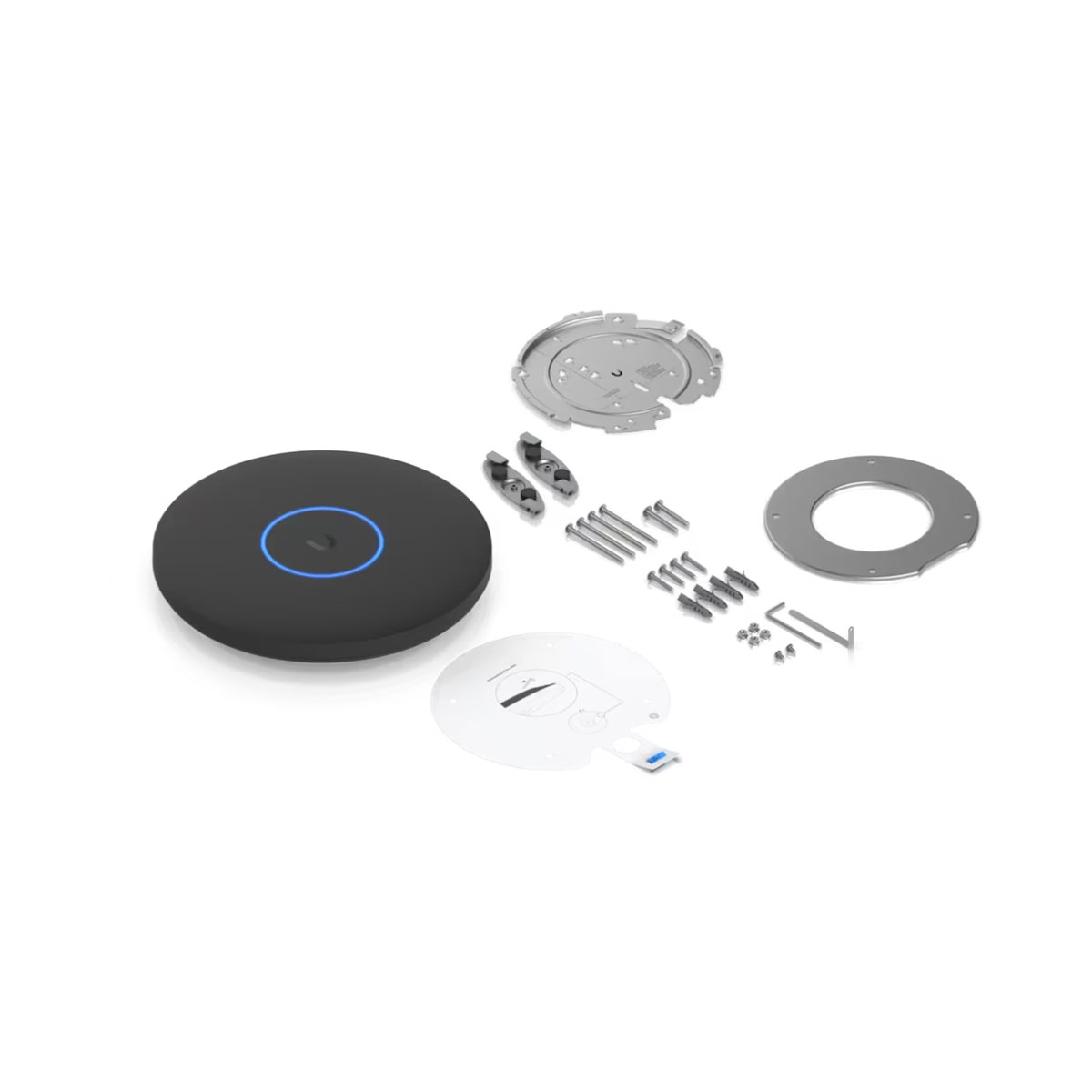

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO |
6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz 5.8 Gbps (BW320) 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 6 GHz 6 dBi 5 GHz 5 dBi 2.4 GHz 4 dBi |
| Max. TX Power | 6 GHz 24 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal |
Custom Branding Landing Page Voucher Authentication Payment-Based Authentication External Portal Server Support Password Authentication Guest Network Isolation |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5—57V DC |

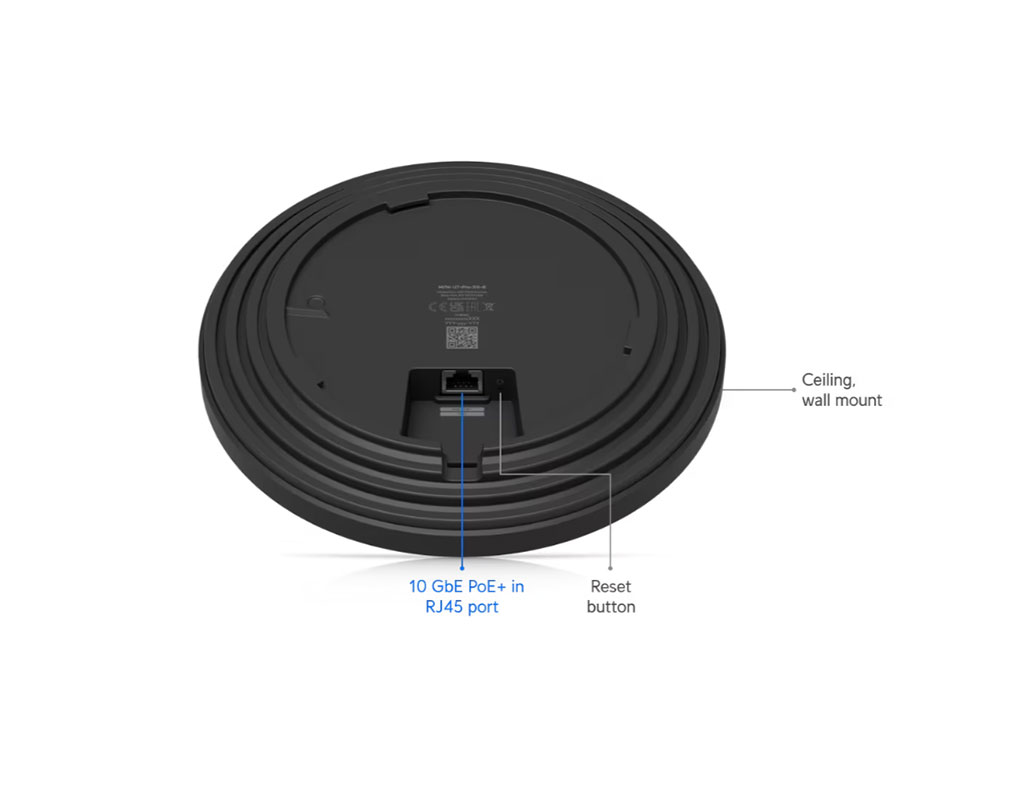

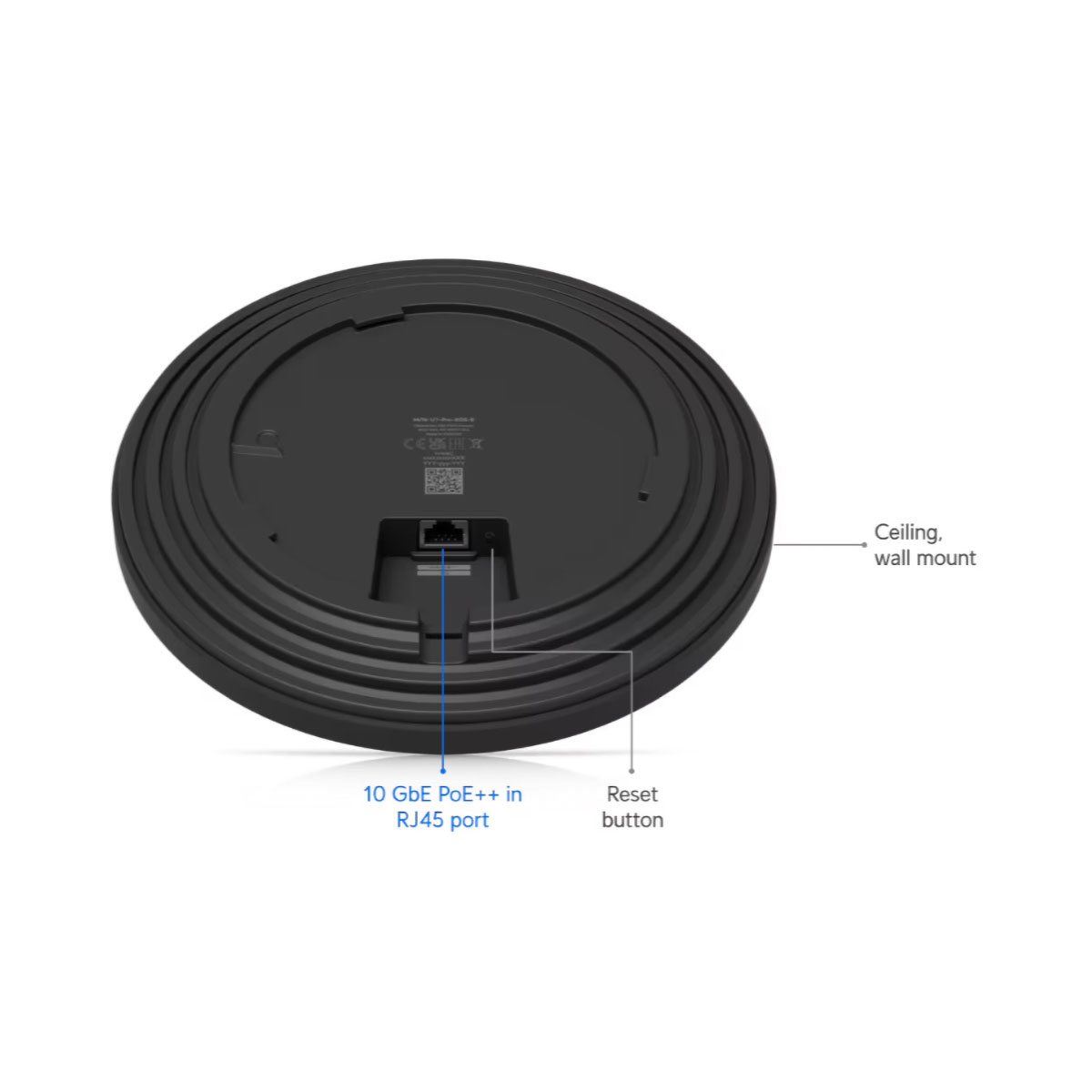

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 750 g |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs/System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements UniFi Network | Version 9.1.120 and later (U7 Pro XG - Black) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
