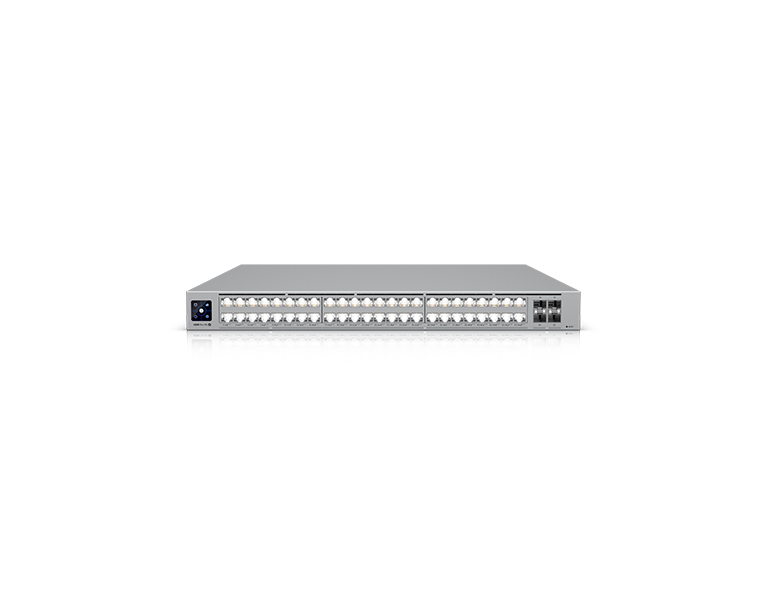

Ubiquiti USW-Pro-XG-48-PoE, Etherlighting PoE+++ Switch, Layer 3 32x10xGbE, 16x2.5GbE, 4x25G, SFP28 Ports (1080W)
The UniFi Switch USW-Pro-XG-48-PoE is a managed L3 PoE switch with a switching capacity of 920 Gbps, (16) 2.5-Gigabit LAN, (32) 10-Gigabit LAN ports and four SFP28 (25G/10G/1G) ports. All Ethernet ports support PoE+++ 802.3af/at/bt PoE-Out with an output power of up to 90W/port and a total PoE budget of 1080 W. The ports feature Etherlighting, allowing you to illuminate ports with colors to show port location, speed/connection, and VLAN. The switch is powered via 230V AC, and the USP RPS DC port serves as a backup in case of primary power failure. Maximum power consumption including PoE is 1280W.
Key Features
- (16) 2.5G ports – supports 802.3af/at/bt PoE+++ (90W/port)
- (32) 10G ports – supports 802.3af/at/bt PoE+++ (90W/port)
- (4) 25/10/1G SFP28 ports
- 1080 W PoE budget
- Etherlighting – visual indication of port information
- Rack-mountable
- Managed via UniFi Network Server
Management via UniFi Network Server
The USW-Pro-XG-48-PoE does not have a web-based management interface but is centrally managed using the UniFi Network Server with support for the UniFi mobile app. It offers an extensive suite of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch functions via a graphical user interface from anywhere.
Package Contents
- Device
- Power cable
- Rack-mount brackets
| Overview | |
| Dimensions | 442 x 480 x 44 mm |
| Port Layout | |
| 2.5 GbE RJ45 |
16 (All PoE+++)
(2.5G/1G/100M/10M) |
| 10 GbE RJ45 |
32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
|
| 25G SFP28 |
4
(25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC: 1080W 100-120V AC: 972W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size |
ARP Entries 128,000
IPv4 Routes 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists | IPv4 256 MAC 256 |
| Layer 3 Features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
| Layer 2 Features |
LACP Port Aggregation
STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection |
| Hardware | |
| PoE Ports | PoE+++ 48 |
| Max. PoE Wattage per Port by PSE | PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W |
| Max. Power Consumption | 200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output) |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 1,350W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 8.7 kg With mounting brackets: 8.8 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

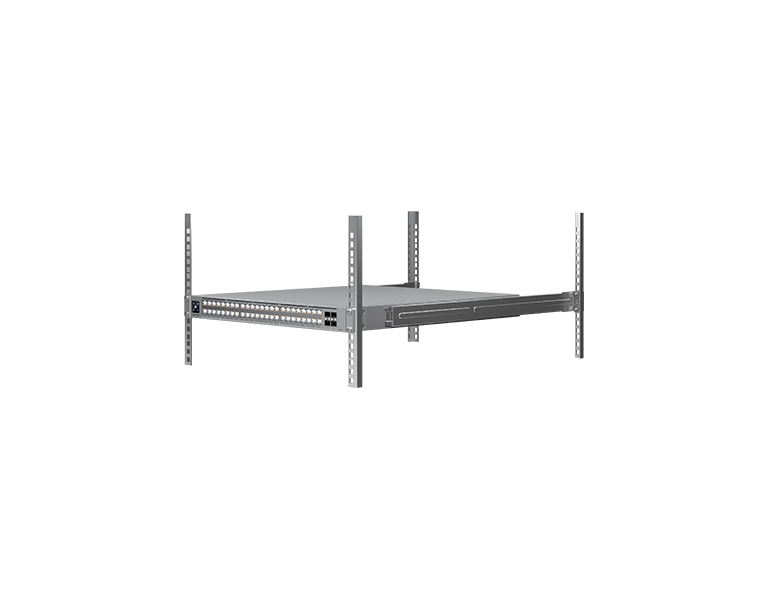

| Supported Rack Depth | 482.6 mm four-post racks Posts depths ranging from 600 to 1,066 mm |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet SFP28 |
| LEDs | RPS |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software | |
|
Application Requirements
|
UniFi Network
Version 9.1.120 and later
|
