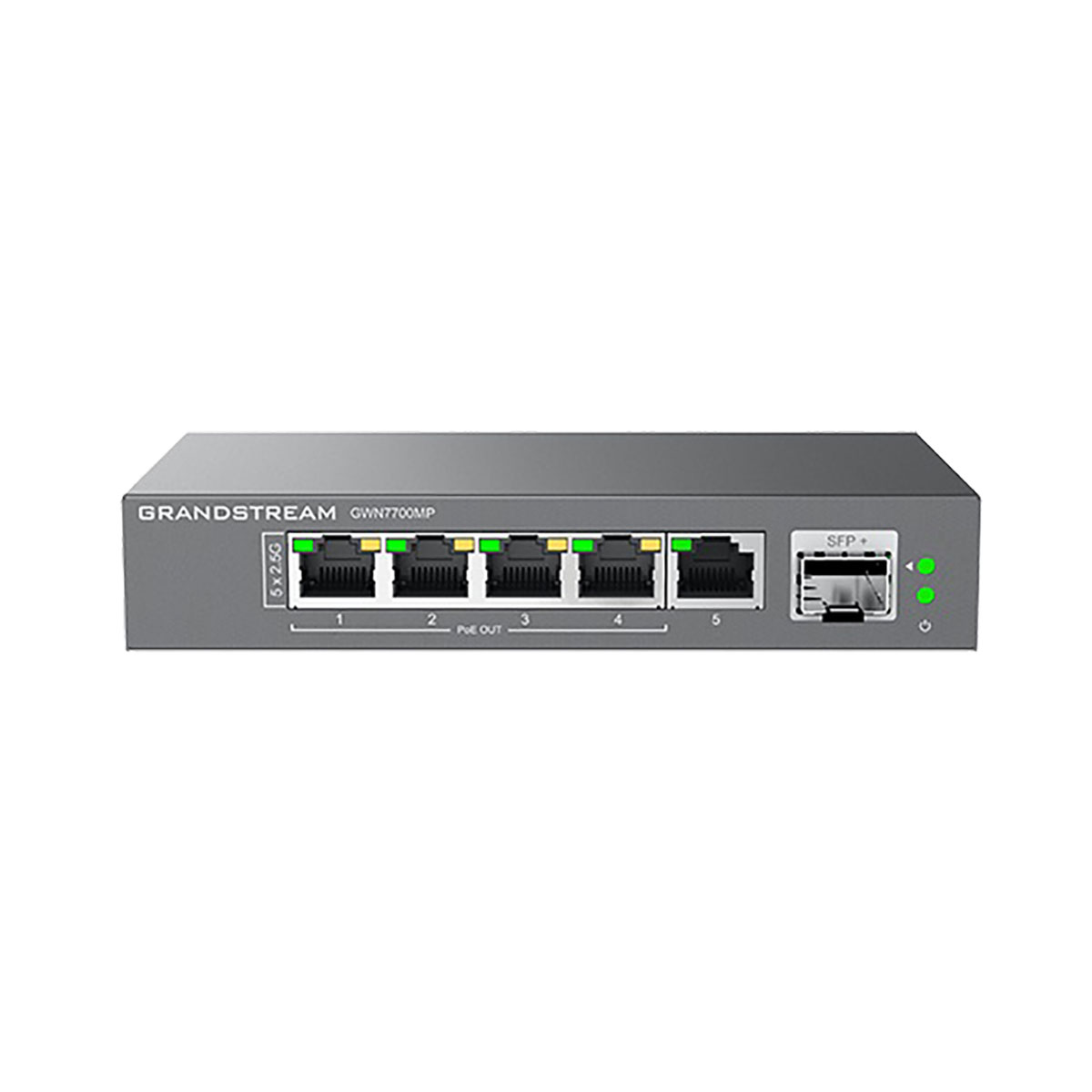

Grandstream GWN7700MP Unmanaged Network Switch-Metal Case
Grandstream GWN7700MP Unmanaged Network Switch-Metal Case
The GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7700M, GWN770MP, and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables. They support auto negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The GWN7700MP provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700M series are the ideal unmanaged network switches for home offices and small-to-medium businesses that require high-speed, multi-Gigabit connectivity.
Features:
• 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
• One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
• LED Indicators - Per port: Link/Activity/Speed, Per device: Power
• Auto MDI/MDIX crossover for all ports
• Whisper Quiet: fanless
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Green technology reduces power consumption
• QoS - Supports Default Strict Priority when present
Specifications | |
Gigabit Ports | 5 |
PoE Ports | 4 |
Enclosure | Metal |
Mounting | Desktop/ Wall-Mount |
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at |
Port Feature | 5× 100/1000/2500Mbps RJ45 Ports 1× SFP+ Fiber Port AUTO Negotiation AUTO MDI/MDIX |
Network Media | 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex |
PoE Ports | 1~4 Ports 802.3 af/at compliant ; Up to 30 W on Each Port, Total 57W Power Budget; Overload to cut off the lowestpriority port; Priority: Port 4 to Port 1; |
LED Indicators | Per port: Link/Activity Green Per device: Power Green |
Mac Address Table | 4K |
Switching Capacity | 45Gbps |
Jumbo Frame | 9KB |
Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control IEEE 802.3az (Energy Efficient Ethernet) 802.1p/DSCP QoS IGMP: •IGMP Fast-Leave •IGMP Snoop •Route Port Autolearn •Query Refresh Member Port |
Power Adapter | External 53.5V/1.22A |
Max Power Consumption by Base System | 7.2W |
Environmental | Operating Temperature: 0 to 40 °C Storage Temperature: -20 to 60 °C Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
Dimensions (L x W x H) | Unit: 145 x 80 x 27mm Package: 230 x 190 x 51mm |
Weight | Unit: 0.31KG Entire Package:0.80 KG |
Package | 1x Switch 1x Power Adapter 1x QIG |
Compliance | FCC, CE, RCM, IC |
