Description

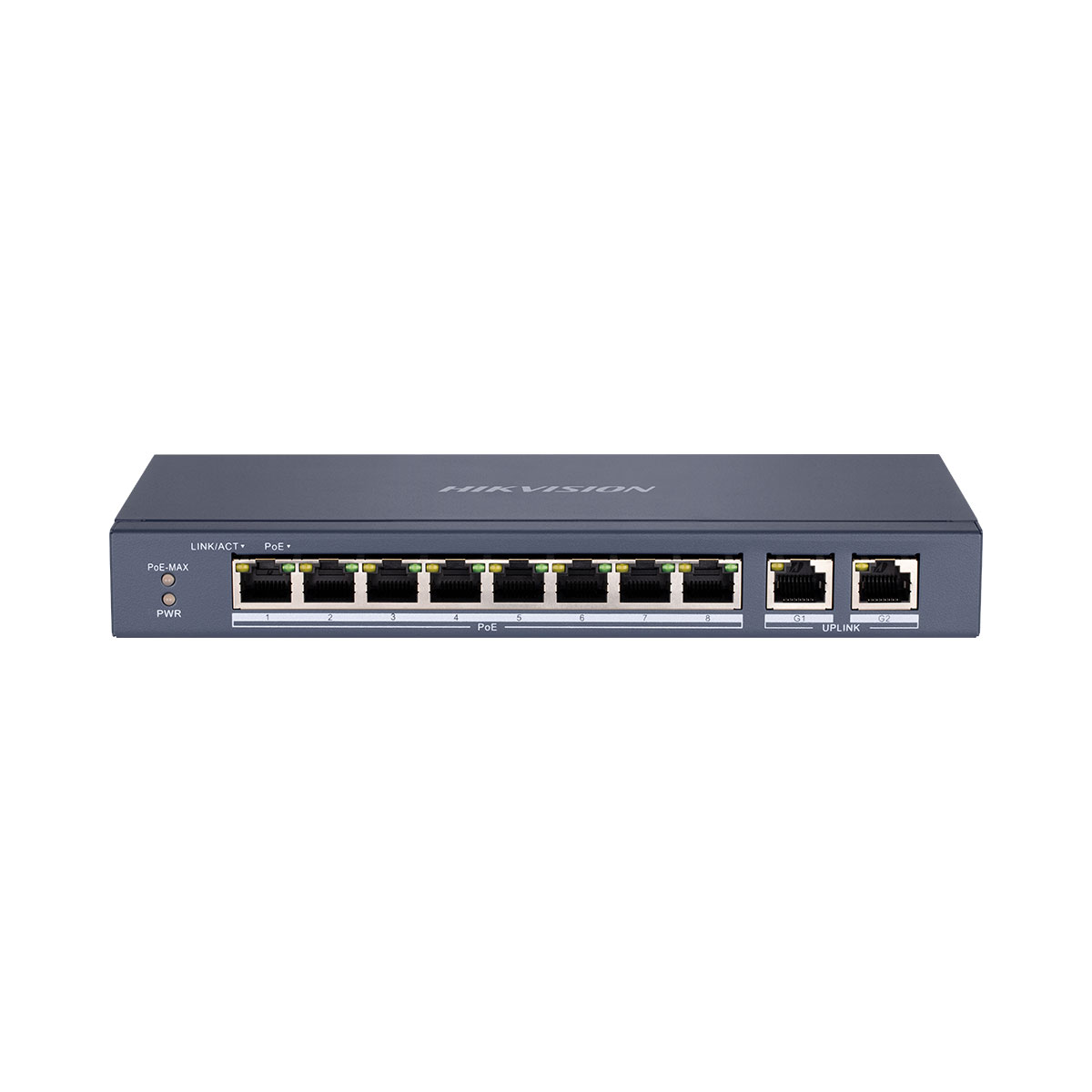

• 8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
• IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 kV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.
Characteristics
| Specification |
|
| General | |
| Shell | Metal material |
| Net Weight | 0.555 kg |
| Gross Weight | 1.20 kg |
| Dimensions (W × H × D) | 217.6 mm × 103.35 mm × 27.8 mm |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –40 °C to 85 °C |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 V DC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 8 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Dialing Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
