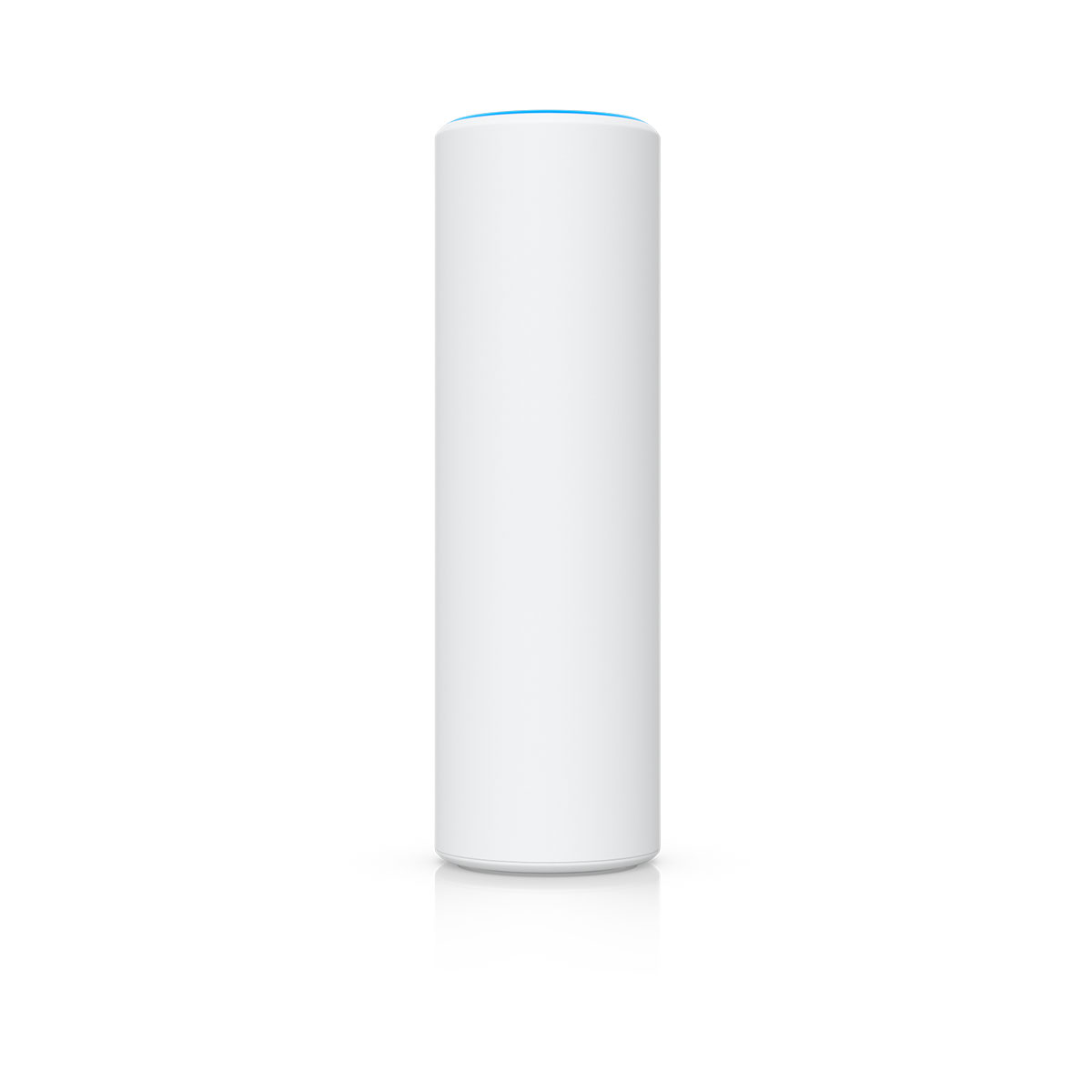

Ubiquiti U7-MESH, Compact Indoor/Outdoor Wi-Fi 7 AP with Integrated Long-Range Antennas
Small, elegant, and yet extremely powerful Dual-Band AP with support for the latest Wi-Fi 7 standard 802.11be is ideal for businesses and homes. Its modern and discreet design allows for placement close to users for optimal performance. In the 5 GHz band, it achieves speeds of up to 4 334 Mbps (2x2 MIMO) and in the 2.4 GHz band 688 Mbps (2x2 MIMO).
Suitable for both indoor and outdoor use thanks to IPX6 protection. Seamless integration and management with the UniFi network solution. The package includes mounts for wall, pole, and table installation.
Key Features
- Wi-Fi 7 technology - 802.11a/b/g/n/ac/ax/be
- 5GHz throughput up to 4 334 Mbps - 160 MHz, 2x2 MIMO
- 2.4GHz throughput up to 688 Mbps - 2x2 MIMO
- Power over 802.3af PoE
- WPA3 encryption support
- LAN speed - 100/1000/2500 Mbps
Centralized Unit Management
To manage the device, it is necessary to download the original software called UniFi Network Controller from the official website, which allows you to manage the entire network. An undeniable advantage of UniFi Network is that it is completely free without any limitations! This centralized management allows you to upload maps and set basic parameters as well as advanced features such as SSID, guest account, landing page, traffic statistics, and a list and status of associated clients quickly and easily.
Advantages of UniFi Solution
- Fast Roaming - seamless transition between individual APs
- Wireless uplink (useful where it is not possible to use a data cable)
- Up to 8 SSIDs
- Detailed traffic statistics
- Guest network
- Load balancing - maintaining even load / switching clients
- Bandwidth limiting for each SSID

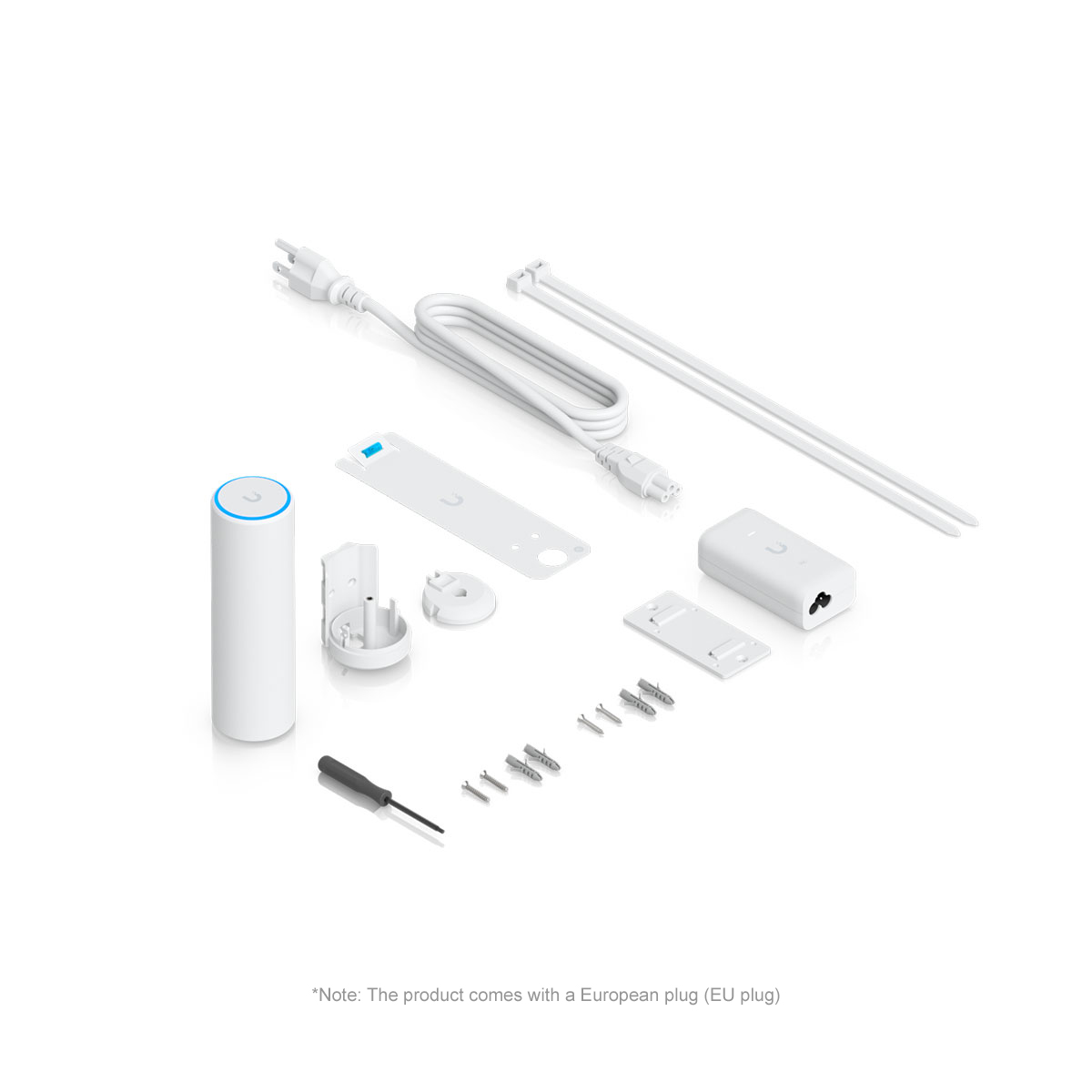

Package Contents
- Device
- Mounts - wall, pole, table
- Pulling straps
- Gigabit PoE power adapter 48 V / 0.32 A
- Power cable
- Screws
| Specifications | |
| Overview | |

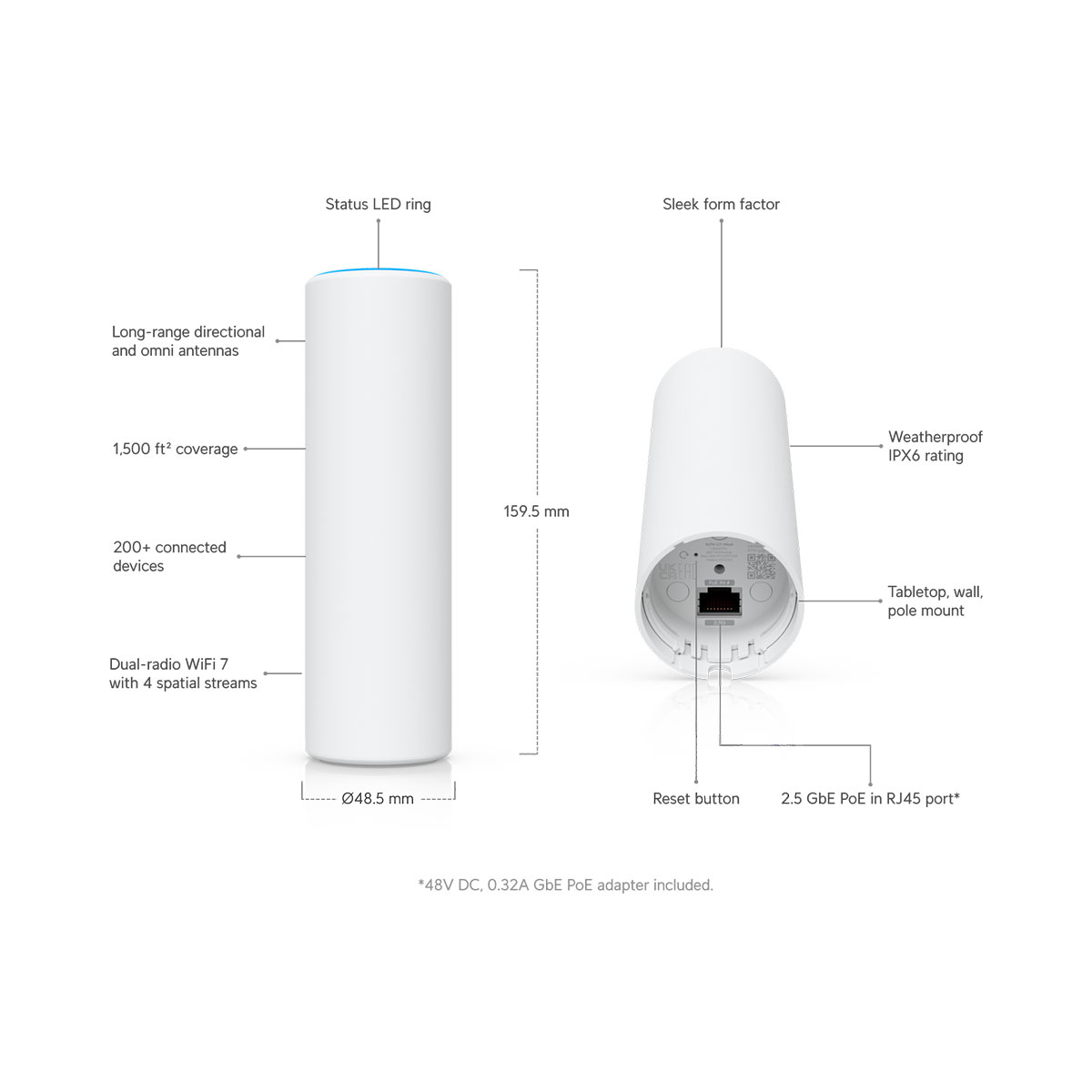

| Dimensions | ⌀48.5 x 159.5 mm |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE 🛈 Cables with shorter boots are recommended |
| Mounting | Wall, Pole, Table stand (Mounts included) |
| Weatherproofing | IPX6 (Installed with the outdoor mount) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz - 2 x 2 (DL/UL MU-MIMO) 2.4 GHz - 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz - 4.3 Gbps (BW240) 🛈 Depends on regulatory region 2.4 GHz - 688 Mbps (BW40) |
| Antenna Gain | 5 GHz - Omnidirectional: 6 dBi , Directional: 10 dBi 2.4 GHz - 3 dBi |
| Max. TX Power | 5 GHz - 24 dBm 2.4 GHz - 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
|
802.11k Radio Resource Management (RRM) |
✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page - ✓ Voucher Authentication - ✓ Payment-Based Authentication - ✓ External Portal Server Support - ✓ Password Authentication - ✓ Guest Network Isolation - ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13W |
| Includes PoE Adapter | ✓ |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| LEDs | System - W/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network - Version 10.1.85 and later Mobile App - UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
