Ubiquiti UniFi6 Enterprise Access Point
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.
Features:
• WiFi 6 support (2.4/5/6 GHz bands)
• 10.2 Gbps aggregate throughput rate
• (1) 2.5GbE RJ45 port (PoE In)
• Powered with PoE+
| Mechanical | |

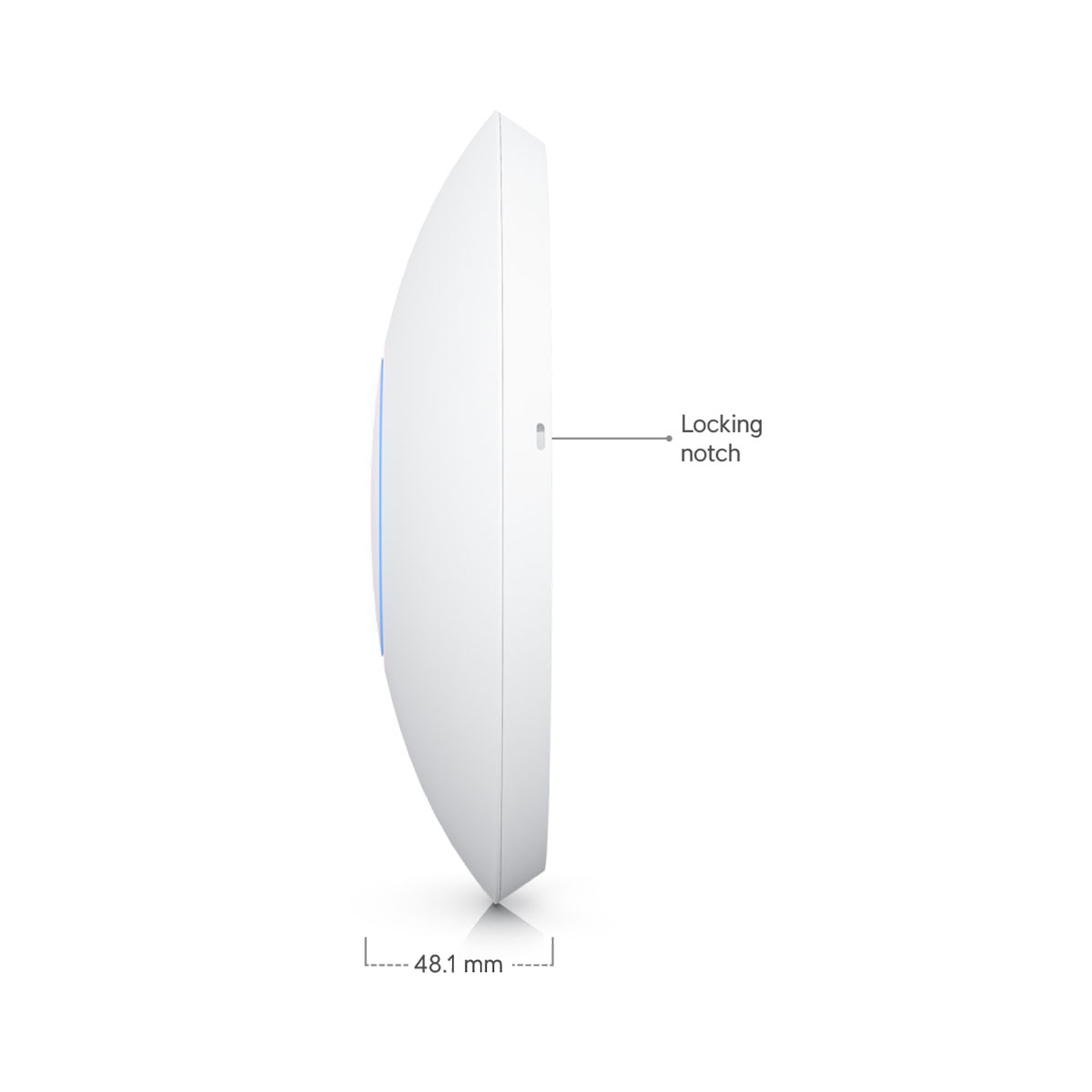

| Dimensions | Ø220 x 48.1 mm |
| Weight | Without mount: 960 g With mount: 1090 g |
| Enclosure materials | Top housing: plastic Bottom housing: aluminium |
| Mount material | SGCC steel |
| Hardware | |
| Management interface | Ethernet, Bluetooth |
| Networking interface | (1) 2.5GbE RJ45 port |
| Buttons | Reboot and factory-reset |
| LED | W/B |
| Power method | PoE+ |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (optional) |
| Supported voltage range | 44 - 57VDC |
| Max. power consumption | 22W |
| Max. TX power | 2.4 GHz 22 dBm 5-7 GHz 26 dBm |
| MIMO | 2.4 GHz 2 x 2 (UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 6 GHz 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | 2.4 GHz 573.5 Mbps 5 GHz 4.8 Gbps 6 GHz 4.8 Gbps |
| Antenna gain | 2.4 GHz 3.2 dBi 5 GHz 5.3 dBi 6 GHz 6 dBi |
| Mounting | Wall/ceiling (included) |
| Operating temperature | -30 to 60° C |
| Operating humidity | 5 - 95% noncondensing |
| Certications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guesttrafc isolation | Supported |
| Concurrent clients | 600+ |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
