Ubiquiti U-AIRWIRE High Performance WiFi 7 Client Adapter
Elevate your connection to a truly multi-gigabit level with modern technologies that redefine WiFi. The WiFi 7 standard combined with STR MLO enables simultaneous full-duplex communication across bands, delivering real speeds of up to 5765 Mbps (6 GHz) and 4334 Mbps (5 GHz) with significantly lower latency. The result is smooth streaming, lightning-fast data transfers, and stable connectivity in challenging conditions, whether you are working, gaming, or managing a network. The adapter is compatible with Windows, macOS, and Linux, and can also be used with iOS and Android devices when externally powered, with Apple devices supporting only models with USB-C or Thunderbolt interfaces.
Maximum Performance and Connection Flexibility
The integrated directional Super Antenna (11 dBi) ensures a strong and stable signal with the ability to aim precisely. The adapter utilizes 5GbE over USB 3.2 Gen2, allowing you to fully leverage the potential of high speeds without limitations. Convenient USB-C power with Power Delivery and broad compatibility across devices ensure easy use anywhere. Features like Real-Time Spectral Analysis or wireless meshing further help optimize performance and ensure reliable connections in any situation.
Key Features
• WiFi 7 – support for channels up to 320 MHz and high transfer speeds
• STR MLO – simultaneous full-duplex communication up to 5765 Mbps (6 GHz) and 4334 Mbps (5 GHz)

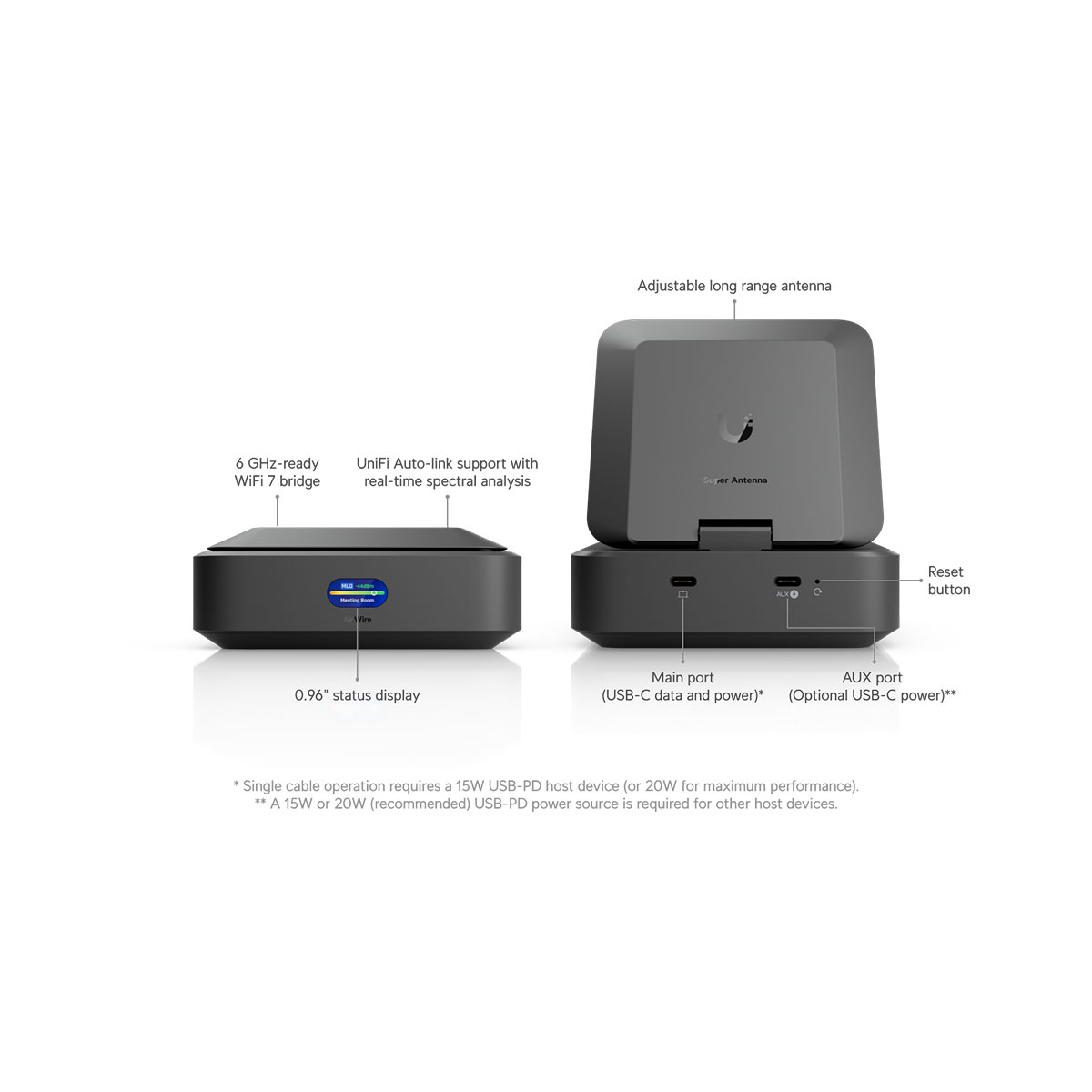

• Super Antenna (11 dBi) – directional antenna for a strong and stable signal
• 5GbE over USB 3.2 Gen2 – maximum utilization of connection speed
• USB-C power with Power Delivery – flexible and easy to use
• 2 × 2 MU-MIMO configuration on both bands
• Power over USB-C with Power Delivery support 15W (Standard mode)
• Compatibility with Windows, macOS, Linux, iOS, and Android devices with USB-C
| Overview | |
| Dimensions | 117 x 117 x 42.5 mm |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Uplink | WiFi |
| Performance | |
| MIMO | 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz 5.8 Gbps (BW320) 5 GHz 4.3 Gbps (BW240) |
| Antenna Gain | 6 GHz 11 dBi 5 GHz 11 dBi |
| Max. TX Power | 6 GHz 20 dBm 5 GHz 25 dBm |
| Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Real-Time Spectral Analysis | Yes |
| Hardware |
|
| Max. Power Consumption | 18W |
| Power Supply | USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode) |
| Networking Interface | (1) 5 GbE port (USB3.2 Gen2) |
| Weight | 544 g |
| Management | USB-C |
| Enclosure Material | Polycarbonate |

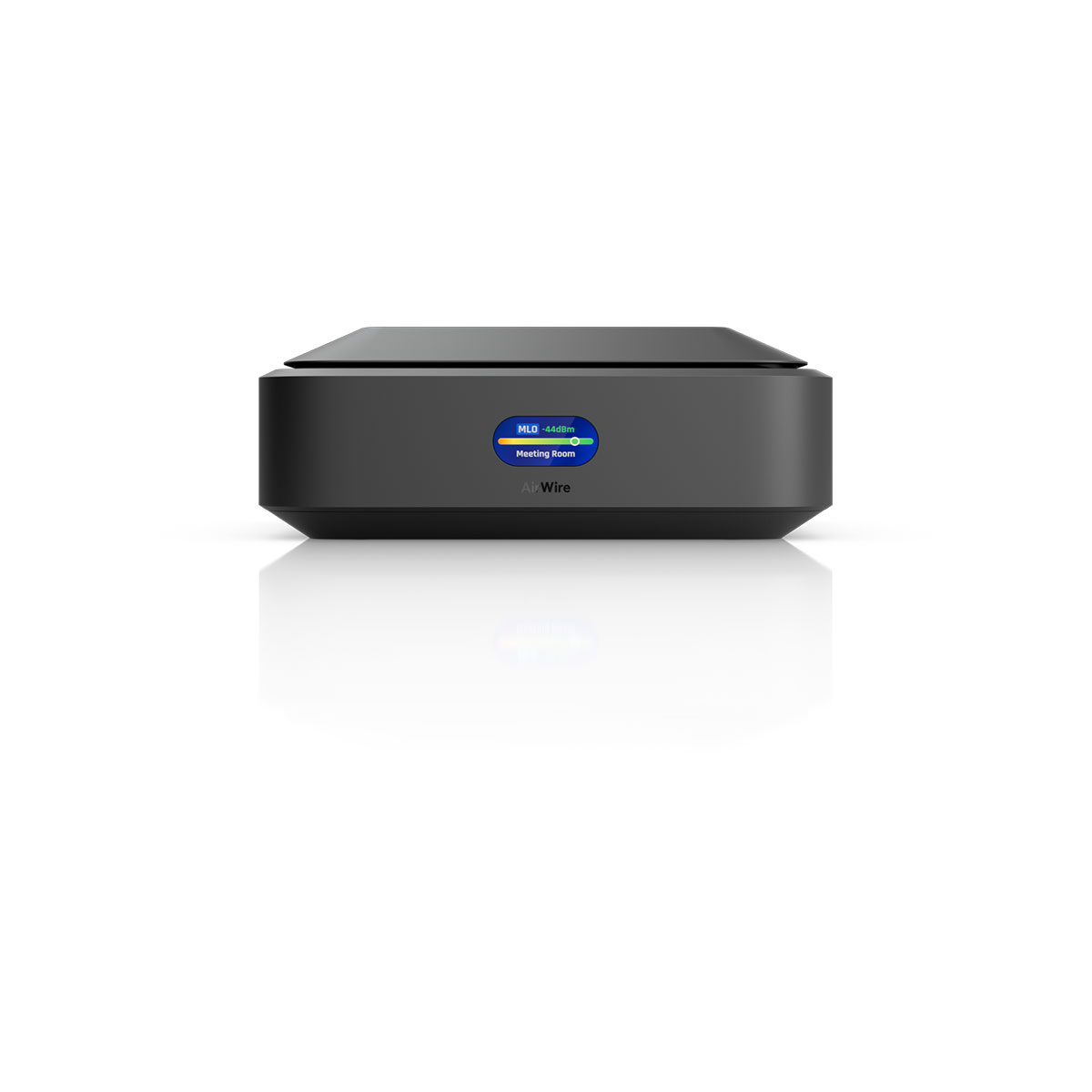

| Display | 0.96" status display |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -10 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements UniFi Network |
Version 10.2 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
