Ubiquiti U6-Extender-EU - UniFi Access Point WiFi 6 Extender
Note. Cannot be set up standalone and requires UniFi WiFi managed by a UniFi Console or self-hosted UniFi Network Server. EU power plug only
Easy-to-deploy WiFi 6 coverage extender that fits standard EU duplex outlets.

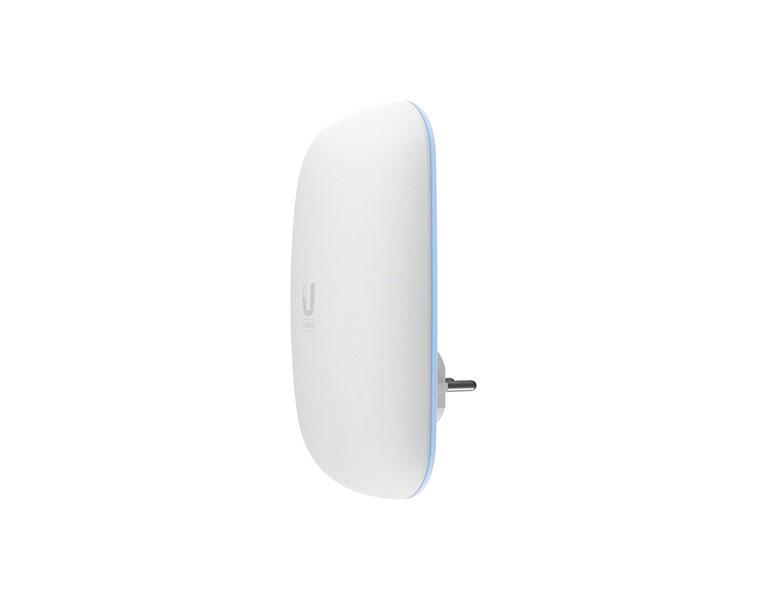

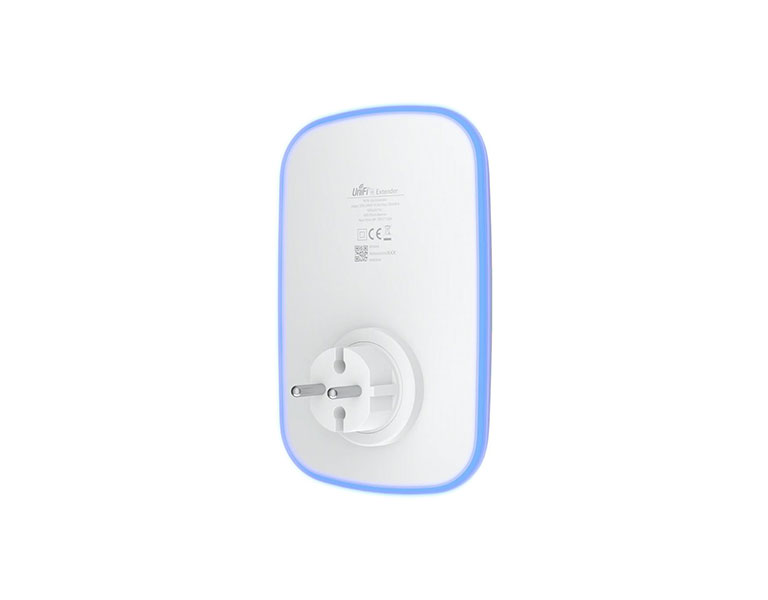

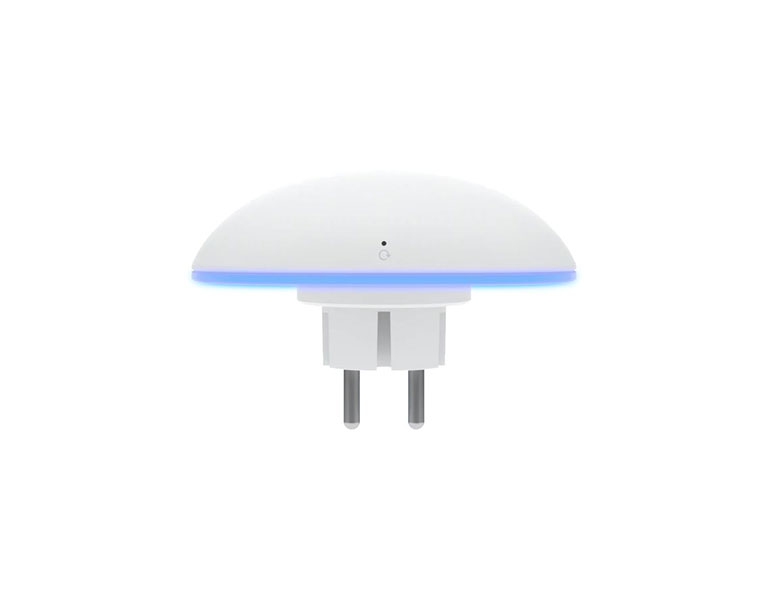

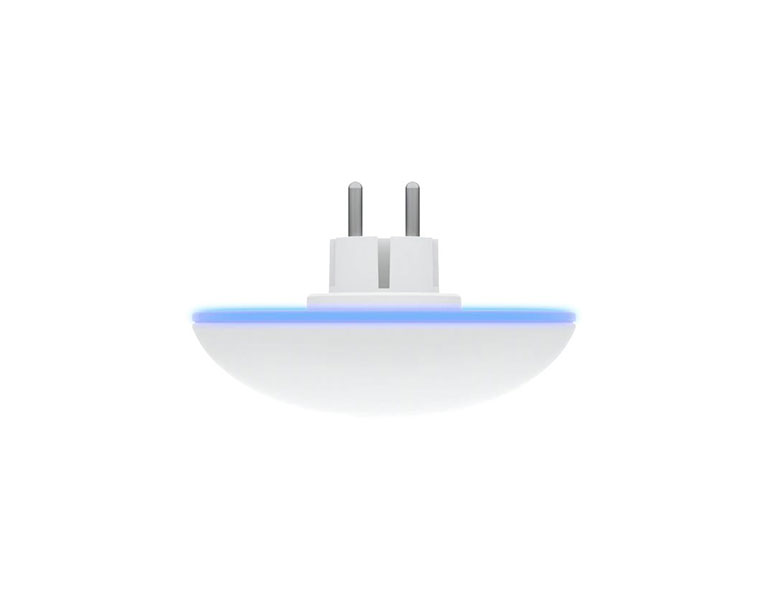

The UniFi6 Extender (U6 Extender) is a portable, easy-to-deploy WiFi 6 access point that can instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks. Engineered for plug-and-play simplicity, this access point fits any standard EU duplex wall outlet and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic. The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or mobile app.
Features:
• Dual-band WiFi 6 connectivity
• 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
• 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
• Fits any standard EU duplex wall outlet
• Easily extends wireless coverage across large homes or offices
Important: These requirements must be met to wirelessly adopt the U6 Extender:
• APs providing wireless connectivity for the U6 Extender must be updated to Version 6.0.11 or later.
• Dream Machines (UDM) must be updated to Version 1.12.22 or later.
• Dream Routers (UDR) must be updated to Version 2.3.15 or later.
Note1. Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Note2. Cannot be set up standalone and requires UniFi WiFi managed by a UniFi Console or self-hosted UniFi Network Server. EU power plug only.
| Mechanical | |
| Dimensions | 169.7 x 112.2 x 32.2 mm |
| Weight | 290 g |
| Enclosure material | Plastic |
| Hardware | |
| Management interface | Bluetooth |
| Button | Factory reset |
| LED* | White/blue *Duetochipsupply shortages,theU6AP's LEDhas beenlimitedtoonlywhiteandbluecolormodes. |
| Power method | Universal AC input, 100-240VAC, 0.3A max., 50/60 Hz |
| Supported voltage range | 110 to 240VAC |
| Max. power consumption | 11W |
| Max. TX power | 2.4 GHz 22 dBm 5 GHz 26 dBm |
| MIMO | 2.4 GHz 2 x 2 (UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | 2.4 GHz 573.5 Mbps 5 GHz 4.8 Gbps |
| Antenna gain | 2.4 GHz 5 dBi 5 GHz 6 dBi |
| Operating temperature | -10 to 50° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced | QoS Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero wait DFS | Yes |
| Supported DataRates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| 802.11ac | (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax | (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
