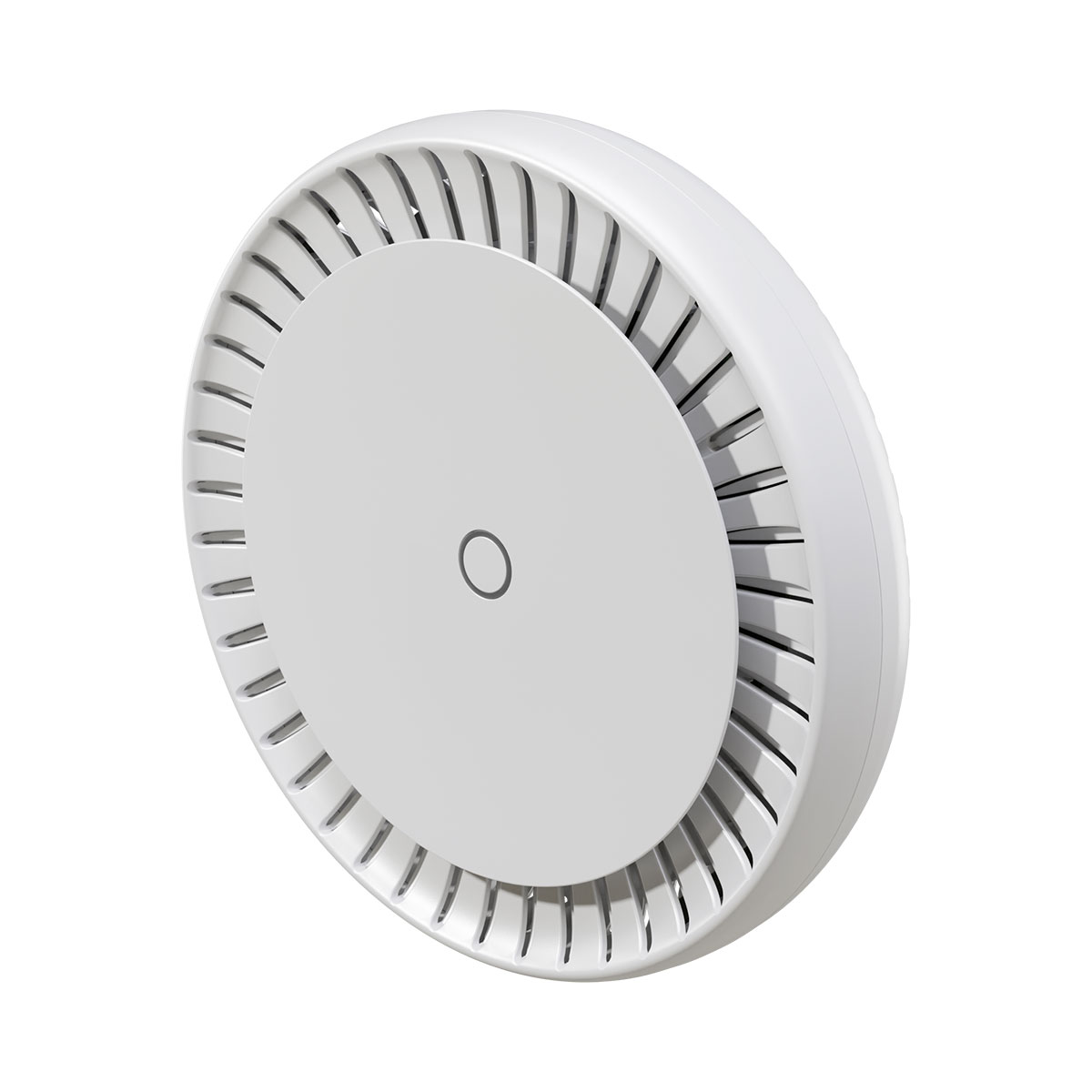

MikroTik cAPGi-5HaxD2HaxD, cAP AX, RouterOS L4
cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market – RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!
With the Generation6 802.11ax wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!

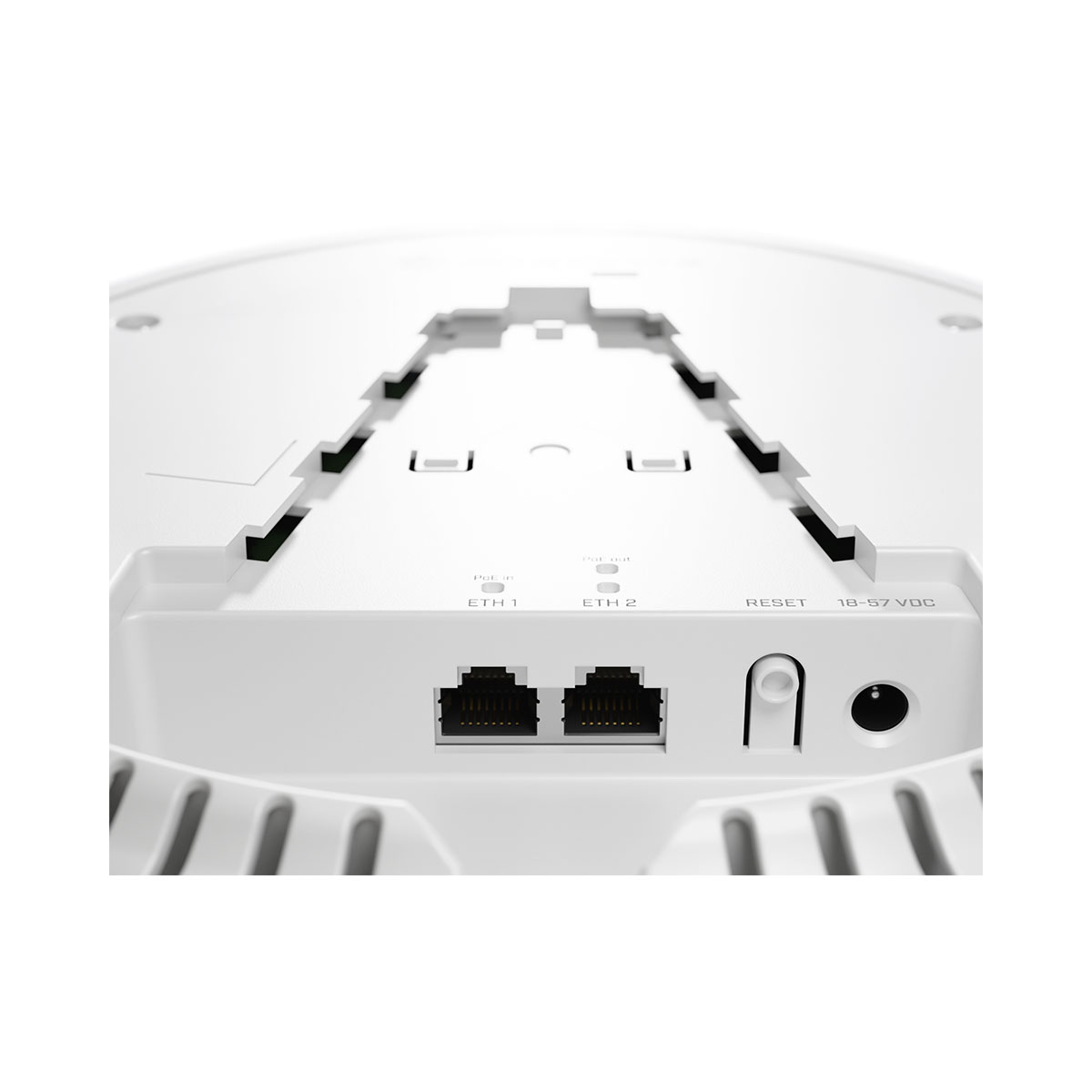

cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.
| Specifications | |
| Product code | cAPGi-5HaxD2HaxD |
| CPU | Quad core IPQ-6010 1.8 GHz |
| Size of RAM | 1 GB |
| RAM type | DDR3L |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 2 |
| Wireless interface model | QCN-5022 (2.4 GHz), QCN-5052 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna gain | 5.5 dBi |
| Operating system | RouterOS v7, License level 4 |
| Switch chip model | IPQ-6010 |
| Dimensions | 228 x 48 mm |
| Operating temperatur | -40°C to +70°C |
| Powering | |
| PoE-in | 802.3af/at |
| PoE-Out | Passive PoE up to 57V (30V PoE-In and DC jack can be used) |
| PoE-Out ports | Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA. Over 300 mA current, please use DC jack for powering device. |
| Number of DC inputs | 2 |
| Supported input voltage | 18-57 V (DC jack) 18-57 (PoE-In) |
| Max power consumption (without attachments) | 9 W |
| Max power consumption | 28,2 W |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
