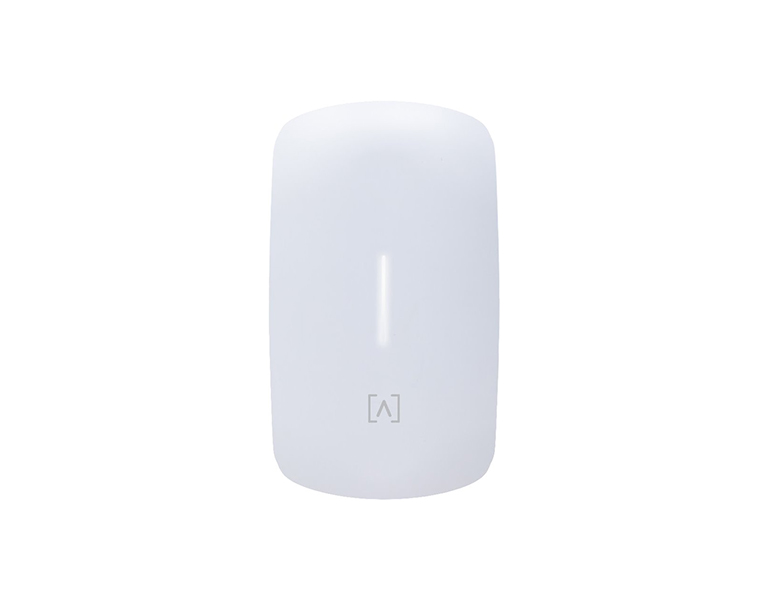

Alta Labs AP6 PRO WIFI6 Access Point
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
The Alta Labs AP6-Pro Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments. The AP6-Pro is IP54-rated for higher end commercial environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware featuring our proprietary QuickMount™ technology for quick, simple mounting.
Features:
• WiFi 6 With WiFi 7 Benefits
• Superior Range and Performance
• IP54 Rated
• Scalable Cloud-Based Management
• Mobile App
• Multi-Password Authentication
• DPI Engine
• Hotspot Functionality
• On-The-Fly Changes and Scanning
• Wireless Network Color Coding
• SSID Broadcasting Flexibility
• Customizable Dashboard
• Status Snapshots
• Device Cards
WiFi 6 with WiFi 7 Benefits
Built on an innovative new dual-band, 6 stream, WiFi 6 networking platform from Qualcomm®, the AP6-Pro incorporates 4096 QAM, one of the primary features of WiFi 7, providing a combined 6.3 Gbps of WiFi capacity.
Superior Range and Performance
Our proprietary antenna design provides superior range and performance. The AP6-Pro features four 5 GHz antennas, a design that helps the AP6-Pro outperform 2x2 APs by an over 30% throughput increase in many cases. Seamless roaming is fully automatic with support for the 802.11 k, v, and r standards. The AP6-Pro utilizes intelligent mesh formation for maximum throughput.
Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy-to-use cloud-based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.
IP54 Rated
The AP6-Pro is IP54 rated, offering strong protection against solids such as dust in a commercial environment, and a limited level of water resistance from water spray, allowing the AP to be installed outdoors under eaves or overhangs.
Mobile App
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or use Google Authentication.
| Specifications | |
| Mechanical | |
| Dimensions | 190 x 125 x 32 mm |
| Weight | 0.4 kg |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Mount material | Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |
| Weatherproofing | IP54 |
| Hardware | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Buttons | Reset/Factory Reset |
| LEDs | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
| Supported Voltage Range | 42.5-57V DC |
| Max. Power Consumption | 25W |
| Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS |
| MIMO | 2.4 GHz: 2 x 2, 5 GHz: 4 x 4 |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps |
| Antenna Gain | 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi |
| Mounting | Wall, ceiling, drop-ceiling, table top |
| Operating Temperature | -30 to 60° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Weatherproofing | IP54 |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| Software | |
| Wi-Fi Standards | 801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable To Stadiums | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| Supported Data Rates | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (Up to MCS 31) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
