Alta Labs AP6W WiFi 6, Wall Mount Enterprise Access Point

Product Code:
AP6W
113,20 €
(Includes VAT 24%)
Sales price without VAT:
91,29 €
Available

Alta Labs AP6W WiFi 6, Wall Mount Enterprise Access Point

Shipping cost calculation:
Quantity
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Legal Notice
Description

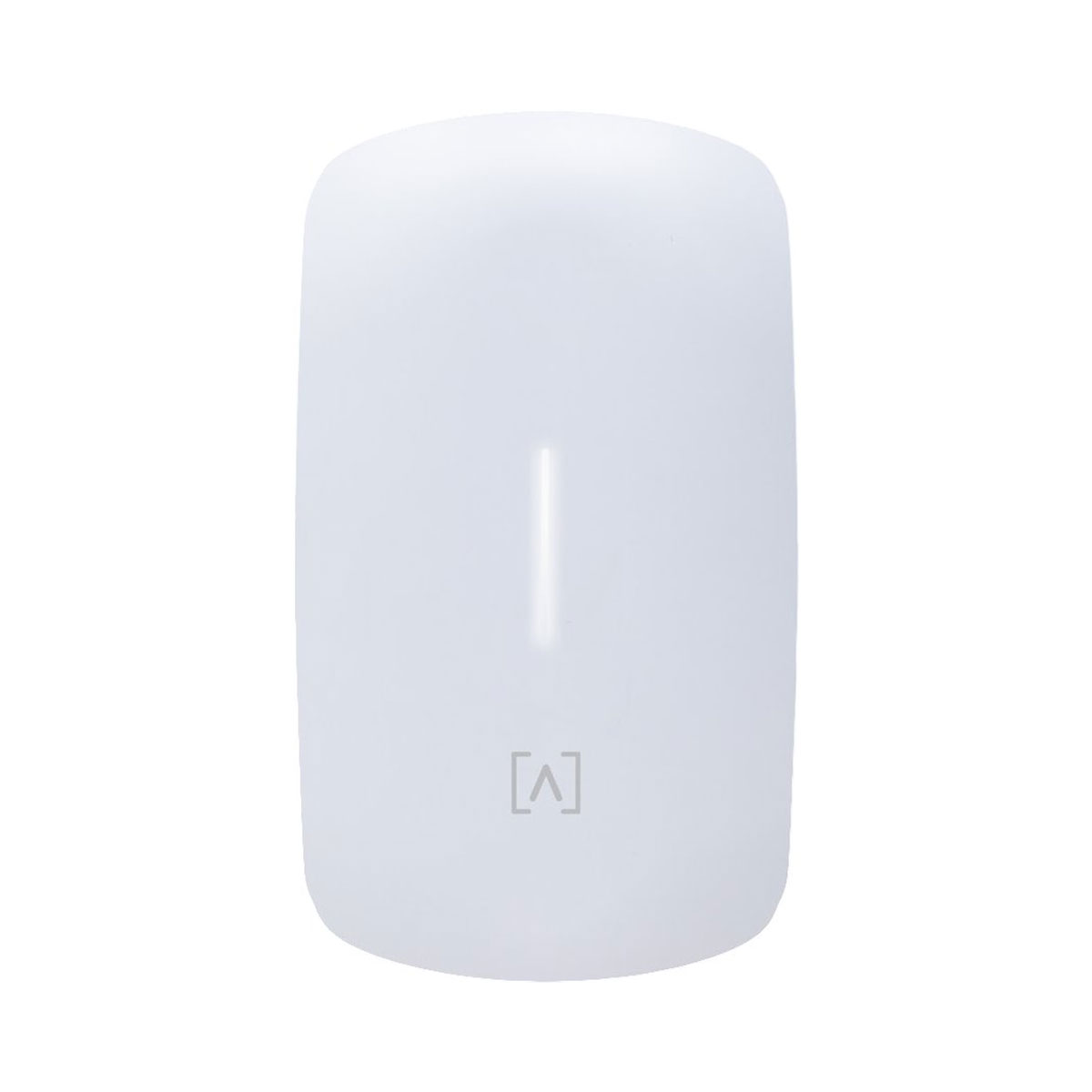

The AP6W access point from Alta Labs features a compact wall-mounted design, ensuring seamless integration into any commercial or residential environment. It can be powered either via Ethernet or locally through a DC jack.

The developers have done an excellent job with features such as reliable roaming using the 802.11r/k/v standards, multi-password authentication under the same SSID to separate networks based on passwords, and content filtering through a built-in DPI engine that requires no additional hardware and does not reduce access point throughput.

Multi-Password Authentication
An innovative approach to network separation by using different Wi-Fi passwords instead of creating multiple SSIDs, which increases overall network throughput. Each password can be linked to specific speed limits, VLAN settings, Wi-Fi off-schedule, or hotspot functionality.

Deep Packet Inspection Engine
Block content by application, select from an extensive predefined list including domain-based filtering — all without reducing throughput or requiring additional hardware.

Key Features:
• Cloud management - anytime, anywhere, and FREE (browser, mobile app)
• High-performance Wi-Fi 6 - 2x2 MIMO, 573 + 2402 Mbps
• (3) Gigabit LAN ports

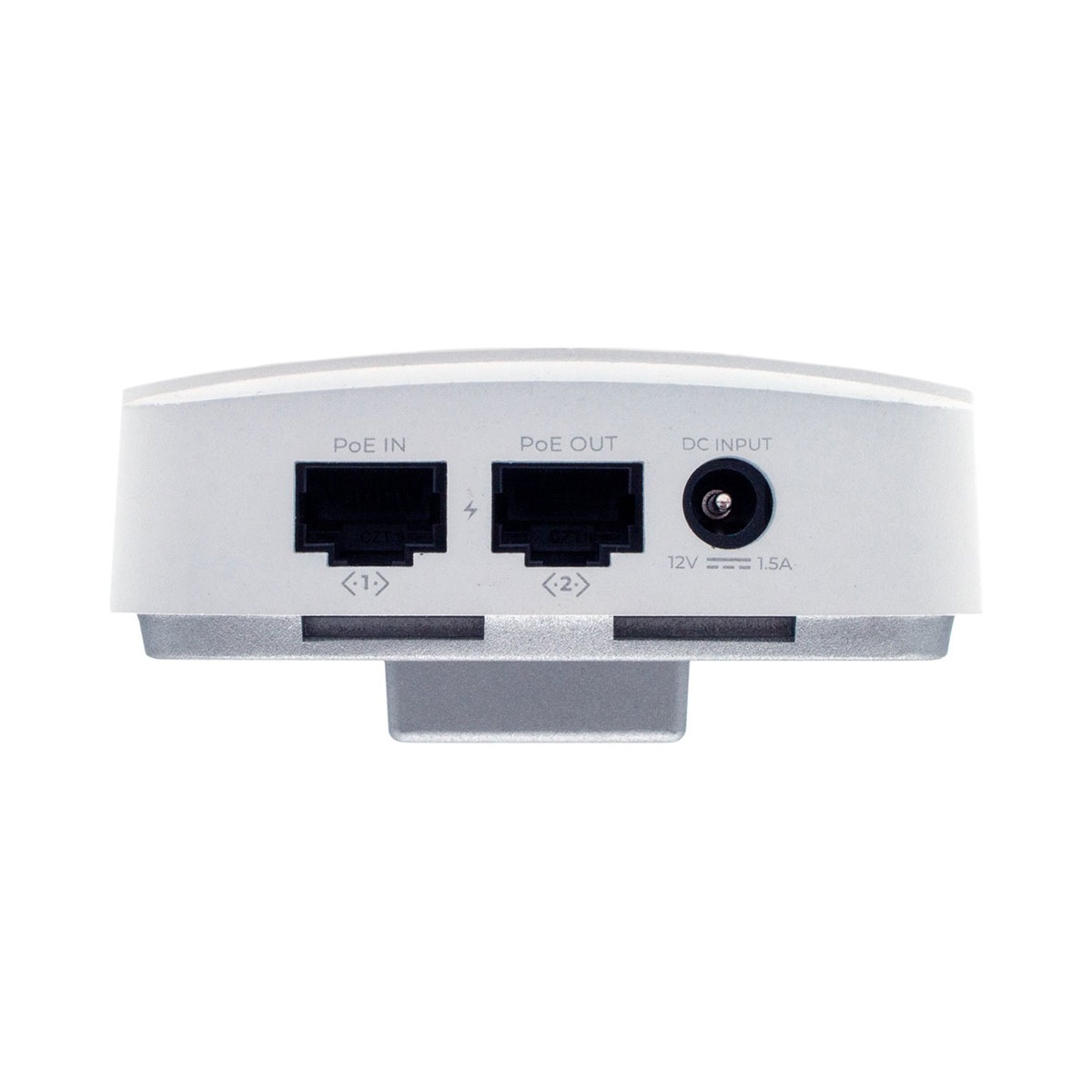

• Power via PoE or DC jack
• Supports PoE-Out to power additional devices
• Support for VLAN, QoS, Multi SSID, and WPA3 encryption
• Roaming via 802.11r/k/v standards
• Multi-password authentication
• Deep Packet Inspection Engine
• Hotspot page - create a custom login page with logo, terms of service, and redirect to an external URL
• Wireless SSID color coding - assign SSIDs to groups and then assign them to individual APs
• Intuitive overview of APs and connected devices, with statistics and insights

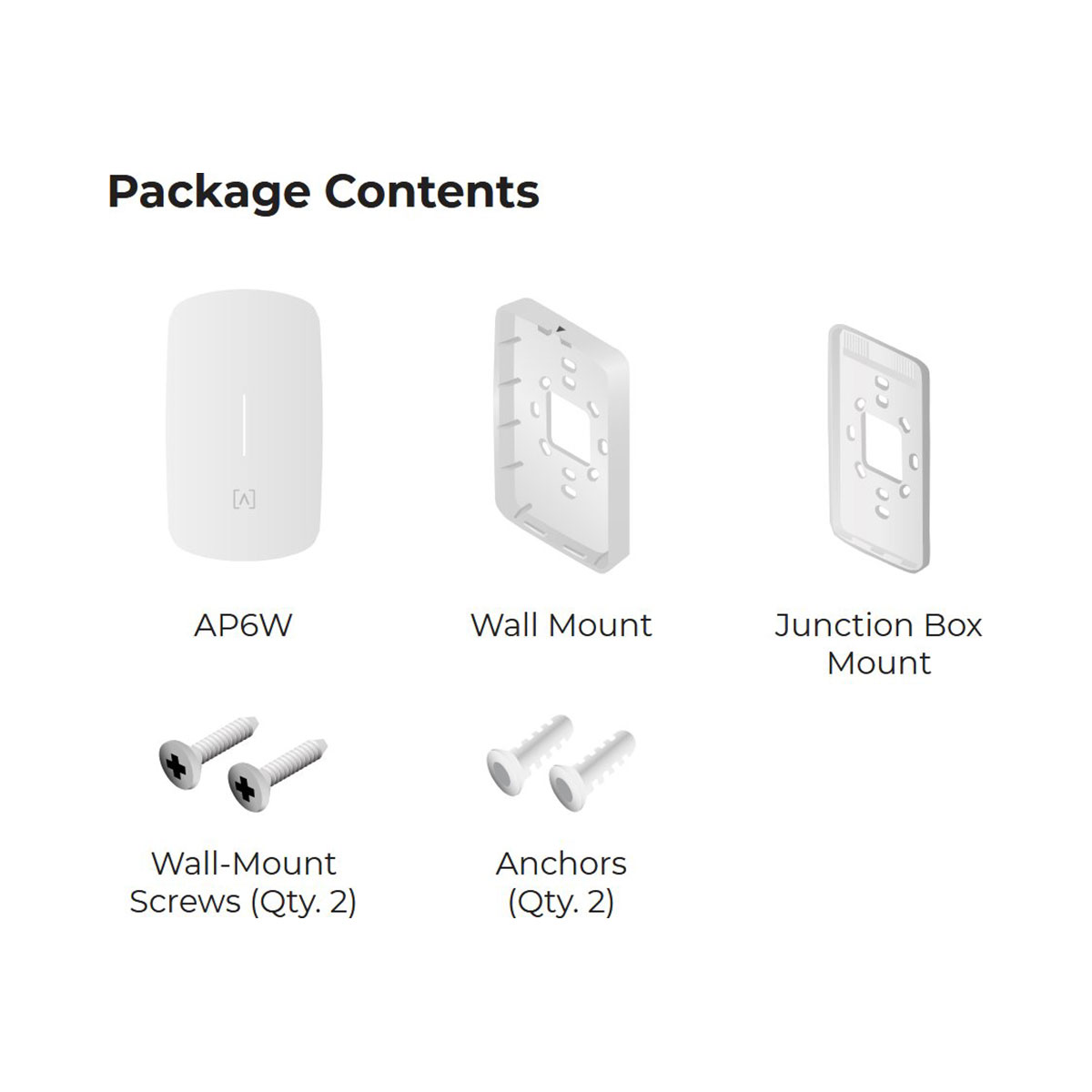

Package Contents
• Device
• Plastic box and adapter for wall mounting or in-wall installation
• Screws and wall plugs

Characteristics
Specifications
Mechanical
Dimensions 156.1 x 90 x 43.9 mm
Weight 0.312 kg
Enclosure Material Top Cover: Polycarbonate, Bottom Cover: Aluminum
Mount Material Polycarbonate
Hardware
Network Interface Ethernet, WiFi, Bluetooth
Management Interface (3) GbE RJ45 Ports
Button(s) Reset/Factory Reset
LED Blue, White
PoE 802.3af/at
Power Supply PoE+ Enabled Network Switch, 48V, 0.5A PoE Adapter, or a 12VDC 1.5A Power Supply (Optional - Not Included)
PoE Pass Through 42.5-57V DC

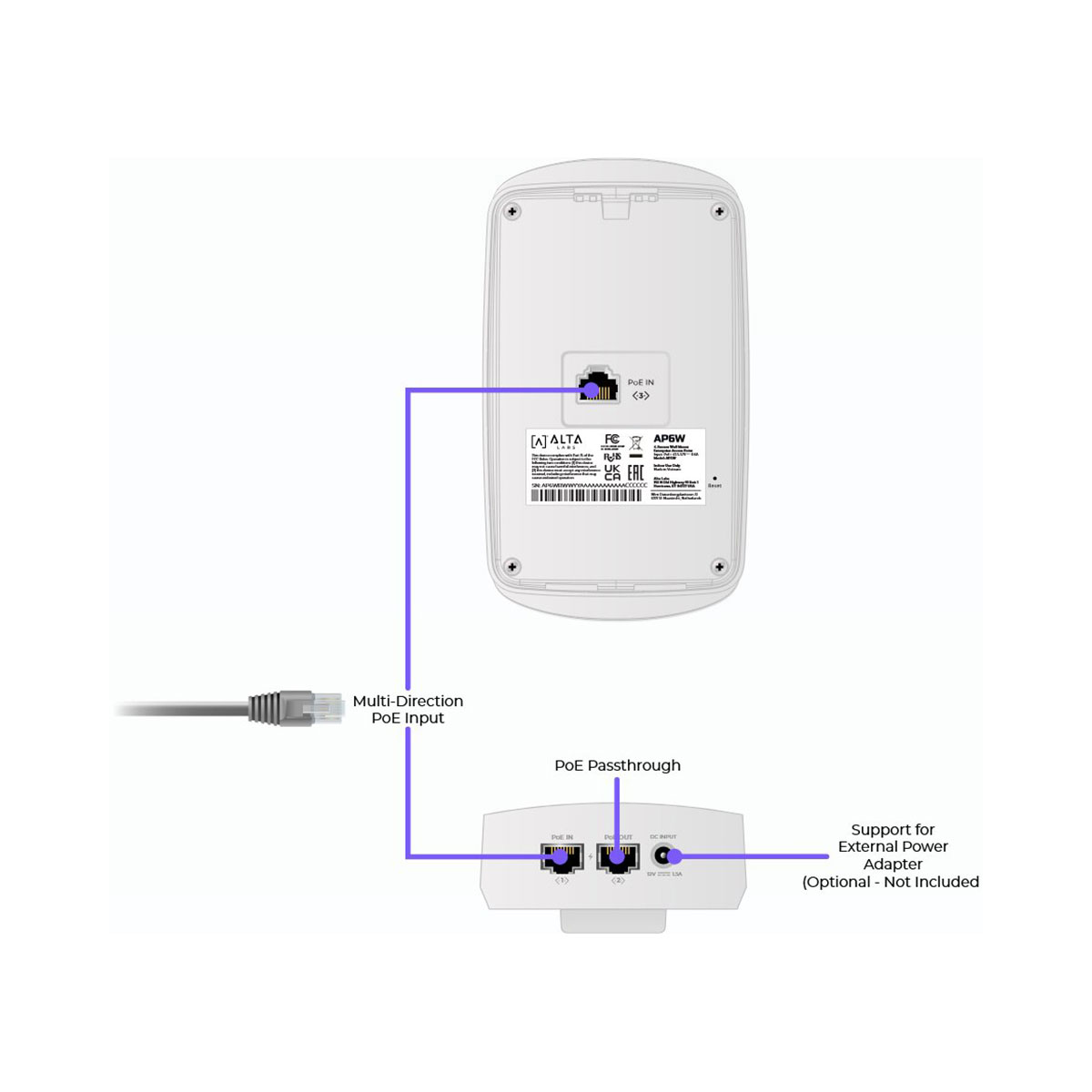

Multi Direction PoE Input (Back and Bottom) Yes
Supported Voltage Range 42.5-57V DC
Max. Power Consumption 14.2W
Max. Transmit Power 2.4 GHz: 20 dBm @2NSS, 5 GHz: 20 dBm @2NSS
SU-MIMO (2) Spatial Stream Single User (SU) MIMO for up to 574 Mbps Wireless data Rate with HE40 Bandwidth to a 2x2 Wireless Client Device under the 2.4 GHz Radio
(2) Spatial Stream Single User (SU) MIMO for up to 1,200 Mbps Wireless Data Rate with VHT80 to a 2x2 Wireless Device under the 5 GHz Radio
MU-MIMO (2) Spatial Streams Multiple (MU)-MIMO up to 1,200 Mbps Wireless Data Rate for Transmitting to (2) streams MU-MIMO 11ax Capable Wireless Client devices under 5 GHz Simultaneously
(2) Spatial Streams Multiple (MU)-MIMO up to 574 Mbps Wireless Data Rate for Transmitting to (2) Streams MU-MIMO 11ax Capable Wireless Client Devices under 2.4 GHz Simultaneously
Throughput Rate 2.4 GHz: Up to 574 Mbps, 5 GHz: Up to 2.4 Gbps
Antenna Gain 2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi
Mounting Wall
Operating Temperature 0 to 40° C
Operating Humidity 5 to 90% Noncondensing
Certifications CE, FCC, IC (Visit Alta.inc for a full list of certifications)
Software
WiFi Standards 802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
Roaming 802.11r/k/v
Wireless Security WPA2-Personal (PSK), WPA3-Personal (SAE),
WPA-Enterprise (WPA2/WPA3)
SSID 8 Per Radio
VLAN 802.1Q
Advanced QoS 802.11e
Guest Traffic Isolation Supported
Concurrent Clients 250+
Zero Wait DFS Yes
Intelligent WiFi Scheduling Yes
Hotspot Functionality Yes
Scalable Yes
Seamless Per-Client Settings VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
AltaPass Yes
DPI Yes
Content Filtering Yes
Hotspot Functionality Yes
Customizable Dashboard Yes
Status Snapshots Yes
Device Cards Yes
Supported Data Rates
802.11a/g 6 Mbps to 54 Mbps
802.11b 1 Mbps to 11 Mbps
802.11n 6.5 Mbps to 300 Mbps (Up to MCS 15)
802.11ac 6.5 Mbps to 867 Mbps (Up to MCS 9)
802.11ax 2.4 GHz: Up to 574 Mbps, 5 GHz: 18 Mbps to 2.4 Gbps (Up to MCS 11)
Legal Notice

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
