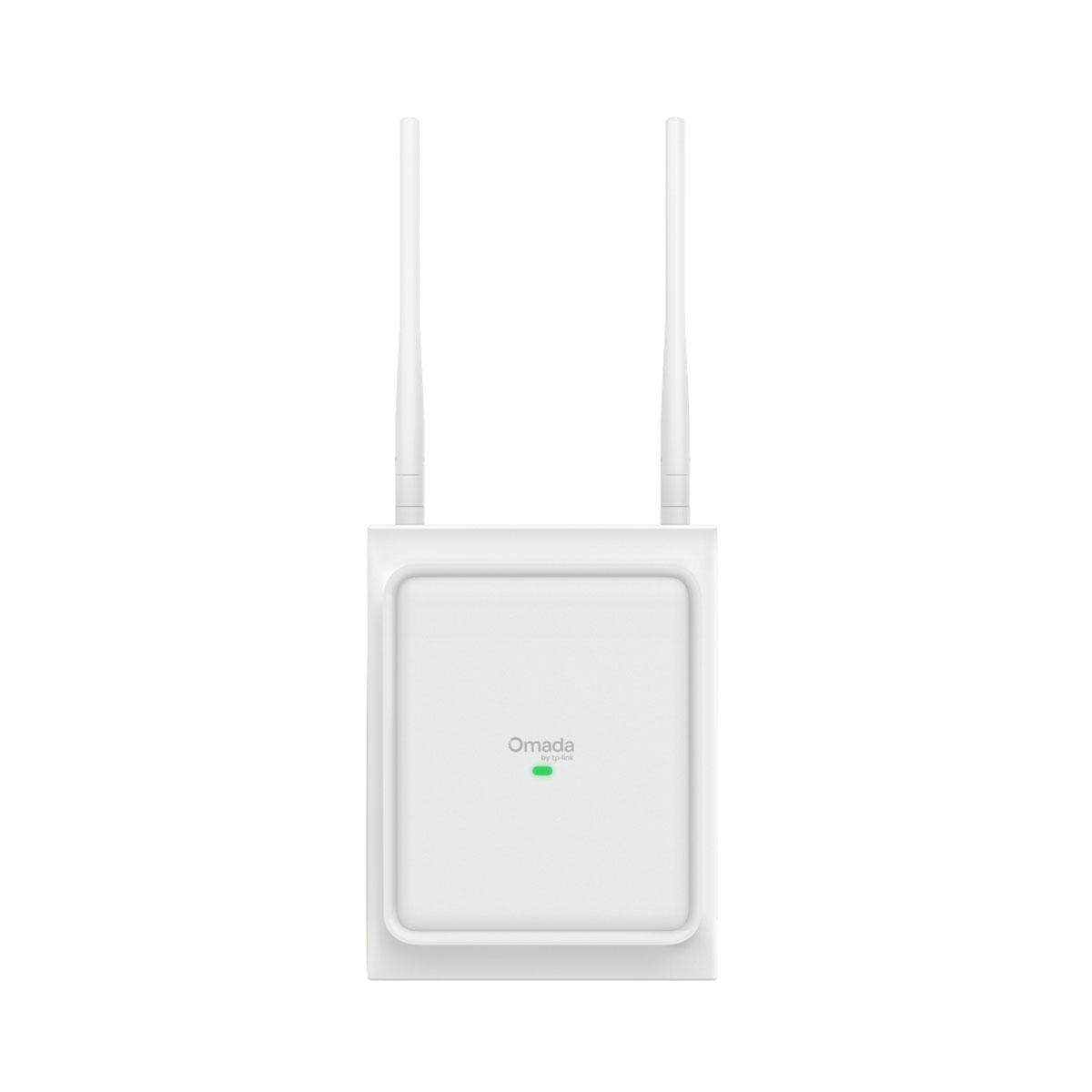

TP-LINK EAP725-OUTDOOR V1 OMADA BE3600 Indoor/Outdoor WiFi 7 ACCESS Point
|
• Switchable Directional and Omnidirectional Antennas: Supports focused point coverage or wide-area outdoor coverage by switching antenna modes on software.** |
Versatile Antennas Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.*
Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.

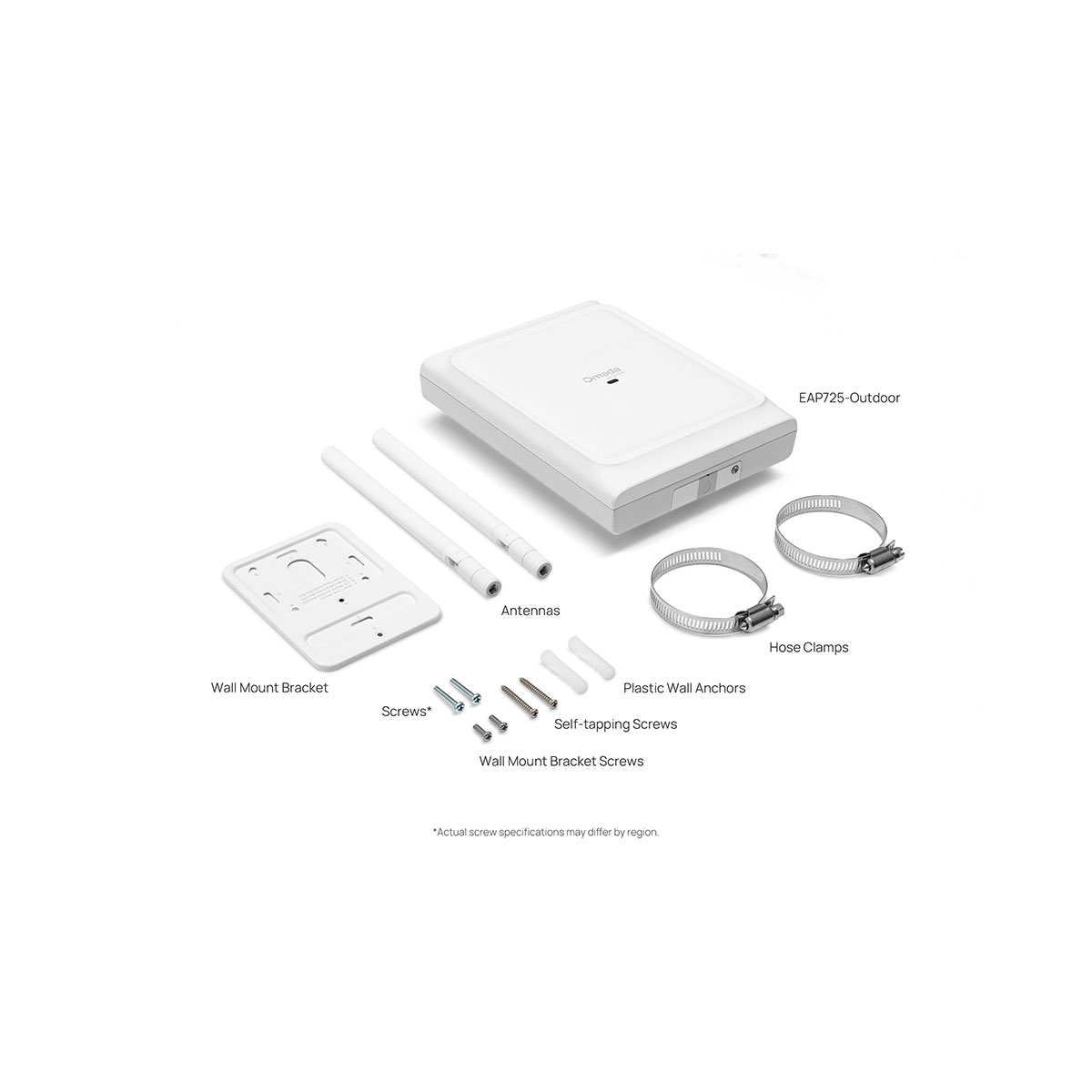

Easy Installation and Deployment
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
§Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the User Guides of Omada controllers for configuration methods.
*Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features, including Multi-Link Operation (MLO), 240 MHz Bandwidth, 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA, requires clients to also support the corresponding features.
**Switching antenna modes via an Omada Controller requires version 6.1 or above.
| Hardware Specifications | |
| Wi-Fi Standards | 5 GHz: IEEE 802.11a/n/ac/ax/be 2.4 GHz: IEEE 802.11b/g/n/ax/be |
| Antenna |
Wi-Fi 2.4 GHz: IoT |
| Interfaces | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45); PoE in 1 x Grounding Terminal |
| IoT | BLE 5.2, 1 Mbps |
| Memory | Flash: 1024 Mbit DRAM: 4096 Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Indicator | 1 × multi - color system LED indicates on the front: •Power - on status •Firmware initialization or upgrade status •Uplink service status •Error status 4 × green system LED indicates on the side: •Signal strength of Uplink |
| Reliability |
MTBF (Mean Time between Failure) CE: FCC: |
| Power Supply |
802.3at (PoE+): 18.4 W, 2.4GHz radio 2× 2, 5GHz radio 2× 2, wired link rate can be up to 2.5 Gbps, etc. Idle mode: 7.6 W (PoE) |
| Surge/Lightning Protection | Ethernet Ports: ± 6 kV |
| ESD/EMP Protection | Air discharge: ± 8 kV Contact discharge: ± 4 kV |
| Tx Power |
Maximum transmit power: FCC (Conducted Power) Minimum transmit power Adjustable power increment - 1 dBm |
| Environment |
Temperature: Humidity: Altitude: Windproof: Class 16 Weatherproof Enclosure: IP66 |
| Unit |
Dimensions (W× D× H): Weight: Mounting: |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
