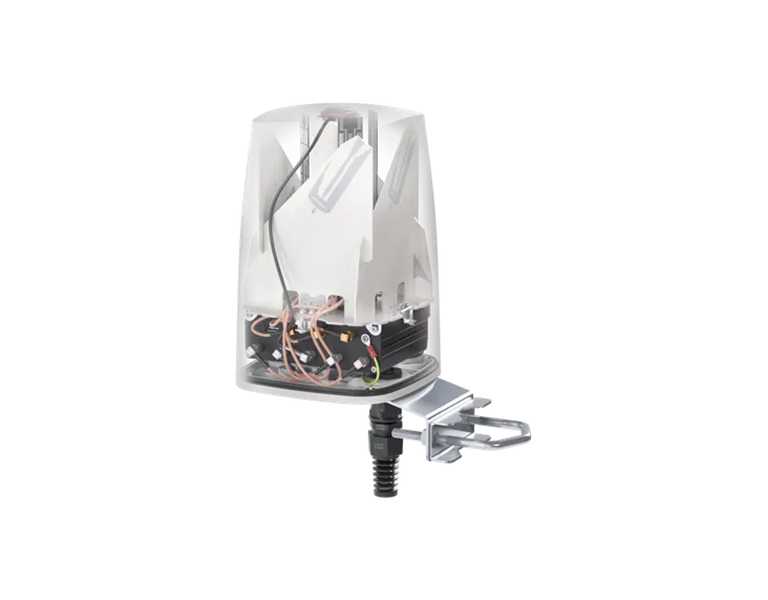

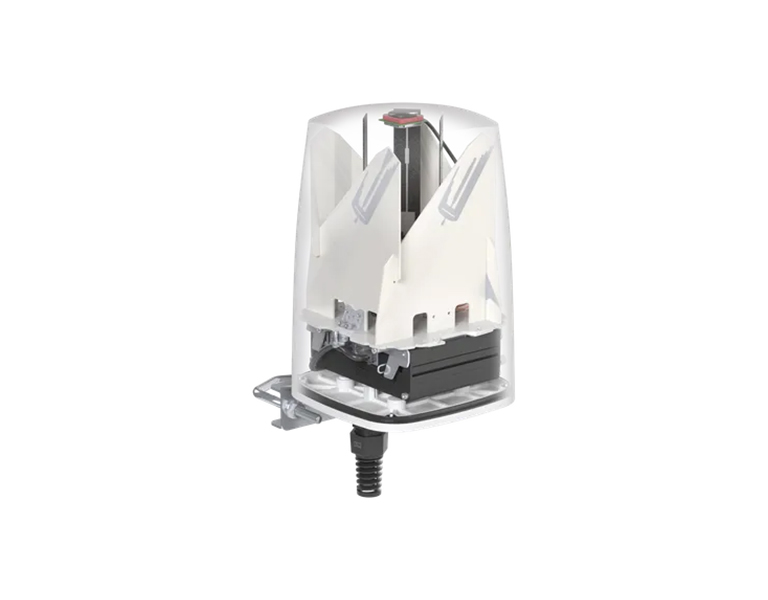

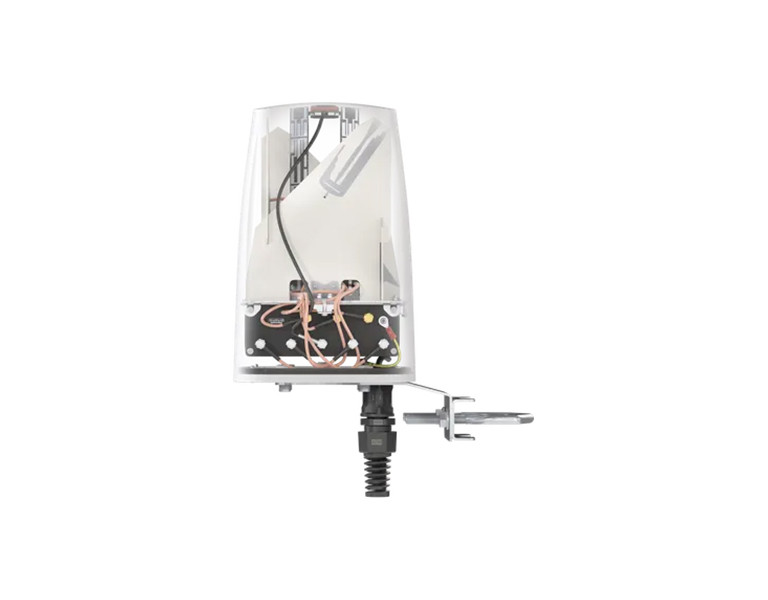

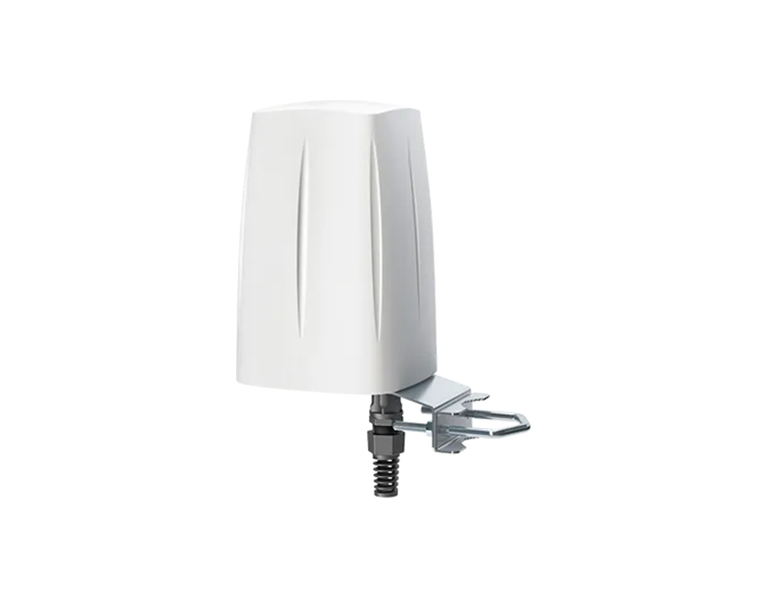

QuWireless AC50S Quspot Antenna for Teltonika RUTC50
Product Code:
AC50S
251,00 €
(Includes VAT 24%)
Sales price without VAT:
202,42 €
14 Days
QuWireless AC50S Quspot Antenna for Teltonika RUTC50
Shipping cost calculation:
Quantity
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUTC50 (ALL-IN-ONE)
QuSpot for RUTC50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTC50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTC50 solutions.
QuSpot for RUTC50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
Wi-Fi 6E support!
The RUTC50 only supports passive POE from batch number 7 onwards.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
Characteristics
| Specifications | |
| LTE Antenna | |
| Frequency | 617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.7 GHz 5.2 - 6.0 GHz |
| Supported LTE/5G Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
| Gain | 617 - 960 MHz : 2 dBi 1.7 - 2.7 GHz : 4 dBi 3.3 - 4.7 GHz : 4.5 dBi 5.2 - 6.0 GHz : 2 dBi |
| Supported 5G bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| VSWR | <2.00, max <2.50 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 4x SMA |
| Cable type | RG316 |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz 4.7 - 6 GHz |
| Gain | 2.4 - 2.5 GHz : 6 dBi 4.7 - 6 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 3x SMA |
| Cable type | RG316 |
| GPS Active antenna specification | |
| Frequency | 1.56 – 1.61 GHZ |
| VSWR | < 2 |
| Gain | 3 dBi |
| Gain 3V | 28 dBi |
| DC Power INPUT | 2.5 V ~ 6.5 V |
| Power Consumption | 2.5-6.5mA |
| Impedance | 50 Ω |
| Polarization | RHCP (right hand circularly polarized) |
| Connector | 1x SMA |
| Cable type | RG174 |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 160 x 160 x 240 mm |
| Weight | 1.5 kg |
| Operating Temperature | From -40°C to 75°C |
| Enclosure Recommended Tightening Torque | 0,5 - 0,7 Nm |
| Mast Diameter | 40-60 mm |
