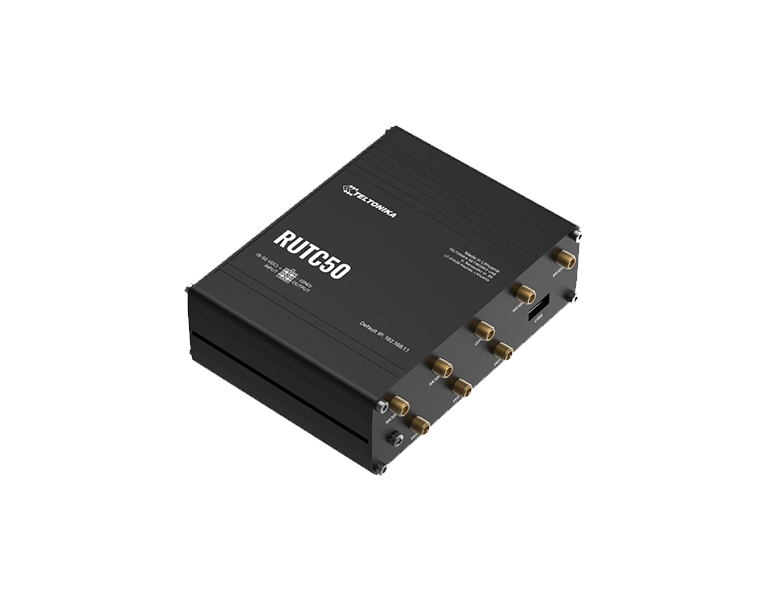

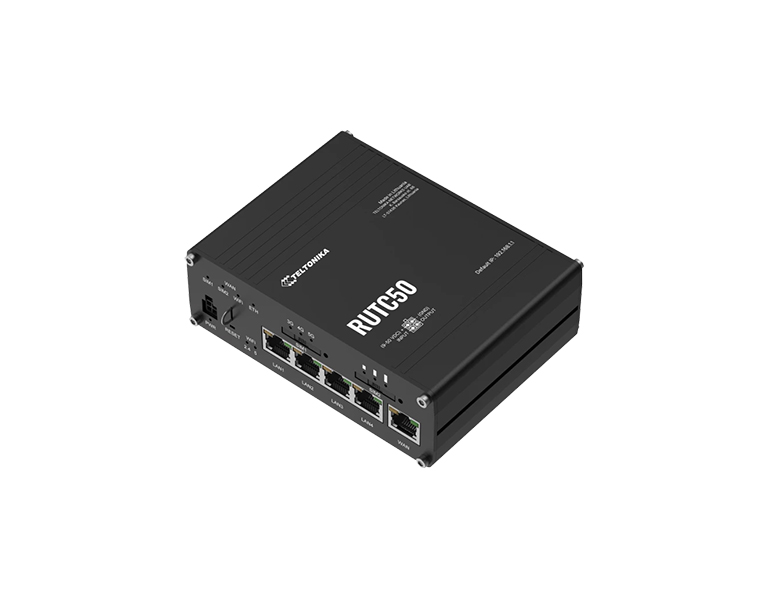

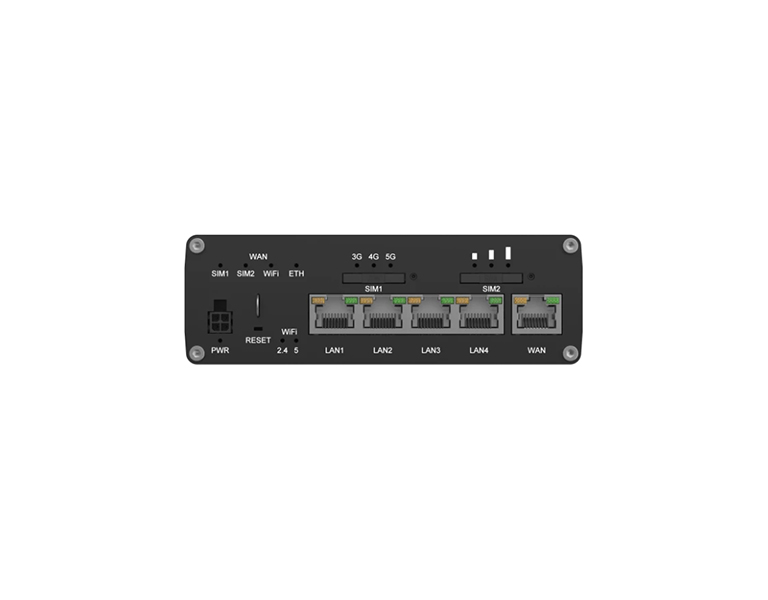

Teltonika RUTC50 5G Wireless Multitool

Product Code:
RUTC50
Available
Teltonika RUTC50 5G Wireless Multitool
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Legal Notice
Description

 Each Teltonika Networking device comes with 1 month of free RMS service

The RUTC50 is a 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.






Characteristics
Specifications
Hardware
Mobile 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 210Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM 512MB DDR3
Storage 16MB serial NOR flash, 512MB serial NAND flash
Powering options 4-pin industrial DC power socket, 9 - 50 VDC
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

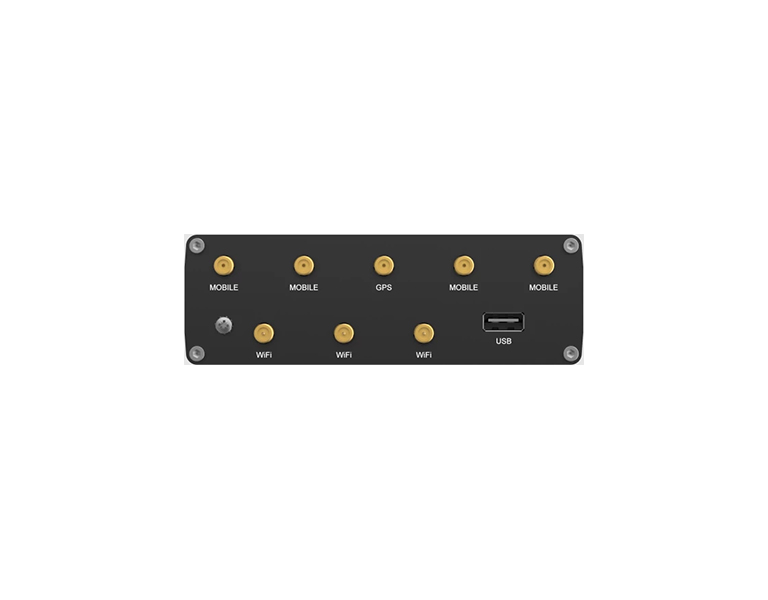

Antenna connectors 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
WiFi 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Inputs/Outputs 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high, 1 x Digital Output, Open collector output, max output 50 V, 300 mA
Other 1 x USB A port for external devices, 1 x Grounding screw
Status LEDs 4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status
Operating temperature -40 °C to 75 °C
Housing Anodized aluminum housing and panels
Dimensions (W x H x D) 130.4 x 42.6 x 103.4 mm
Weight 452 g
SOFTWARE
Operating system RutOS (OpenWrt based Linux OS)
Mobile features SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, APN, Bridge, Passthrough, Framed routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
Monitoring and Management WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Cloud solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Package Contents • RUTC50 Router
• 24 W PSU

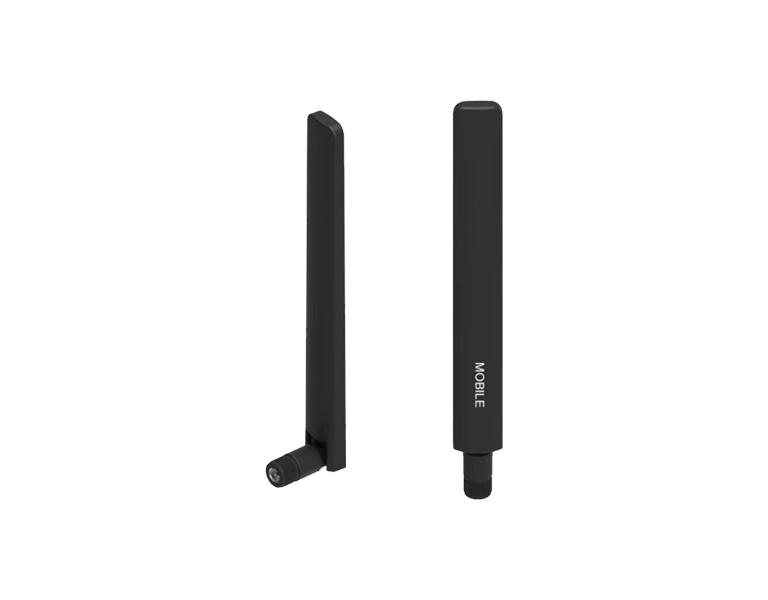

• 4 x 5 G Mobile antennas (swivel, SMA male)

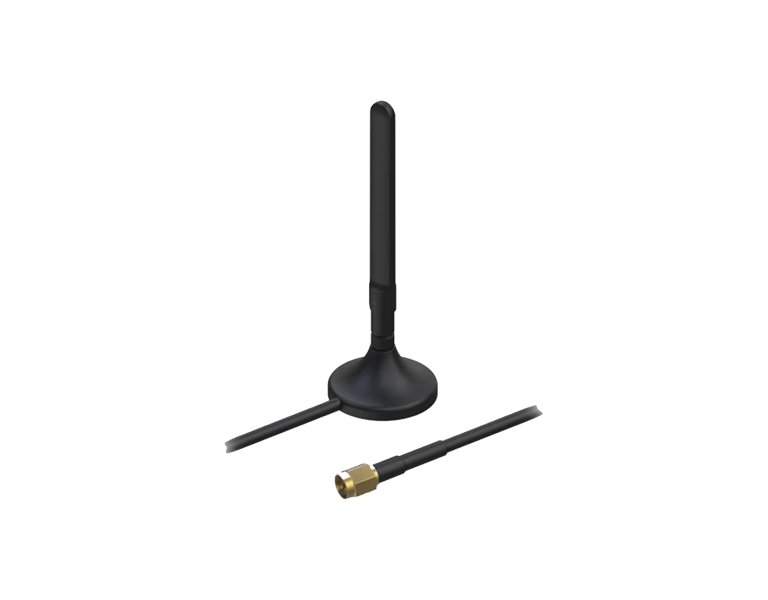

• 3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)

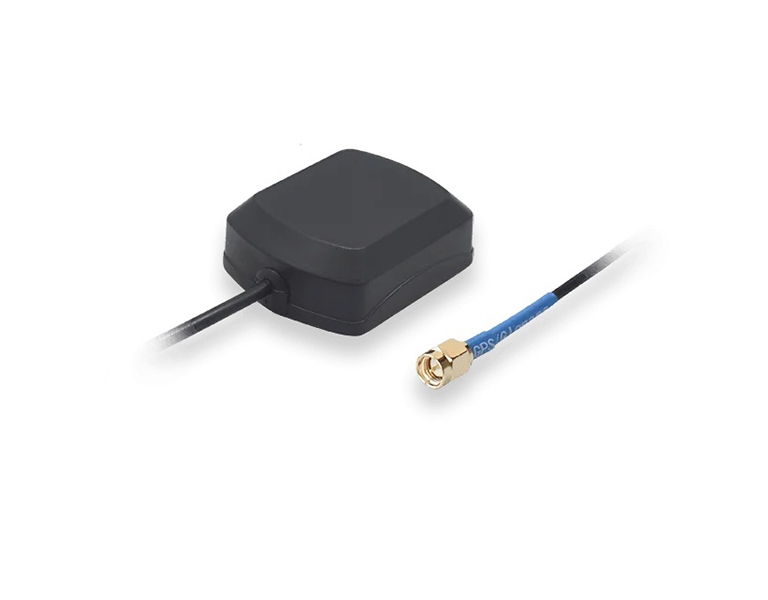

• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
Legal Notice

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
