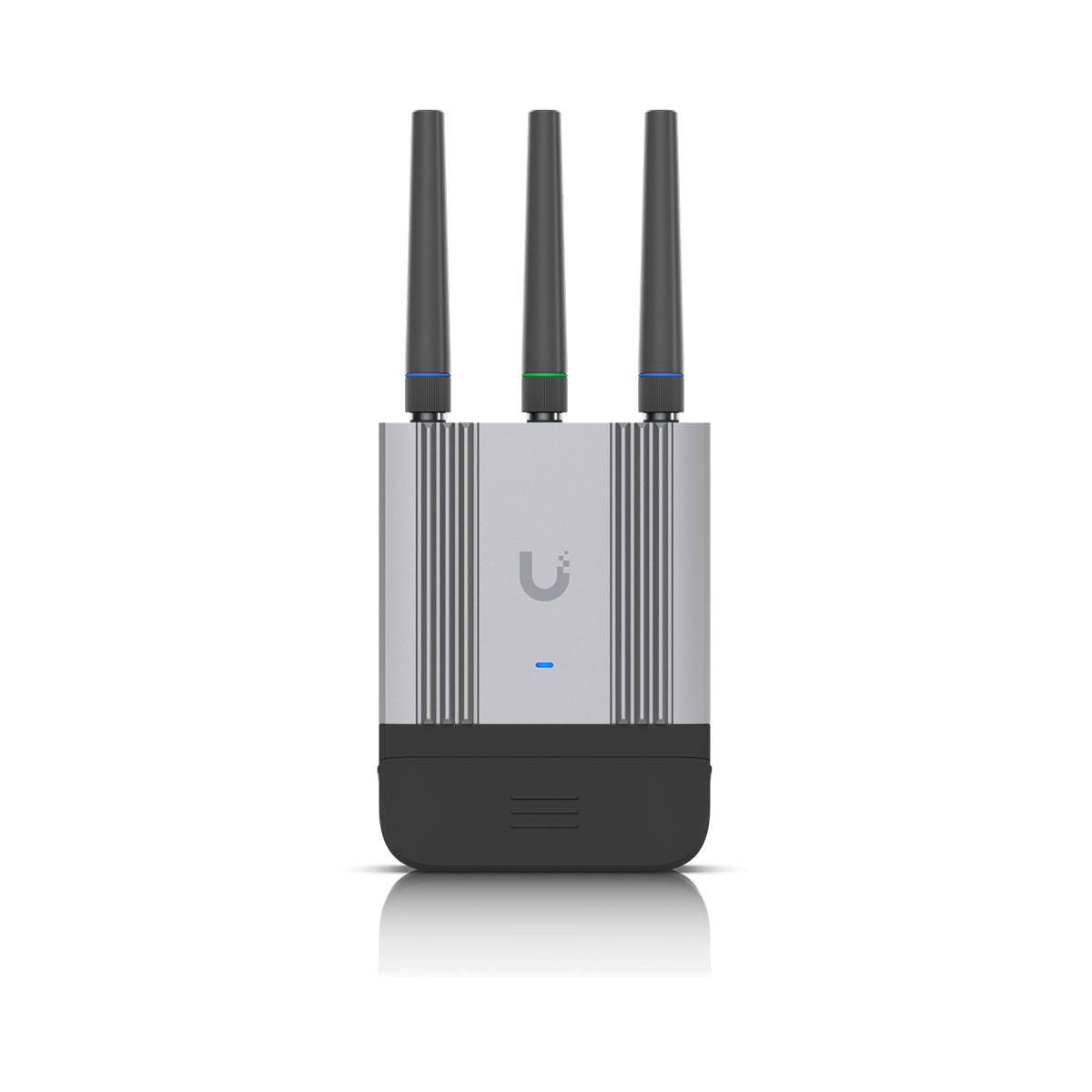

The UniFi Mobile Industrial Router is a mobile, compact and durable LTE Wi-Fi router category 4 (150 Mbps download / 50 Mbps upload), which is intended for IoT applications in any environment, thanks to integrated GPS, IP66 certification and client VPN. For wireless signal distribution, the router has built-in 2.4 GHz Wi-Fi with 802.11b/g/n standards (up to 300 Mbps). It has two Gigabit Ethernet ports with PoE (1x PoE input, 1x PoE output), it can be powered by PoE (48 - 54 V DC), USB-C (5 V / 3 A) or 4-pin DC power connector (9 to 30 V DC).
Mobility Cloud
With a Mobility Cloud subscription, it offers secure remote access and full control using the UniFi Mobility portal for 2 euros/month per mobile router. Basic management such as Wi-Fi configuration is always available on the local network using the UniFi Mobile App when connected to your UniFi Mobile Router.
Key Features
- Mobile LTE router category 4 (150 / 50 Mbps) with Wi-Fi (300 Mbps)
- Client VPN using WireGuard
- (2) Gigabit LAN (1x PoE out, 1x PoE in)
- Power supply via PoE, USB-C or 4-pin DC connector
- Integrated GPS
- Optional Mobility Cloud subscription for remote monitoring and access
- The router can be mounted on a DIN rail, wall or mast
- Outdoor design - IP66

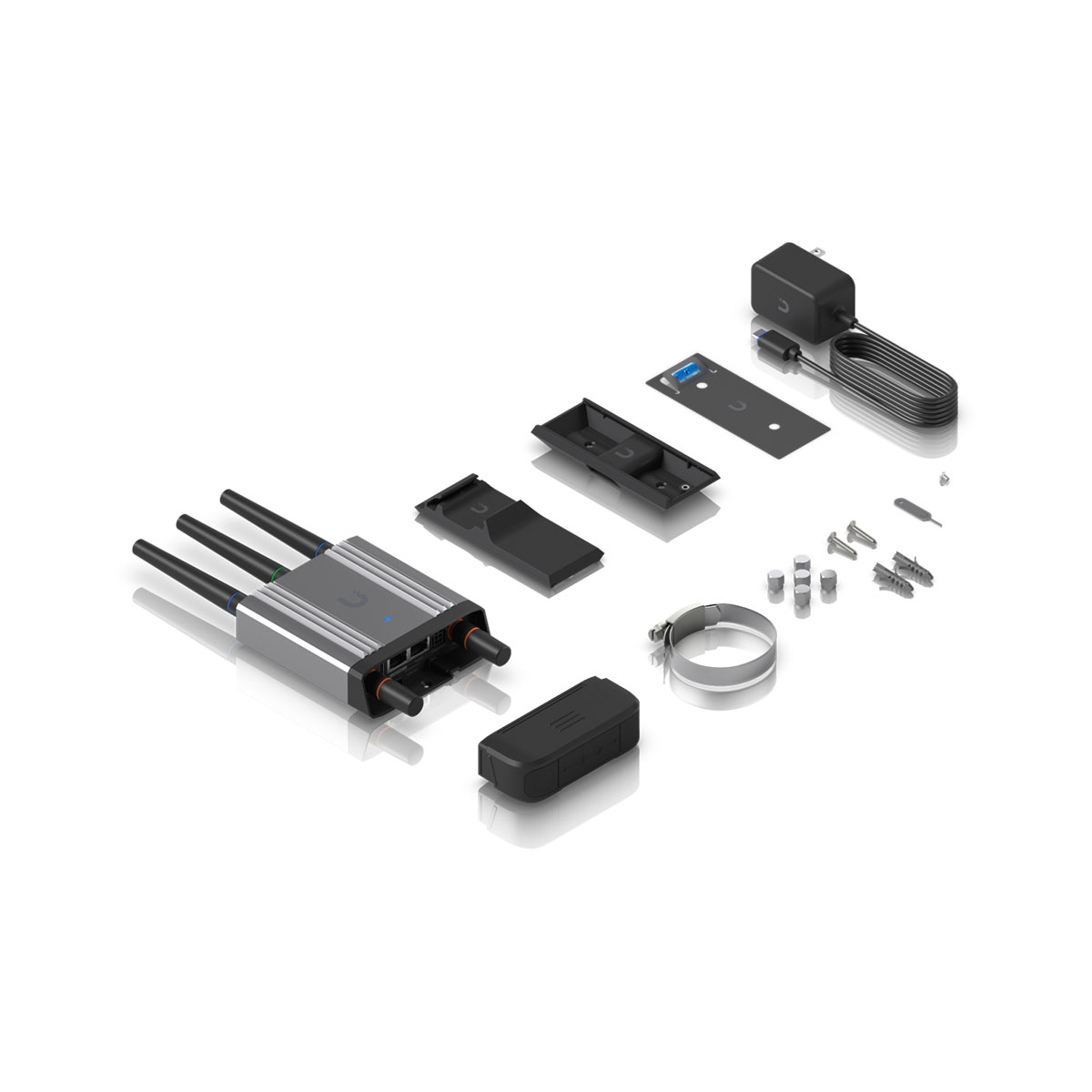

- Device
- (5) antenna
- Pegs, screws
- Power adapter (5 V / 3 A)
- Wall mount and DIN rail
- Metal drawstring
| Overview | |

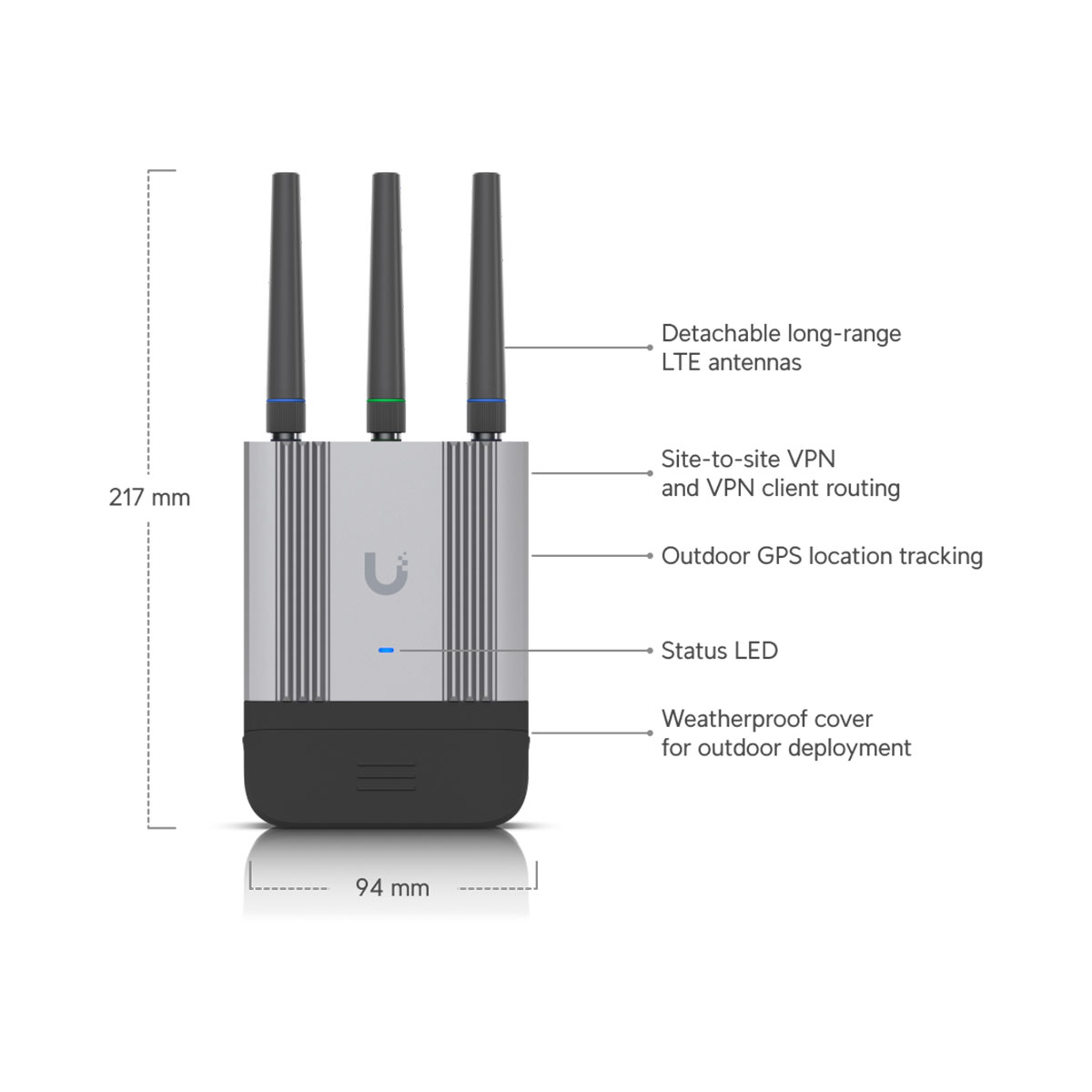

| Dimensions | Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm With antennas: 213 x 93.6 x 32 mm With antennas and outdoor cover: 217 x 94 x 32 mm |

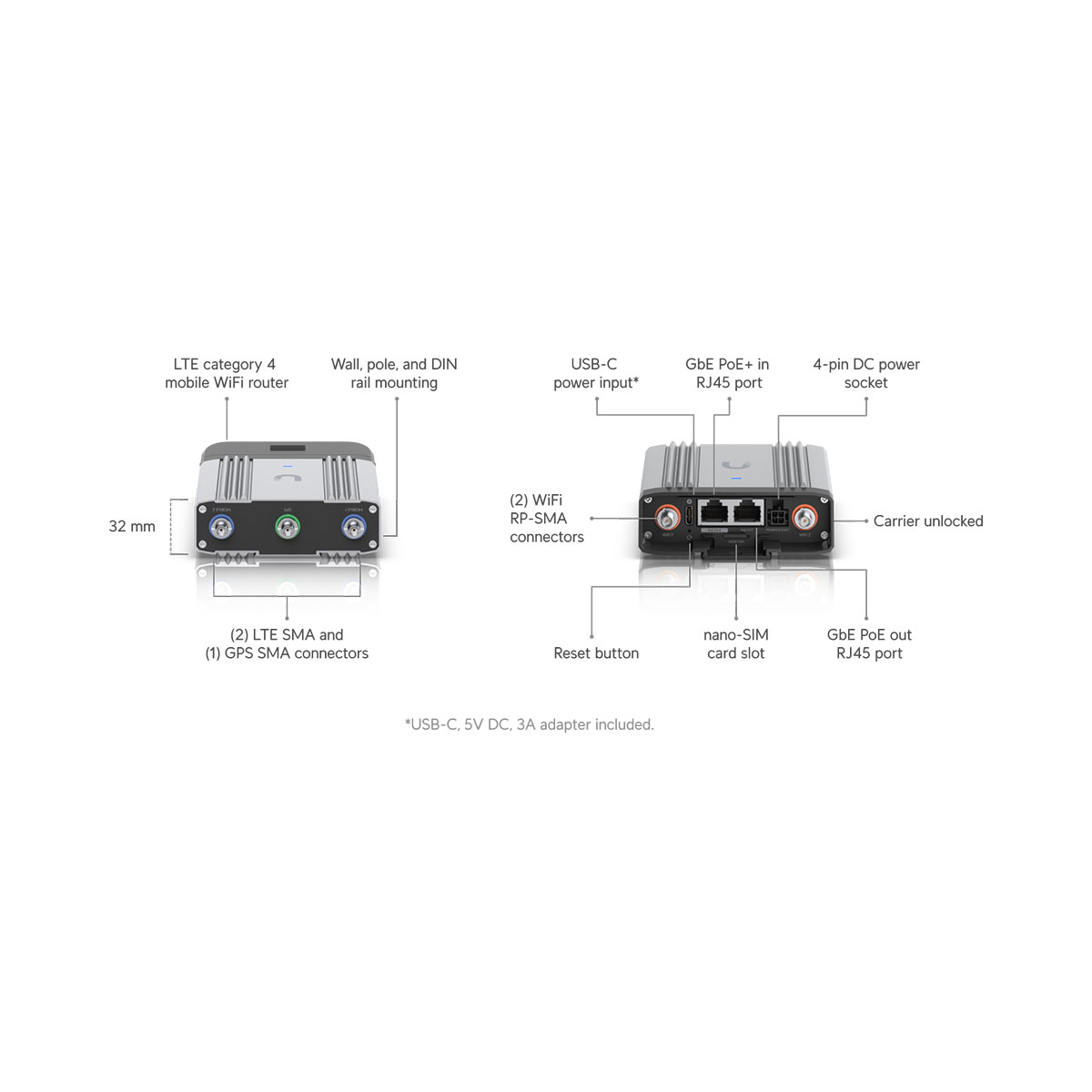

| Networking Interface | (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM | Nano SIM |
| LTE Bands | B1, B3, B7, B8, B20, B28 |
| PoE Interface | (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |
| Mounting | DIN rail, Wall, Pole (Mounts Included) |
| Weatherproofing | IP66 |
| Mechanical | |
| Weight | Device: 360 g Device with outdoor cover: 395 g DIN rail/wall mounts: 25 g |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Wall, Pole, DIN Rail Mount: Polycarbonate |
| Pole Mount Diameter | 25–50 mm on pipe outer diameter |
| Wind Loading | 38.8 N at 200 km/h |
| Features | |
| WAN | Priority & Fallback - ✓ Cellular - ✓ WiFi - ✓ Ethernet - ✓ |
| LTE Passthrough mode | ✓ |
| Ethernet Bridge Mode | ✓ |
| VPN Client | OpenVPN - ✓ WireGuard - ✓ |
| Site-to-Site VPN | IPsec - ✓ WireGuard - ✓ |
| WiFi Standard | WiFi 4 |
| Static Routes | ✓ |
| Port Forwarding | ✓ |
| Firewall | ✓ |
| Networking | |
| Supported Data Rates | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40) 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b - 1, 2, 5.5, 11 Mbps |
| Hardware | |
| Management | Ethernet WiFi |
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |
| GPS | ✓ |
| Antennas | Ports - (1) Mobile 1: SMA female (1Tx/1Rx) (1) Mobile 2: SMA female (1Rx) (1) GPS: SMA female (2) WiFi: RP-SMA female Type - (2) External LTE antenna (2) External WiFi (1) External GPS |
| Max. TX Power | 22 dBm |
| WiFi MIMO | 2 x 2 |
| Max. Power Consumption | 12.5W |
| Power Method | PoE+ (48–54V DC) USB Type-C (5V DC) 4-pin ATX DC (9–30V DC) |
| Power Supply | USB Type-C, 5V DC, 3A (Adapter included) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 70° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
