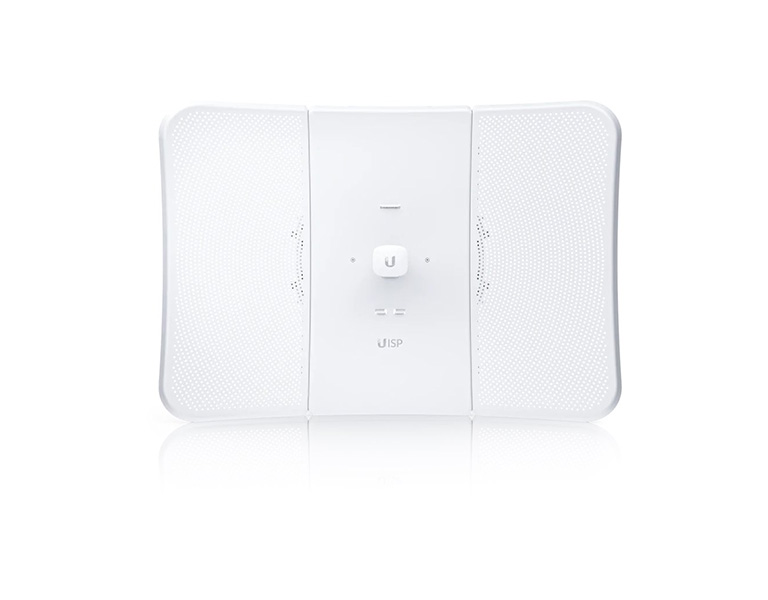

Ubiquiti LBE-5AC-XR - UISP LiteBeam AC 5 GHz XR
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links. The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.
Features
• Proprietary airMAX ac chipset
• Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
• High-gain antenna with InnerFeed® technology
• Establishes high-speed, extremely-long-distance links
• Integrated GPS
• Link planning support via ISP Design Center
• Dedicated management radio for quick device setup via the UISP® Mobile app
| Mechanical | |
| Dimensions | 747 x 525 x 347 mm |
| Weight | 3.2 kg |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate Mount material UV stabilized polycarbonate Mount Integrated pole mount(included) |
| Pole compatibility | Ø35-60 mm |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproong | IPX6 |
| Hardware | |
| Networking interfaces | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | Power/ethernet |
| RF connections | Internal |
| Max. power consumption | 7W |
| Power method Passive | PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22-26VDC |
| Operating temperature | -40 to 70° C |
| Operating humidity | 5 to 95% non-condensing |
| Certications | FCC, IC, CE |
| System | |
| Maximum throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Software | |
| OS | airOS |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView, speed test, alignment, discovery, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the UISP™ Mobile app WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency | 5.15 to 5.85 GHz |
| Max. conducted TX power | 25 dBm |
| Management radio | 2400 - 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
