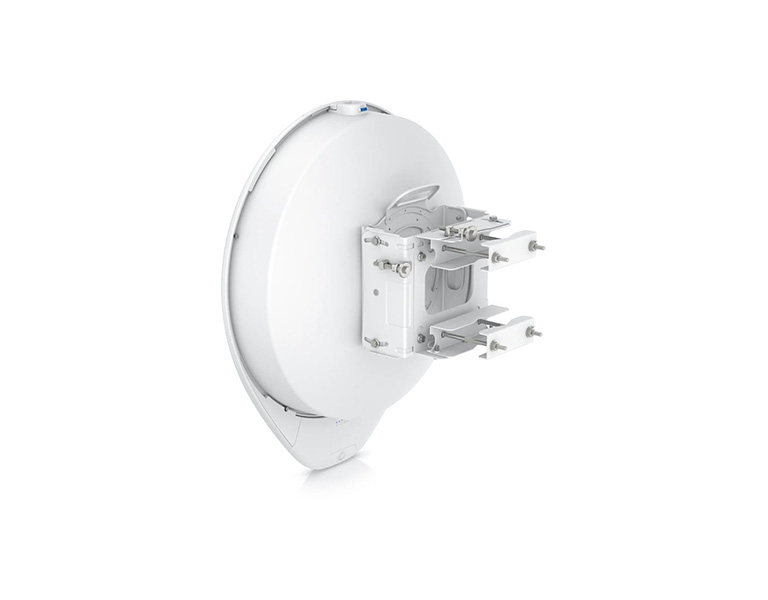

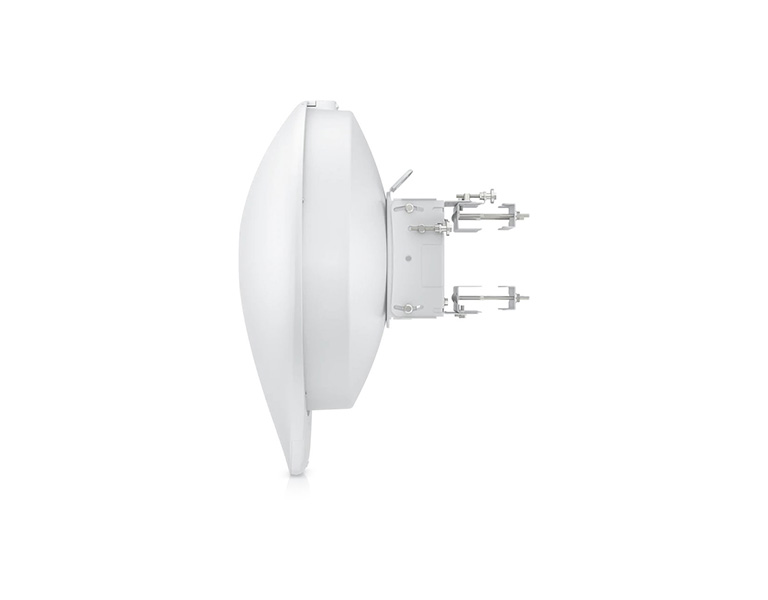

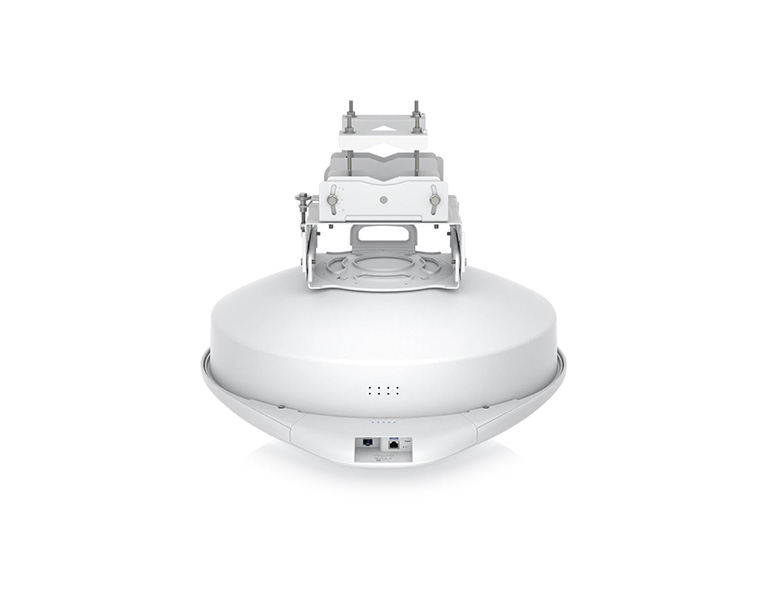

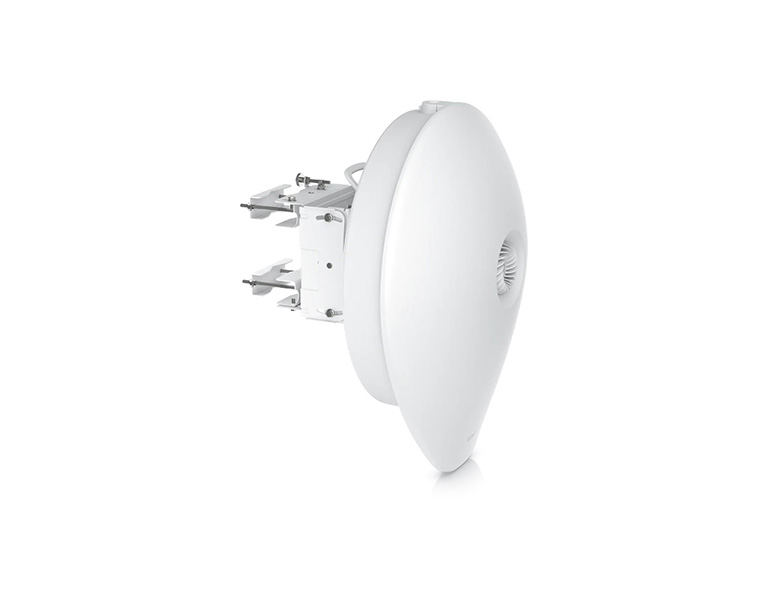

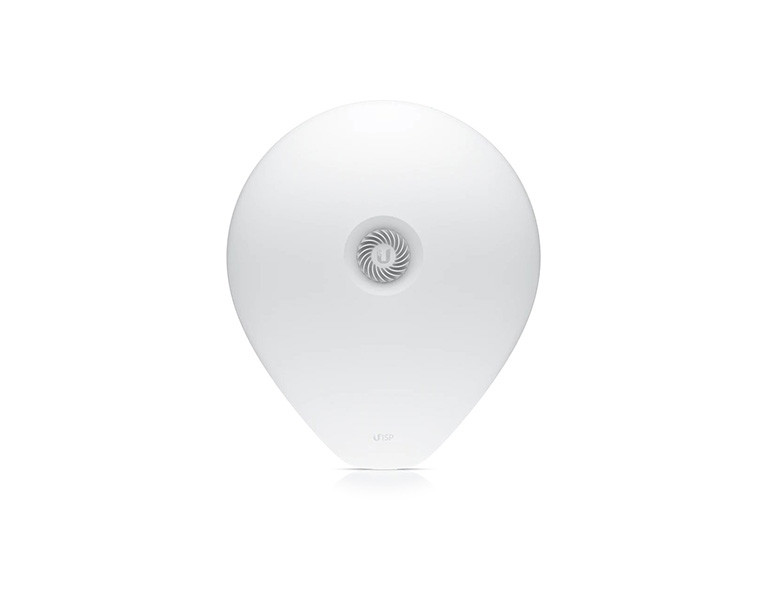

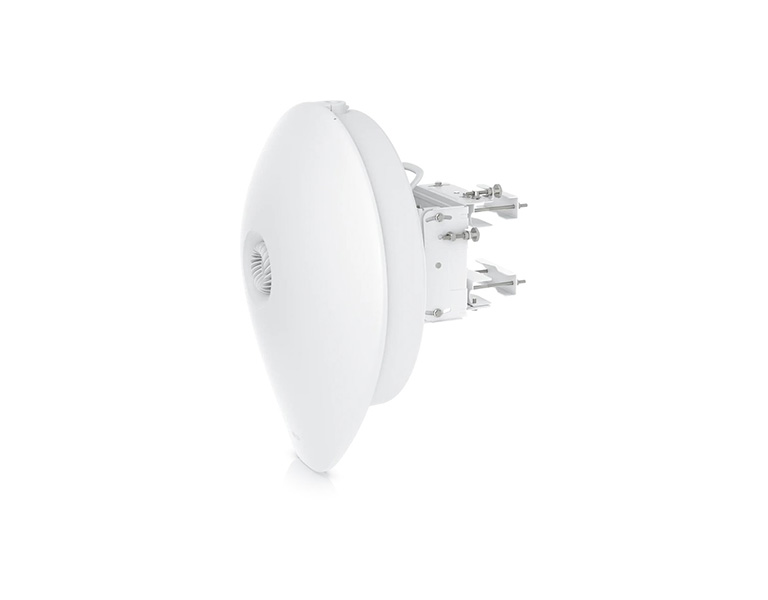

Ubiquiti AF60-XG, UISP airFiber 60 XG
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support. The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Features:
• Low-interference, 60 GHz spectrum
• High-gain dish antenna
• 5 GHz backup radio
• 4+ km link range
• Supports channel bonding to achieve up to a 6 Gbps throughput rate
• Terragraph-certified
• 10G SFP+ port
• Integrated GPS
• Link planning support via ISP Design Center
• Simple, Bluetooth-powered setup with the UISP® Mobile app
| Mechanical | |
| Dimensions | 779 x 664 x 383 mm |
| Weight | Without mount: 8.6 kg With mount: 13 kg |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mount | Precision Alignment Kit(included) Pole compatibility: Ø40-80 mm |
| Wind loading | 422 N at 200 km/h |
| Hardware | |
| Processor | Quad-Core ARM Cortex A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interfaces | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Button | Factory reset |
| RF connections | Internal |
| Max. power consumption | 31.2W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
| Power supply | 48VDC, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48VDC ± 10% |
| Operating temperature | -40 to 55° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE, terragraph |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving atleast(4) GPS satellite signals |
| 60G | Blue: active connection |
| 5G | Blue: active connection |
| System | |
| Maximum throughput | 5 GHz: 866.6 Mbps 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled) |
| Maximum range | 4 km |
| Encryption | WPA2-PSK (AES) |
| Software | |
| OS | airFiber |
| Modes | PtP only |
| Services | UISP, ping watchdog, NTP client, system log |
| Utilities | Antenna alignment tool, discovery utility, ping, speed test |
| Management interface | Bluetooth managementfor easy setup over UISP App WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 57 to 66 GHz *Depends onregulatory region. |
| GPS | Yes |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bonding enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz *It depends on the channel bandwidth |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following:
Regulation of Use of Radio Spectrum.
EU executive decision.
Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
