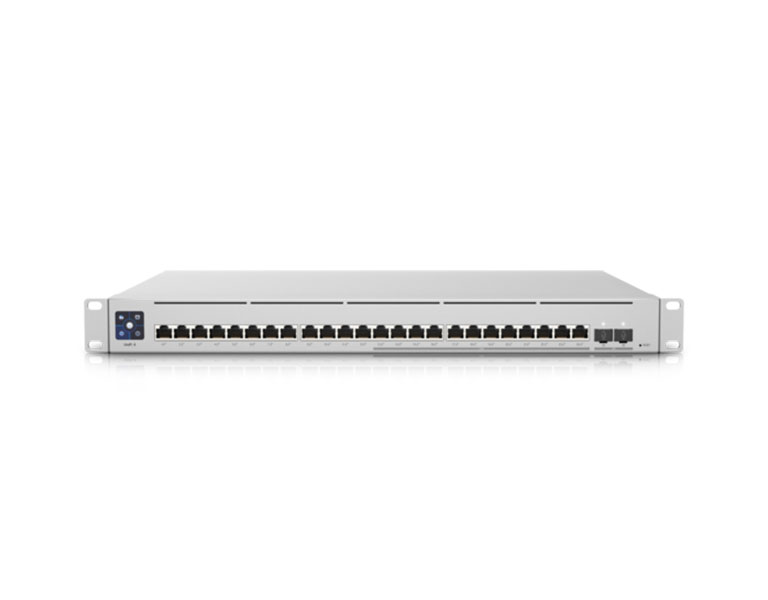

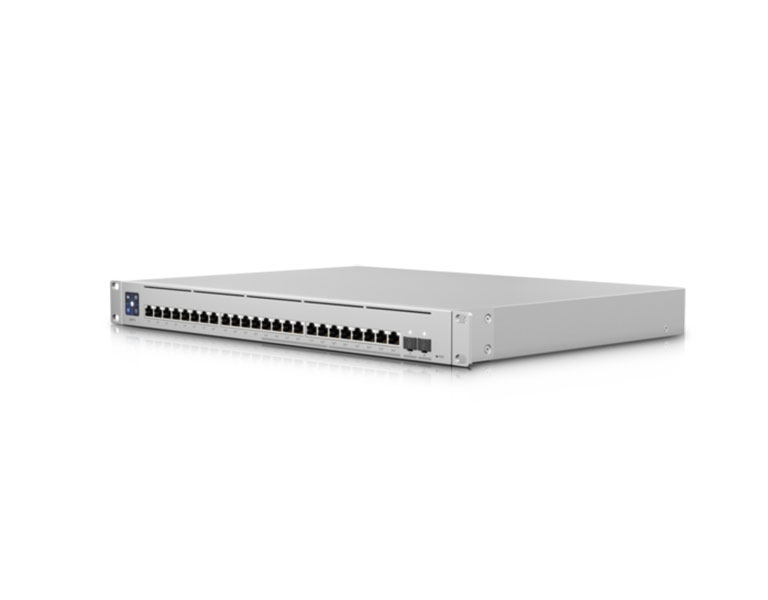

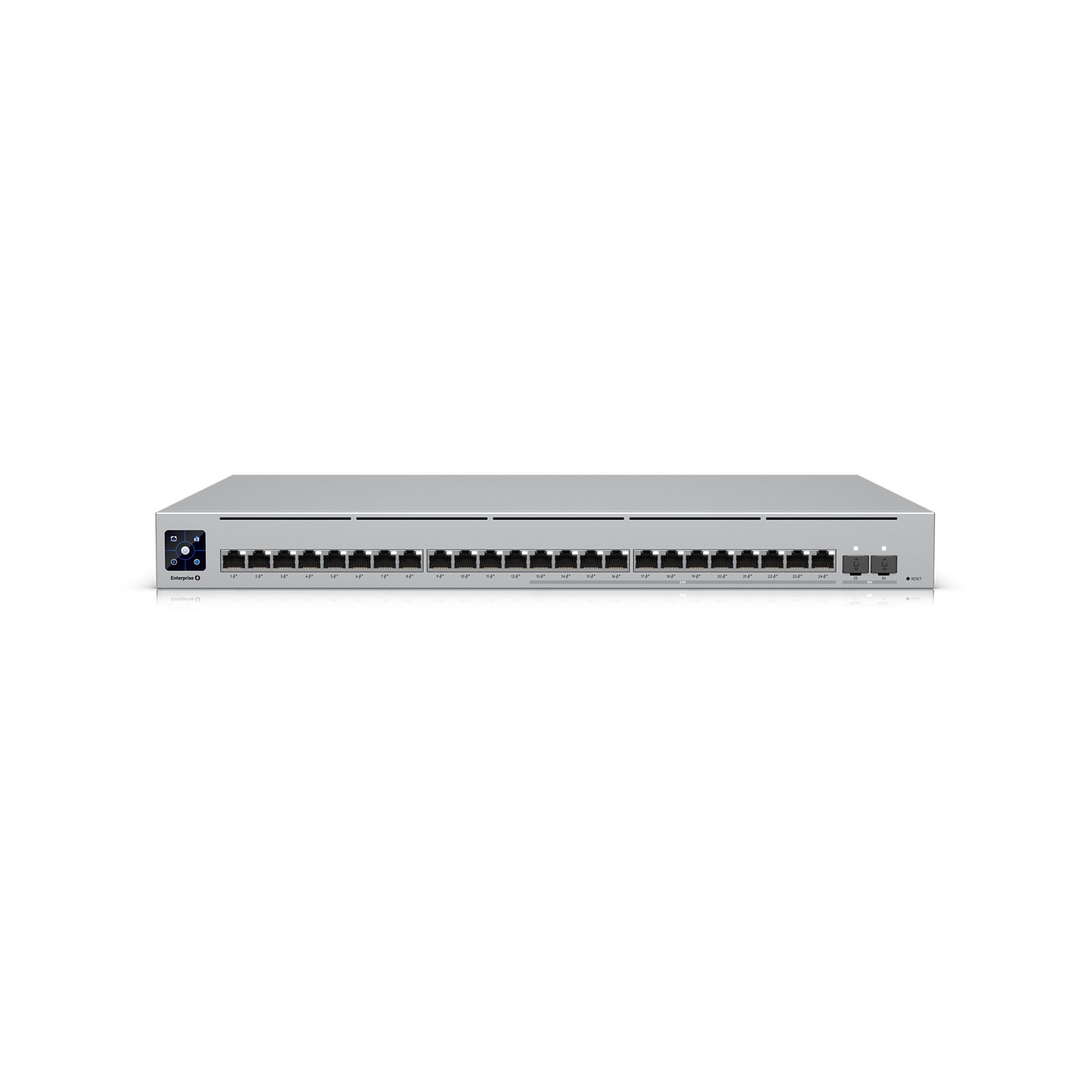

Ubiquiti USW-Enterprise-24-PoE UniFi Switch Enterprise 24 PoE
Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.
Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.
* Sold separately.
Features:
• (12) 2.5G 802.3af/at PoE+ RJ45 ports
• (12) 1G 802.3af/at PoE+ RJ45 ports
• (2) 10G SFP+ ports
• 400W total PoE capacity
• 1.3" touchscreen with AR switch management

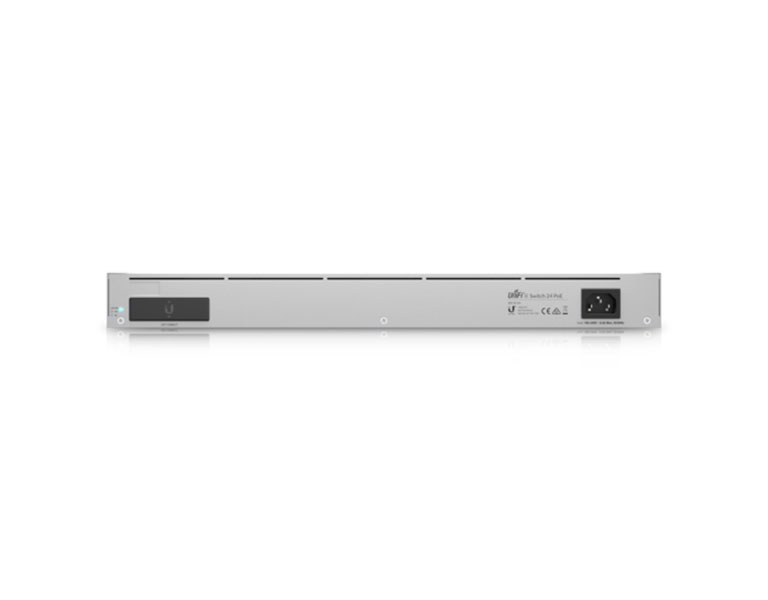

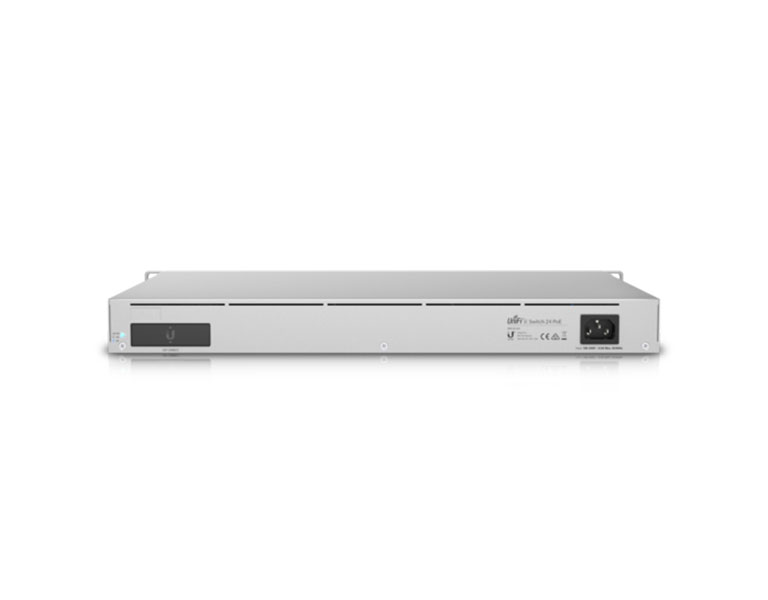

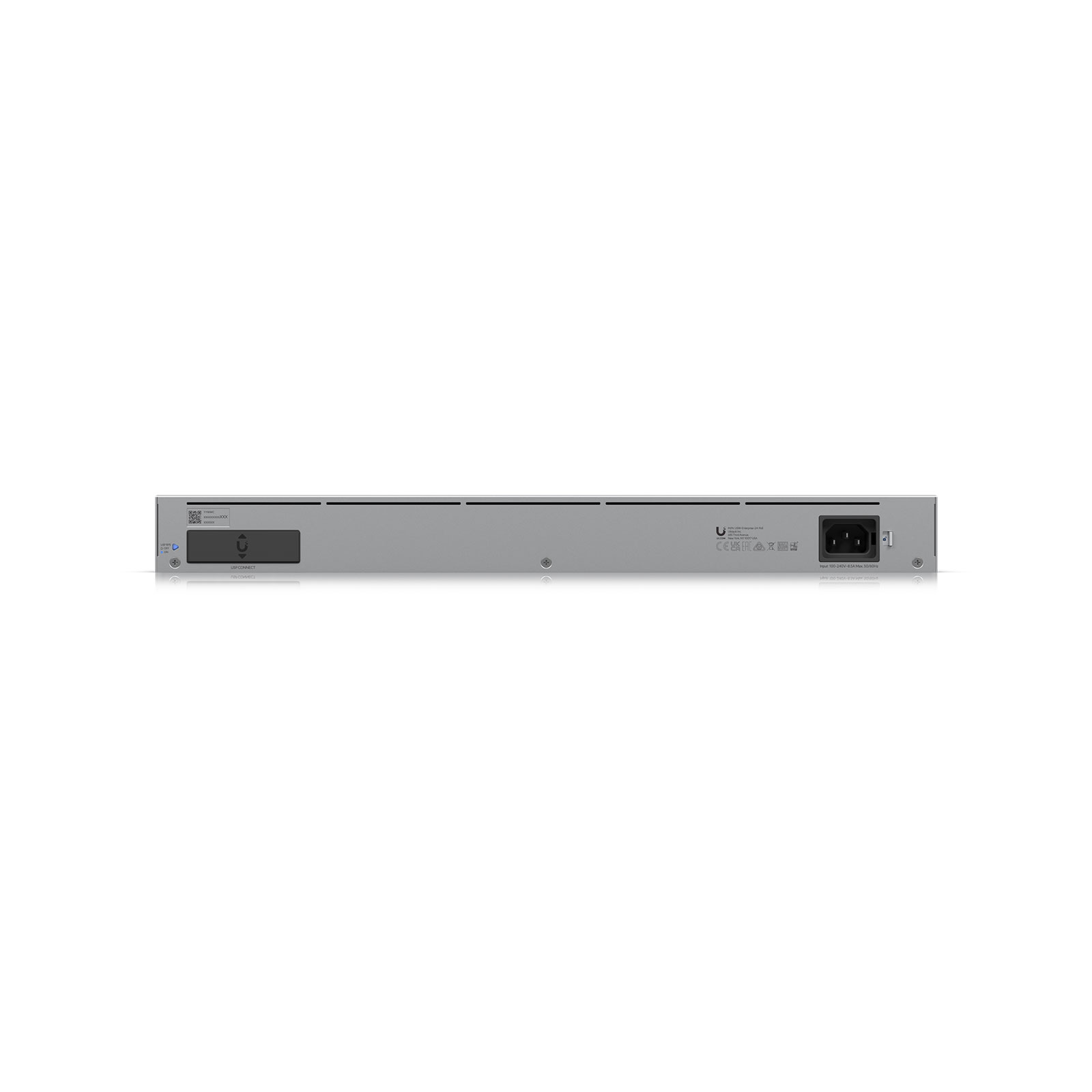

• UniFi SmartPower RPS DC input
Managed with UniFi Network Application Version: 5.14.12 or higher.
Works with UniFi Network Application
• Manage your networks from a single interface.
• Enjoy intuitive configuration options, as well as robust device control and monitoring.
• Upgrade device firmware remotely.
• Easily manage network users and guests.
• Personalize the design, architecture, and privacy of guest hotspots.
| Specifications | |

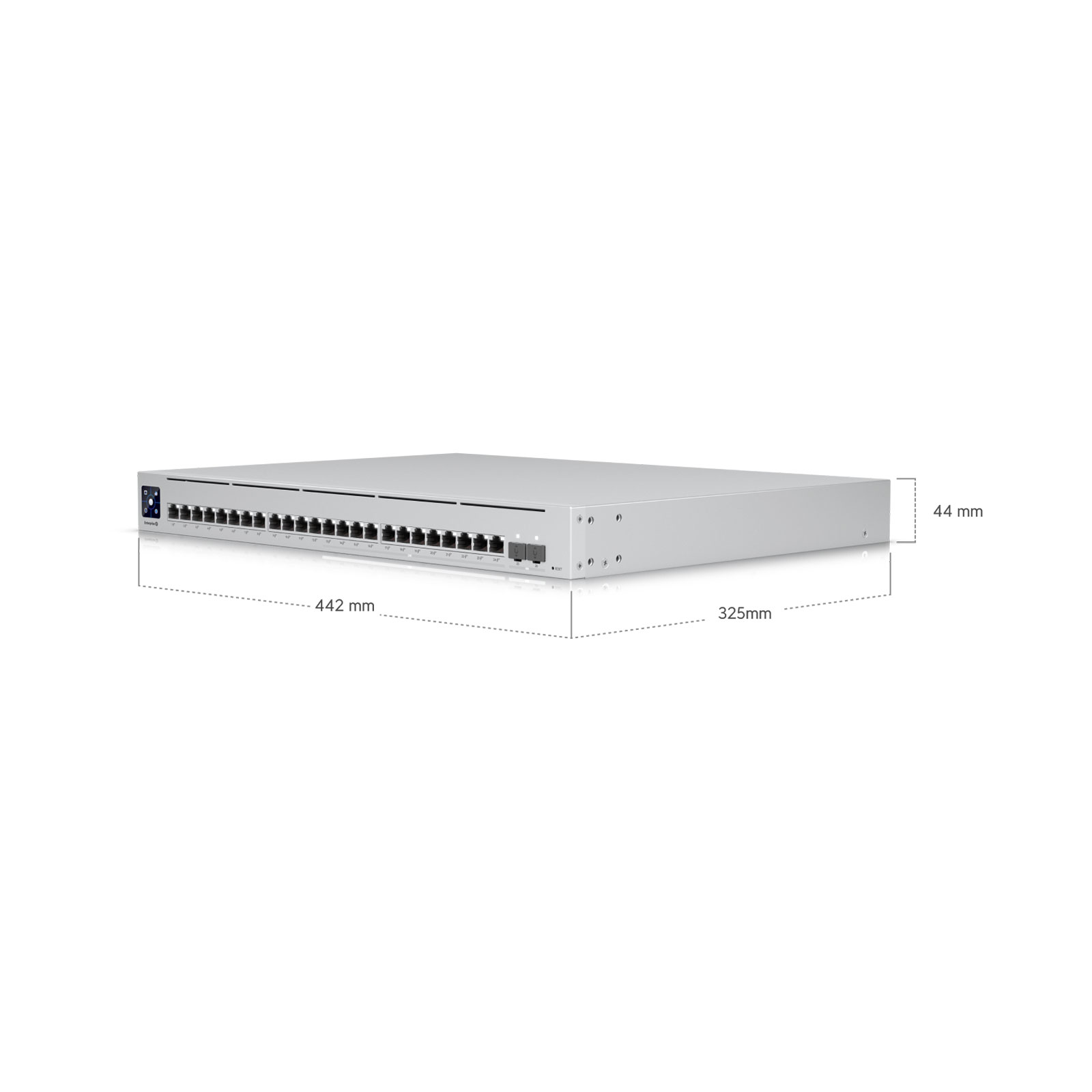

| Dimensions | 442.4 x 43.7 x 325 mm |
| Weight | Without Mount: 5.11 kg With Mount: 5.2 kg |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10G SFP+ |
| PoE Interfaces | (24) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
