CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER.

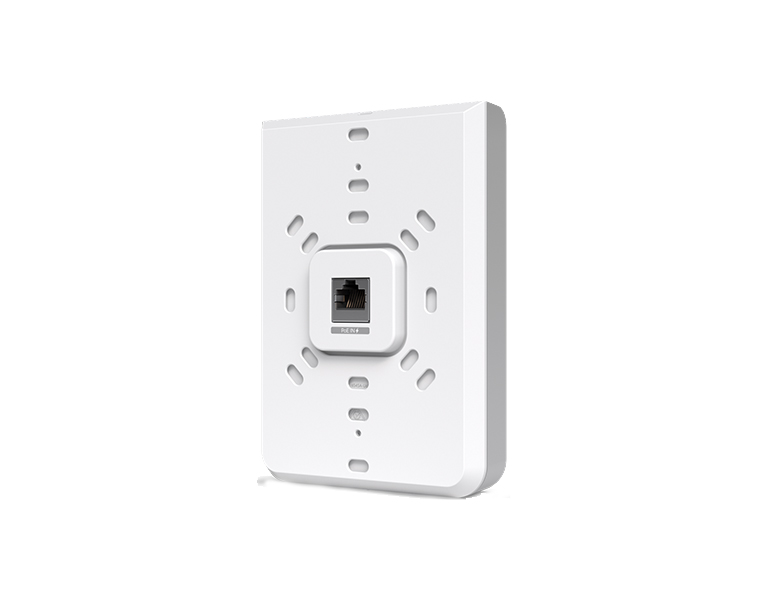

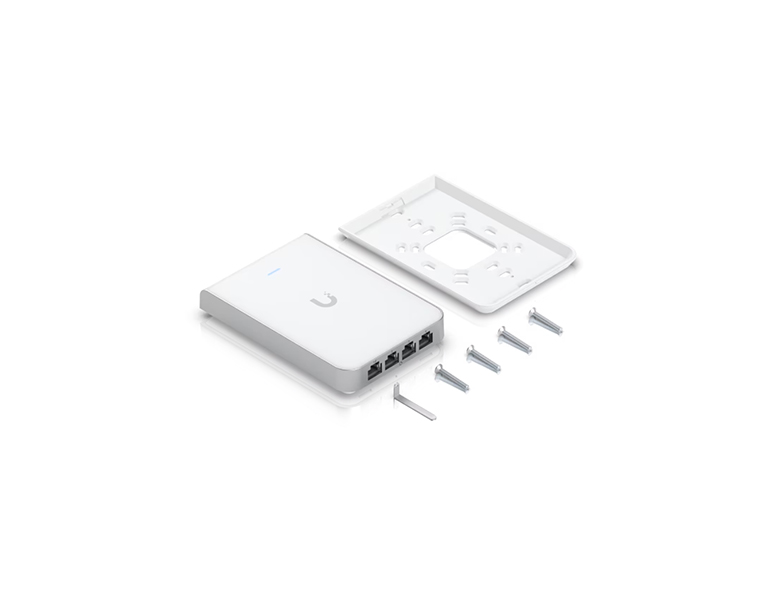

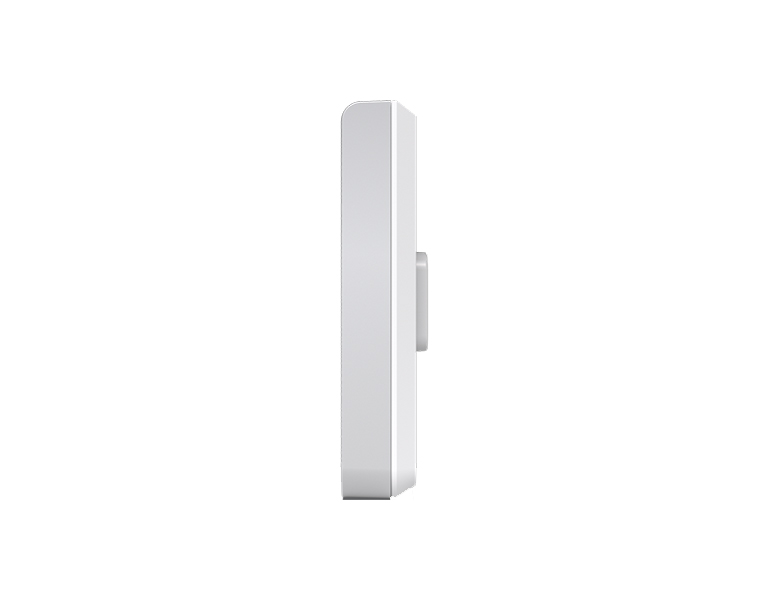

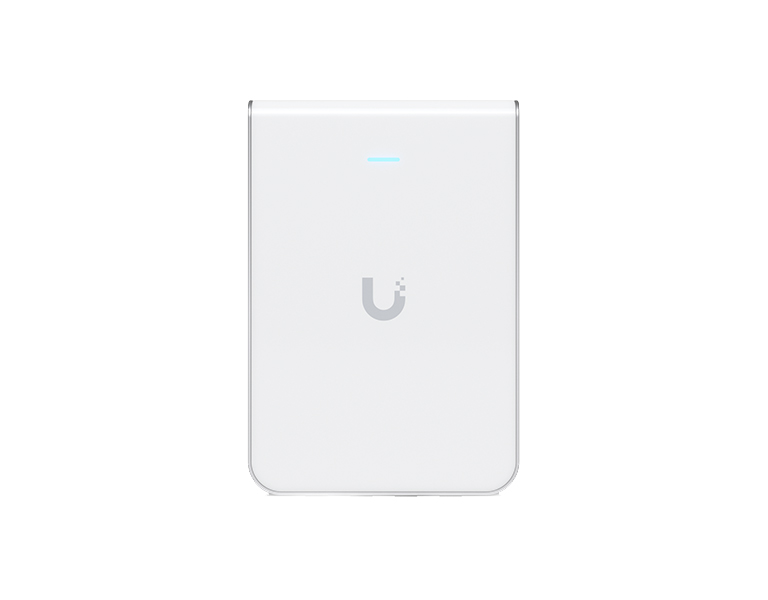

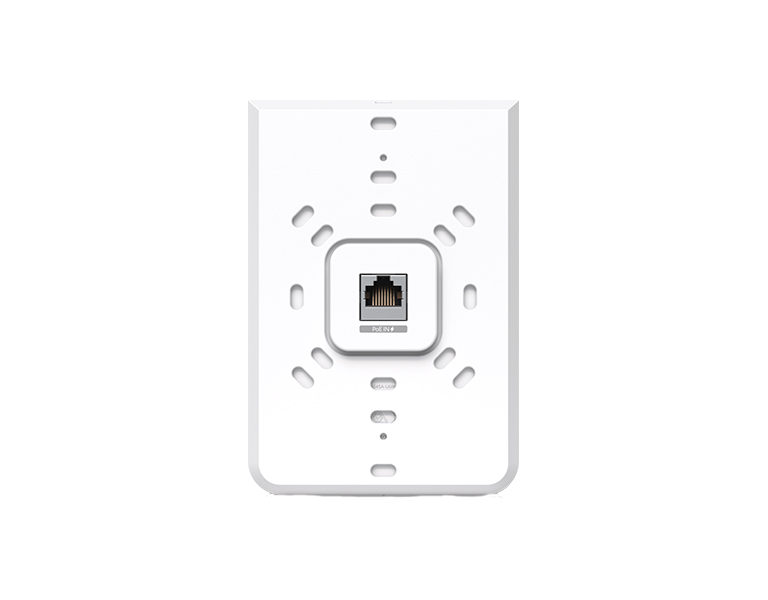

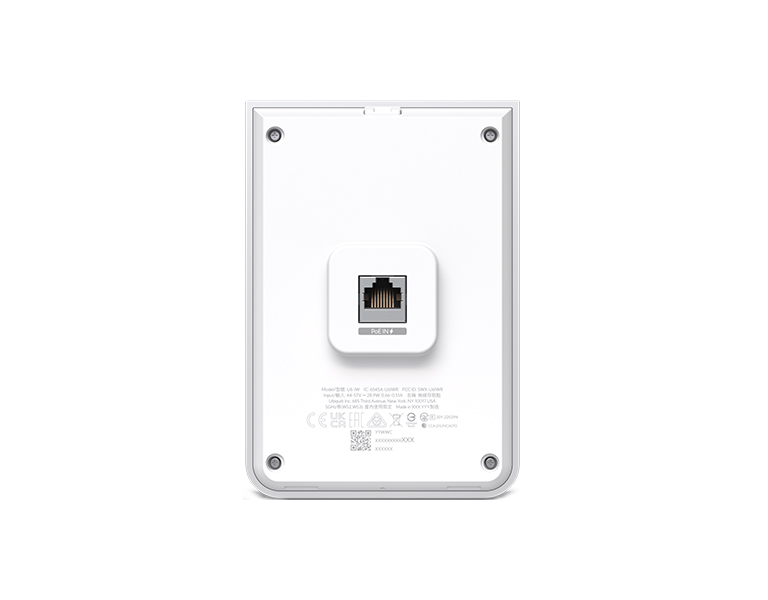

The UniFi6 In-Wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.

Features:
• High-efficiency, four-stream WiFi 6 technology
• 5 GHz WiFi 6 band (4x4 MU-MIMO and OFDMA)
• 2.4 GHz WiFi 6 band (2x2 MU-MIMO)

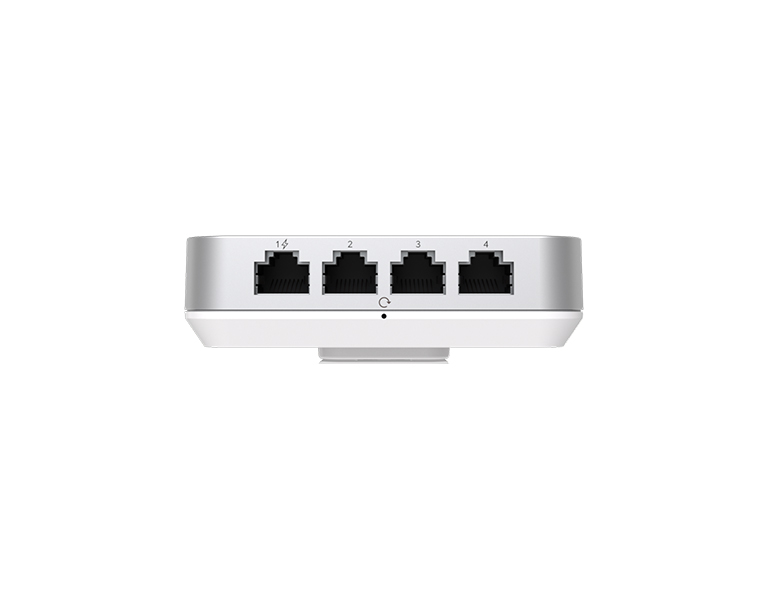

• (4) GbE RJ45 ports, including one that supports PoE output
• 300+ client capacity
• Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Mechanical
Dimensions	139.66 x 96 x 31.19 mm
Weight	460 g
Enclosure Material	Plastic, aluminium
Mount material	Aluminum
Hardware
Management Interfaces	Ethernet Bluetooth
Networking Interface	(1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports
PoE interfaces	(1) PoE in (PoE output not used) (1) PoE out(requires a PoE+ switch)
Buttons	Factory Reset
LED	White/Blue
Power Method	PoE
Power Supply	UniFi PoE switch 48V, 0.5A PoE adapter (optional)
Max. Power Consumption	Excluding PoE output: 13.5W
Max PoE wattage per port by PSE	15.4W* *Requires a PoE+ switch
Voltage range PoE mode	44 to 57VDC
Max. TX Power 2.4GHz 5GHz	22 dBm 26 dBm
MIMO 2.4GHz 5GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Throughput Rate 2.4GHz 5GHz	573.5 Mbps 4.8 Gbps
Antenna Gain 2.4GHz 5GHz	5 dBi 5.9 dBi
Operating Temperature	-30 to 60° C (-22 to 140° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC
Software
Wi-Fi Standards	802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
Concurrent Clients	300+
Zero wait DFS	Yes
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
