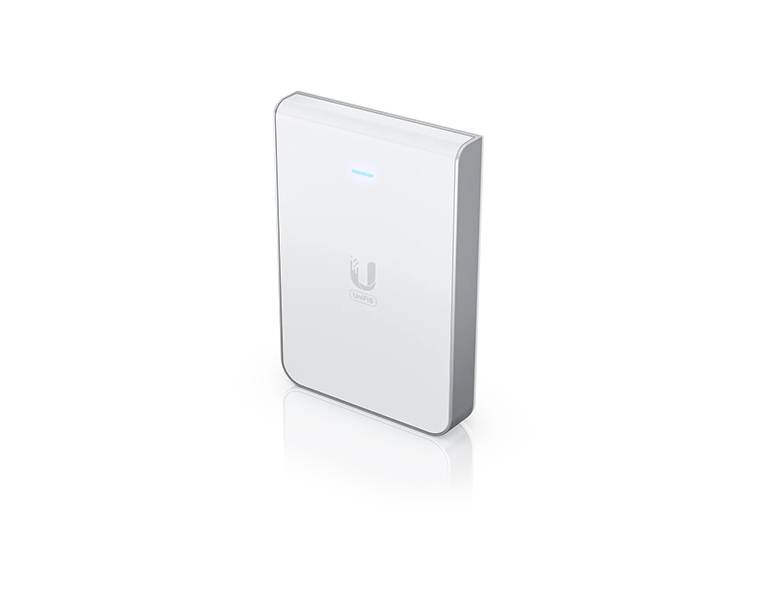

Ubiquiti U6-IW, UniFi 6 In-Wall Access Point
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER.
The UniFi6 In-Wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.
Features:
• High-efficiency, four-stream WiFi 6 technology
• 5 GHz WiFi 6 band (4x4 MU-MIMO and OFDMA)
• 2.4 GHz WiFi 6 band (2x2 MU-MIMO)

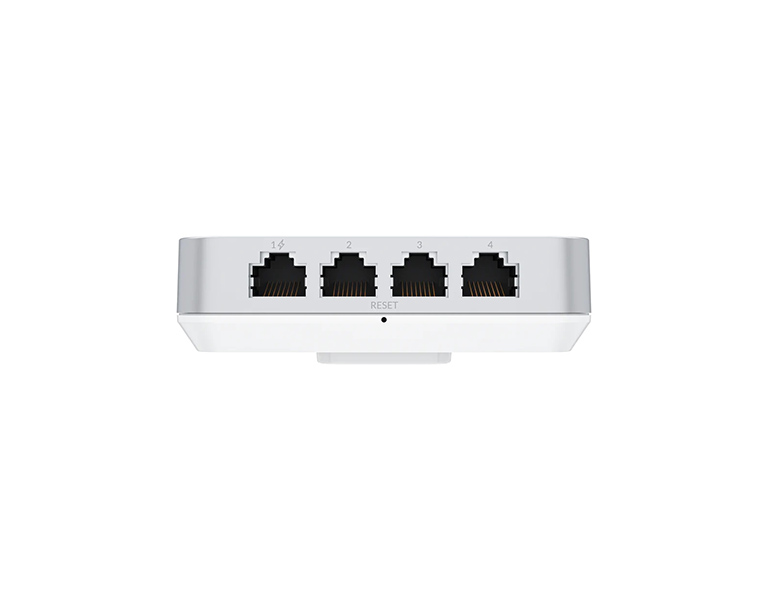

• (4) GbE RJ45 ports, including one that supports PoE output
• 300+ client capacity
• Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app
| Specifications | |
| Mechanical | |
| Dimensions | 139.66 x 96 x 31.19 mm |
| Weight | 460 g |
| Enclosure Material | Plastic, aluminium |
| Mount material | Aluminum |
| Hardware | |
| Management Interfaces | Ethernet Bluetooth |
| Networking Interface | (1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
| PoE interfaces | (1) PoE in (PoE output not used) (1) PoE out(requires a PoE+ switch) |
| Buttons | Factory Reset |
| LED | White/Blue |
| Power Method | PoE |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter (optional) |
| Max. Power Consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44 to 57VDC |
| Max. TX Power 2.4GHz 5GHz |
22 dBm 26 dBm |
| MIMO 2.4GHz 5GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput Rate 2.4GHz 5GHz |
573.5 Mbps 4.8 Gbps |
| Antenna Gain 2.4GHz 5GHz |
5 dBi 5.9 dBi |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
