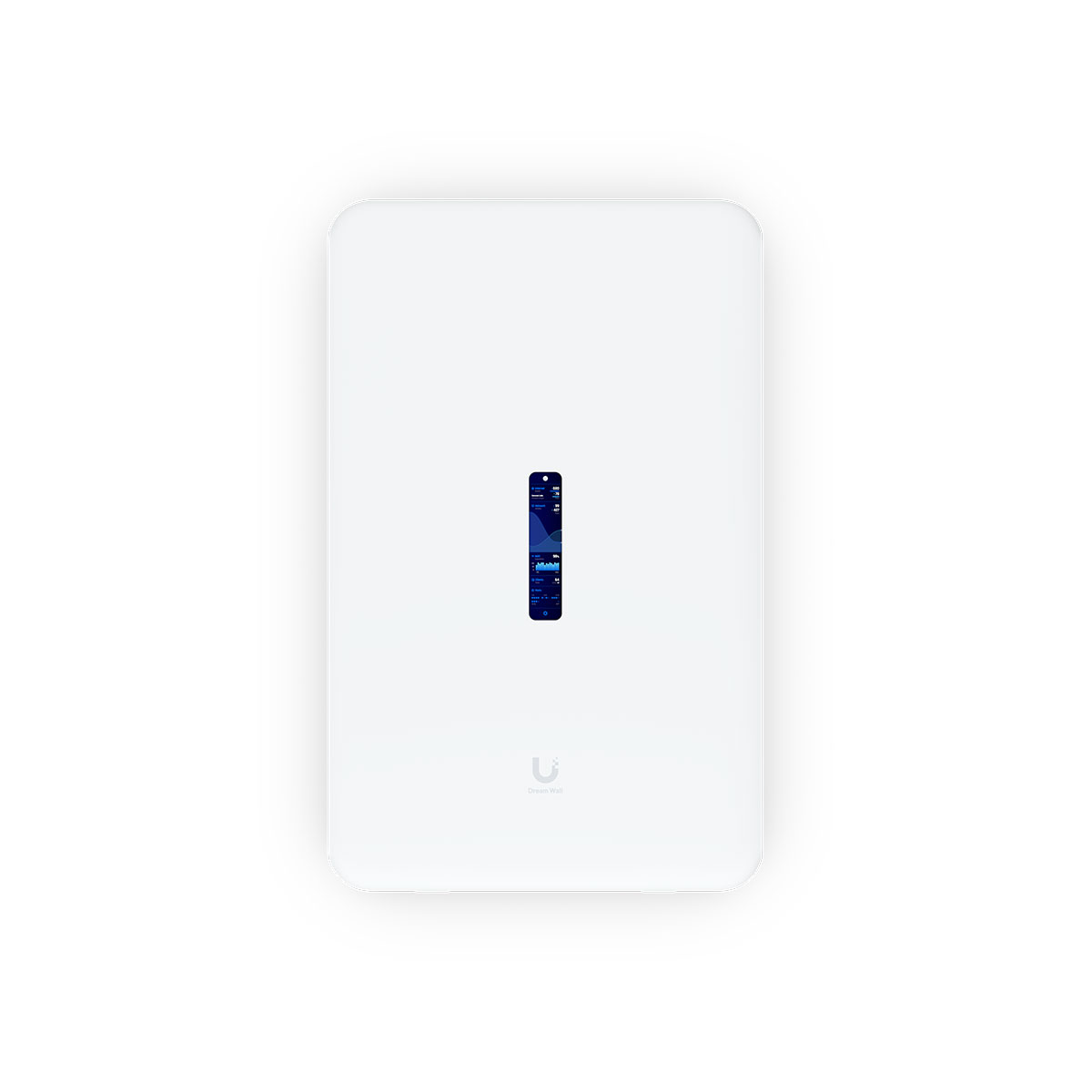

Dream Wall is another in the range of UniFi All-in-one devices. It contains a gateway with a firewall, Wi-Fi 6 access point, NVR and a switch with PoE function. The unit provides a wide range of network connectivity options. It offers the option of connecting via a 10Gbps SFP+ port or a 2.5Gbps Ethernet port. For connecting other devices in the LAN, it offers a 10Gbps SFP+ port together with 17 Ethernet 1Gbps ports, of which 12 have PoE functionality (4x POE++, 4x POE+ and 4x POE). From the factory, the device is equipped with one hot-swap source with a power of 550W, and a second position is available for redundancy. The maximum consumption of the device is 532W including connected powered devices.
The radio part supports the latest WiFi 6 (802.11ax) standard, is backward compatible with older standards and has MIMO 2x2 (2.4 Ghz) and 4x4 (5 GHz) with a maximum modulation speed 300 + 2400 Mbps.
All important information about the device and the network can be accessed immediately thanks to the integrated display with a diagonal of 4.7". The pre-installed 512GB microSD card is used for storing camera recordings, and the device also has own SSD disk with a capacity of 128GB.
Features:
• Integrated Enterprise WiFi6 (4x4 MIMO)
• Full UniFi OS and UniFi application support
• 3.5+ Gbps routing

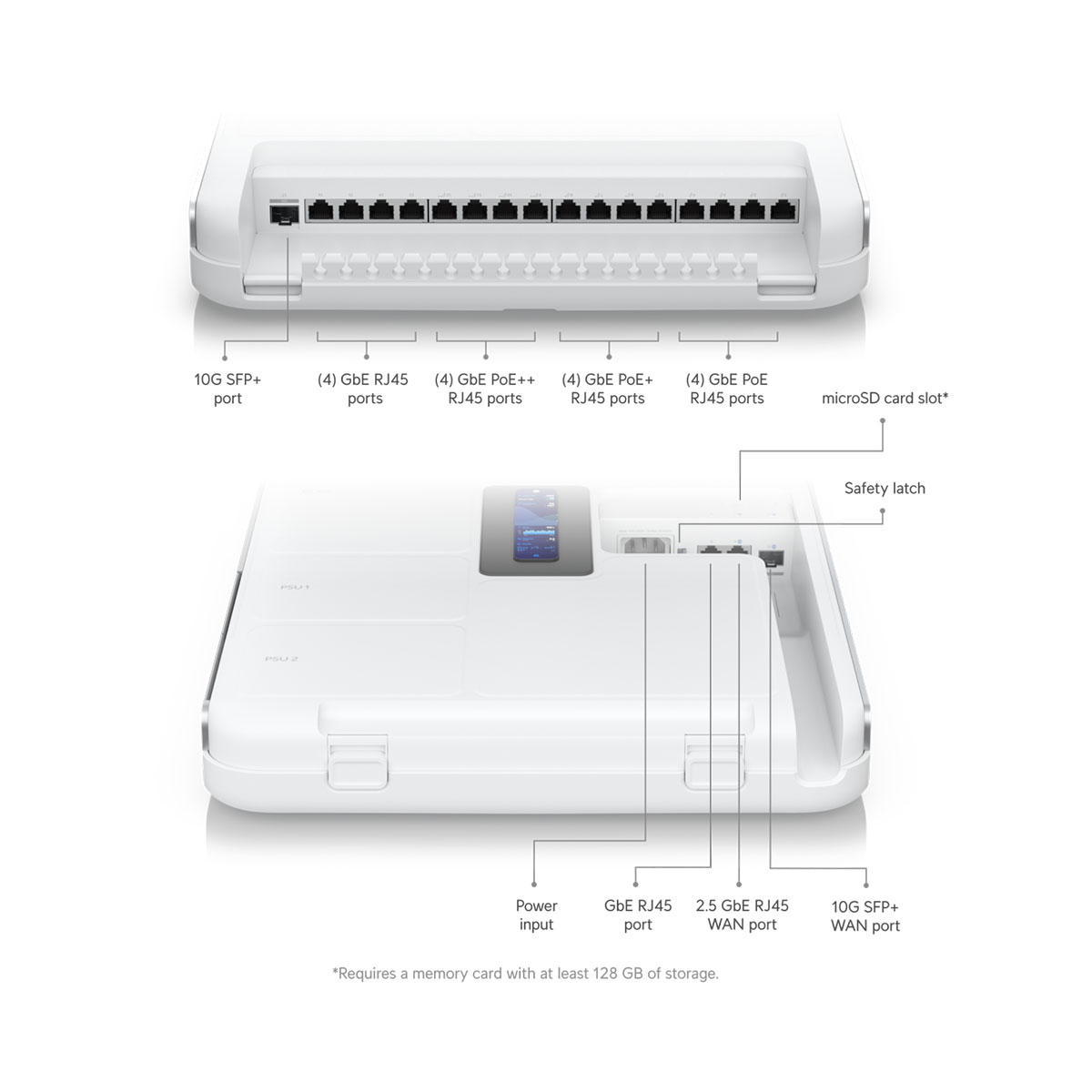

• (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
• (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
• 4.7" touchscreen for management
• Integrated 128 GB SSD & pre-installed 512 GB microSD card

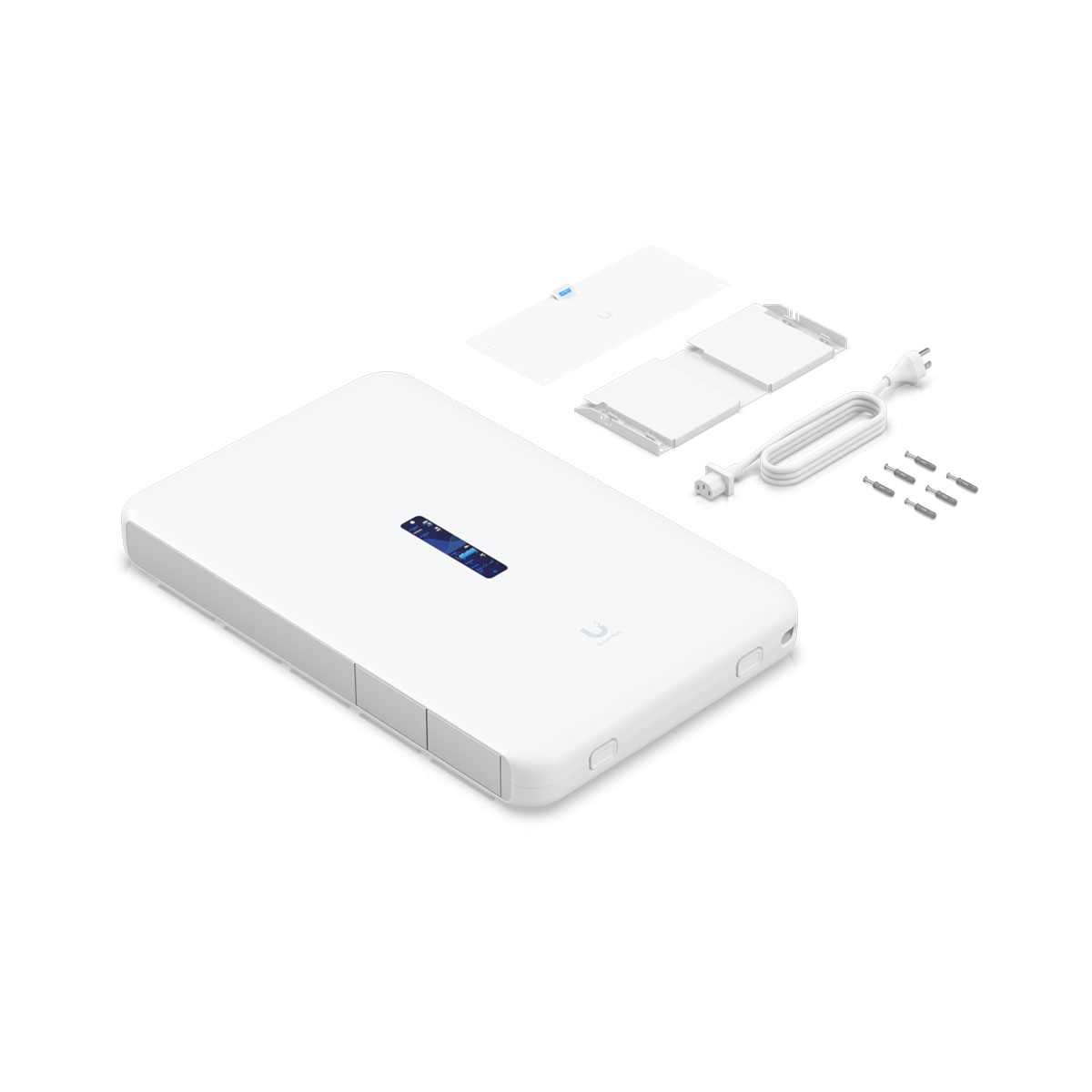

Package contents
• Device with pre-installed 512GB microSD card
• Screws and dowels
• Drilling template
• Wall mount
• Power cord
| Specifications | |

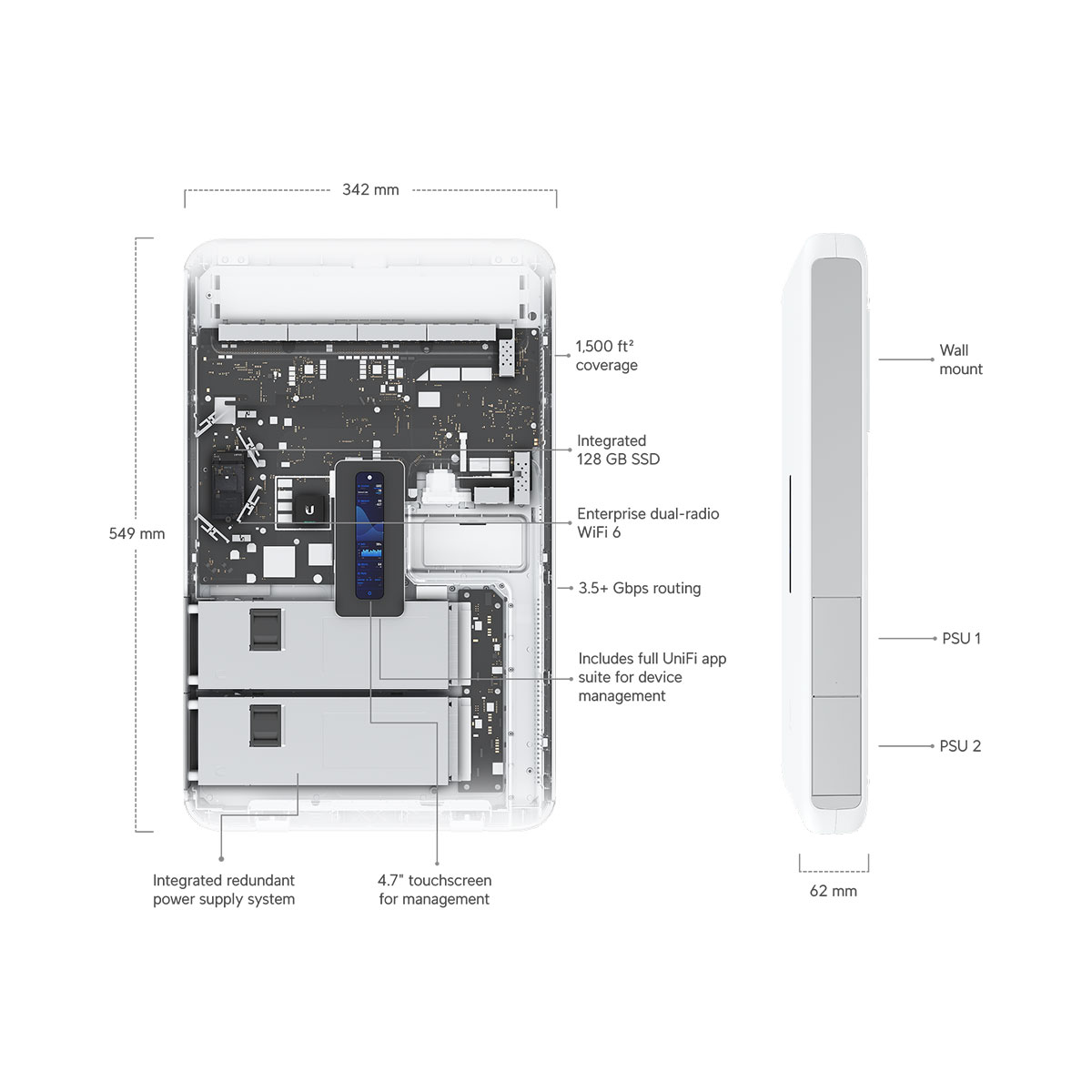

| Dimensions | 549 x 342 x 62 mm |
| Weight | 8.6 kg |
| Enclosure material | Polycarbonate, galvanized steel, aluminum alloy |
| Mount material | Stainless steel |
| Hardware | |
| Processor specs | Quad-core ARM Cortex -A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card |
| Expansion slot | MicroSD memory card *Requires a memory cardwithatleast128GB of storage. |
| Management interface | Ethernet Bluetooth WiFi |
| Networking interfaces | (17) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface | (1) LAN: 10G SFP+ port (1) WAN: 10G SFP+ port |
| PoE interface | (4) PoE (Pair A 1, 2+; 3, 6-) (4) PoE+ (Pair A 1, 2+; 3, 6-) (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Power method | Universal AC input 100—240V AC, 7A Max., 50/60Hz |
| Power supply | (2) Hot-Swappable AC/DC 550W PSU *Comes with(1) pre-installedPSU. |
| Max. power consumption | 532W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| Max. TX power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 5 GHz: 4 x 4 |
| Throughput rate | 2.4 GHz: 300 Mbps 5 GHz: 2.4 Gbps |
| Antenna gain | 2.4 GHz: 5.9 dBi 5 GHz: 6 dBi |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| LCM display | (1) 4.7" touchscreen |
| Button | Factory reset |
| Mounting | Wall mount(included) |
| Operating temperature | -10 to 40° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| LEDs | |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| PSU | Blue: ready Amber: failure |
| Suppoted Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
