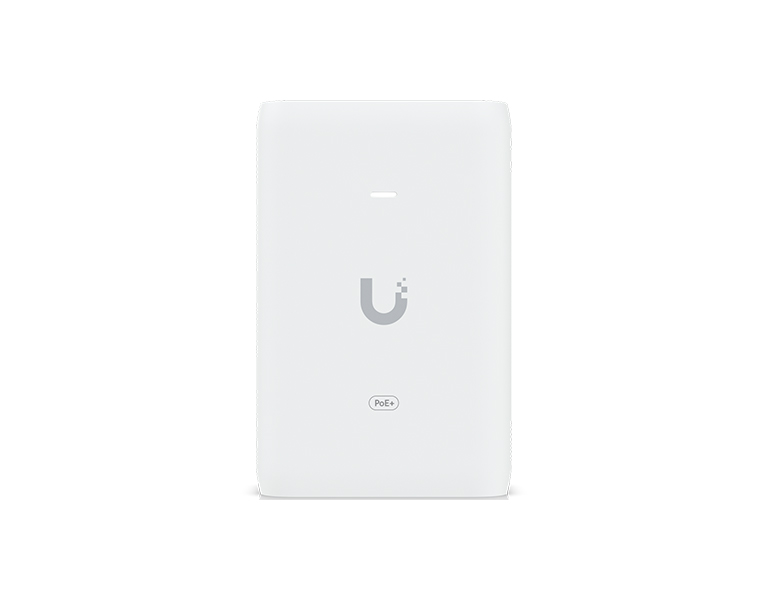

Ubiquiti UACC-PoE+-2.5G, 2.5G PoE+ Adapter (30W)
Κωδικός προϊόντος:
UACC-PoE+-2.5G
24,50 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
19,76 €
Άμεσα διαθέσιμο
Ubiquiti UACC-PoE+-2.5G, 2.5G PoE+ Adapter (30W)
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection

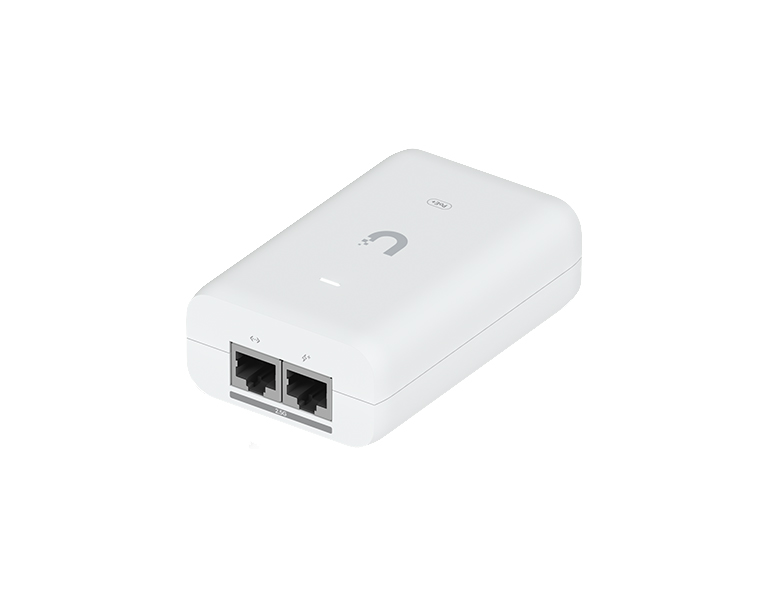

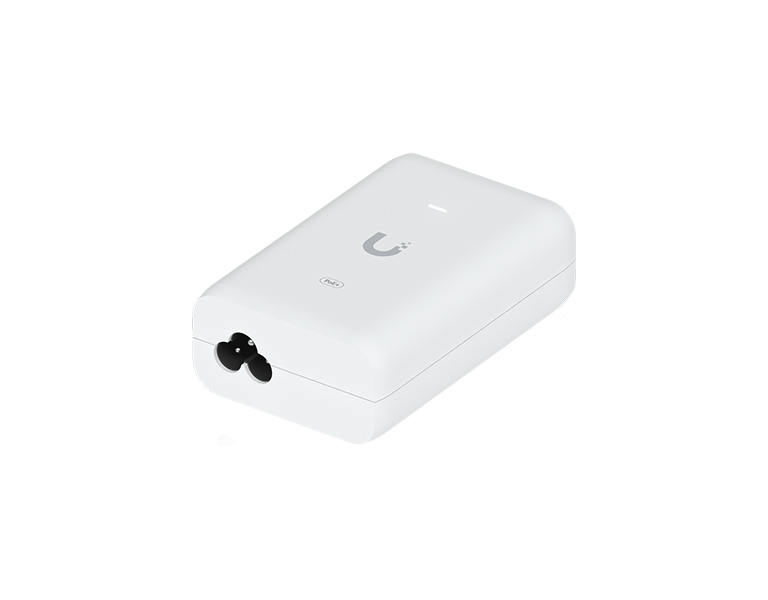

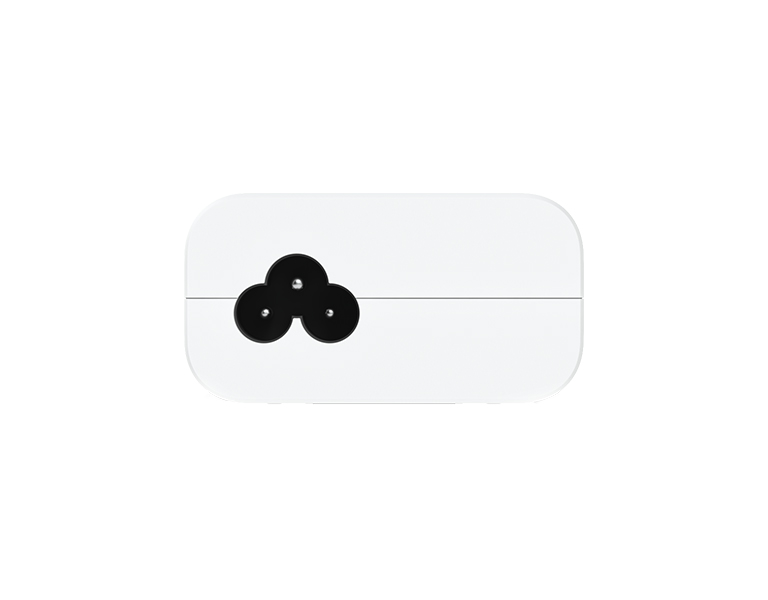

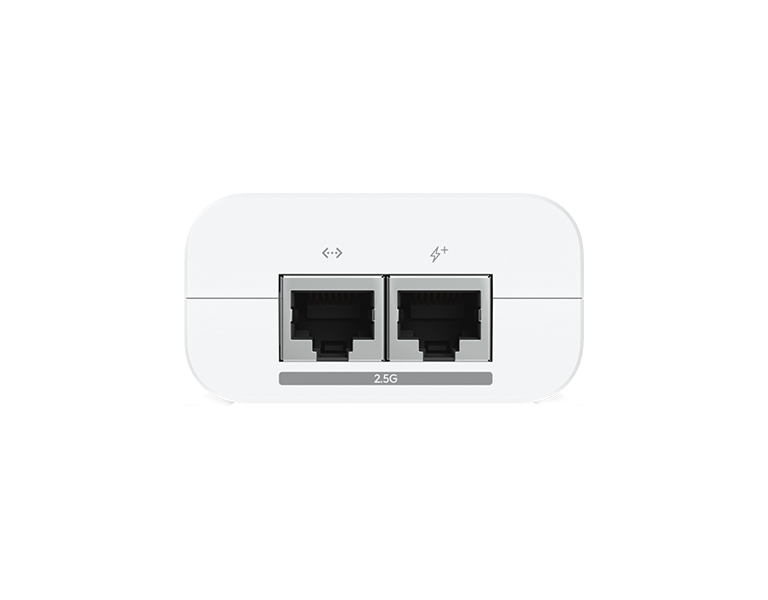

• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |
| Dimensions | 93 x 62 x 35 mm |
| Weight | 156g |
| Output voltage | 48V DC @ 0.65A |
| LAN activity indicator | No |
| Gigabit Lan port | Yes, up to 2.5 GbE |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.75A max. |
| Inrush current | <150A peak @230V AC |
| Efficiency | >87% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz max. |
| Line regulation | ≤ 1% |
| Load regulation | ≤ 3% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C |
| Storage temperature | -30 to 70°C |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
