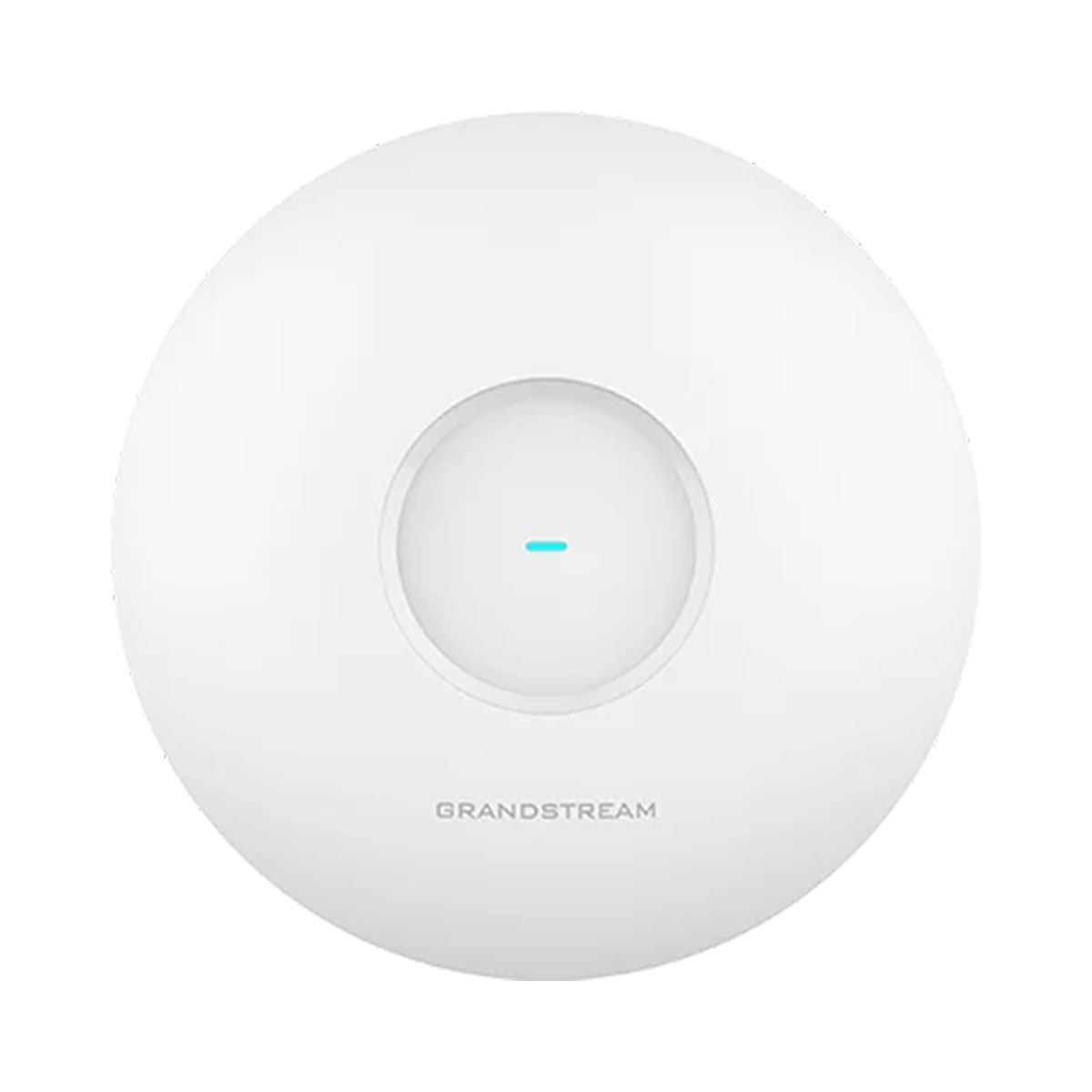

Grandstream GWN7673 Dual-Band Wi-Fi 7 Access Point
Grandstream GWN7673 Dual-Band Wi-Fi 7 Access Point
The GWN7673 is a powerful enterprise-grade BE5000 Wi-Fi 7 access point engineered with advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:3 MU-MIMO plus DL/UL OFDMA technology. It is an ideal solution for medium-scale, high-density wireless environments.
• Features 5 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
• Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:3 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
• Delivers reliable connectivity across a vast 175-meter coverage range
• Connects 512 Wi-Fi client devices simultaneously without compromising speed
• Supports up to 1,000 PPSK accounts for secure, individualized user access
• Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
Application Scenarios
This model is purpose-built for superior indoor connectivity, delivering enterprisegrade performance for offices, retail spaces, and educational institutions. It creates a high-performance mobile working environment for employees in medium and large offices without sacrificing speed. For retail, it enhances the customer experience and streamlines operations by providing robust, dedicated Wi-Fi for both guests and staff. In demanding educational environments, this model helps staff and students excel with rapid, reliable wireless connections.
Classic Deployment
Engineered for effortless integration into any network environment, the GWN7673 establishes a high-speed wired uplink to your routers and switches. Once connected, it serves as a powerful wireless hub, broadcasting a robust signal to provide highperformance Wi-Fi for all your critical client devices.
Up to 1,000 PPSKs Provide users with unique passphrases for secure, multi-device access via PPSK authentication.
Captive Portal Flexibly configure a custom portal for network access verification, boosting brand awareness with targeted marketing messages.
Cloud Management
Beyond local Web UI control, this model supports GDMS Networking, a premier cloud-based management platform. It delivers real-time monitoring, instant alerts, and in-depth statistics. Accessible from anywhere via a web browser or mobile app, GDMS Networking makes AP management across multiple locations simpler and more intuitive than ever.
Flexible Mounting Options
Engineered for total deployment flexibility, the versatile multi-pattern bracket ensures a seamless installation experience—whether you're mounting on walls, ceilings, or various standard junction boxes.
| Technical Specifications |
|
| Basic |
|
| Unit Dimension | Ø220 mm × 48.5 mm |
| Package Dimension | 275 mm × 266 mm × 76 mm |
| Unit Weight | 545.8 g |
| Package Weight | 992.8 g |
| Mounting | Indoor Wall Mount, Ceiling Mount, and Junction Box Mount |
| Radio | |
| Antenna | 5 single-frequency antennas • 2.4 GHz: 2 × 3.5 dBi • 5 GHz: 3 × 5.5 dBi |
| MIMO | • 2.4 GHz: 2×2:2, MU-MIMO • 5 GHz: 3×3:3, MU-MIMO |
| Frequency Bands | • 2.4 GHz Radio: 2,400–2,483.5 MHz • 5 GHz Radio: 5,150–5,895 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | • 2.4 GHz: 20 and 40 MHz • 5 GHz: 20, 40, 80 and 160 MHz |
| Wi-Fi Data Rates | • 2.4 GHz IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 574 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps • 5 GHz IEEE 802.11be: Up to 4,323 Mbps IEEE 802.11ax: 7.3 Mbps to 3,603 Mbps IEEE 802.11ac: 6.5 Mbps to 2,600 Mbps IEEE 802.11n: 6.5 Mbps to 450 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | • 2.4 GHz: 26.5 dBm • 5 GHz: 27.5 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | • 2.4 GHz 802.11b: -96 dBm@1 Mbps, -88 dBm@11 Mbps 802.11g: -93 dBm@6 Mbps, -75 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11 802.11be 20 MHz: -65 dBm@MCS13; 802.11be 40 MHz: -62 dBm@MCS13 • 5 GHz 802.11a: -92 dBm@6 Mbps, -74 dBm@54 Mbps; 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ac 20 MHz: -67 dBm@MCS8; 802.11ac 40 MHz: -63 dBm@MCS9 802.11ac 80 MHz: -59 dBm@MCS9 802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11 802.11ax 80 MHz: -56 dBm@MCS11; 802.11ax 160 MHz: -52 dBm@MCS11 802.11be 20 MHz: -59 dBm@MCS13; 802.11be 40 MHz: -56 dBm@MCS13 802.11be 80 MHz: -54 dBm@MCS13; 802.11be 160 MHz: -52 dBm@MCS13 |
| Coverage Range | Up to 175 m (574.15 ft) *Coverage range may vary based on environment |
| Ports | |
| Network Ports | 1 × 2.5 GbE RJ45 port (Supports PoE Input) |
| Other Ports | 1 × Reset Pinhole, 1 × Kensington Lock |
| LED | |
| System LED | 1 tri-color LED for device tracking and status indication |
| Power and Energy | |
| PoE Standards | 802.3at/af |
| Max Power Consumption |
16 W |
| Environmental Endurance | |
| Operating Temperature |
0 °C to 45 °C |
| Storage Temperature | -30 °C to 60 °C |
| Humidity | 10%–90%, non-condensing |
| Certification | |
| Compliance | FCC, CE, RCM, IC |
| Wi-Fi Alliance | • Access: Passpoint® Release 3 • Network management: WMM® Wi-Fi Agile Multiband™ • Security: Protected Management Frames WPA2™-Enterprise WPA2™-Personal WPA3™-Enterprise WPA3™-Personal WPA™-Enterprise WPA™-Personal • Wi-Fi (MAC/PHY) : 2.4 GHz Spectrum Capabilities 5 GHz Spectrum Capabilities Spectrum & Regulatory Wi-Fi CERTIFIED 6® Wi-Fi CERTIFIED 7™ Wi-Fi CERTIFIED™ a Wi-Fi CERTIFIED™ ac Wi-Fi CERTIFIED™ b Wi-Fi CERTIFIED™ g Wi-Fi CERTIFIED™ n *Wi-Fi Alliance certifications for this model are currently under testing. Specifications are preliminary and subject to change without notice. |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
