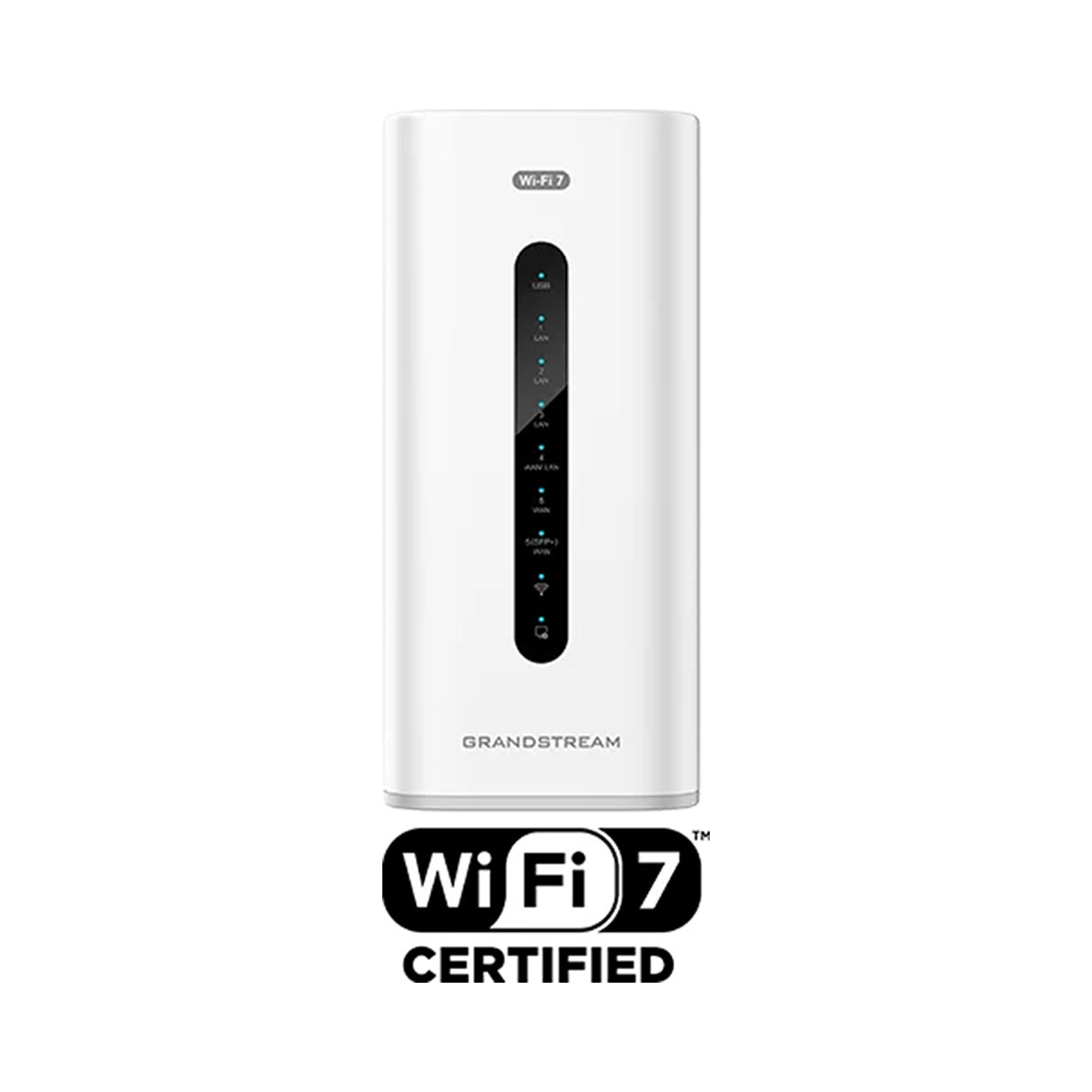

Grandstream GWN7072 Tri-Band Wi-Fi 7 Router
Grandstream GWN7072 Tri-Band Wi-Fi 7 Router
Η συσκευασία περιλαμβάνει τροφοδοτικό
GWN7072 is a high-performance Wi-Fi 7 (802.11be) tri-band router built for families, SOHO, and SMBs. Featuring a 10 GbE Combo port and several 2.5 GbE ports, it leverages 4K-QAM, MLO, MRU, and preamble puncturing to deliver ultra-fast and scalable connectivity. It supports intelligent mesh for seamless roaming in large areas. Engineered for both performance and protection, this model integrates multi-protocol VPNs and intelligent QoS with a robust security suite, including an intelligent firewall, application recognition, and advanced parental controls. Granular traffic management and flexible firewall policies provide enterprise users with a more secure, tailored network. Managed via a built-in web controller or centralized platforms, it delivers 10 Gbps wired throughput with professional-grade security.
Features:
• Integrates Wi-Fi 7 Certified connectivity with 4K QAM, MLO, MRU, and preamble puncturing.
• Tri-band router includes 6 GHz band with 320 MHz bandwidth, offering you superb network experience with high speed and low latency.
• Maximizes throughput with flexible port configurations: a 10 Gbps Combo WAN, a 2.5 Gbps WAN/LAN, and three dedicated 2.5 Gbps LAN ports.
• Comprehensive VPN services provide secure, encrypted remote access to enterprise or home network without the complexity.
• Connects up to 128 Wi-Fi client devices simultaneously without compromising speed.
• Supports up to 16 mesh nodes with easy configuration and flexible expansion.
• Provides robust security features, including firewalls, URL content filtering, application control, firmware upgrade and secure boot based on digital signature.
• A versatile USB port supports mobile dongle dial-up, network printing, and convenient storage sharing to meet the diverse needs of modern offices and smart homes.
• Besides the intuitive local Web UI , you can manage your router via GDMS, GWN Manager, the GWN app and Grandstream Home app for centralized management.
| Technical Specifications |
|
| Basic | |
| Unit Dimension | 104 mm × 104 mm × 226 mm |
| Package Dimension | 325 mm × 130 mm × 110 mm |
| Unit Weight | 0.846 kg |
| Package Weight | 1.314 kg |
| Installation Methods | Desktop or Indoor Wall Mount |
| Radio | |
| Antenna | 6 single frequency antennas • 2.4 GHz: 2 × 3.5 dBi • 5 GHz: 2 × 5.5 dBi • 6 GHz: 2 × 5.5 dBi |
| Frequency Bands | • 2.4 GHz Radio: 2,400–2,483.5 MHz • 5 GHz Radio: 5,150–5,895 MHz • 6 GHz Radio: 5,925–6,425 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | HT20/40, VHT20/40/80, HE20/40/80/160/240, EHT20/40/80/160/320 |
| Wi-Fi Data Rates | • 2.4 GHz IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 574 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 5 GHz IEEE 802.11be: Up to 4,320 Mbps IEEE 802.11ax: 7.3 Mbps to 2,402 Mbps IEEE 802.11ac: 6.5 Mbps to 1,732 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 6 GHz IEEE 802.11be: Up to 5,765 Mbps IEEE 802.11ax: 8 Mbps to 4,802 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | • 2.4 GHz: 26 dBm • 5 GHz: 25 dBm • 6 GHz: 24 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | • 2.4 GHz 802.11b: -96 dBm@1 Mbps, -88 dBm@11 Mbps 802.11g: -93 dBm@6 Mbps, -75 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz:-70 dBm@MCS7 802.11ax 20 MHz: -65 dBm@MCS11; 802.11ax 40 MHz: -62 dBm@MCS11 802.11be 20 MHz: -65 dBm@MCS13; 802.11be 40 MHz: -62 dBm@MCS13 • 5 GHz 802.11a: -92 dBm@6 Mbps, -74 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz:-70 dBm@MCS7 802.11ac 20 MHz: -70 dBm@MCS8; 802.11ac 40 MHz: -65 dBm@MCS9 802.11ac 80 MHz: -62 dBm@MCS9; 802.11ac 160 MHz: -59 dBm@MCS9 802.11ax 20 MHz: -64 dBm@MCS11; 802.11ax 40 MHz: -61 dBm@MCS11 802.11ax 80 MHz: -59 dBm@MCS11; 802.11ax 160 MHz: -55 dBm@MCS11 802.11be 20 MHz: -59 dBm@MCS13; 802.11be 40 MHz: -56 dBm@MCS13 802.11be 80 MHz: -54 dBm@MCS13; 802.11be 160 MHz: -52 dBm@MCS13 • 6 GHz 802.11ax 20 MHz: -62 dBm@MCS11; 802.11ax 40 MHz: -59 dBm@MCS11 802.11ax 80 MHz: -57 dBm@MCS11; 802.11ax 160 MHz:-53 dBm@MCS11 802.11ax 320 MHz:-51 dBm@MCS11 802.11be 20 MHz: -57 dBm@MCS13; 802.11be 40 MHz: -54 dBm@MCS13 802.11be 80 MHz: -52 dBm@MCS13; 802.11be 160 MHz: -50 dBm@MCS13 802.11be 320 MHz: -47 dBm@MCS13 |
| Coverage Range | Up to 175 m² (1,883.68 ft²) *Coverage range can vary based on environment |
| Ports | |

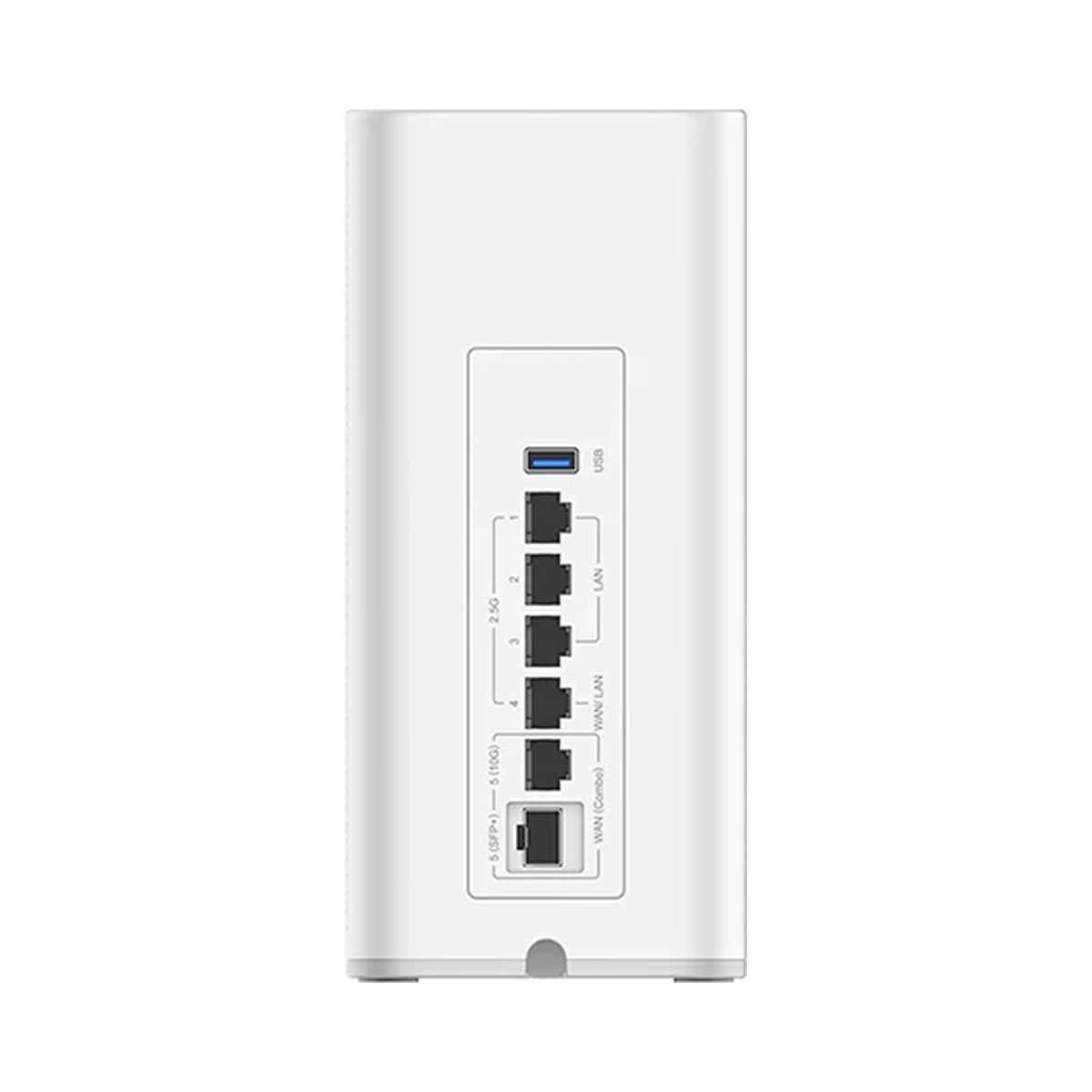

| Network Ports | • 1 × 10 GbE Combo WAN Port (SFP+ or RJ45) • 1 × 2.5 GbE Autosensing WAN/LAN Port • 3 × 2.5 GbE LAN Ports • 1 × USB 3.0 Port |

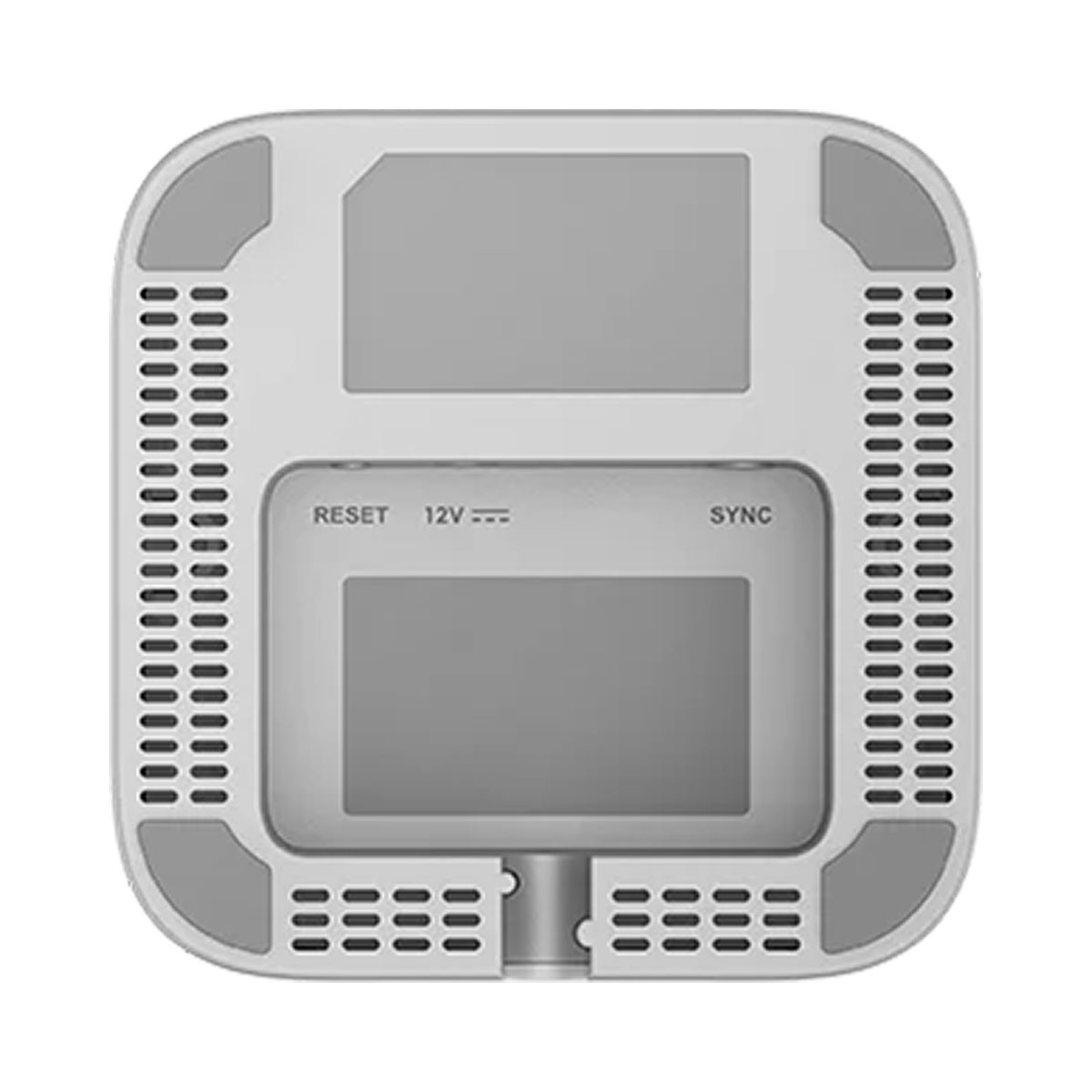

| Other Ports | 1 × Reset Pinhole, 1 × SYNC, 1 × POWER |
| LED | |
| System LED | 1 tri-color System LED and 8 × dual-color LEDs |
| Power | |
| Max Power Consumption |
28.98 W |
| Environmental Endurance | |
| Operating Temperature |
0 °C to 40 °C |
| Storage Temperature | -30 °C to 60 °C ( |
| Humidity | 10%–90%, non-condensing |
| Certification | |
| Compliance | CE, RCM |
| Wi-Fi Alliance | • Network management: WMM® Wi-Fi Agile Multiband™ • Security: Protected Management Frames WPA2™-Enterprise WPA2™-Personal WPA3™-Enterprise WPA3™-Personal • Wi-Fi (MAC/PHY) : 2.4 GHz Spectrum Capabilities 5 GHz Spectrum Capabilities Spectrum & Regulatory Wi-Fi CERTIFIED 6® Wi-Fi CERTIFIED 7™ Wi-Fi CERTIFIED™ a Wi-Fi CERTIFIED™ ac Wi-Fi CERTIFIED™ b Wi-Fi CERTIFIED™ g Wi-Fi CERTIFIED™ n *Wi-Fi Alliance certifications for this model are currently under testing. Specifications are preliminary and subject to change without notice. |
| Package Contents | |
| Primary Unit | 1 × GWN7072 Tri-Band Wi-Fi 7 Router |
| Power and Cables | 1 × 12 V Power Adapter 1 × Ethernet Cable |
| Manual and License | 1 × Quick Installation Guide 1 × Certification Regulatory Information |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 5945 – 6425 MHz ορίζεται στο παρόν έγγραφο. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
