TP-LINK EAP603-OUTDOOR, AX1800 Indoor/Outdoor WiFi I 6 Access Point
TP-LINK EAP603-OUTDOOR, AX1800 Indoor/Outdoor WiFi I 6 Access Point
|
• Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology. |
Omada Wi -Fi 6 Technology
Wi-Fi 6 (802.11ax) supports up to 8×8 UL/DL MU-MIMO, OFDMA, and 1024-QAM. Its 4× longer OFDM symbol provides increased coverage and makes it 11% faster — making it an ideal choice for high-performance, high-density wireless networks.
Long-Range Omnidirectional Coverage
Two external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments, delivering extended coverage up to 2,150 ft (200 m) over 2.4 GHz and 3,200 ft (300 m) over 5 GHz.
Outdoor-Ready Design for Extreme Conditions
EAP603-Outdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It supports IP65 weatherproof and 6kV lightning protection. Additionally, an extended temperature tolerance of -30 °C to 70 °C makes it ideal for extremely hot and cold environments.
Flexible Deployment with PoE Support
1× Gigabit PoE+ port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. Works with standard PoE+ switches or the included passive PoE adapter for flexible installation.
Quick and Easy Setup
Flexible installation options, including wall and pole mounts, enable quick deployment in diverse settings. Integration with Omada SDN allows for one-click adoption and automatic device discovery, streamlining the setup process.
Cloud-Based Centralized Management
As part of Omada’s unified SDN ecosystem, EAP603-Outdoor works with Omada switches, gateways, and controllers. Businesses gain end-to-end visibility, automated optimization, zero-touch provisioning, and batch configuration—all managed from a single cloud interface.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
| Hardware Specifications | |
| Wi-Fi Standards | 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax |
| 802.11ax | |
| Spatial Streams | •2.4 GHz: 2×2 Uplink/DownlinkMU-MIMO with 2 spatial streams •5 GHz: 2×2Uplink/DownlinkMU-MIMO with 2 spatial streams |
| Frequency Bands |
2.4 GHz: 20 MHz/40 MHz 5 GHz: 20 MHz/40 MHz/80 MHz |
| Wireless Data Rate |
• 2.4 GHz: 8.6 Mbps to 573 Mbps (MCS0 MCS11, NSS=1 to 2, HE20/40) • 5 GHz: 8.6 Mbps to 1201 Mbps (MCS0-MCS11, NSS=1 to 2, HE20/40/80) |
| Radio Technology |
Uplink/downlink OFDMA (Orthogonal Frequency-Division Multiple Access) |
| Modulation Type | 1024-QAM, 256-QAM. 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | •A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx •A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | •TWT (Target Wake Time) •MRC (Maximal Ratio Combining) •TxBF (Transmit Beamforming) •WPA3 (Wi-Fi Protect Access 3) •DFS (Dynamic Frequency Selection) •CDD (Cycle Delay Diversity) •CSD (Cycle Shift Diversity) •STBC (Space-Time Block Coding) •LDPC (Low-Density Parity-Check) |
| 802.11ac | |
| Spatial Streams | •5 GHz: 2×2DownlinkMU-MIMO with 2 spatial streams |
| Frequency Bands | 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Wireless Data Rate | •5 GHz: 8.6Mbps to 866Mbps (MCS0-MCS9,NSS=1 to 2, VHT20/40/80) |
| Radio Technology | OFDM (Orthogonal Frequency-Division Multiplexing) |
| Modulation Type | 256-QAM. 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | •A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx •A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | •MRC (Maximal Ratio Combining) •TxBF (Transmit Beamforming)DFS (Dynamic Frequency Selection) •CDD (Cycle Delay Diversity) •CSD (Cycle Shift Diversity) •STBC (Space-Time Block Coding) •LDPC (Low-Density Parity-Check) |
| 802.11n | |
| Spatial Streams | •2.4 GHz: 2×2 MIMO with 2 spatial streams •5 GHz: 2×2MIMO with 2 spatial streams |
| Frequency Bands | 2.400 to 2.4835 GHz ISM 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM |
| Bandwidth | 20 MHz/40 MHz |
| Wireless Data Rate | •2.4 GHz: 8.6 Mbps to 300 Mbps (MCS0-MCS7,NSS=1 to 2, HT20/40) •5 GHz: 8.6 Mbps to 300 Mbps (MCS0-MCS7, NSS=1 to 2, HT20/40) |
| Radio Technology | OFDM (Orthogonal Frequency-Division Multiplexing) |
| Modulation Type | 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | •A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx •A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | •MRC (Maximal Ratio Combining) •TxBF (Transmit Beamforming) •DFS (Dynamic Frequency Selection) •CDD (Cycle Delay Diversity) •CSD (Cycle Shift Diversity) •STBC (Space-Time Block Coding) •LDPC (Low-Density Parity-Check) |
| Antenna | |
| Wi-Fi | •2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas •5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas |
| IoT | •Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas |
| Interfaces | •1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in•1 x Grounding Termina |
| IoT | BLE 5.2, 1Mbps |
| Memory | •Flash: 1024Mbit •DRAM: 4096Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Indicator | 1 × multi-color system LEDindicates on the front: •Power-on status •Firmware initialization or upgrade status •Uplink service status •Error status |
| Reliability | MTBF (Mean Time between Failure) | 360000- hours at the operating temperature of 25°C |
| Power Supply | Input: 802.3at PoE+: 42.5 -57 V, 0.36A |
| Power Consumption | •802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. •Idle mode: 4.8W(PoE) |
| Surge/Lightning Protection | Ethernet Ports: ±6 kV |
| ESD/EMP Protection | •Air discharge: ±8 kV •Contact discharge: ±4 kV |
| Tx Power | Maximum transmit power | CE (ERIP) •2.4 GHz: 20 dBm •5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power) •2.4 GHz: 25 dBm •5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 |
| Minimum transmit power | CE (ERIP) •2.4 GHz: 7 dBm •5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power) •2.4 GHz: 4 dBm •5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 |
| Adjustable power increment | 1 dBm |
| Environment | |
| Temperature | •Operating: -30°Cto +70°C •Storage:-40°Cto +70°C |
| Humidity | •Operating: 10% to 90% (non-condensing) •Storage: 5% to 90% (non-condensing) |
| Altitude | •Storage: upto + 2000m(6561feet) •Operating: up to + 2000m(6561feet) |
| Windproof | Class 16 |
| Weatherproof Enclosure | IP66 for Wall Mount IP65 for Pole Moun |
| Unit | |
| Dimensions (W×D×H) | •Main Unit: 230×207.5×69.7 mm •Shipping Unit: 324×104×245 mm |
| Weight | •Main Unit: 1.41kg •Mounting Bracket: 0.048 kg •Shipping Unit: 1.83 kg |
| Mounting | •Pole Mount (Kits included) •Wall Mount (Kits included) |
| Software Specifications | |
| Wireless Functions | Maximum number of BSSIDs16 (8 on each band) Maximum number of associated STAs 250+ Guest Network ACS (Automatic Channel Selection) Airtime Fairness Band Steering 802.11 Rate Control Rogue AP Detection URL Filtering RF Scan WLAN Optimization WIDS/WIPS Lock to AP |
| Rate Limit | •SSID Rate Limit •Client Rate Limit |
| Load Balance | •Maximum Associated Clients •RSSI Threshold |
| MLO | No |
| Roaming | •802.11 k •802.11v •802.11r •Non-Stick Roaming •Ping-Pong Roaming Suppression •AI Roaming |
| Multicast/Broadcast Management | •Multicast-to-Unicast Conversion •ARP-to-Unicast Conversation •Multicast Filtering •Multicast/Broadcast Rate Limit |
| QoS (Quality of Service) | •WMM (Wi-Fi Multimedia) •DSCP (Differentiated Services Code Point) •U-APSD (Unscheduled Automatic Power Save Delivery) |
| Security and Authentication | ACL MAC Filter 802.1X Authentication MAC-Based Authentication •None •Enhanced Open •WPA/WPA2/WPA3-Personal •WPA/WPA2/WPA3-Enterprise Radius Accounting •PPSK without Radius •PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) |
| Captive Portal | •No Authentication •Simple Password •Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth) •RADIUS Server •External LDAP Server •External Portal Server •Pre-Authentication Access •Authentication-Free Client |
| EAP Types | •EAP-TLS •EAP-TTLS •EAP-PEAP •EAP-CHAP •EAP-SIM •EAP-AKA •EAP-GTC •EAP-FAST •EAP-PEAP •EAP-MD5 •EAP-MSCHAPv2 •PEAPv0 •PEAPv1 |
| Management methods | •Omada Controller V5.15.24 and above •Omada Essential V5.15.24 and above App | Omada App V4.24 and above Standalone Management SSH SNMP v1, v2c, v3 |
| Operating Modes | AP Repeater Mesh |
| System Feature | System Log Reboot Schedule WLAN Schedule NTP (Network Time Protocol) Email Alerts Firmware Upgrade Restore & Backup LED Control |
| Network Features | SSID VLAN Dynamic VLAN Management VLAN Static IP/ DHCPClient IPv4/IPv6 LLDP (Link Layer Discovery Protocol) mDNS Ping / Traceroute / DNSLookup / ARP Table Packet Capture Terminal |
| Standards compliance | |
| IEEE Standards | •IEEE 802.11a/b/g/n/ac/ax •IEEE 802.11e/i/k/v/r •IEEE 802.1x/q •IEEE 802.3at •IEEE 802.3ab •IEEE 802.3x |
| Radio Standards | •ETSI EN 300 328 •ETSI EN 301 893 •FCC Part 15E |
| EMC standards | •EN 55032 •EN 55035 •EN 301489-1 •EN 301489-17 •FCC Part 15C |
| Safety Standards | •EN 62368-1 •IEC 62368-1 |
| Security Standards | •WPA-Personal/Enterprise •WPA2-Personal/Enterprise •WPA3-Personal/Enterprise •OWE |
| RoHS | •Directive 2011/65/EU, Directive (EU) 2015/863 •EN IEC 63000: 2018 |
| Certifications | FCC/CE |

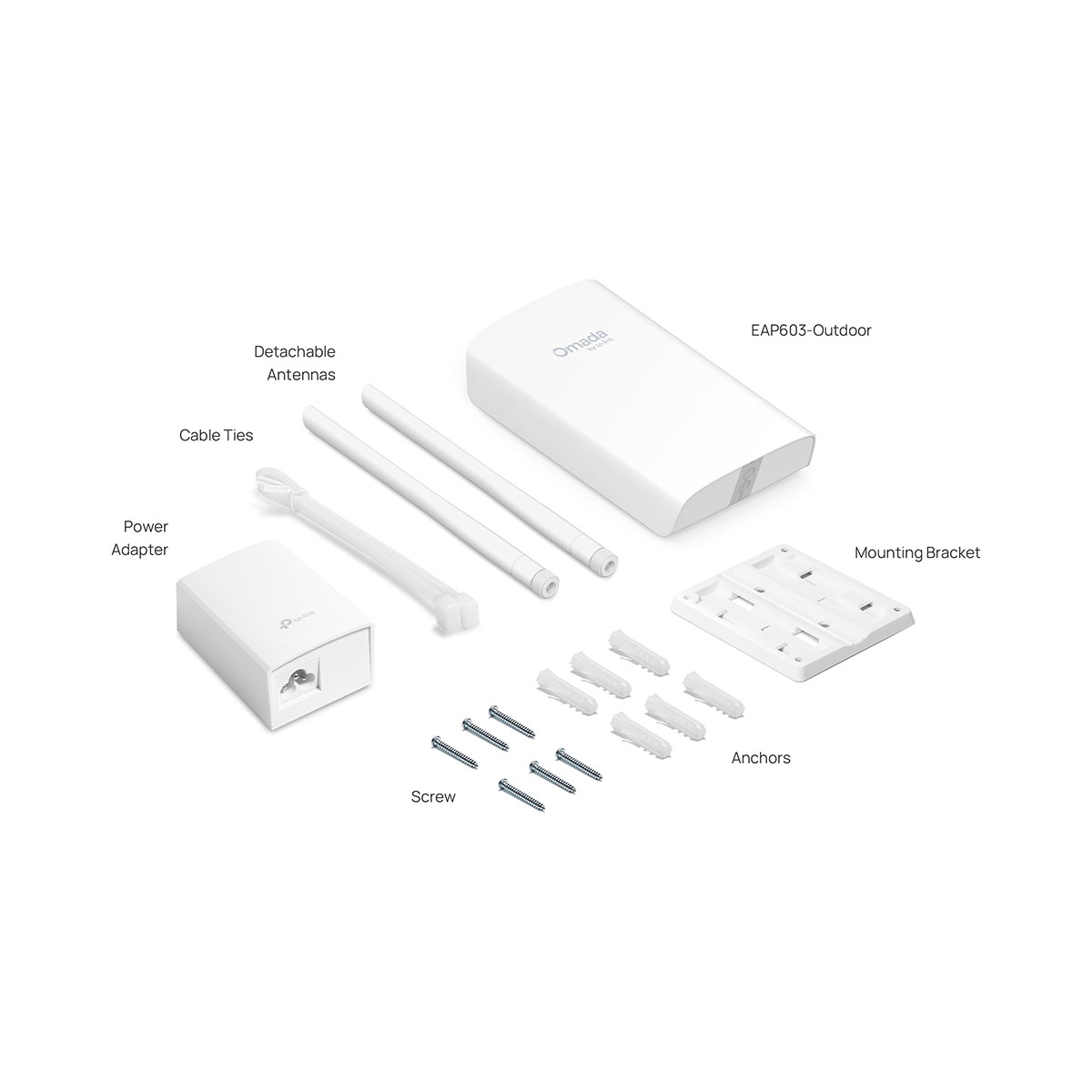

| Package Contents | |
| EAP603-Outdoor | 1 |
| Passive PoE Adapter | 1 |
| Power Cord | 1 |
| Mounting Kit | 1 |
| Installation Guide | 1 |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
