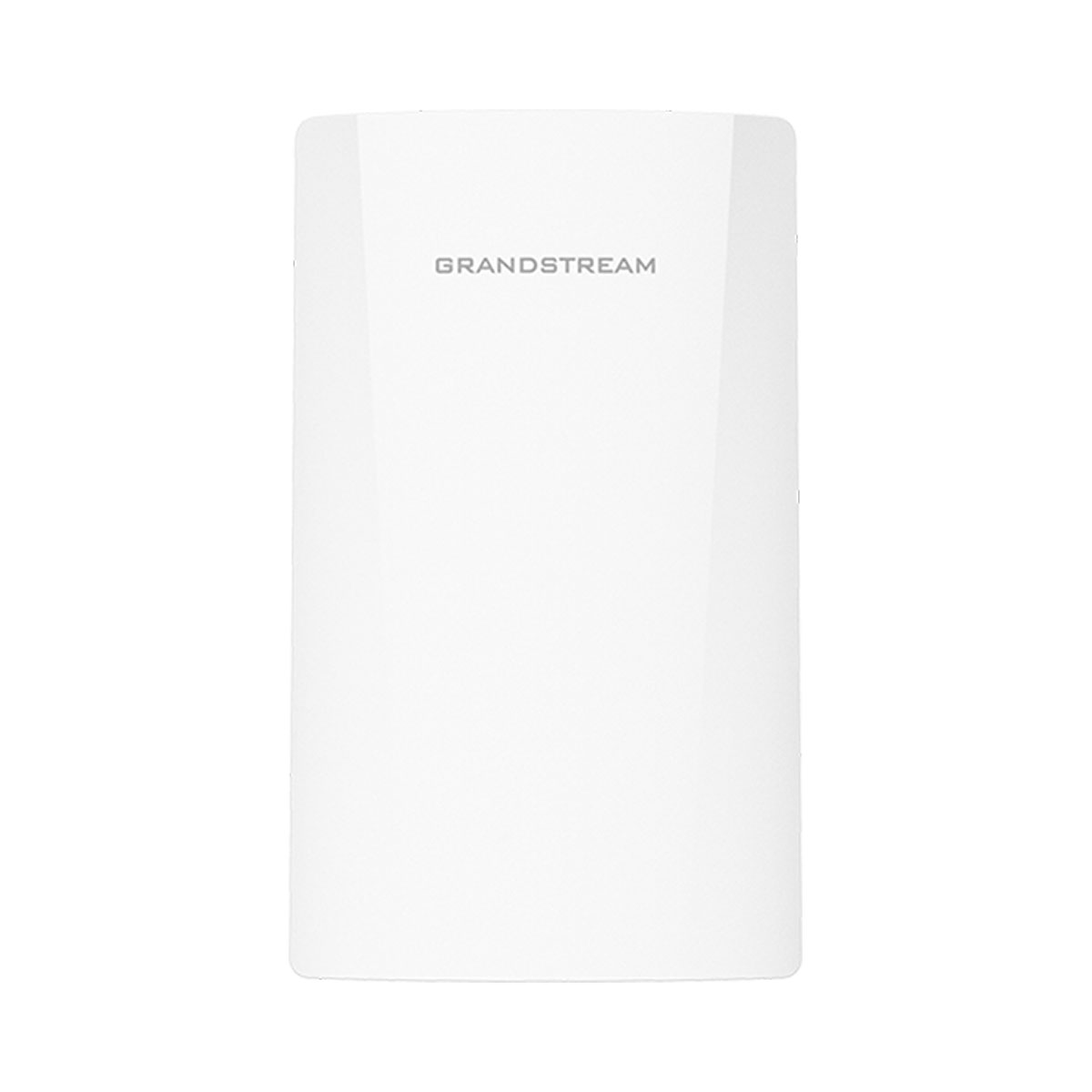

Grandstream GWN7605CLR Outdoor Long-Range Wi-Fi Access Point with Phoenix Connector
Grandstream GWN7605CLR Outdoor Long-Range Wi-Fi Access Point with Phoenix Connector
The GWN7605CLR is an outdoor Wi-Fi access point with a Phoenix Connector that provides stable electrical connection, supports quick disassembly and installation, and is convenient for maintenance. The GWN7605CLR comes equipped with dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 150 meters. It offers IP66-level weatherproof capabilities to ensure equipment stability. It uses a controllerless distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605CLR is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on -premise Wi-Fi management platform. Powered by market-leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and 2x1 Gigabit Ethernet ports with PoE+, the GWN7605CLR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium user density scenarios.
• 1.27Gbps aggregate wireless throughput and 2x Gigabit ports
• Dual-band 2×2:2 MU-MIMO Wi-Fi 5 with beam-forming technology
• Self-power adaptation upon auto detection of PoE or PoE+
• Supports 12V-24V electrical power through the Phoenix Connector
• 100+ concurrent Wi-Fi client devices
• Up to 150-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown
• 2 internal antennas
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
| Specifications | |
| Radio | |
| Antenna | 2 dual band internal antennas 2.4GHz, gain 4.0dBi 5GHz, gain 4.0dBi |
| MIMO | 2.4GHz: 2x2:2, MIMO 5GHz: 2x2:2, MU-MIMO |
| Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5850 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4G: 20 and 40MHz 5G: 20, 40 and 80MHz |
| Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5 Mbps to 300Mbps; 400 Mbps with 256-QAM on 2.4G IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | 2.4G: 24dBm 5G: 22dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm @1Mbps, -88dBm @11Mbps; 802.11g: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm @MCS8; 802.11ac 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; |
| Coverage Range | Up to 150 meters *Coverage range can vary based on environment |
| Interfaces | |

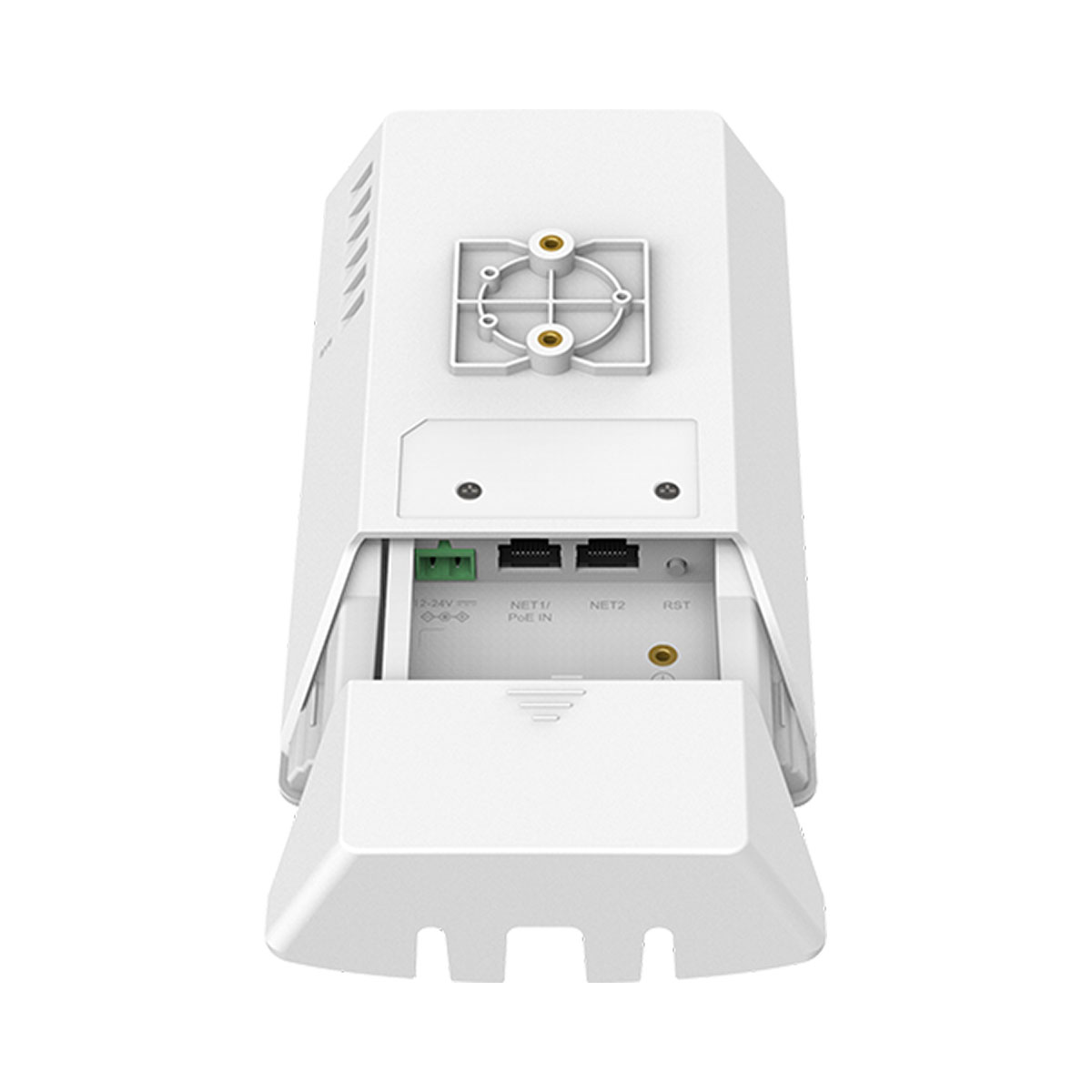

| Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45 |
| LEDs | 1 tri-color LED for device tracking and status indication |
| Auxiliary Ports | 1x Reset Pinhole |
| Power | |
| PoE Input | 802.3af/at |
| DC | PHOENIX CONNECTOR(12V-24V) |
| Maximum Power Consumption |
10W |
| Physical | |
| Dimensions | Unit: 180 × 107 × 45 mm Entire Package: 219 × 185.5 × 66 mm |
| Weight | Unit: 368g Entire Package: 695g |

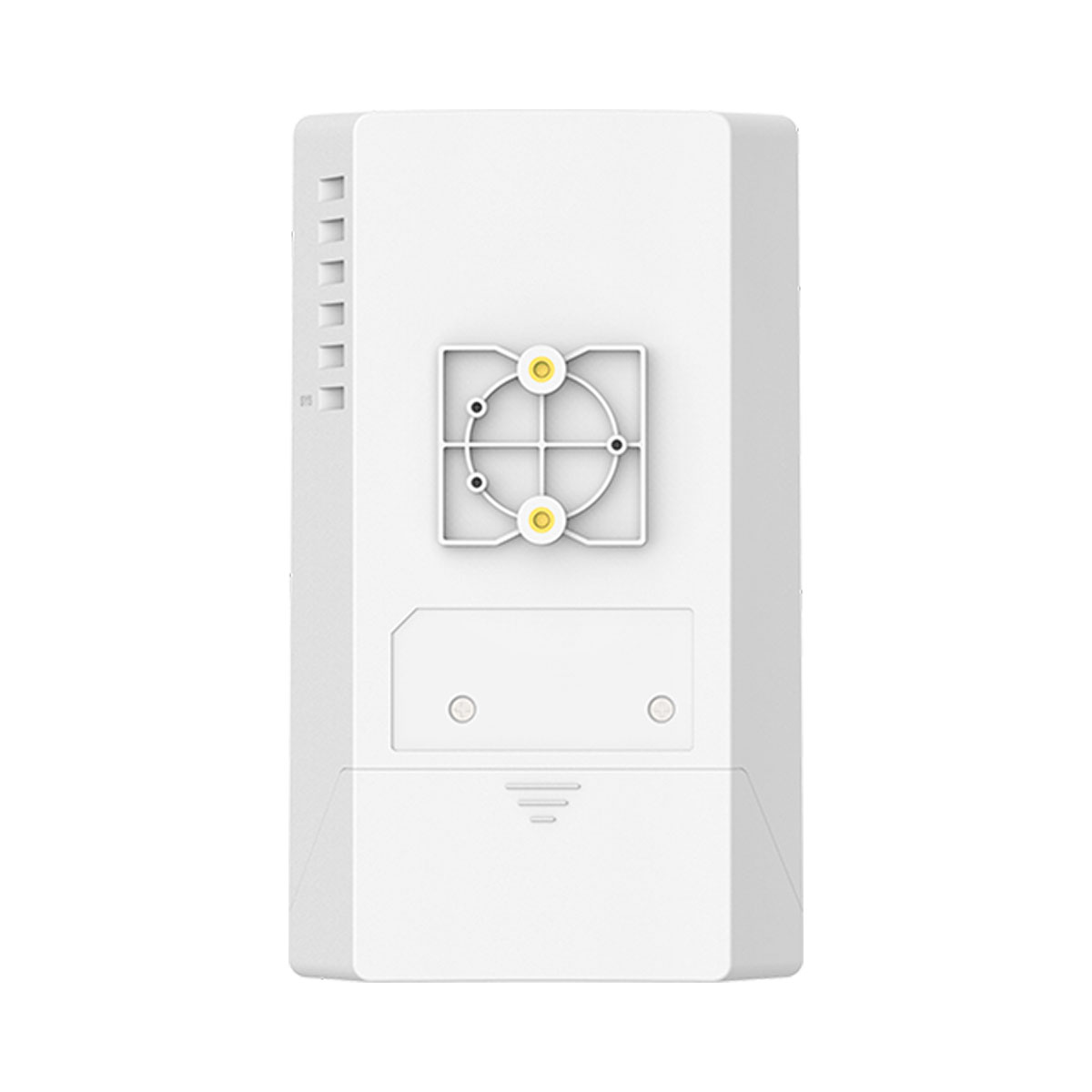

| Mounting | Outdoor metal bar mount or wall mount, kits included |
| Package Content | GWN7605CLR Outdoor Wi-Fi Wireless AP, Mounting Kits, Quick Start Guide |
| Environmental | |
| Temperature | Operation: -30°C to 60°C Storage: -30°C to 70°C |
| Humidity | 5% to 95% Non-condensing |
| Weatherproof | IP66-level weatherproof capability |
| Compliance | FCC, CE, RCM, IC |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
