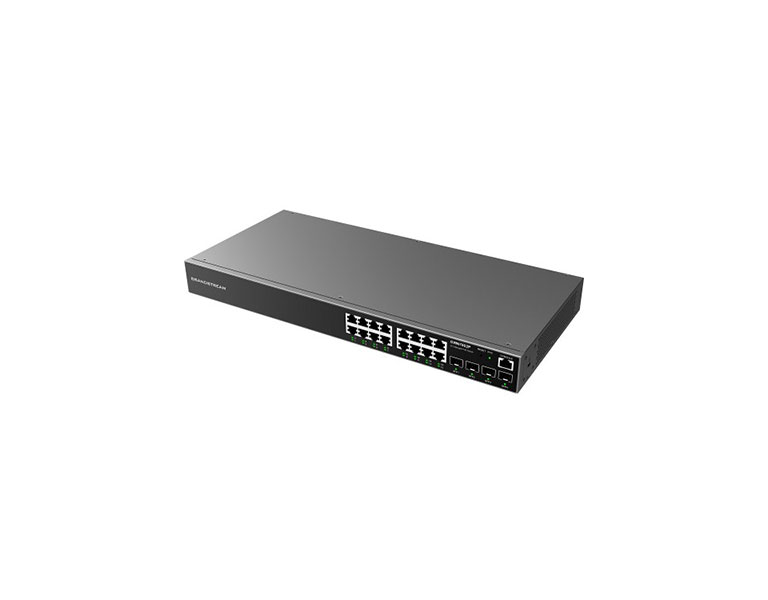

Grandstream GWN7802P 16-Port Gigabit Managed PoE Network Switch
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for automated detection & prioritization of latency sensitive voice/video traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the GWN7800 series switch, any GWN7000 series router with integrated local master, Grandstream’s free on-premise network management software (GWN Manager), as well as Grandstream’s cloud network management platform (GWN.Cloud). The GWN7800 series are best value enterprisegrade managed network switches for small-to-medium businesses.
Features:
• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latencysensitive audio/video/RTP/ VoIP/SIP packets
| Specifications | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 16 |
| Gigabit SFP Ports | 4 |
| Console | 1 |
| # of PoE Ports | 16 |
| Integrated Power Supply | 270W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 240W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 20Gbps |
| Switching Capability | 40Gbps |
| Forwarding Rate | 29.76M packets per second |
| Packet Buffer | 4.1MB |
| Switching | • 8K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP • 8 link aggregation groups • Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop/ Wall-Mount |
| LEDs | 1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports |
| Fan | 1 |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
| Dimensions | 440mm(L)x200mm(W)x44mm(H) |
| Unit Weight(TBD) | 3Kg |
| Package Content | • 1x Switch • 1x 1.2m(10A) AC Cable • Rack-mounting Standard Brackets • 1x Ground Cable • 4x Rubber Feet • 2x Lug Ear |
| Compliance | FCC, CE, RCM, IC, UKCA |
