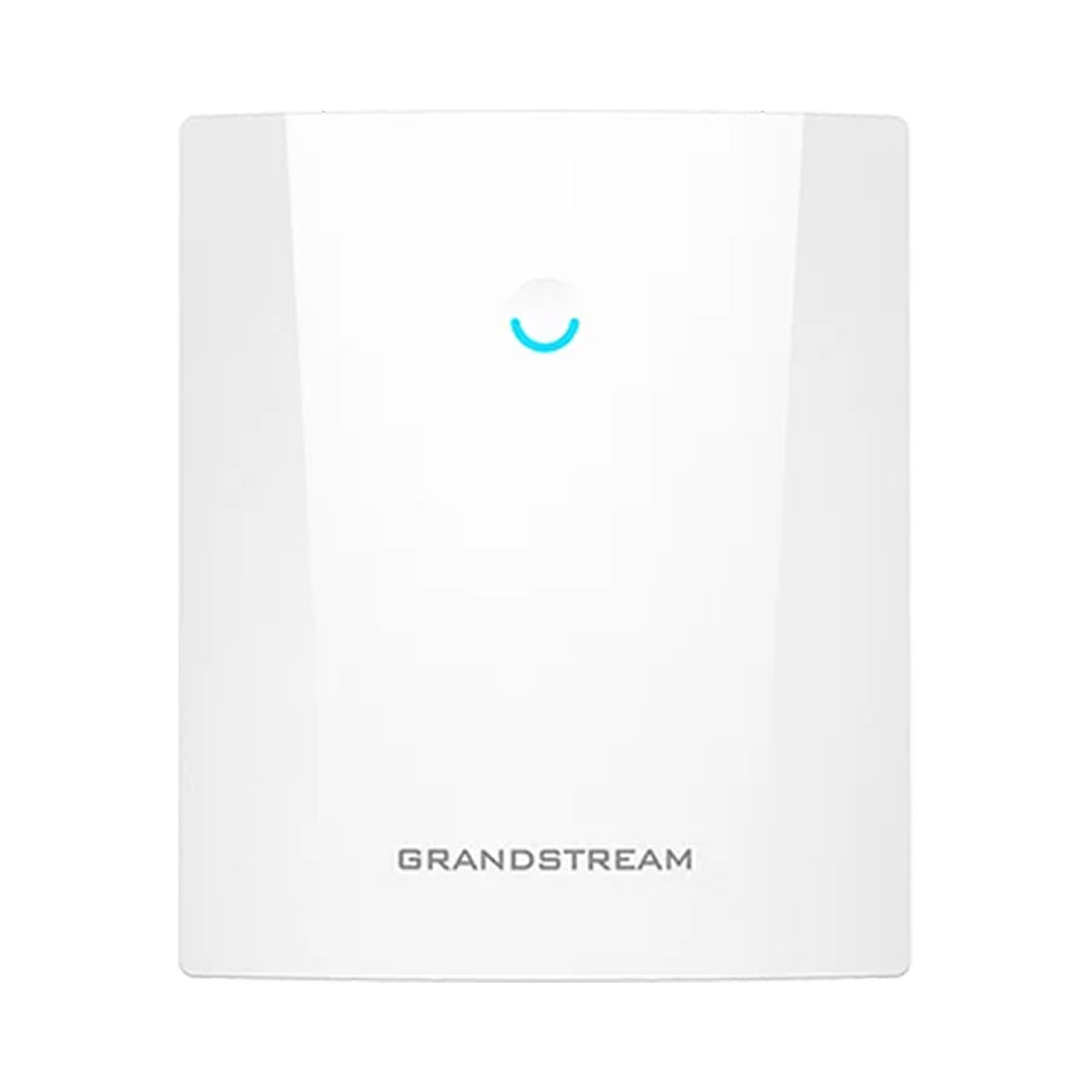

Grandstream GWN7670ELR Dual Band BAND Wi-Fi 7 Access Point Long Range
Grandstream GWN7670ELR Dual Band BAND Wi-Fi 7 Access Point Long Range
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ
The GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses. Featuring advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA, it delivers exceptional throughput and range. Boosted by Xtra Range 2.0 on the 5 GHz band, it shatters coverage barriers with enhanced signal penetration for seamless 360-degree connectivity. Its IP67-rated weatherproof design ensures stable operation in harsh outdoor environments. This model offers hybrid management flexibility through its local web UI or cloud-based platforms like GDMS Networking and GWN Manager. The GWN7670ELR delivers robust, long-range Wi-Fi for enterprises, multi-floor offices, warehouses, parks, hospitals, schools, and more.
Features:
• Features 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput.
• Supports up to 1,000 PPSK accounts for secure, individualized user access.
• Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage.
• The SFP port delivers rock-solid optical transmission across distances of up to 20 km.
• Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing.
• Besides the intuitive local Web UI , you can manage APs via GDMS Networking and GWN Manager for comprehensive cloud and on-premises control.
• Engineered to withstand the outdoor harsh environments with a certified IP67 rating.
• Connects up to 512 Wi-Fi client devices simultaneously without compromising speed.
• Delivers reliable connectivity across a vast 350-meter coverage range.
| Specifications | |
| Basic | |
| Unit Dimension | 270 mm × 230 mm × 57 mm |
| Package Dimension | 439 mm × 329 mm × 137 mm |
| Unit Weight | 1.3 kg |
| Package Weight | 2.347 kg |

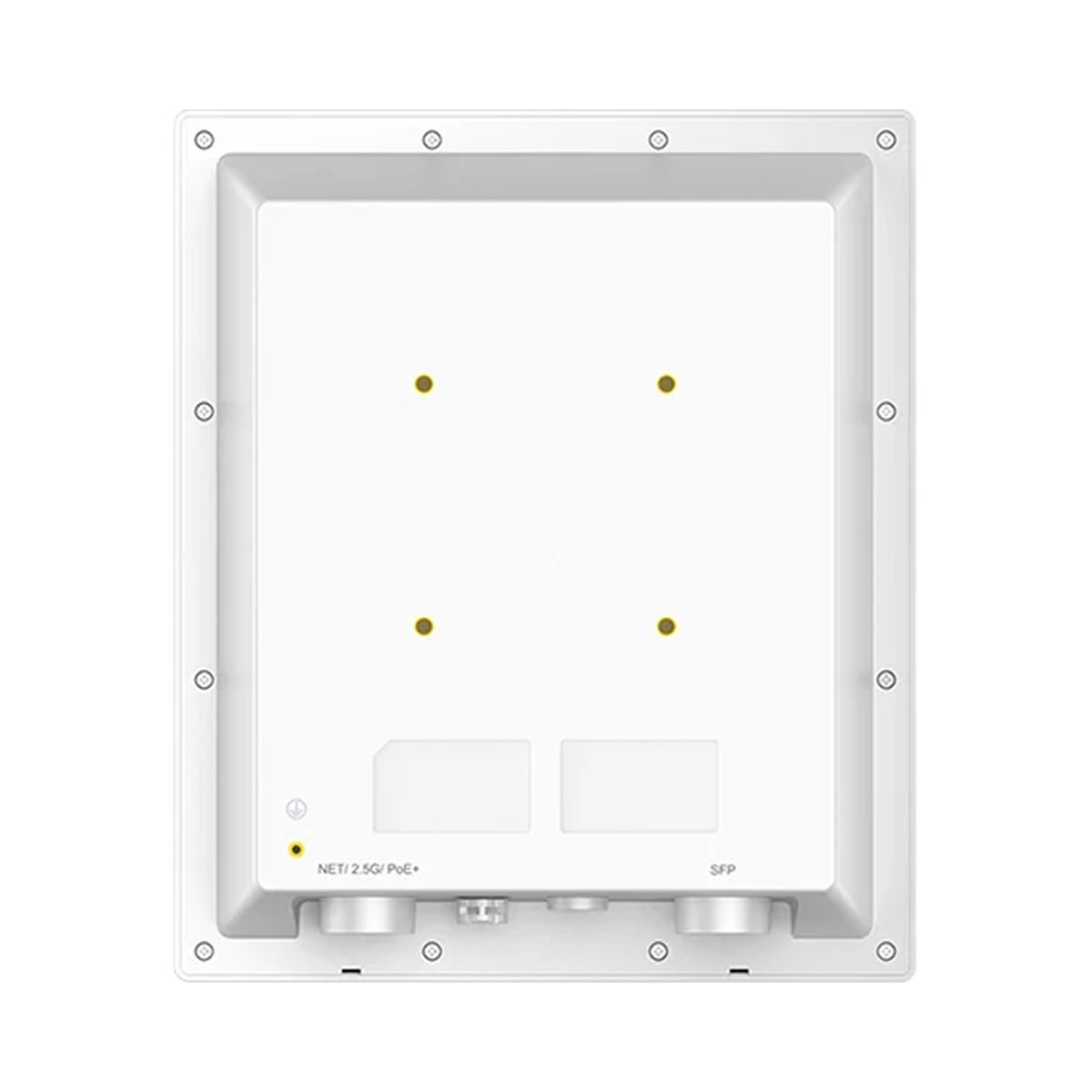

| Installation Methods | Wall Mount, Pole Mount |
| Radio | |
| Antenna | 5 single-frequency antennas • 2.4 GHz: 2 × 5.5 dBi • 5 GHz: 3 × 6.5 dBi |
| MIMO | • 2.4 GHz: 2×2:2, MU-MIMO • 5 GHz: 3×3:2, MU-MIMO |
| Frequency Bands | • 2.4 GHz Radio: 2,400–2,483.5 MHz • 5 GHz Radio: 5,150–5,850 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | • 2.4 GHz: 20 and 40 MHz • 5 GHz: 20, 40, 80 and 160 MHz |
| Wi-Fi Data Rates | • 2.4 GHz IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps • 5 GHz IEEE 802.11be: Up to 2,882 Mbps IEEE 802.11ax: 7.3 Mbps to 2,402 Mbps IEEE 802.11ac: 6.5 Mbps to 1,732 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Maximum TX Power | • 2.4 GHz: 24 dBm • 5 GHz: 26 dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | • 2.4 GHz 802.11b: -96 dBm@1 Mbps, -88 dBm@11 Mbps 802.11g: -93 dBm@6 Mbps, -75 dBm@54 Mbps 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11 802.11be 20 MHz: -60 dBm@MCS13; 802.11be 40 MHz: -57 dBm@MCS13 • 5 GHz 802.11a: -92 dBm@6 Mbps, -74 dBm@54 Mbps; 802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7 802.11ac 20 MHz: -67 dBm@MCS8; 802.11ac 40 MHz: -63 dBm@MCS9 802.11ac 80 MHz: -59 dBm@MCS9 802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11 802.11ax 80 MHz: -56 dBm@MCS11; 802.11ax 160 MHz: -52 dBm@MCS11 802.11be 20 MHz: -59 dBm@MCS13; 802.11be 40 MHz: -56 dBm@MCS13 802.11be 80 MHz: -54 dBm@MCS13; 802.11be 160 MHz: -52 dBm@MCS13 |
| Coverage Range | Up to 350 m *Coverage range may vary based on environment |
| Ports | |

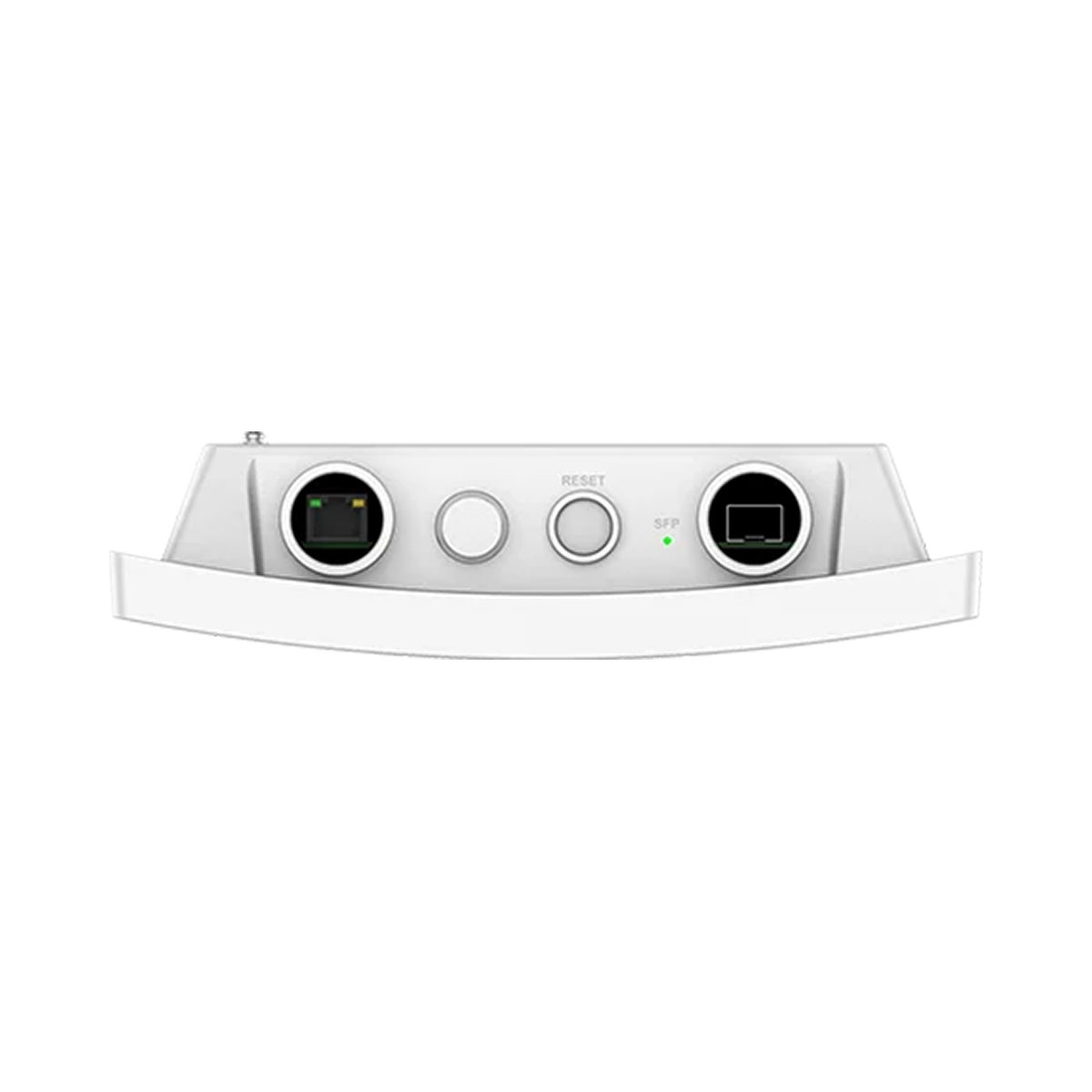

| Network Ports | 1 × 2.5 GbE RJ45 port (Supports PoE Input) 1 × SFP port |
| Other Ports | 1 × Reset Pinhole, 1 × Kensington Lock |
| LED | |
| System LED | 1 tri-color LED for device tracking and status indication 1 green LED for SFP status (Supports LC Fiber) |
| Power and Energy | |
| PoE Standards | 802.3at |
| Max Power Consumption |
16 W |
| Environmental Endurance | |
| Operating Temperature |
-30 °C to 60 °C |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 5%–95%, non-condensing |
| Certification | |
| Compliance | FCC, CE, RCM, IC |
| Ingress Protection | IP67 |
| Package Contents | |
| Primary Unit | 1 × GWN7670ELR Wi-Fi 7 Wireless AP |
| Manual and License | 1 × Quick Installation Guide 1 × Regulatory Paper |
| Installation Accessories |
1 × Base Bracket 1 × Mounting Bracket 2 × Metal Straps 4 × Pan Head Machine Screws (M4 × 10 mm) 4 × Cup Head Hexagon Socket Machine Screws with Spring Washers (M5 × 12 mm) 4 × Plastic Expansions Bolts |
| Interface Waterproof Kits |
1 × Nut Plug 1 × SFP Sealing Plug 2 × RJ45 Sealing Plugs 3 × O-Rings 2 × Clamp Nuts |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
