QuWireless A500M QuMax Antenna for Teltonika TRB500
INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + PoE SPLITTER + PLACE TO INSTALL TELTONIKA TRB500 (ALL-IN-ONE)

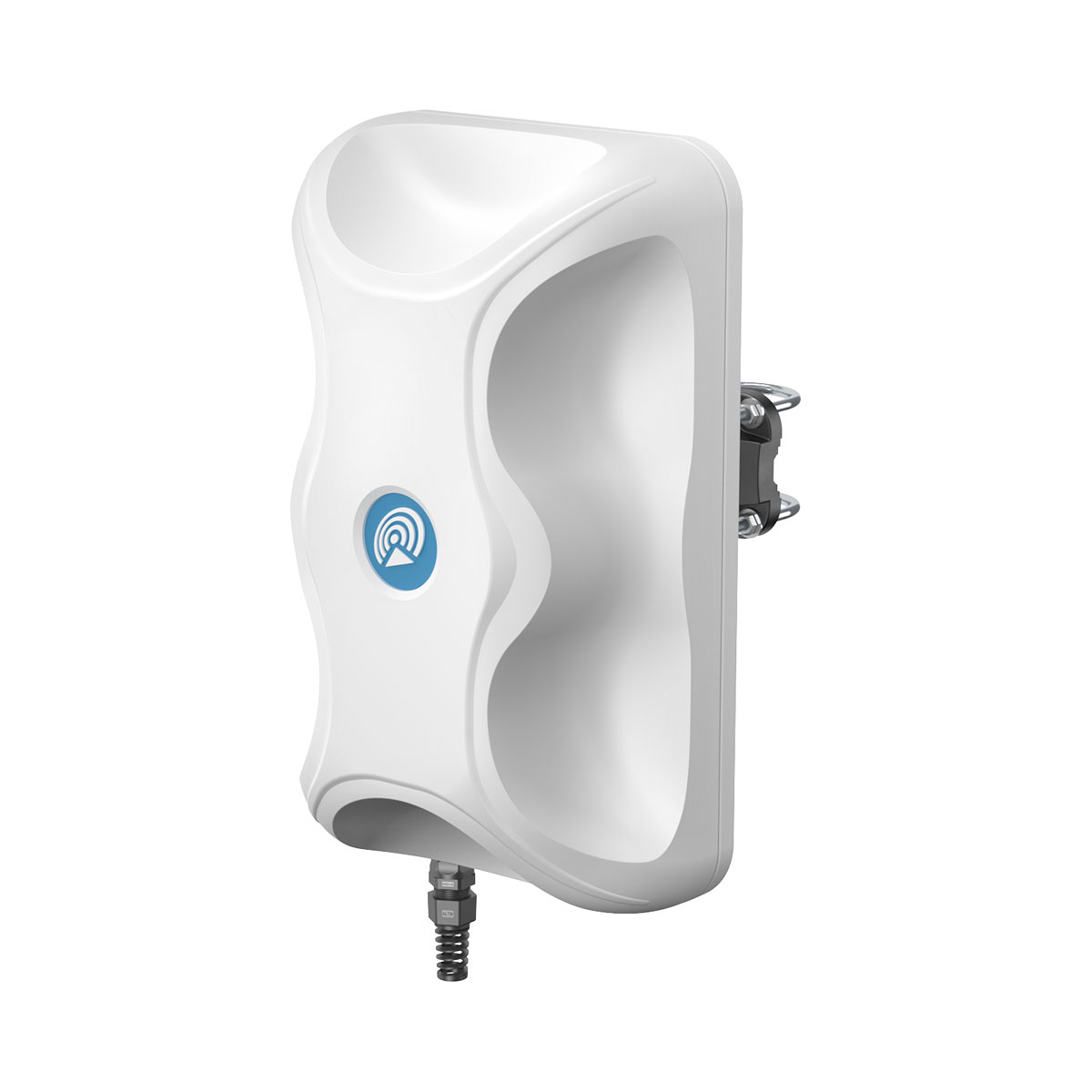

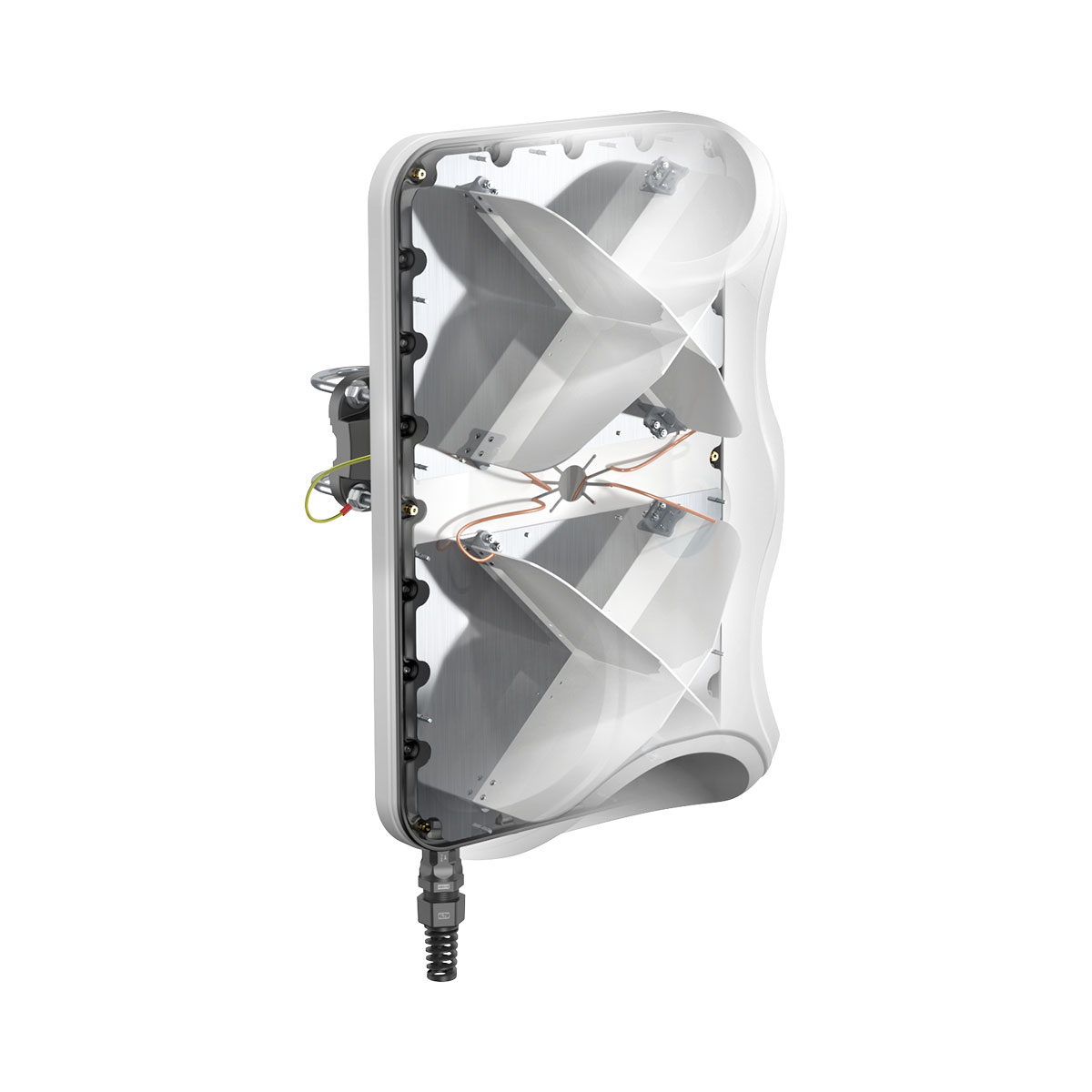

QuMax for TRB500 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G antennas and PoE splitter integrated in IP68 enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!

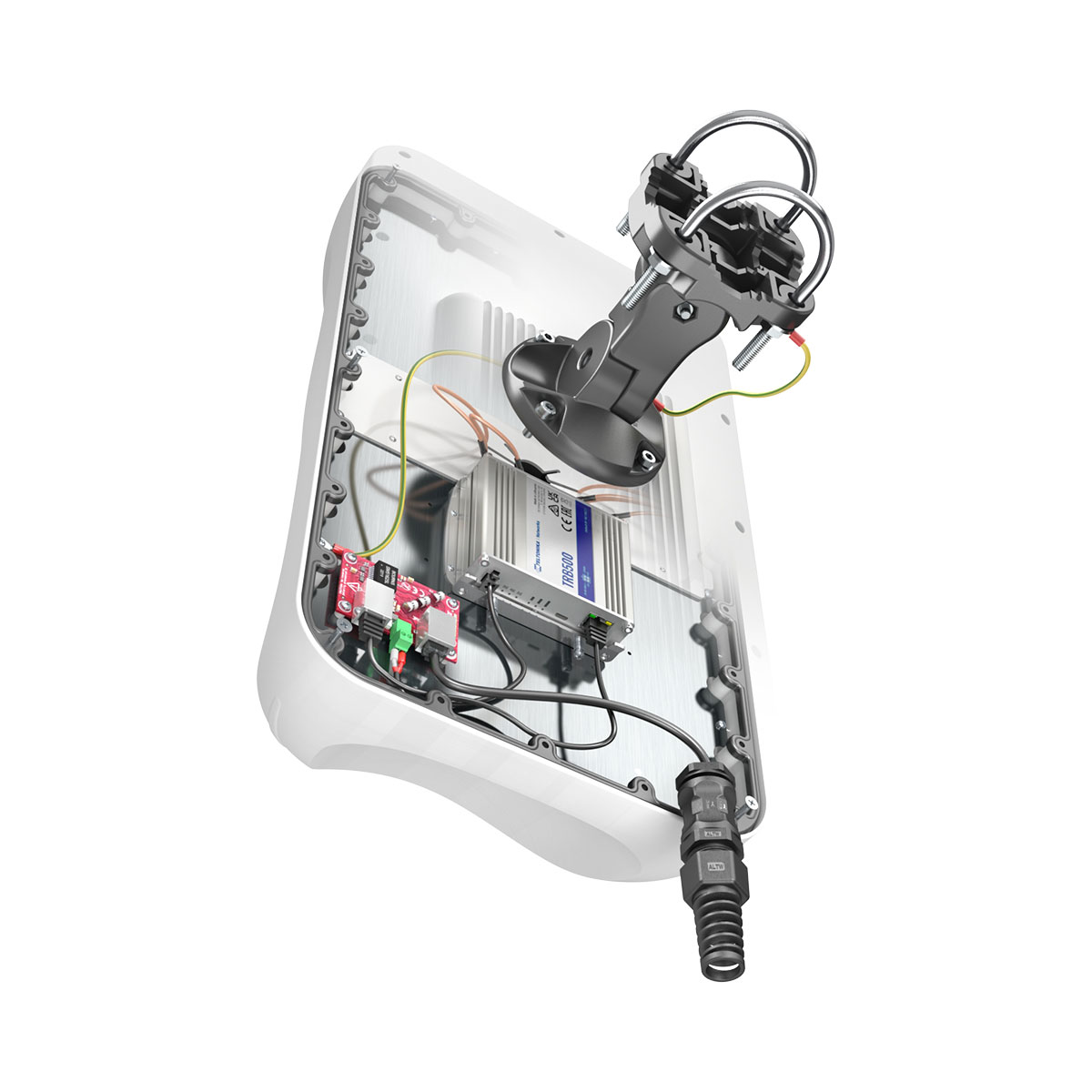

Combining QuMax with TRB500 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.
| Specifications | |
| LTE Antenna | |
| Frequency | 0.617 - 0.96 GHz 1.7 - 2.7 GHz 3.3 - 4.6 GHz 4.7 - 6.0 GHz |
| Supported LTE/5G Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| Gain | 0.617 - 0.96 GHz: 6 dBi 1.7 - 2.7 GHz: 7 dBi 3.3 - 4.6 GHz: 7 dBi 4.7 - 6.0 GHz: 5.5 dBi |
| VSWR | <2.00, max <3.00 |
| Beamwidth | 80°/80° ±15° |
| Polarization | X (+-45degrees) |
| Impedance | 50 Ω |
| PoE Specification | |
| PoE Type | Passive PoE up to 24V, not compatible with an 802.3af/at power source! |
| PoE in Mode | Mode type: B |
| IEE Standard | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 486.0 x 292.2 x 175.4 mm |
| Weight | 2.8 kg |
| Operating Temperature | From -40°C to 80°C |
| Enclosure Recommended Tightening Torque | 0,6 - 0,8 Nm |

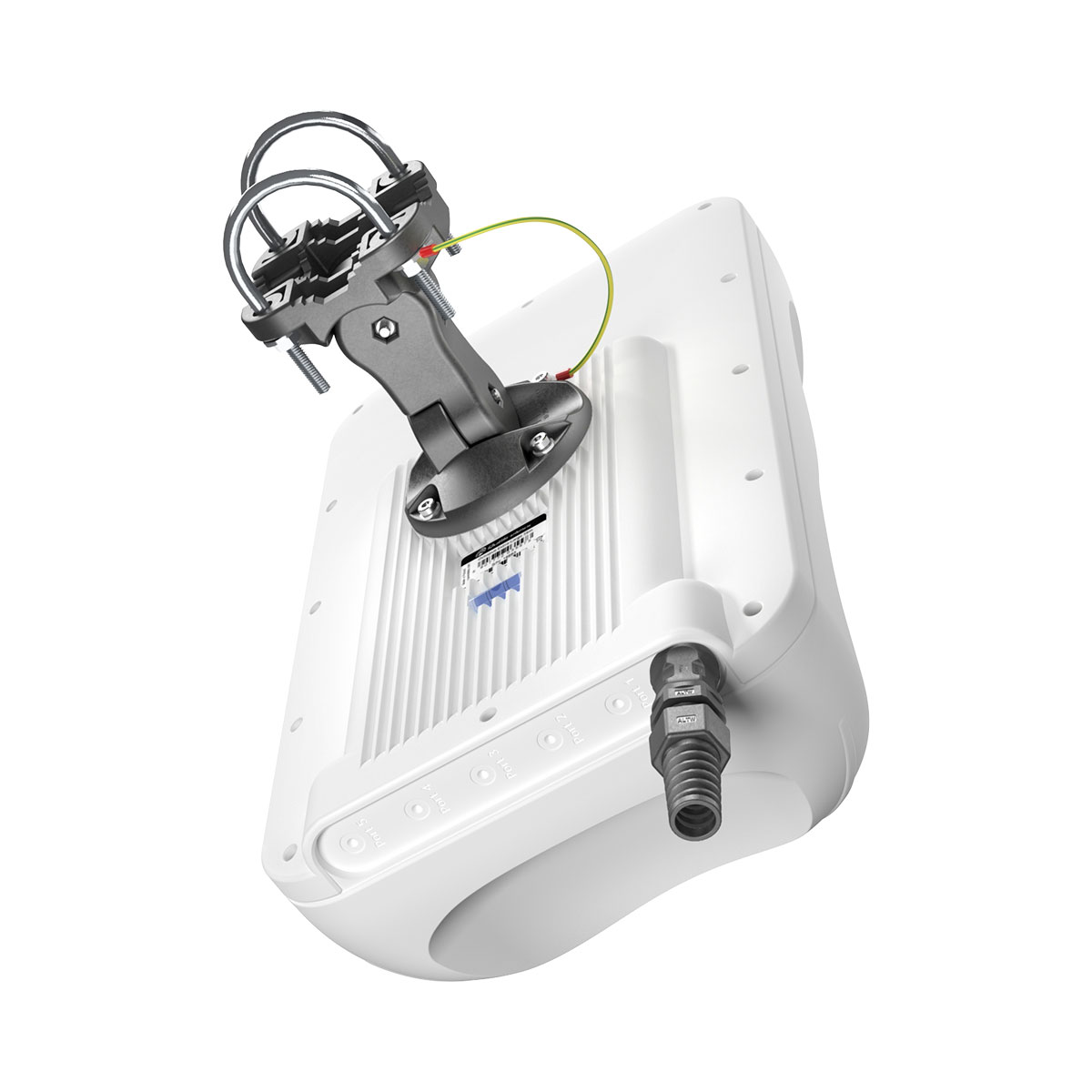

| Mast Diameter | 25-66 mm |
