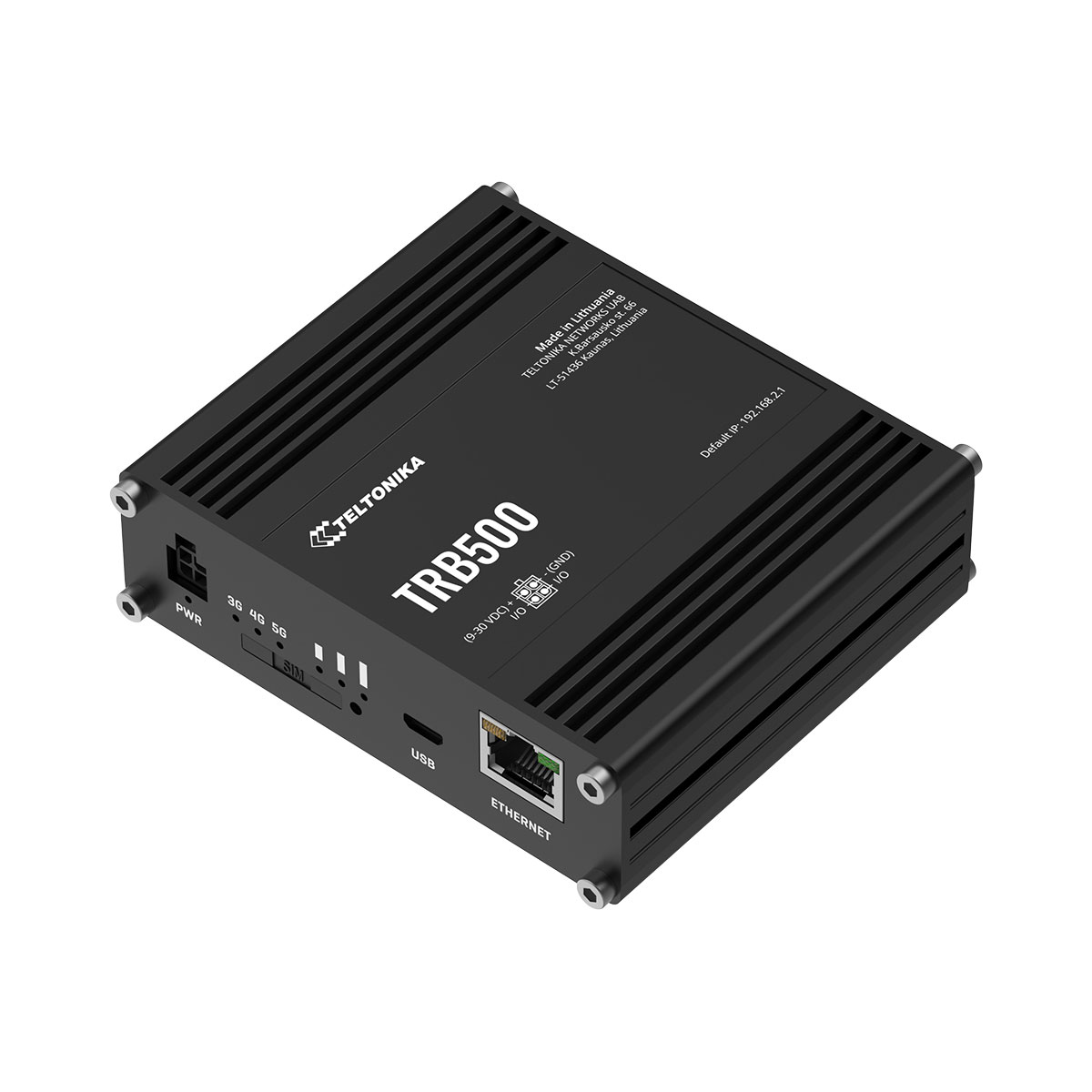

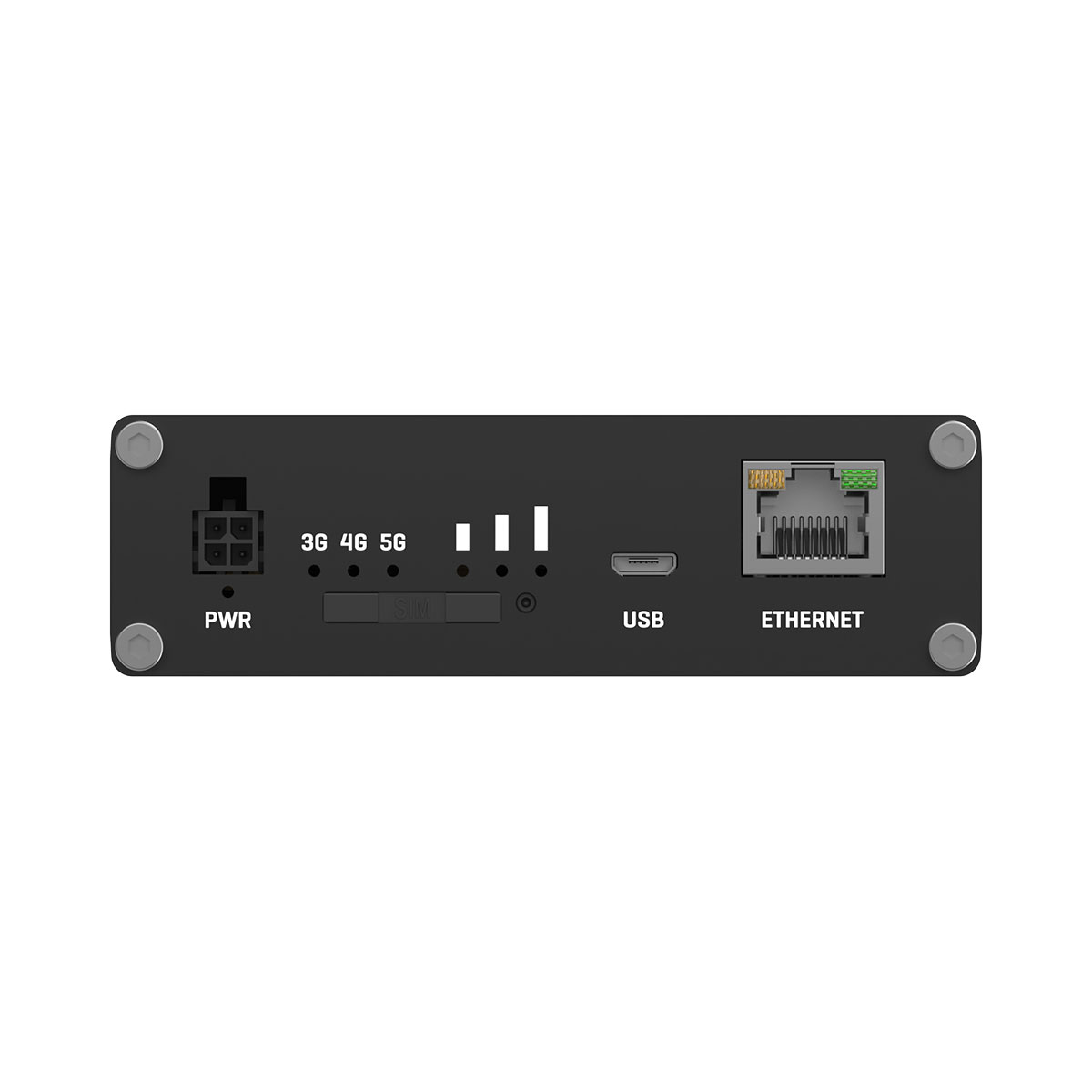

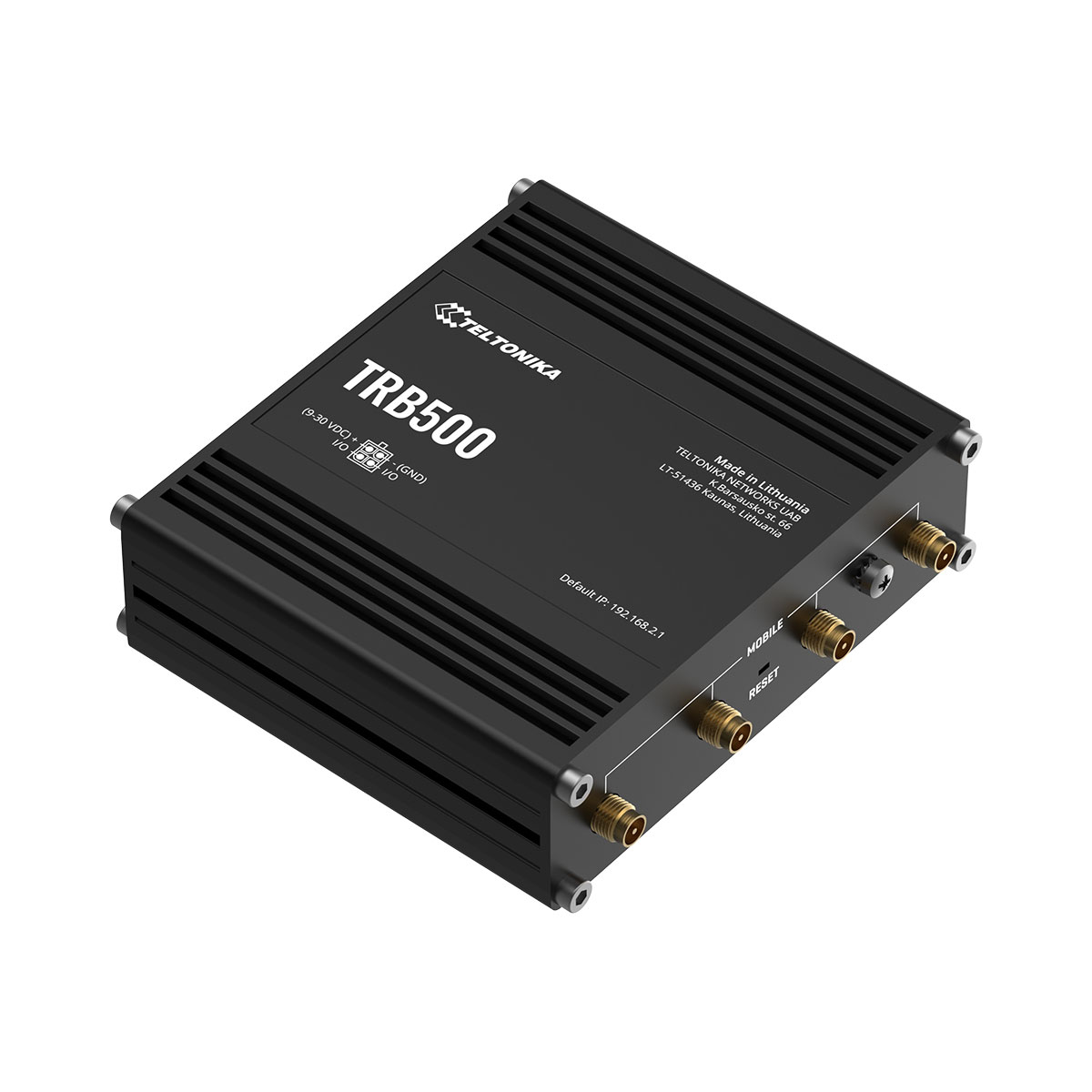

Teltonika TRB500 Industrial 5G Gateway

Κωδικός προϊόντος:
TRB500
Άμεσα διαθέσιμο
Teltonika TRB500 Industrial 5G Gateway
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
24 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας

The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios. This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO. TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.



Χαρακτηριστικά
Specifications
Hardware
Mobile 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU Single core ARM Cortex A7, 1,5 GHz
Flash Storage 512 MB
RAM 256 MB
Powering option 4-pin power socket, 9-30 VDC
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

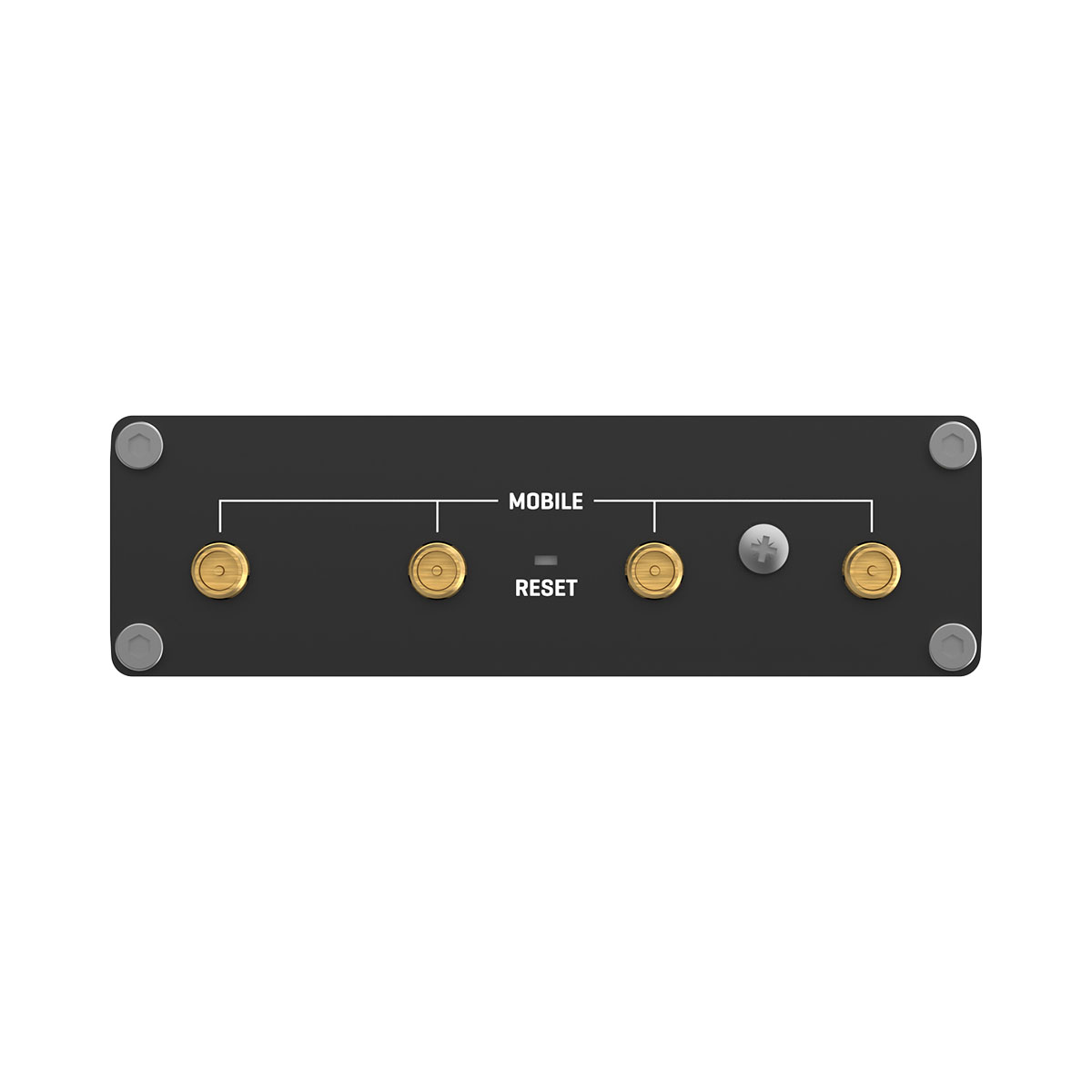

Antenna connectors 4 x SMA for Mobile
Ethernet 1x 10/100/1000 Mbps Ethernet port
Inputs/Outputs On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x Micro USB slave, 1 x Grounding screw
Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Operating temperature -40° C to 75° C
Housing Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
Dimensions(WxHxD) 100 x 30 x 93.4 mm
Weight 241 g
Software
Operating system RutOS (OpenWrt based Linux OS)
Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Network features Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
Monitoring and Management WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
VPN and tunneling OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier
Cloud solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Security Authentication, Pre-configured firewall rules, Attack prevention, Mobile quota control, WEB filter, Access control

Standard package contains

• TRB500 Gateway
• 9 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• Micro-USB cable (0.8 m)
• Ethernet cable
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
