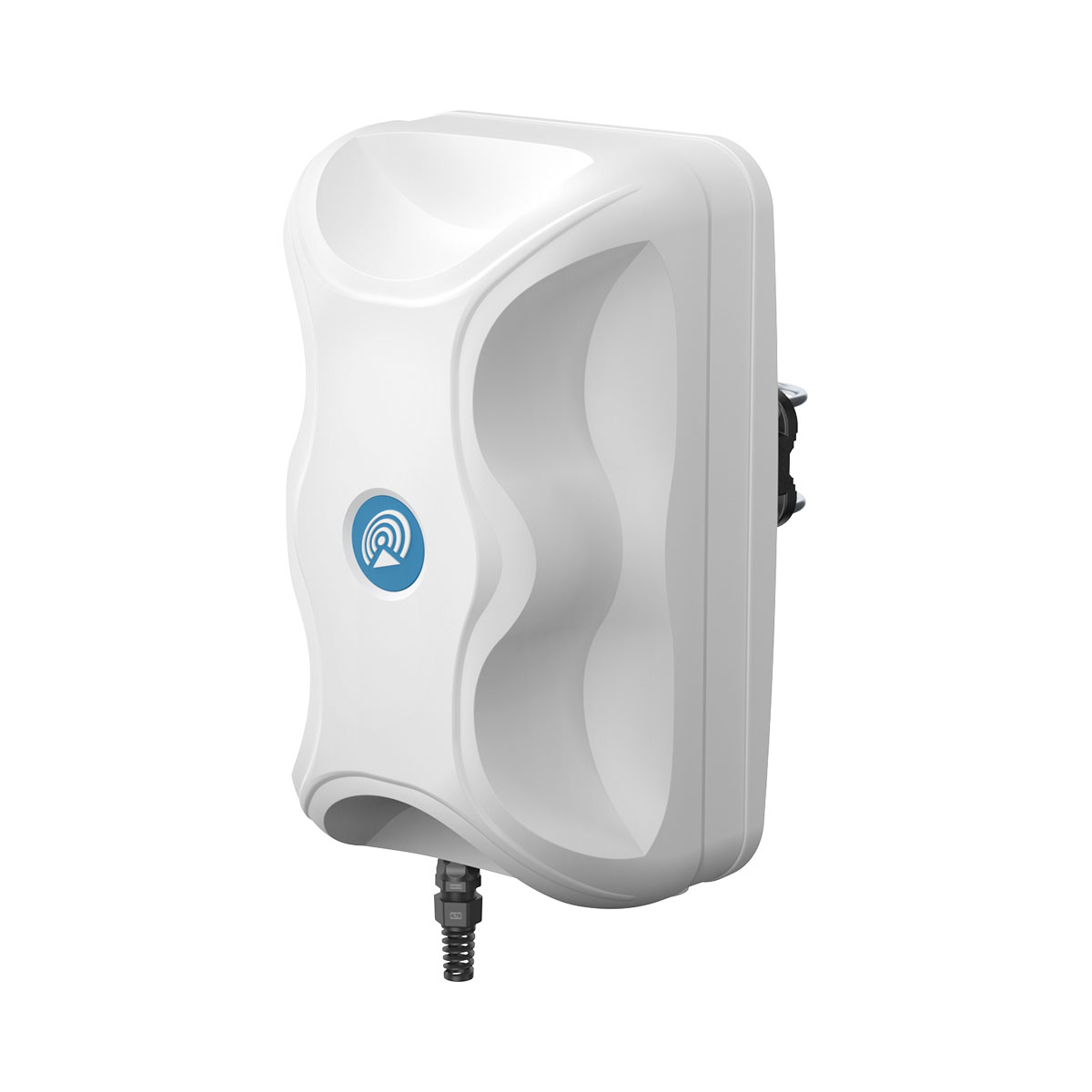

QuWireless AC50M QuMax Antenna for Teltonika RUTC50
Integrated multi-band LTE & 5G panel antenna + Wi-Fi 6E omni antenna + GPS + place to install Teltonika RUTC50 (All in-one)
QuMax for RUTC50 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP68 (IP67) enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

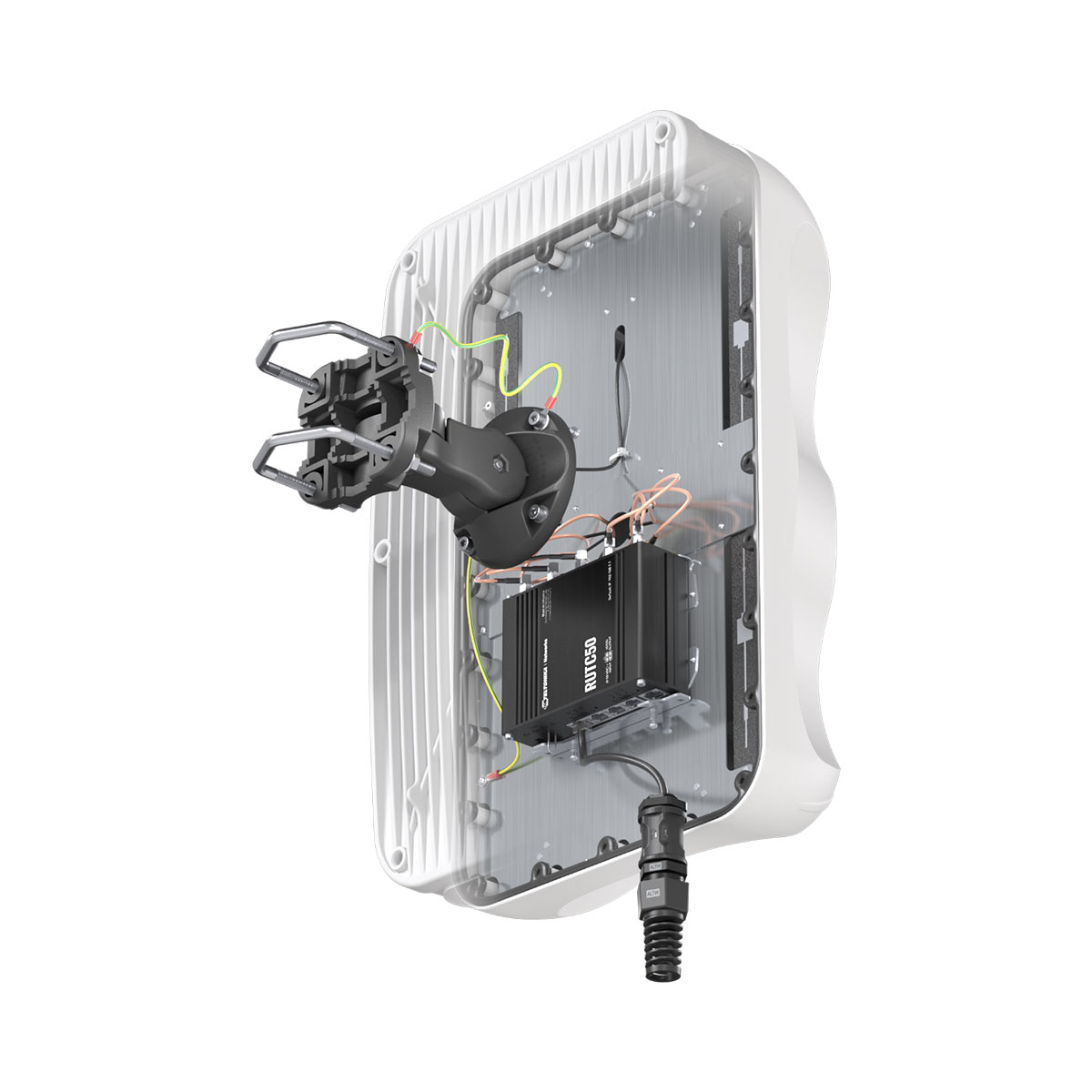

Combining QuMax with RUTC50 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.
Wi-Fi 6E support!
The RUTC50 only supports passive POE from batch number 7 onwards.
| Specifications | |
| 5G / LTE Antenna | |
| Frequency |
0.617 - 0.96 GHz |
| Supported LTE Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| Supported 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain |
0.617 - 0.96 GHz: 6 dBi |
| VSWR | <2.00, max <3.00 |
| Beamwidth | 80°/80° ±15° |
| Polarization | X (+-45degrees) |
| Impedance | 50 Ω |
| Wi-Fi Antenna Specification | |
| Frequency | 2.40 - 2.50 GHz 5.0 - 7.125 GHz |
| Gain | 2.40 - 2.50 GHz : 6 dBi 5.0 - 7.125 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 486.0 x 292.2 x 105.6 mm |
| Weight | 2.8 kg |
| Operating Temperature | From -40°C to 80°C |
| Enclosure Recommended Tightening Torque | 0,6 - 0,8 Nm |

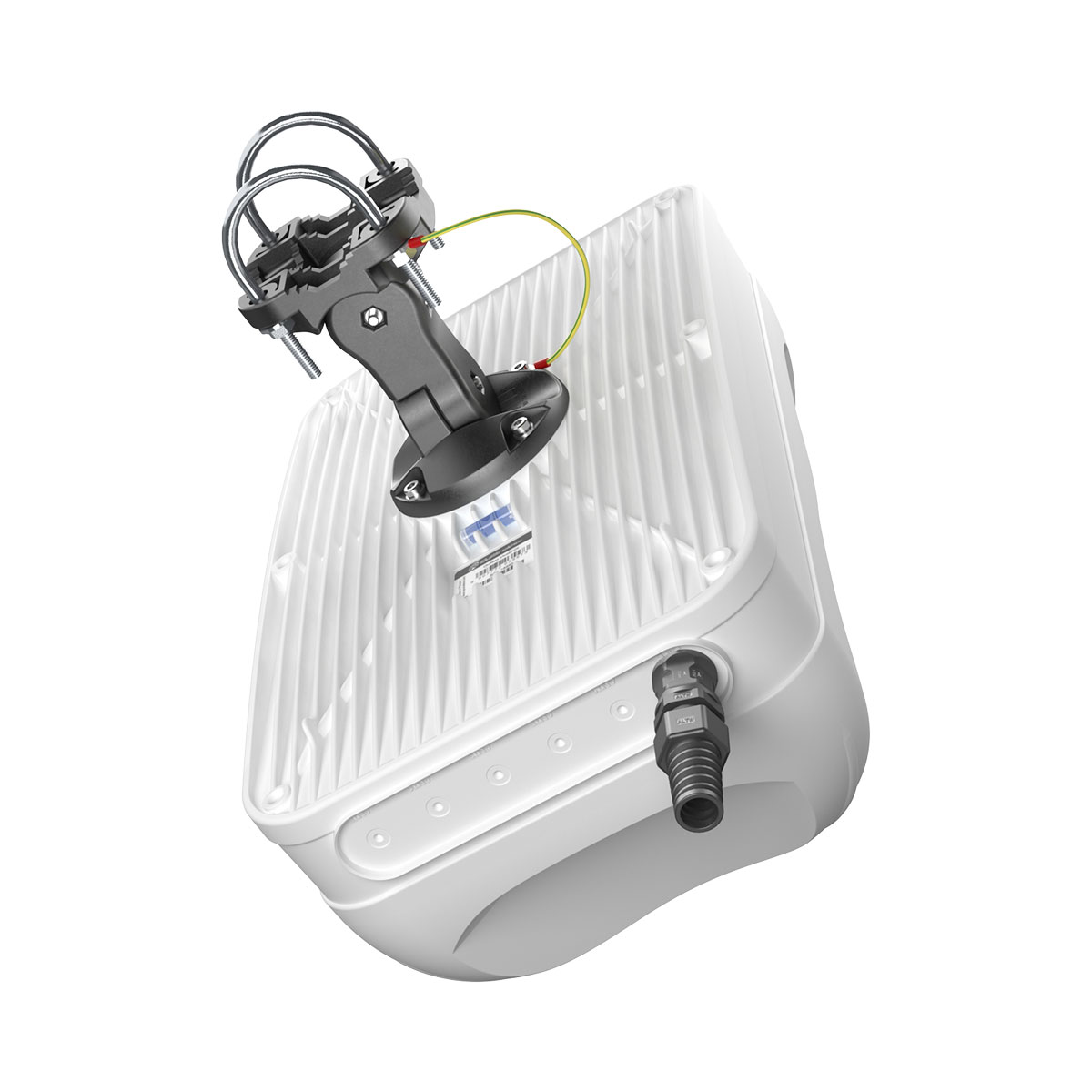

| Mast Diameter | 25-66 mm |
