Περιγραφή
Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας

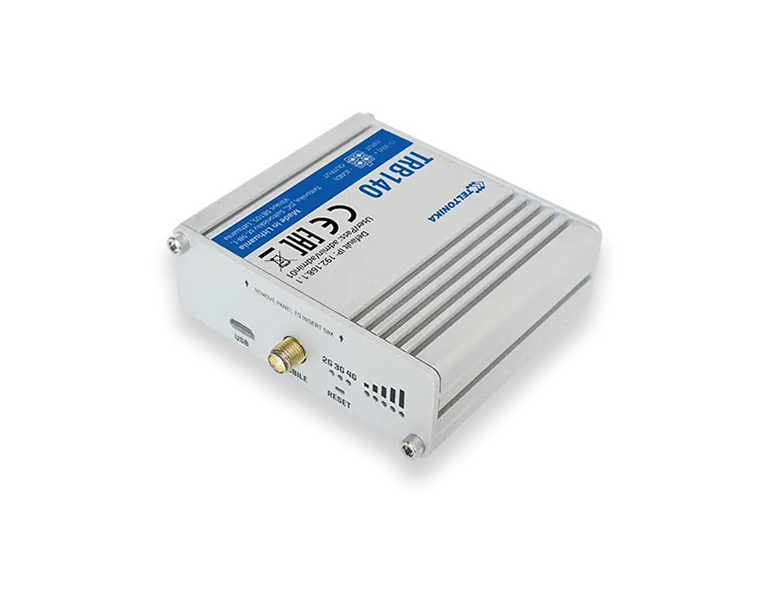

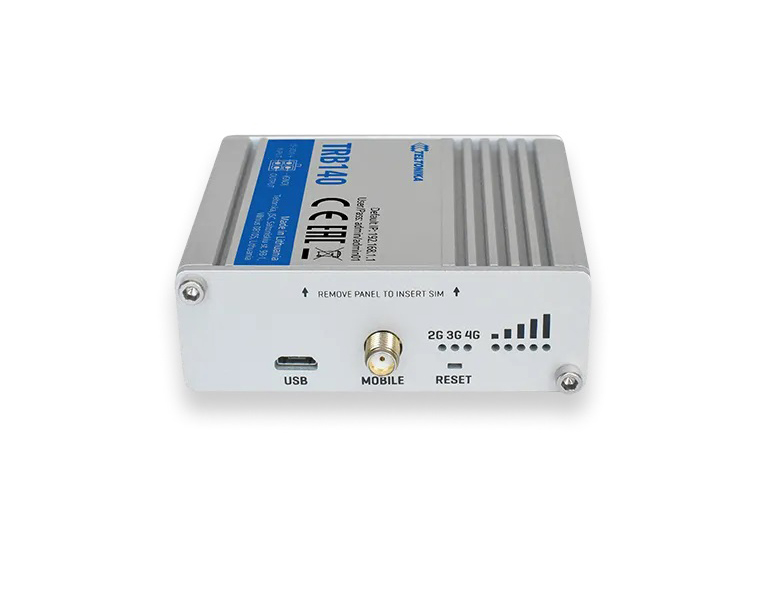

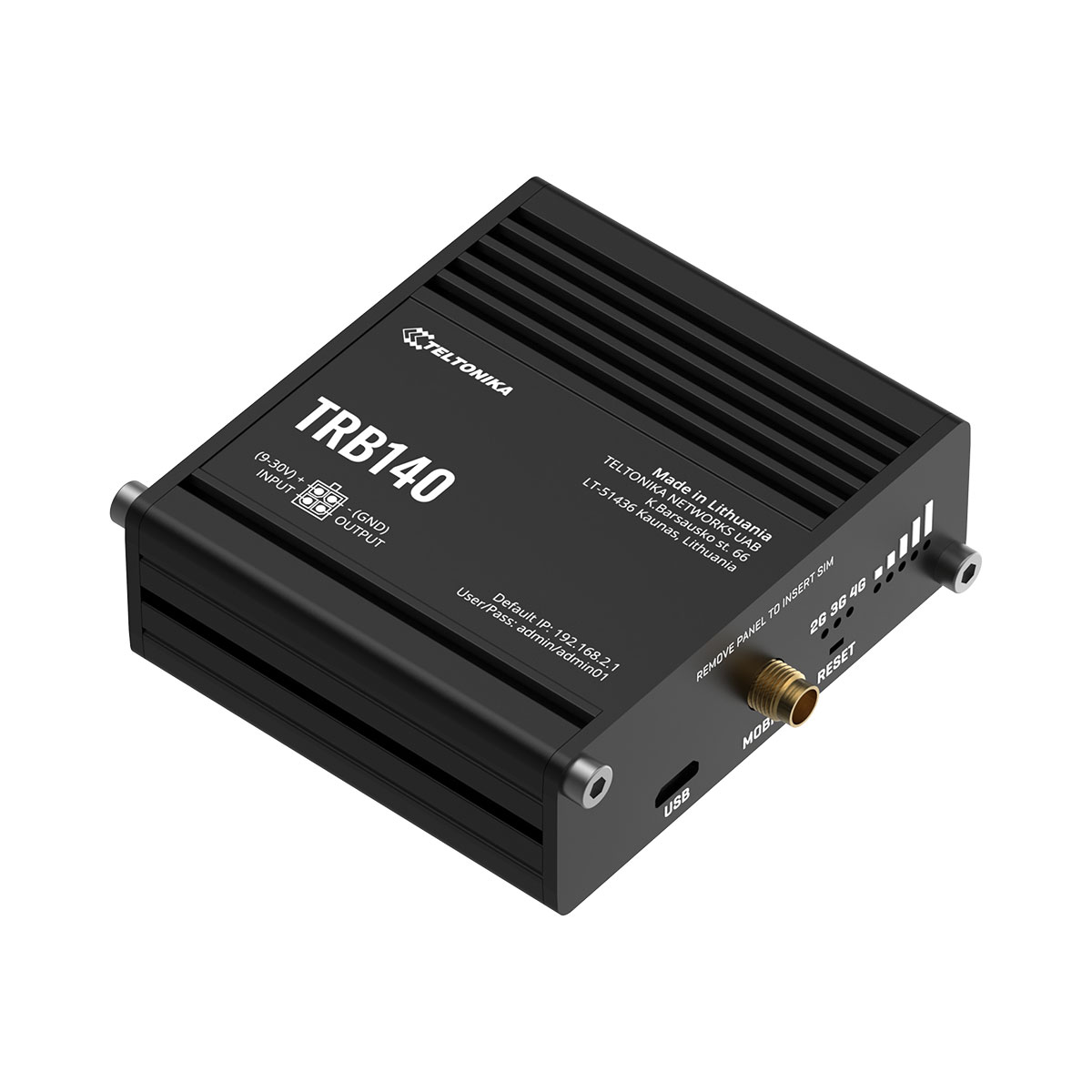

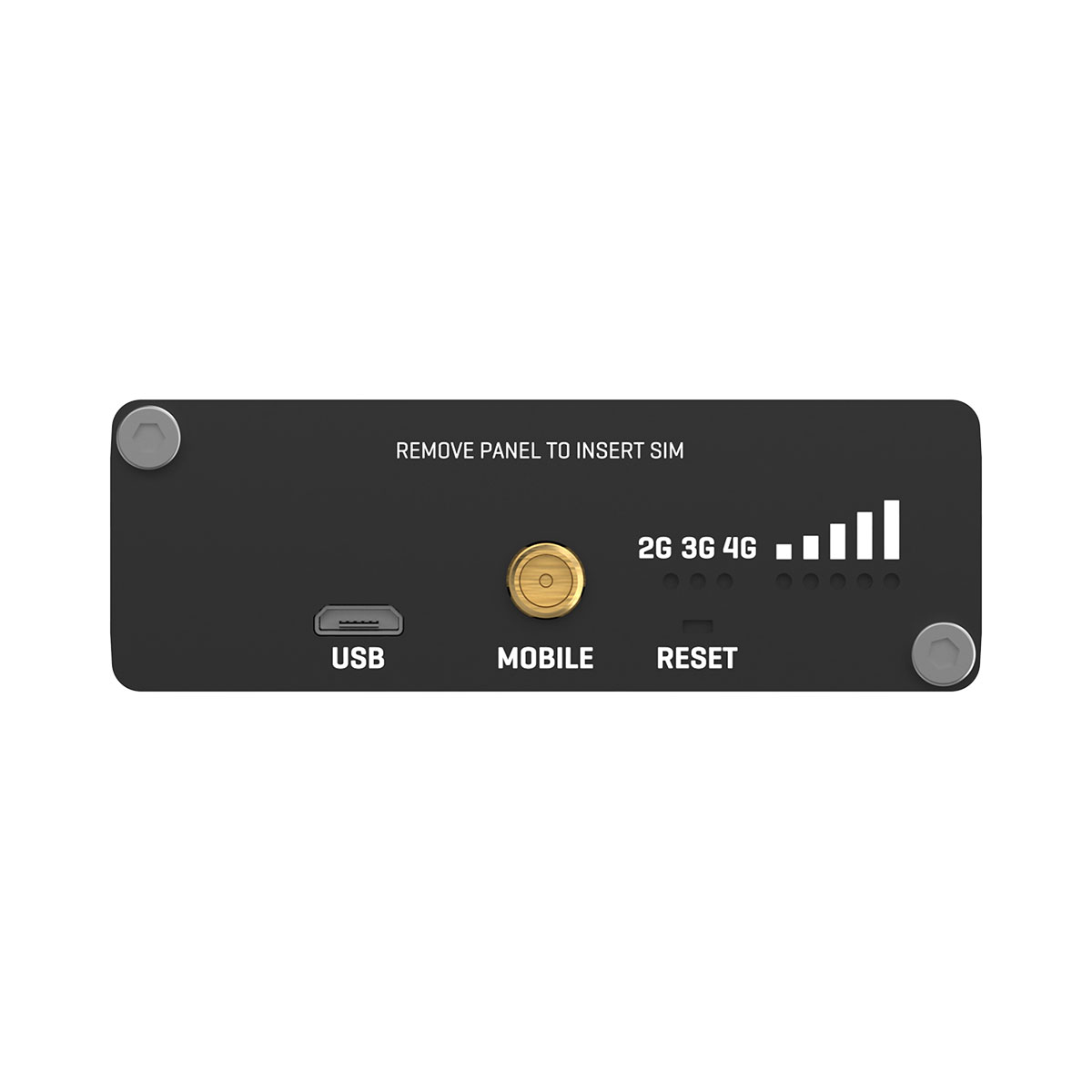

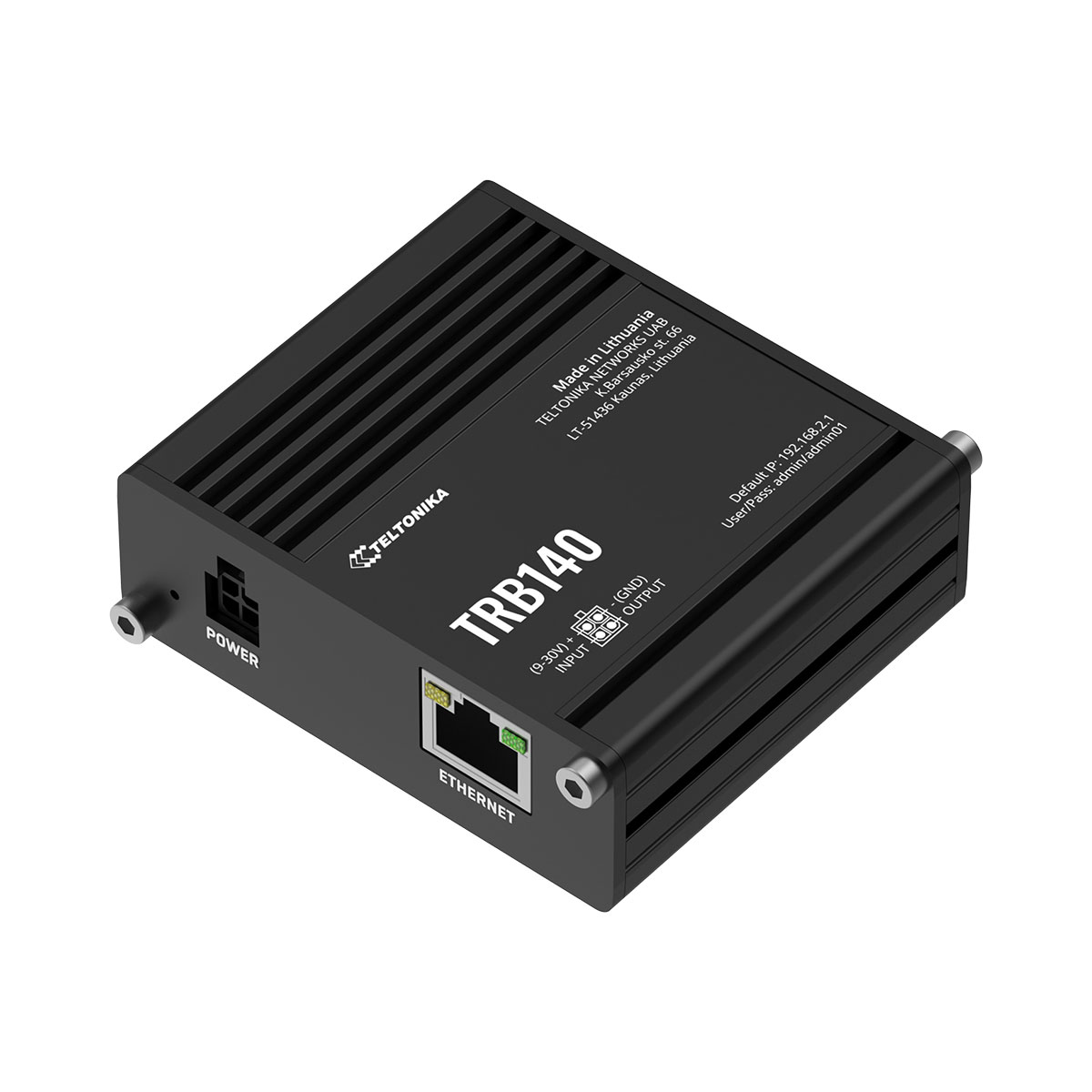

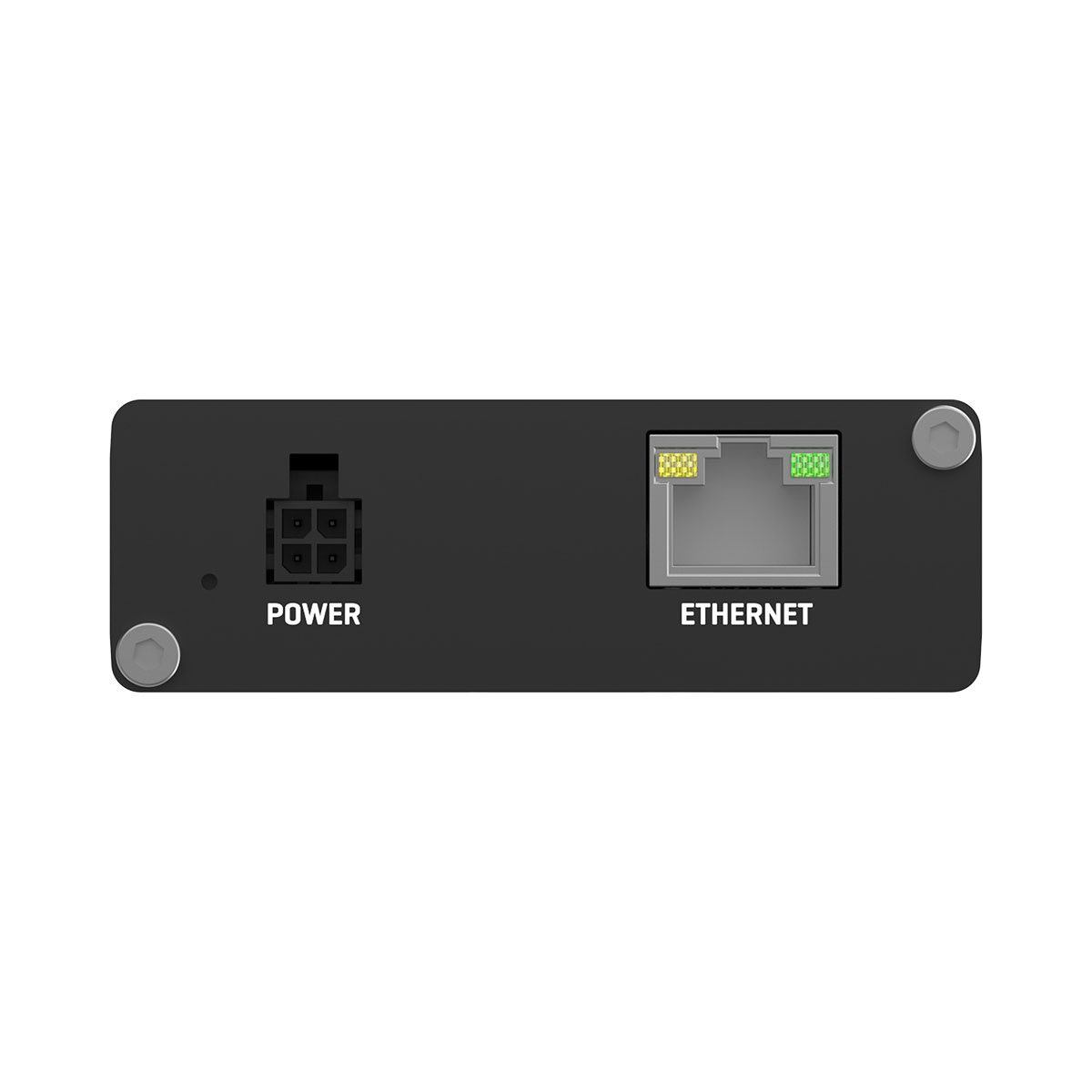

Industrial LTE Cat 4 Gateway TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and a micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Mobile | 4G/LTE (Cat 4), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| Storage | 512 MBytes Flash (200 MBytes for userspace) |
| Memory | 128 MBytes RAM (50 MBytes for userspace) |

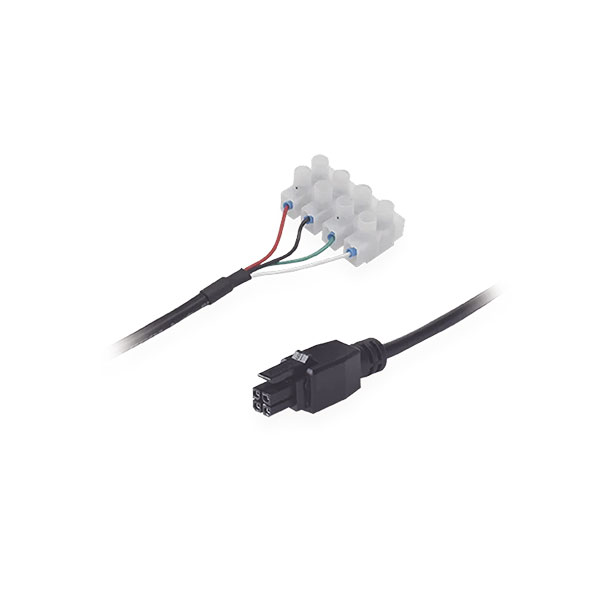

| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x Internal SIM holder (2FF) |
| Antenna connectors | 1 x SMA for mobile |
| Ethernet | 1 x 10/100/1000 Ethernet port |
| Inputs/Outputs | On 4pin socket: 2 x Digital input/Digital open collector output (configurable) |
| Other | 1 x Micro USB slave |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature | 40 °C to 75 °C |

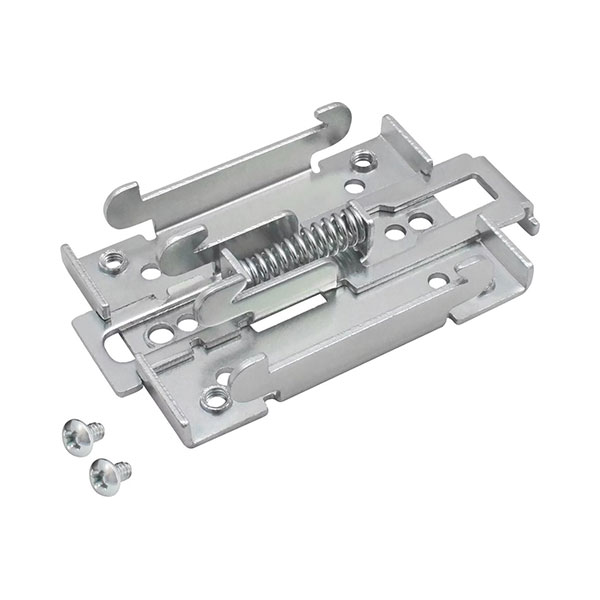

| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
| Weight | 134 g |
| Software | |
| Operating system | RutOS |
| Mobile features | Auto APN, Band lock, Operator black/white list, Data/SMS limits |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, TelnetDHCP, Telnet |
| Firewall | Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI |
| Remote management | RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration) |
| Security | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, SSTP, Stunnel, DMVPN L2TP, ZeroTier, WireGuard |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| SMS features | SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| SMS features | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
|

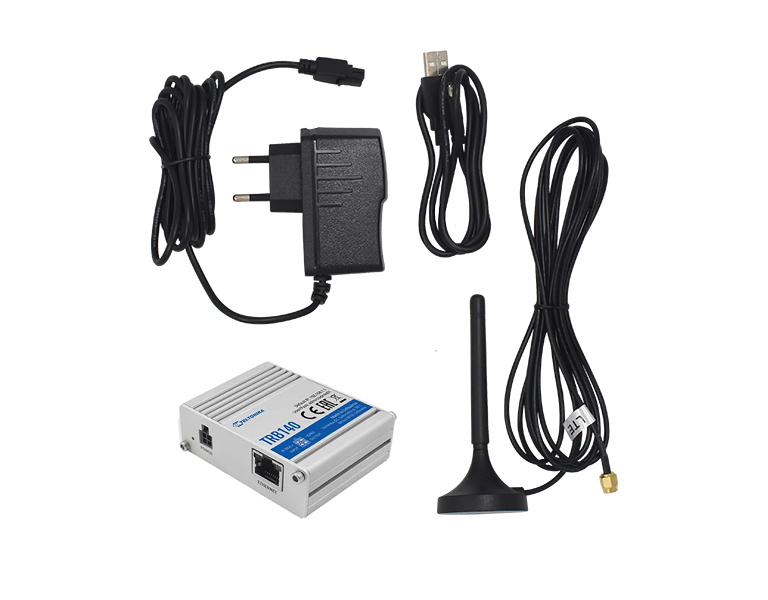

Standard package contains |
• TRB140 board • Euro PSU • 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) • Micro-USB cable (0.8 m) • LAN cable • QSG (Quick Start Guide) • Packaging box |
