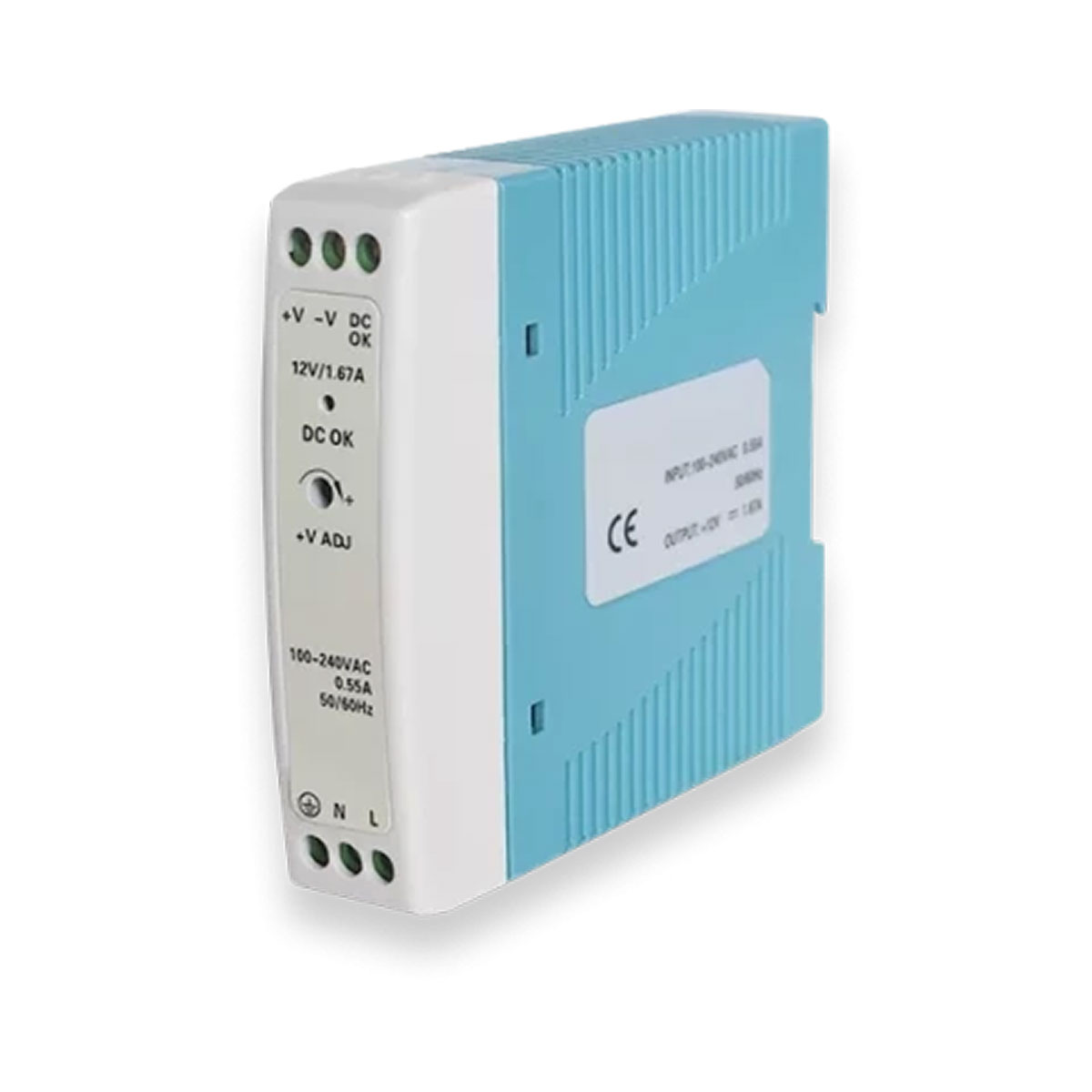

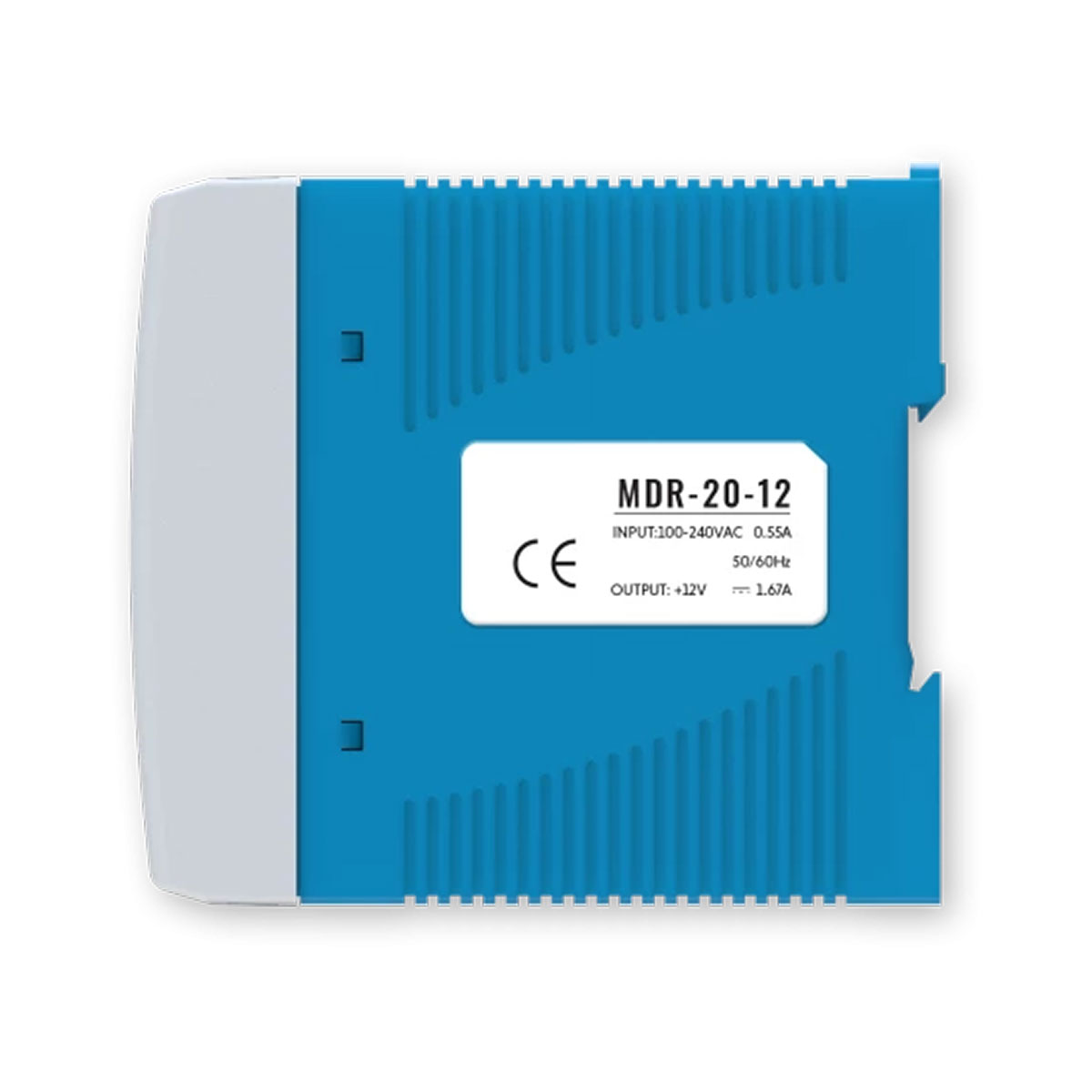

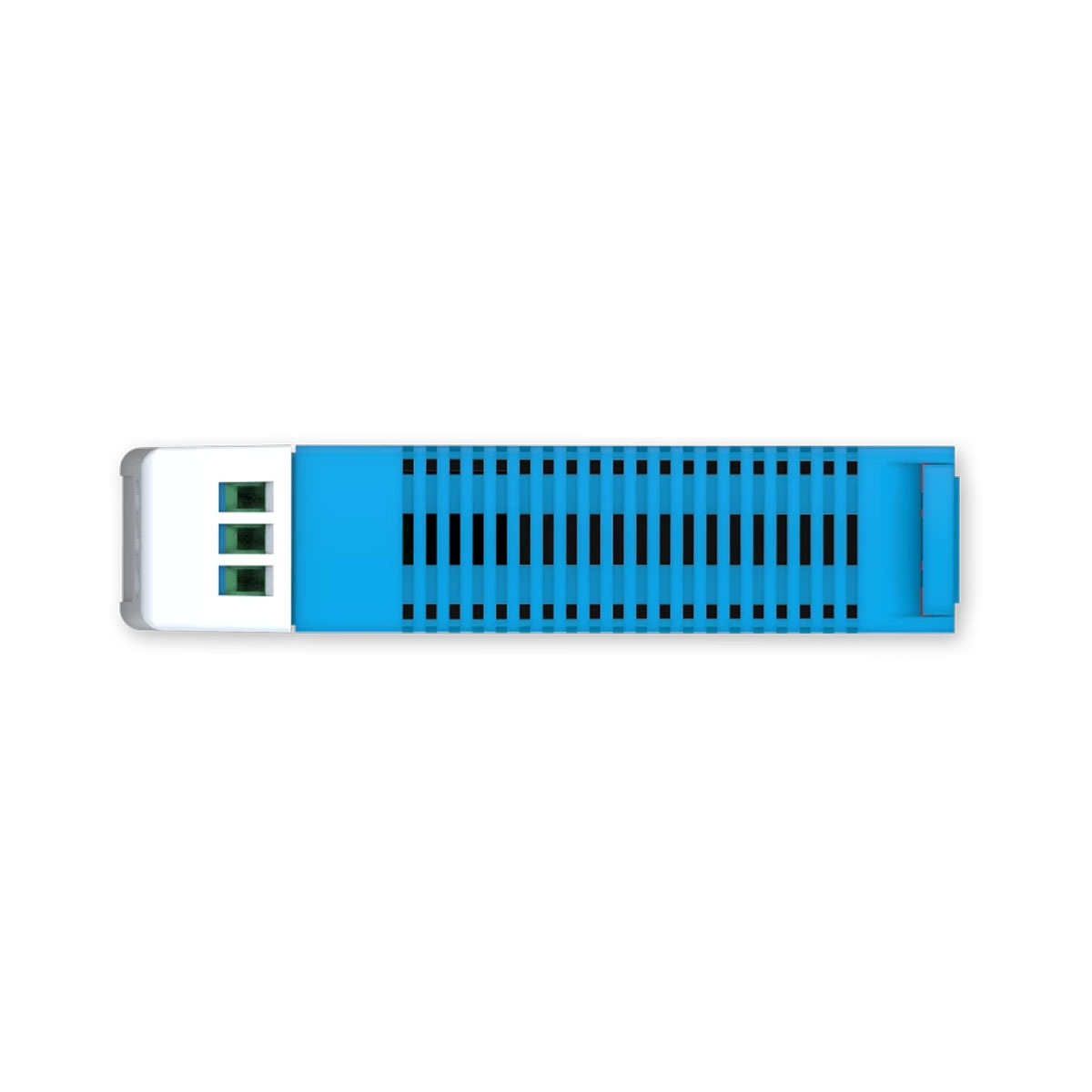

Teltonika PR3PDNP0 DIN Rail Power supply
Κωδικός προϊόντος:
PR3PDNP0
21,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
16,94 €
Άμεσα διαθέσιμο
Teltonika PR3PDNP0 DIN Rail Power supply
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Power supply for RUT240, RUTX09, RUT950, RUT955, RUTX11, RUTXR1, RUT360, RUTX08, RUTX10, RUT300, TRBR140, TRB141, TRB142, TRB145, TRB245 and TRB255.
Χαρακτηριστικά
| Specifications | |
| Parameter | Rated Value |
| Single output power | 20 W |
| Input Voltage range | 100-240 VAC 50/60 Hz |
| DC output voltage | 12 V |
| DC output current | 0~1.67 A |
| Output ripple and noise | 120 mVp-p |
| Line regulation | ±1 % |
| Load regulation | ±1 % |
| Efficiency | 80% |
| Adjustable range for DC voltage | ±1 % |
| Test standard | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN55022:2010 EN61000-3-2:2014 EN61000-3-3:2013 EN55024:2010/A1:2015 |
| Inrush current | Cold start current 20 A/ 115 VAC; 40 A/ 230 VAC |
| Overload protection | 105 % ~ 160 % cut off the output, automatic recovery |
| Over voltage protection | 120 % ~ 140 % shut down O/P voltage, off/on cycle required for recovery |
| Setup, rise, hold up time | 500 ms; 30 ms/ 230 VAC at full load; 1000 ms; 30 ms/ 115 VAC at full load |
| Withstand voltage | I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute |
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 500 VDC/ 1000 MΩ |
| Working temperature | -10 °C ~ +50 °C |
| Mounting options | 35 mm DIN Rail |
| Dimensions | 22.5 x 90 x 100 mm |
| Weight | 19 g |
