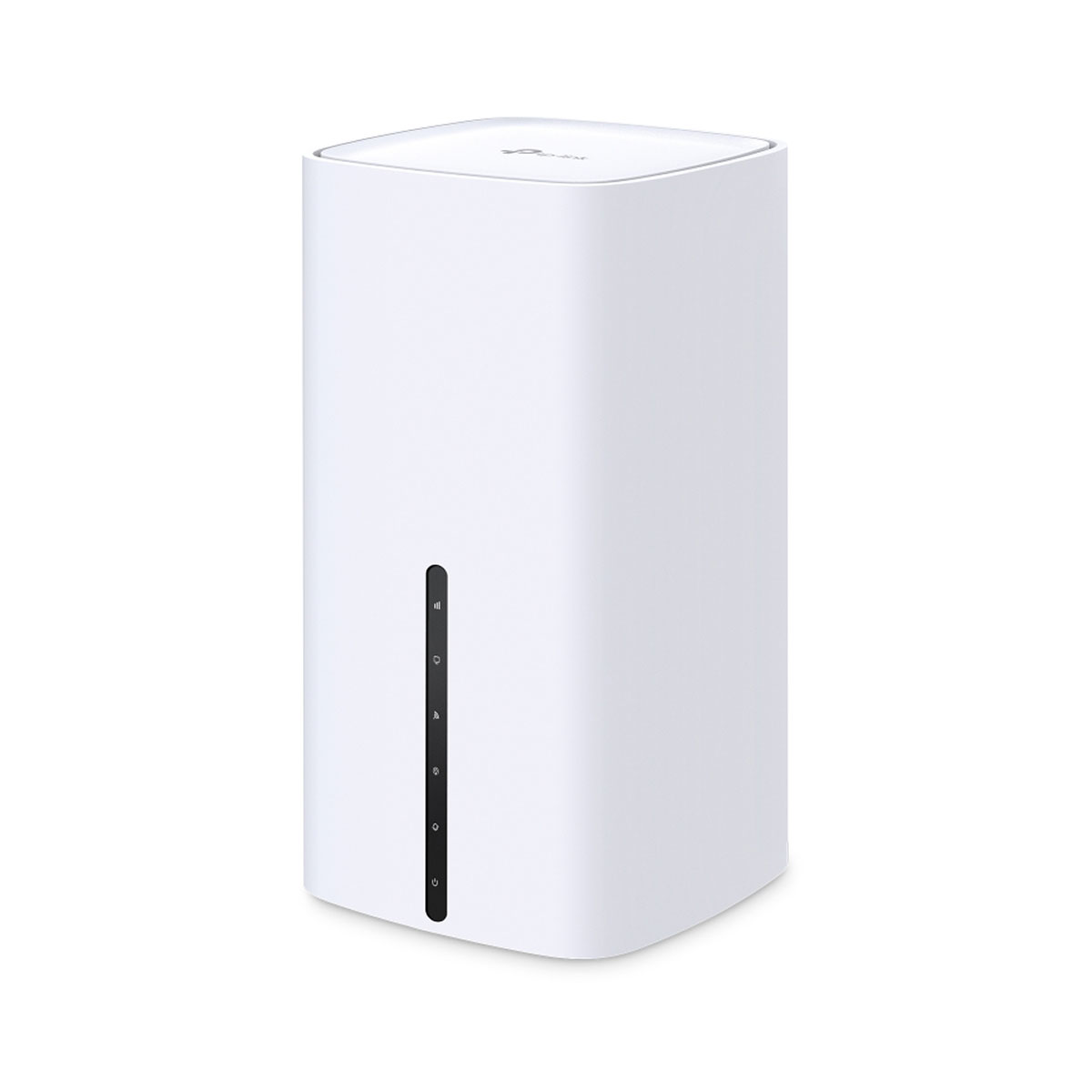

TP-LINK ARCHER NX200 V2.2, 5G AX1800 Wireless Dual-Band Gigabit Router
| • Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. • AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz). • Plug & Play - Enjoy 5G network right after inserting a SIM card. • EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage. • Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. |
Superior 5G – A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.**
Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX200 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card. Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
Available WAN Connection Backup
The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Use
Set up the Archer NX200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
| HARDWARE |
|

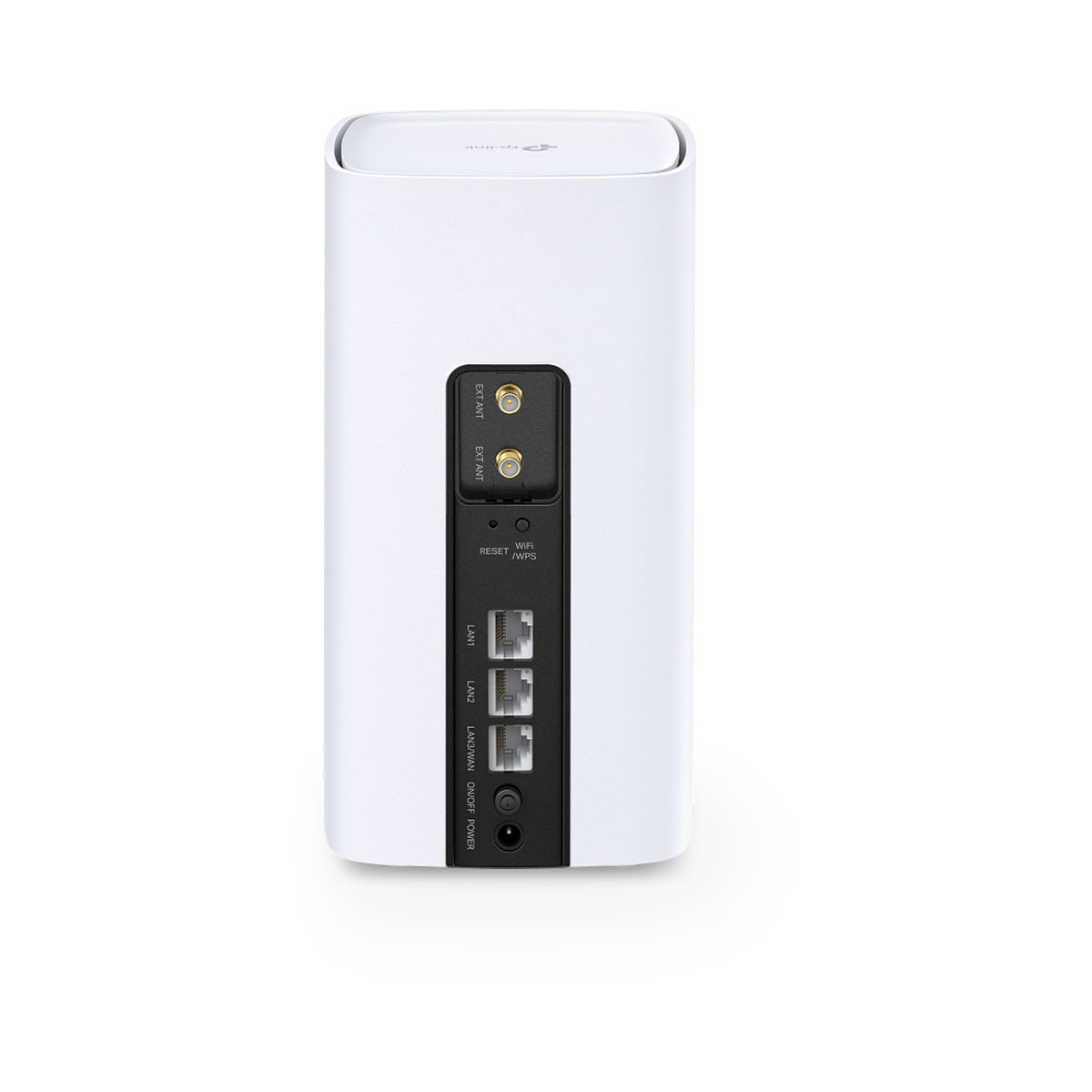

| Interface | 2×Gigabit LAN Ports 1×Gigabit LAN/WAN Port 1×Nano SIM Card Slot 2×SMA ports for 5G/4G External Antennas 1×Power port |
| Buttons | Wi-Fi/RESET Button, Power Button, WPS Button |
| Antennas | 2×Internal Wi-Fi Antennas 8×Internal NR/LTE Antennas |
| External Power Supply | 12V/2A |
| Dimensions | 99 x 99x 190 mm |
| WIRELESS |
|
| Network Type | • 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 • 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41/B42/B43(2600/2300/2500/3500/3700 MH • 3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz) |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| EIRP (CE) | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Reception Sensitivity | • 5 GHz: 11a 54M: -80 dBm 11ax HE20: -68 dBm 11ax HE40: -65 dBm 11ax HE80: -62 dBm 11ac VHT20: -76 dBm 11ac VHT40: -72 dBm 11ac VHT80: -68 dBm 11n HT20: -79 dBm 11n HT40: -75 dBm • 2.4 GHz: 11g 54M: -78 dBm 11ax HE20: -65 dBm 11ax HE40: -62 dBm 11ac VHT20: -73 dBm 11ac VHT40: -68 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm |
| Wireless Function | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
| SOFTWARE | |
| Operating Modes | 3G/4G/5G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, DHCP Client List, Address Reservation |
| Quality of Service | Bandwidth Control |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN Server | PPTP VPN, IPSec VPN, OpenVPN |
| Firewall Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
| Protocols | IPv4, IPv6 |
| Management | Access Control, Local Management, Remote Management, reboot schedule |
| Guest Network | 2.4 GHz guest network x 1, 5 GHz guest network x 1 |
| OTHERS | |
| Certification | CE, RoHS |
| Requirements | Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version Nano SIM Card |
| Environment | Operating Temperature: 0℃~40℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package Contents | 5G AX1800 Wireless Dual Band Gigabit Router Archer NX200 RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
