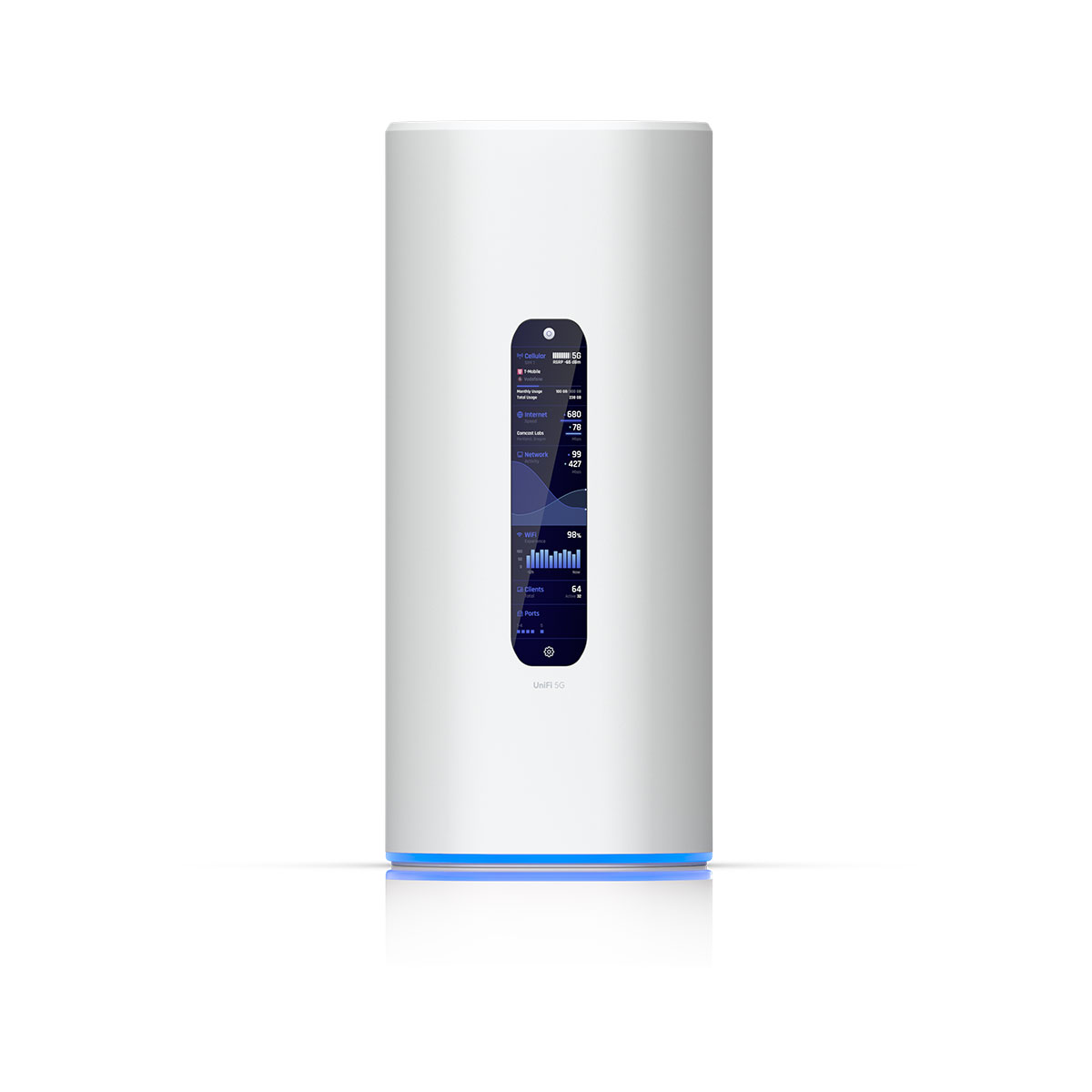

Ubiquiti UDR-5G-MAX, Desktop Cloud Gateway, Dream Router 5G Max
The device offers a combination of high performance and robust security, ideal for modern homes and offices with a mix of mobile 5G and wired connections. With a throughput of 2.3 Gbps IDS/IPS and support for up to 300 clients, it handles demanding applications and intense network traffic without compromise. Advanced features, such as application-dependent firewall and content filtering with over 20,000 IDS/IPS signatures, ensure a high level of data protection and stable network operation even in risky environments.
Flexible Connectivity and Modern Technology
The integrated WiFi technology supports standards WiFi 6/6E and WiFi 7 with a maximum speed of up to 5.7 Gbps in the 6 GHz band, enabling quick and reliable connections for all devices. The router offers multiple WAN ports, license-free SD-WAN, and IPsec for flexible connections to various networks. With NVR storage with a pre-installed 64 GB microSD card and an advanced UniFi device ecosystem, network management is simple and efficient.
Features:
• 2.3 Gbps IDS/IPS – high throughput for demanding applications
• Support for up to 300 clients – stable connection for multiple devices
• Application-dependent firewall and 20,000+ IDS/IPS signatures – advanced security
• NVR storage with 64 GB microSD – integrated storage and data management
• Transmission speeds – 2.4 GHz: 688 Mb/s, 5 GHz: 4,334 Mb/s, 6 GHz: 5,765 Mb/s
• WAN speed (1) 100M/1G/2.5G
• LAN speed (3) 100M/1G/2.5G
• Optical interface (1) 10Gbps WAN
• Mobile 5G speeds up to 1800 / 650 Mbps
• SIM slot + eSIM
• PoE budget 15.4 W

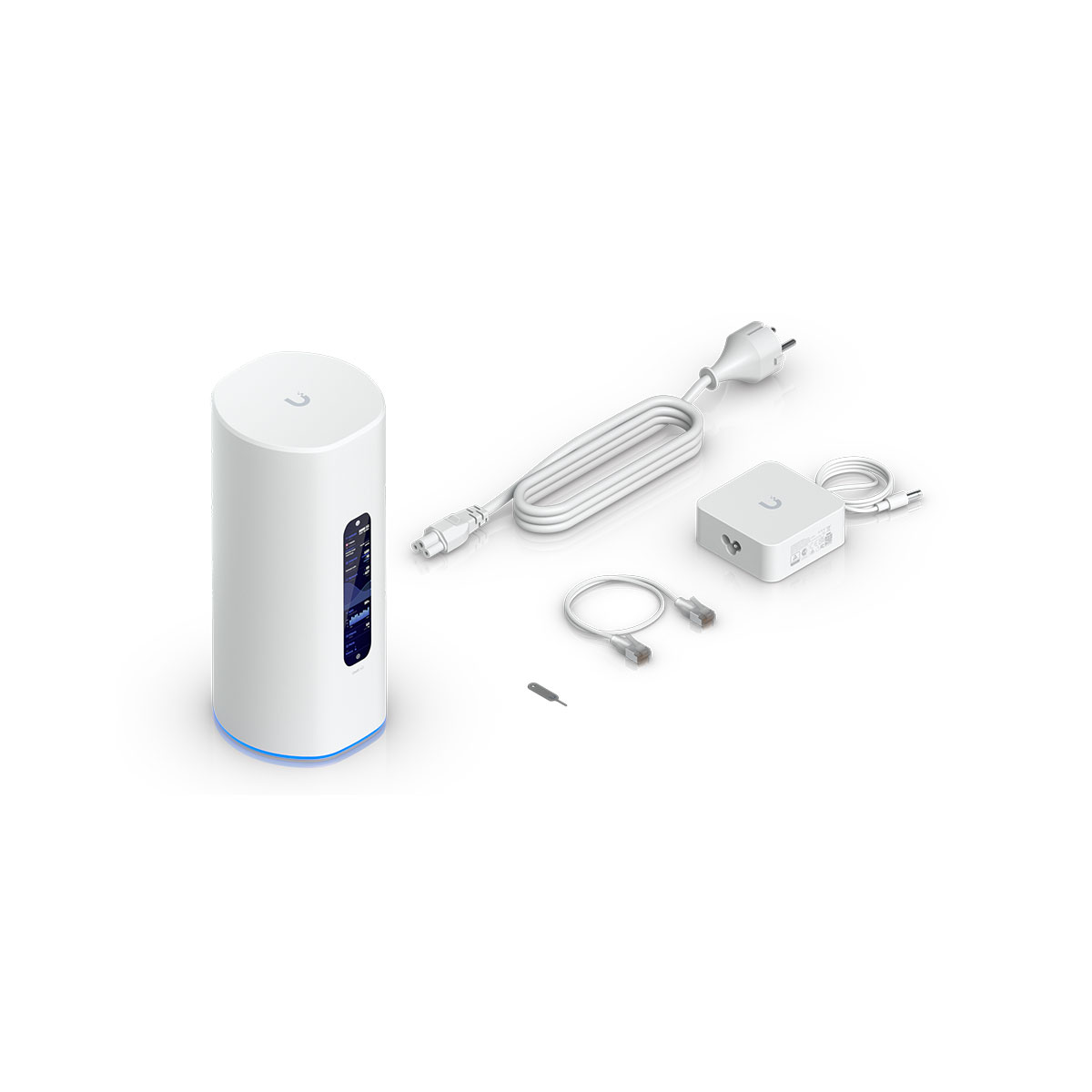

Package Contents
• Device
• Power adapter 54V / 1.1A
• Power cable
• Ethernet cable for network connection
| Specifications | ||||||
| Dimensions | 110 x 110 x 250 mm | |||||
| UniFi Application Suite | ||||||
| Network | ✓ 🛈 Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN. |
|||||
| Protect | ✓ 🛈 AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management. |
|||||
| Access | ✓ 🛈 Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms. |
|||||
| Talk | ✓ 🛈 Plug-and-play VoIP system advanced call routing and automations for seamless communication. |
|||||
| Connect | ✓ 🛈 Manage digital signage, EV chargers, and Lutron lighting systems with ease. |
|||||
| Managed UniFi Devices | 30+ | |||||
| Managed Cameras | (5) HD (2) 2K (1) 4K |
|||||
| Simultaneous Users Connected | 300+ | |||||
| Max. WAN Port Count | 4 | |||||

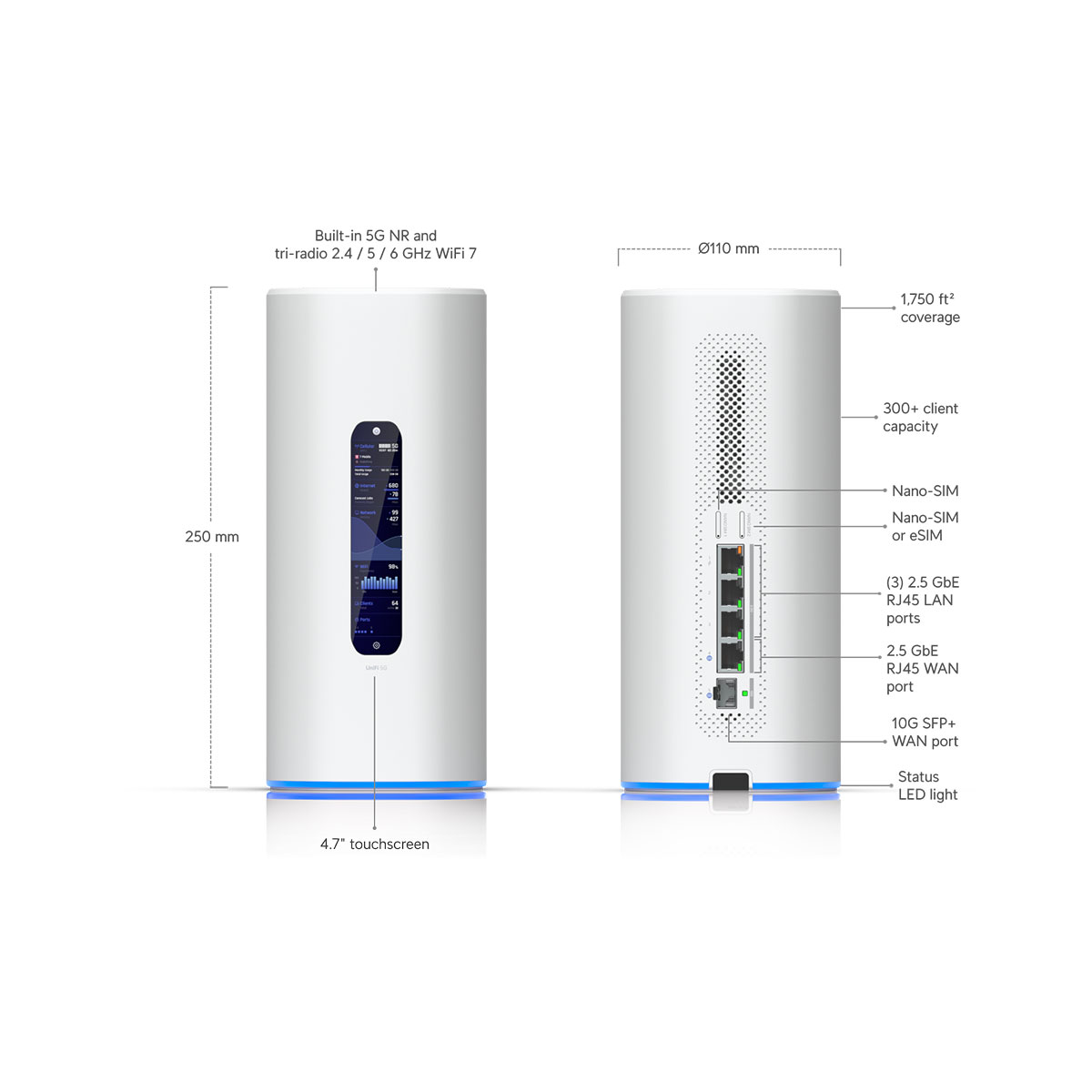

Port Layout
|
|
|||||
| IDS/IPS Throughput | 2.3 Gbps | |||||
| Form Factor | Desktop | |||||
| Coverage Area | 160 m² | |||||
| Security | ||||||
| Stateful Firewall | ✓ | |||||
| Application-Aware Layer 7 Firewall | ✓ | |||||
| DPI & Traffic Identification | ✓ | |||||
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ | |||||
| Content Filtering | ✓ | |||||
| Intrusion Prevention (IPS/IDS) | ✓ | |||||
| Ad Blocking | ✓ | |||||
| IDS/IPS Signatures | 20,000+ with CyberSecure | |||||
| VLAN/Subnet-based Traffic Segmentation | Yes | |||||
| VPN & SD-WAN |
||||||
| License-Free SD-WAN | ✓ | |||||
| Site-to-Site VPN | Site Magic - ✓ IPsec - ✓ OpenVPN - ✓ |
|||||
| VPN Server | Identity Endpoint One-Click VPN - ✓ Teleport Zero-Configuration VPN - ✓ WireGuard - ✓ OpenVPN - ✓ L2TP- ✓ |
|||||
| VPN Client | OpenVPN - ✓ WireGuard - ✓ |
|||||
| Site-to-Site VPN Single Tunnel Throughput | Site Magic: 20 | |||||
VPN Client Single Tunnel Throughput
|
|
|||||
| Networking |
||||||
| Multi-WAN Load Balancing | ✓ | |||||
| Dynamic Routing |
OSPF
|
|||||
| Advanced QoS |
✓
|
|||||
| Multicast DNS (mDNS) |
✓
|
|||||
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
✓
|
|||||
| Integrated RADIUS Server | ✓ | |||||
| RADIUS over TLS (RadSec) | ✓ | |||||
| Additional Internet Failover with UniFi LTE Backup |
✓
|
|||||
| Internet Quality and Outage Reporting |
✓
|
|||||
| MAC Address Table Size |
2,000
|
|||||
| Virtual Network Override |
✓
|
|||||
| Integrated WiFi | ||||||
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |||||
| Throughput |
• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps
|
|||||
| MIMO |
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
|
|||||
| Antenna gain |
6 GHz - 8 dBi
5 GHz - 5 dBi
2.4 GHz - 4 dBi
|
|||||
| Max. TX Power |
6 GHz - 22 dBm
5 GHz - 26 dBm
2.4 GHz - 23 dBm
|
|||||
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |||||
| Max. BSSIDs | 4 per Radio | |||||
| Supported Data Rates |
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40) 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b - 1, 2, 5.5, 11 Mbps 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|||||
| Cellular |
||||||
| 5G NR | Category - 5G NR Sub-6 Frequency Bands - n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 Max. TX Power - HPUE power class 2: 26 dBm |
|||||
| 4G LTE |
Frequency Bands -
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 Max. TX Power - HPUE power class 2: 25 dBm |
|||||
| 3G UMTS |
Frequency Bands -
B1, B2, B4, B5, B8, B19 |
|||||
| Peak Data Speed |
5G NSA -
Downlink 3.4 Gbps Uplink 560 Mbps 🛈 Speed depends on network coverage and performance at the divice location 5G SA - Downlink 1.8 Gbps Uplink 650 Mbps 4G LTE - Downlink 1.6 Gbps Uplink 210 Mbps |
|||||
| Antenna Gain |
617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi
|
|||||
| SIM | (2) Nano SIM (1) Nano-SIM or eSIM 🛈 Nano-SIM 2 cannot be used when an eSIM is active. |
|||||
|
Hardware
|
||||||
| NVR Storage | Pre-installed 64GB microSD for NVR | |||||

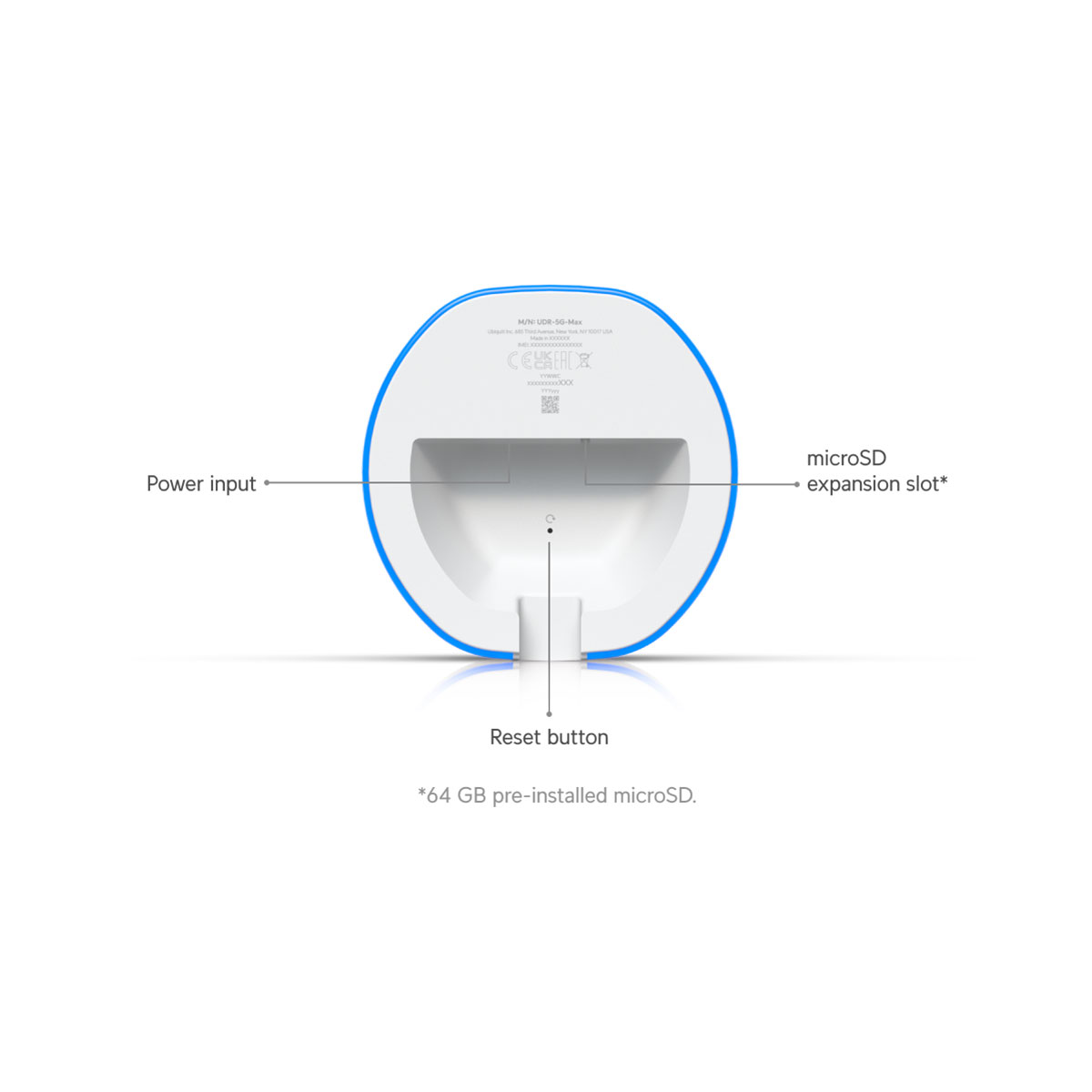

| Expansion Slot | MicroSD Card 🛈 64GB pre-installed microSD |
|||||
| PoE Budget | 15.4W | |||||
| Max. PoE Wattage per Port by PSE PoE |
15.4W | |||||
| Voltage Range PoE Mode | 44–57V | |||||
| Max. Power Consumption | 34.5W (Excluding PoE output) | |||||
| Power Method | DC jack (54V DC/1.1A) | |||||
| Power Supply | 54V DC/1.1A (Adapter included) | |||||
| Supported Voltage Range | 100-240V AC | |||||
| Heat Dissipation | 115 BTU/hr (Excluding PoE output) | |||||
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz | |||||
| System Memory | 3 GB | |||||
| Weight | 1.4 kg | |||||
| Enclosure Material | Polycarbonate | |||||
| LCM Display | 4.7" touchscreen | |||||
| Management | Ethernet Bluetooth |
|||||
| LEDs | Ethernet - ✓ SFP+ - ✓ System - ✓ |
|||||
| Button | (1) Factory-reset | |||||
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV | |||||
| Ambient Operating Temperature | 0 to 40° C | |||||
| Ambient Operating Humidity | 5 to 95% noncondensing | |||||
| Certifications | FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance® | |||||
| NDAA Compliant | ✓ | |||||
| Software | ||||||
| Mobile App | UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later | |||||
