MikroTik RBSXTsq5nD SXTsq Lite5, 16dBi, 5GHz, 600MHz CPU, RouterOS L3

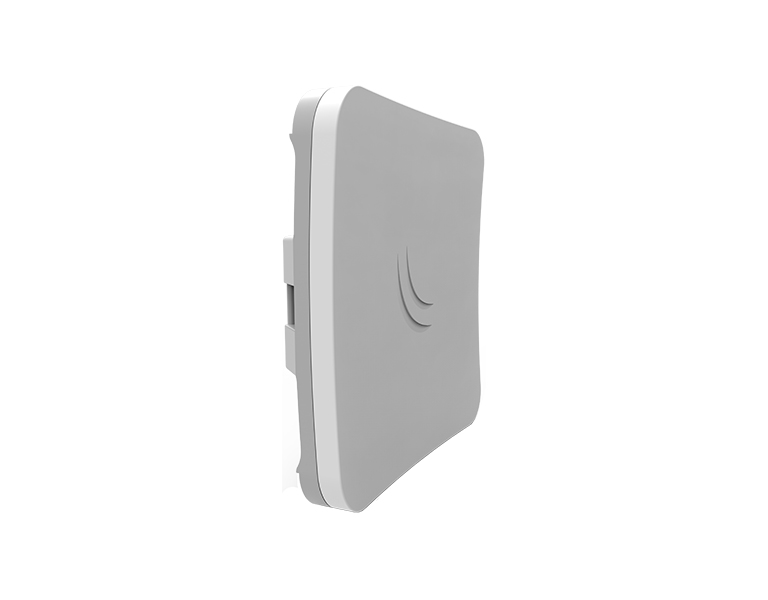

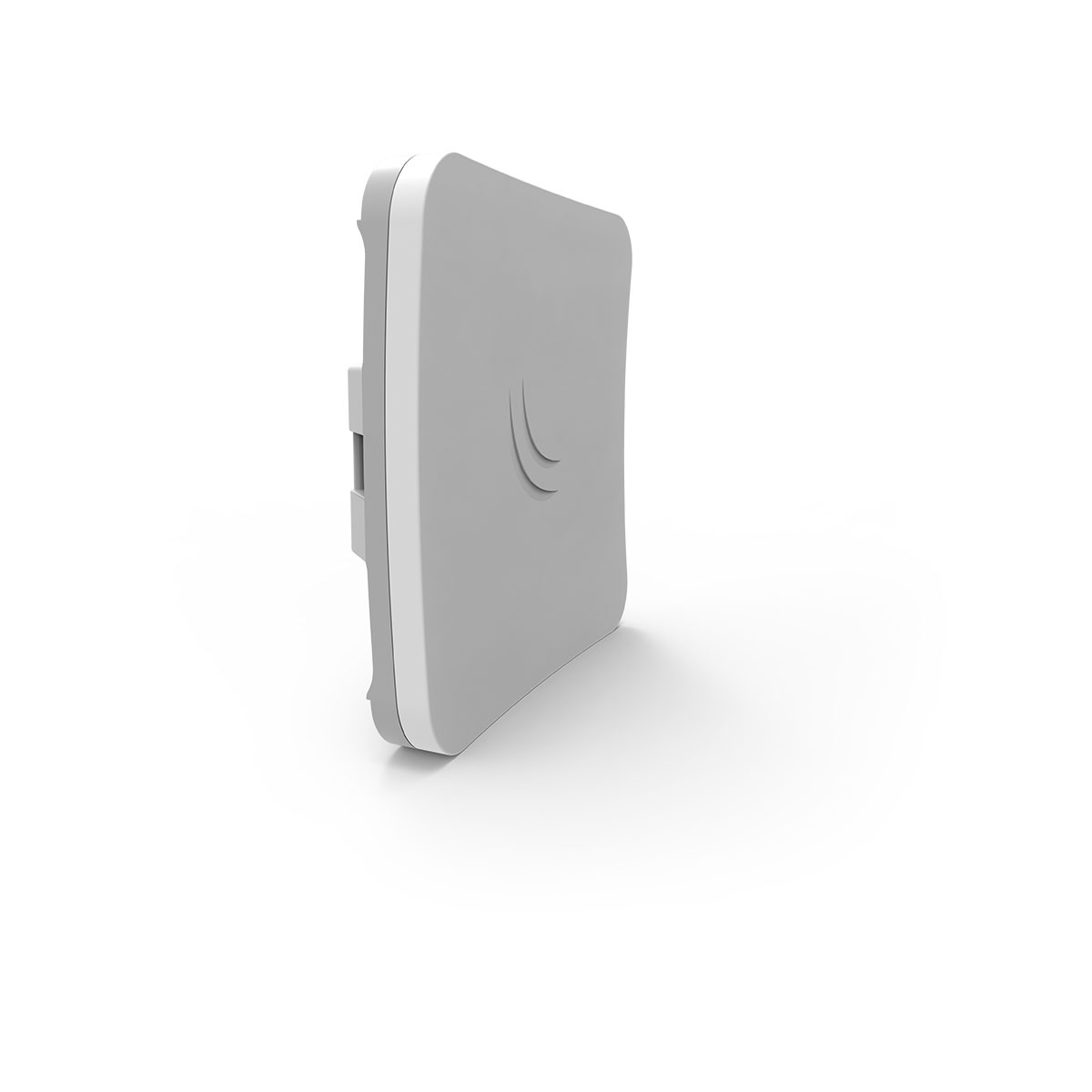

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount.

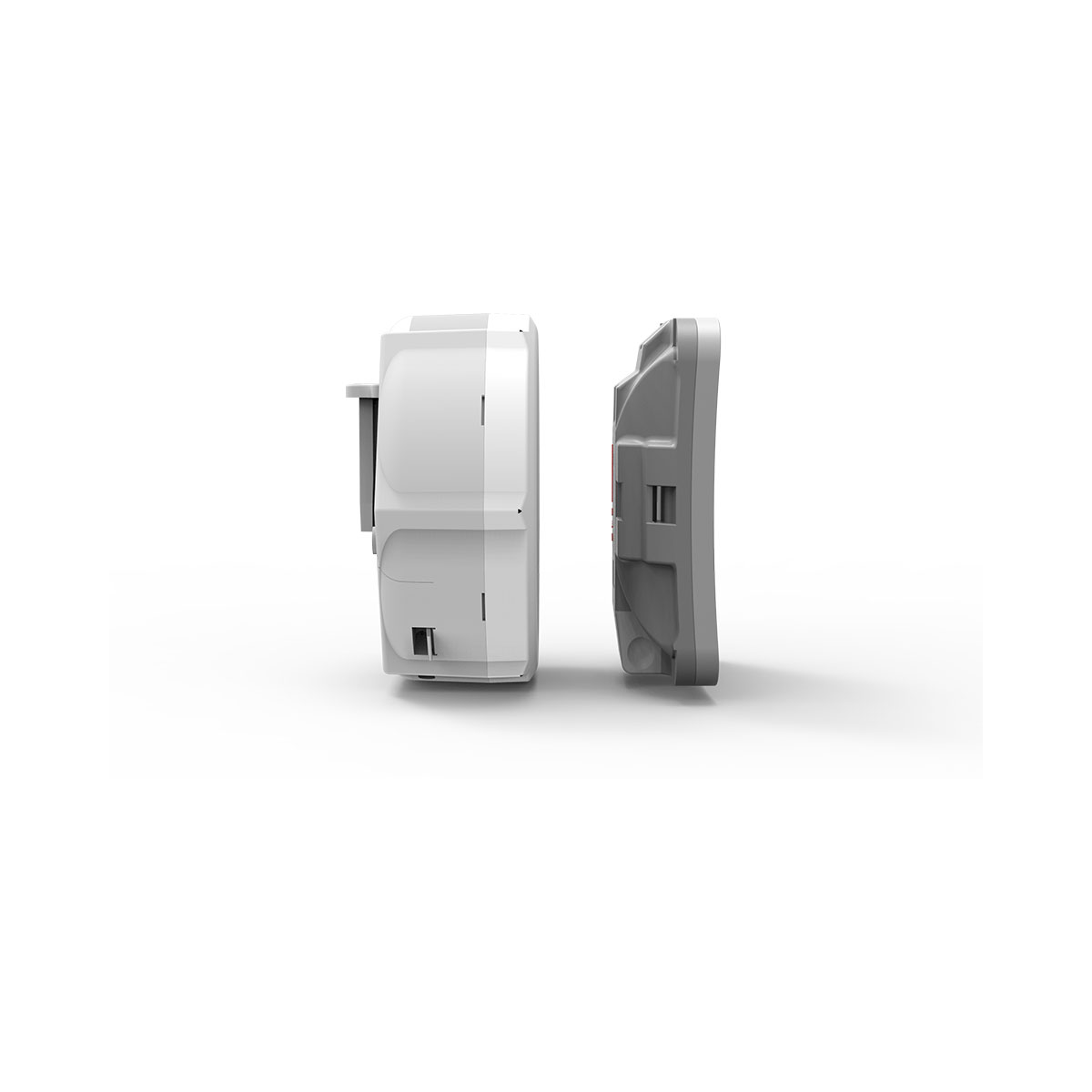

The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, the previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

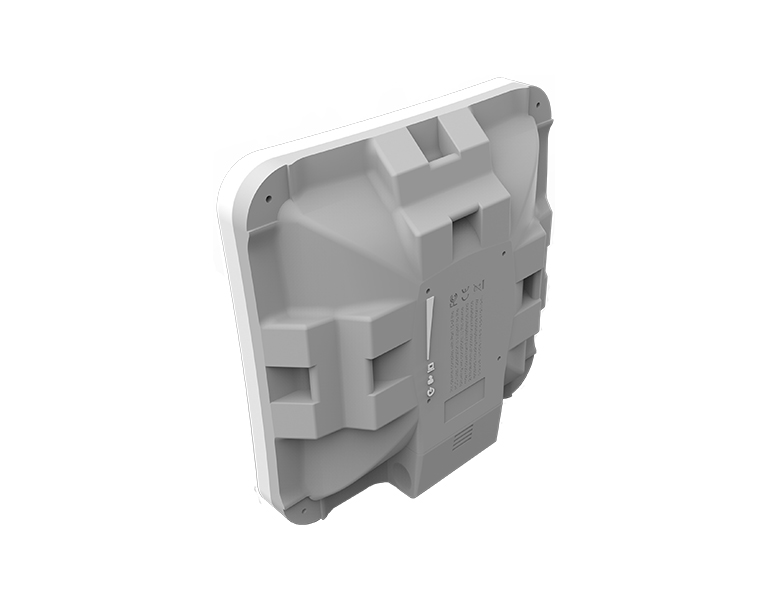

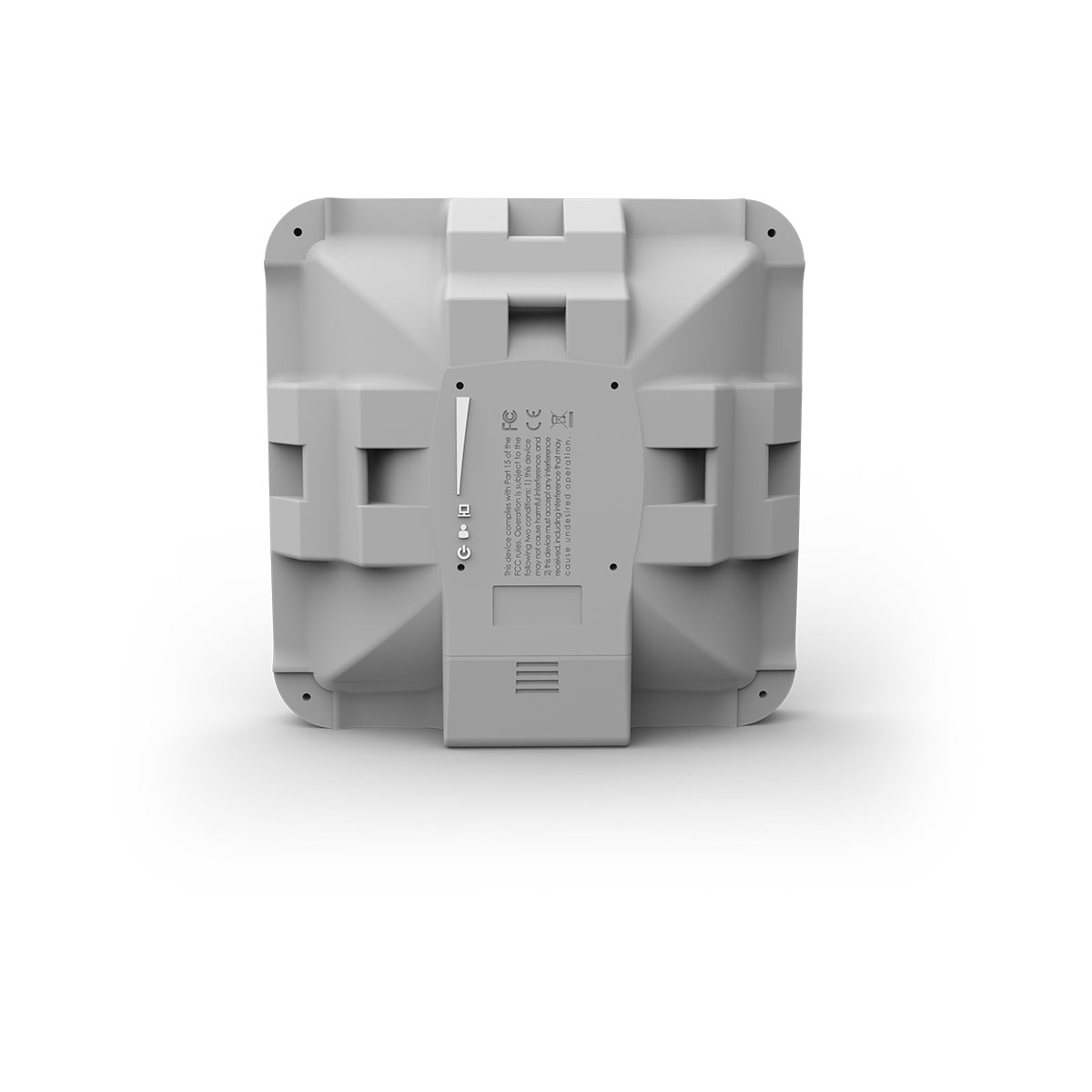

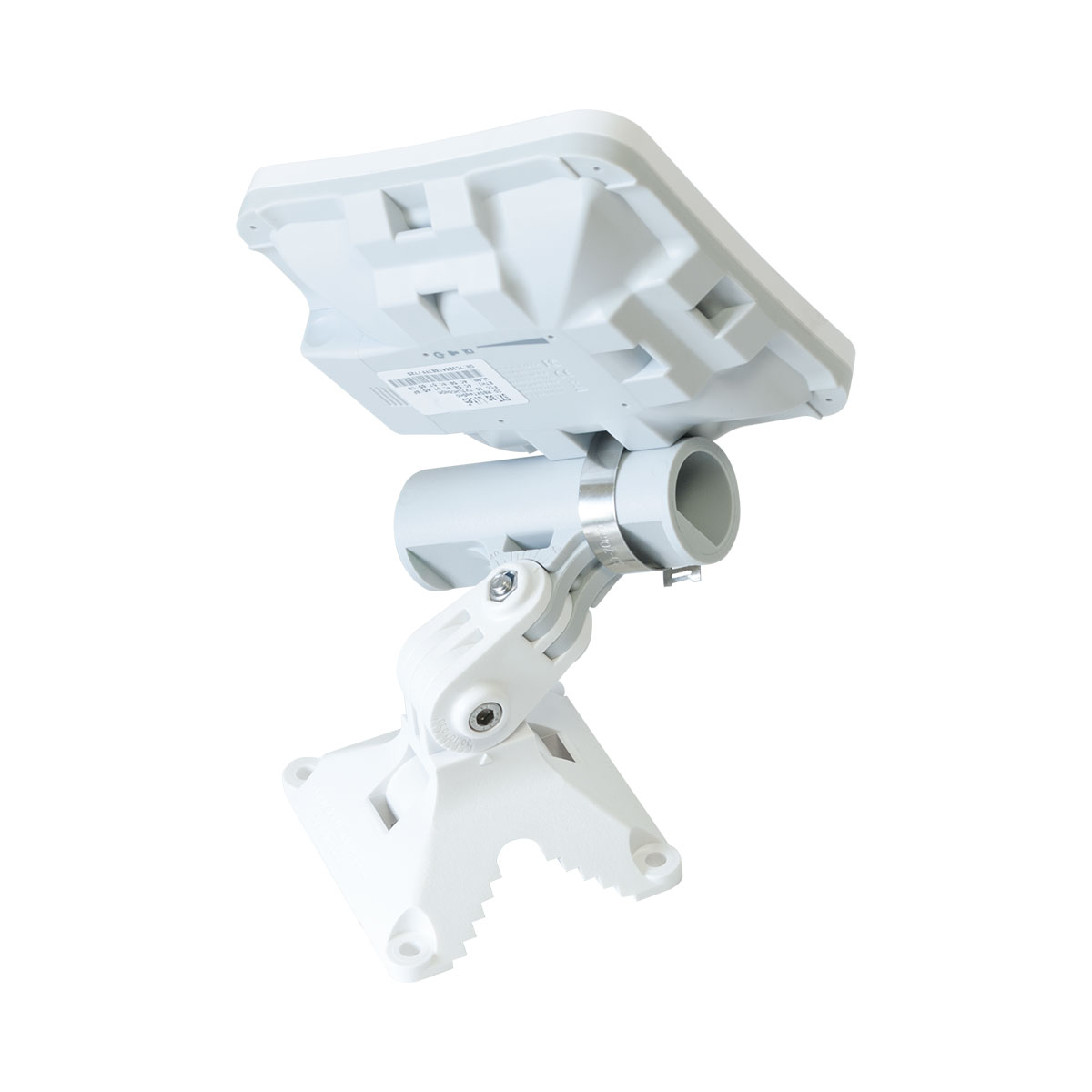

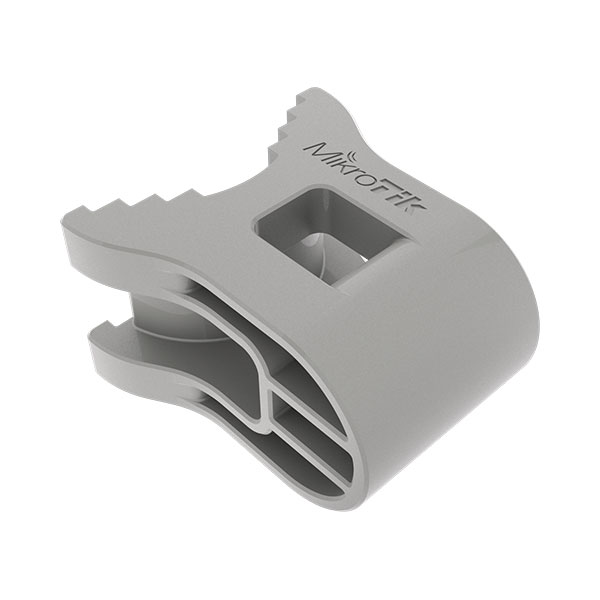

The enclosure includes slots for directly attaching a metallic ring mount in three different mounting places, with ability to be mounted on horizontal railings.
The device includes one 10/100Mbit ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.
| Specifications | |
| Product code | RBSXTsq5nD |
| Architecture | MIPSBE |
| MIPSBE | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Unit: 129 x 129 x 34mm Package: 255x180x45 mm |
| Weight | Unit: 295 g Package: 492 g |
| RouterOS License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Wireless | |
| Operating frequency | 5150 - 5875 MHz |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 16 |
| Antenna beam width | 23° |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
